The Manitowoc Crane MLC300WB Parts Manual (SN 3007017) is a comprehensive guide in PDF format, facilitating easy access to essential information for maintenance and repairs. It includes detailed specifications, diagrams, and part numbers, ensuring efficient and accurate identification of components.

FILE DETAILS:

Manitowoc Crane MLC300WB Parts Manual SN 3007017 – PDF DOWNLOAD

Language : English
Pages : 99
Downloadable : Yes
File Type : PDF

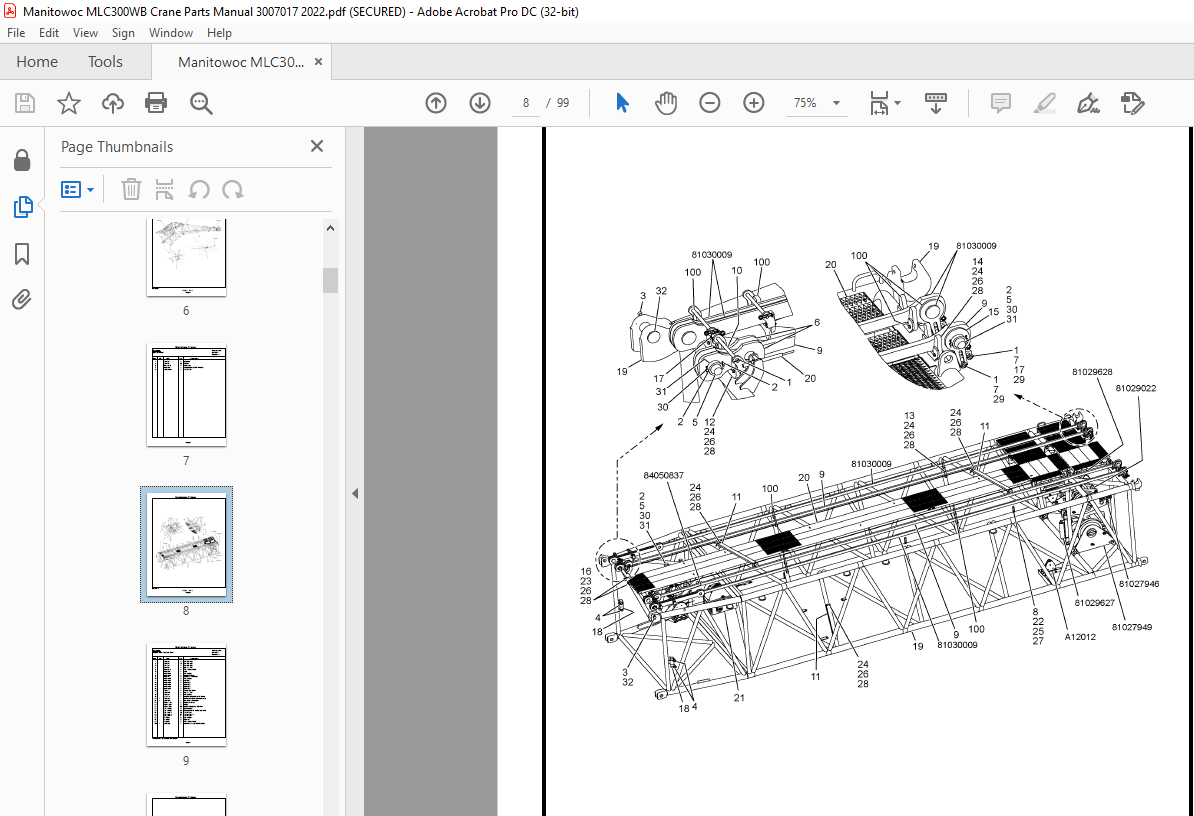

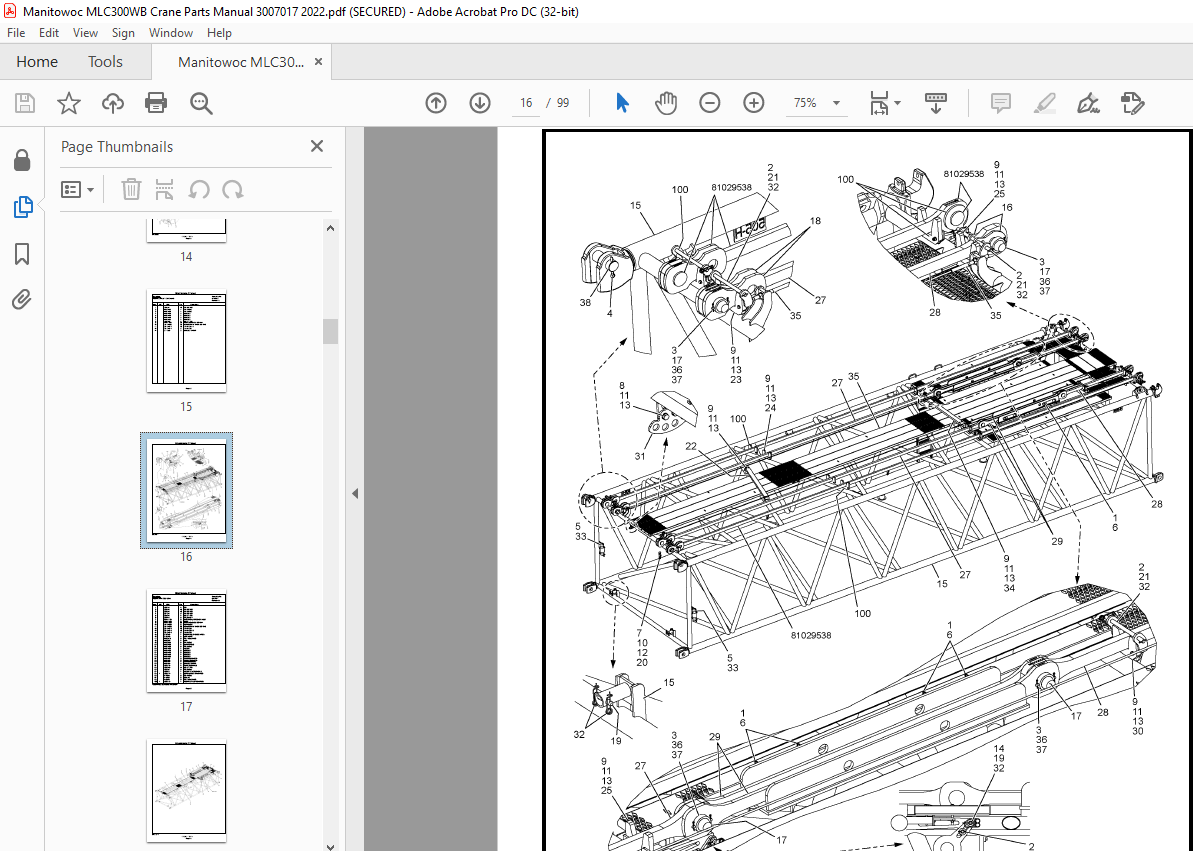

IMAGES PREVIEW OF THE MANUAL:

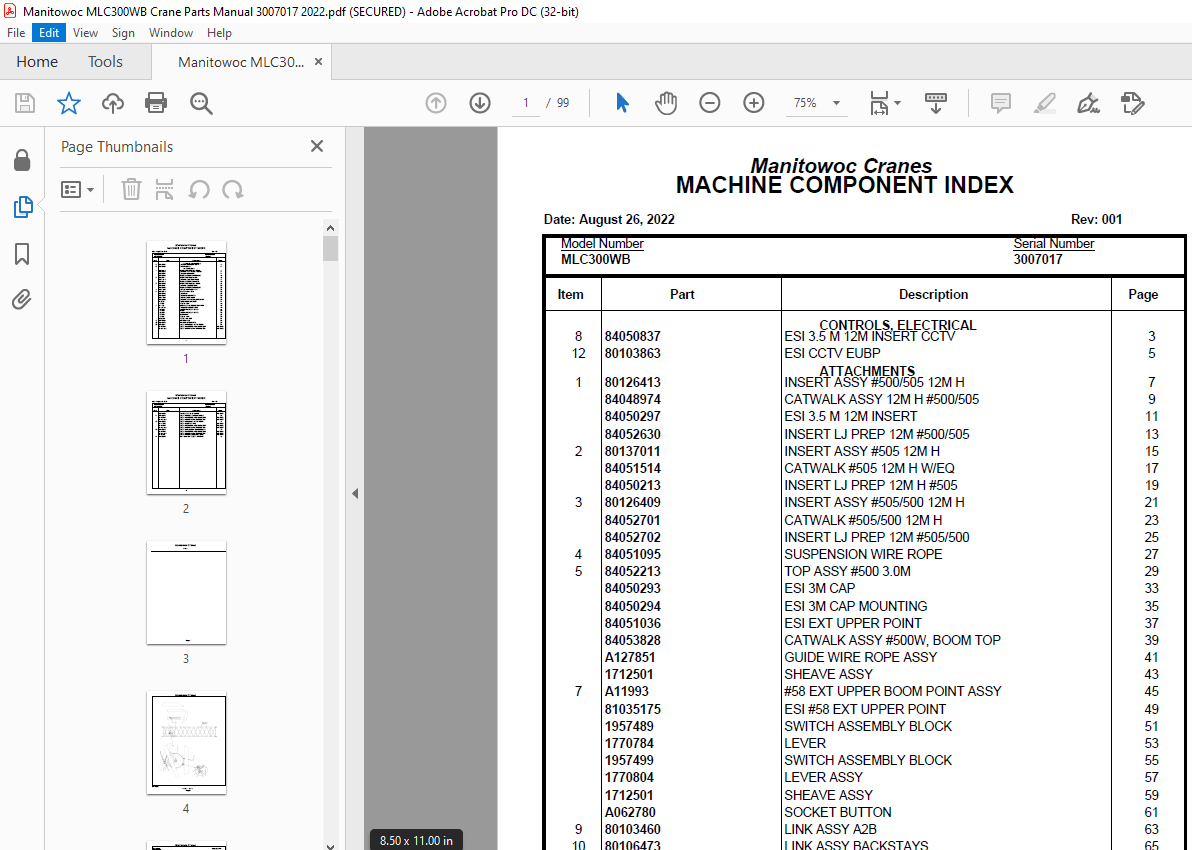

TABLE OF CONTENTS:

Manitowoc Crane MLC300WB Parts Manual SN 3007017 – PDF DOWNLOAD

CONTROLS, ELECTRICAL
8 84050837 ESI 3.5 M 12M INSERT CCTV 3
12 80103863 ESI CCTV EUBP 5
ATTACHMENTS
1 80126413 INSERT ASSY #500/505 12M H 7
84048974 CATWALK ASSY 12M H #500/505 9
84050297 ESI 3.5 M 12M INSERT 11
84052630 INSERT LJ PREP 12M #500/505 13
2 80137011 INSERT ASSY #505 12M H 15
84051514 CATWALK #505 12M H W/EQ 17
84050213 INSERT LJ PREP 12M H #505 19
3 80126409 INSERT ASSY #505/500 12M H 21
84052701 CATWALK #505/500 12M H 23
84052702 INSERT LJ PREP 12M #505/500 25
4 84051095 SUSPENSION WIRE ROPE 27
5 84052213 TOP ASSY #500 3.0M 29
84050293 ESI 3M CAP 33
84050294 ESI 3M CAP MOUNTING 35
84051036 ESI EXT UPPER POINT 37
84053828 CATWALK ASSY #500W, BOOM TOP 39
A127851 GUIDE WIRE ROPE ASSY 41
1712501 SHEAVE ASSY 43
7 A11993 #58 EXT UPPER BOOM POINT ASSY 45
81035175 ESI #58 EXT UPPER POINT 49
1957489 SWITCH ASSEMBLY BLOCK 51
1770784 LEVER 53
1957499 SWITCH ASSEMBLY BLOCK 55
1770804 LEVER ASSY 57
1712501 SHEAVE ASSY 59
A062780 SOCKET BUTTON 61
9 80103460 LINK ASSY A2B 63
10 80106473 LINK ASSY BACKSTAYS 65
10 80109371 DECAL KIT #500/505 TRANS INSER 67
81017794 DECAL-PERSONNEL TIE DOWN POINT NO DWG
810121832 DECAL WARNING FALL PROTECTION NO DWG
80102744 PLATE CRANE ID MFG IN SG NO DWG
11 80109372 DECAL KIT #505 12M HEAVY INSER 69
81017794 DECAL-PERSONNEL TIE DOWN POINT NO DWG
810121832 DECAL WARNING FALL PROTECTION NO DWG
12 80109373 DECAL KIT #505/500 TRANS INSER 71
81041859 DECAL INSERT LIFTING NO DWG
81017794 DECAL-PERSONNEL TIE DOWN POINT NO DWG
810121832 DECAL WARNING FALL PROTECTION NO DWG
13 80109374 DECAL KIT MLC300 WIDEBOOM EUBP 73
81017794 DECAL-PERSONNEL TIE DOWN POINT NO DWG
810121832 DECAL WARNING FALL PROTECTION NO DWG
A134940 DECAL WARNING CRUSH HAZARD NO DWG
14 80133048 MULTI-BUTTON SOCKET AND PINS 75
