ROTATING STRUCTURE
1 81021912 CAB ASSY 24V CCS 3
81022373 SEAT ASSY CAB 5
810243544 CAB ASSY 7
810218742 EXTERIOR EQUIP CAB ASSY 13
81021878 DOOR ASSY CAB 17

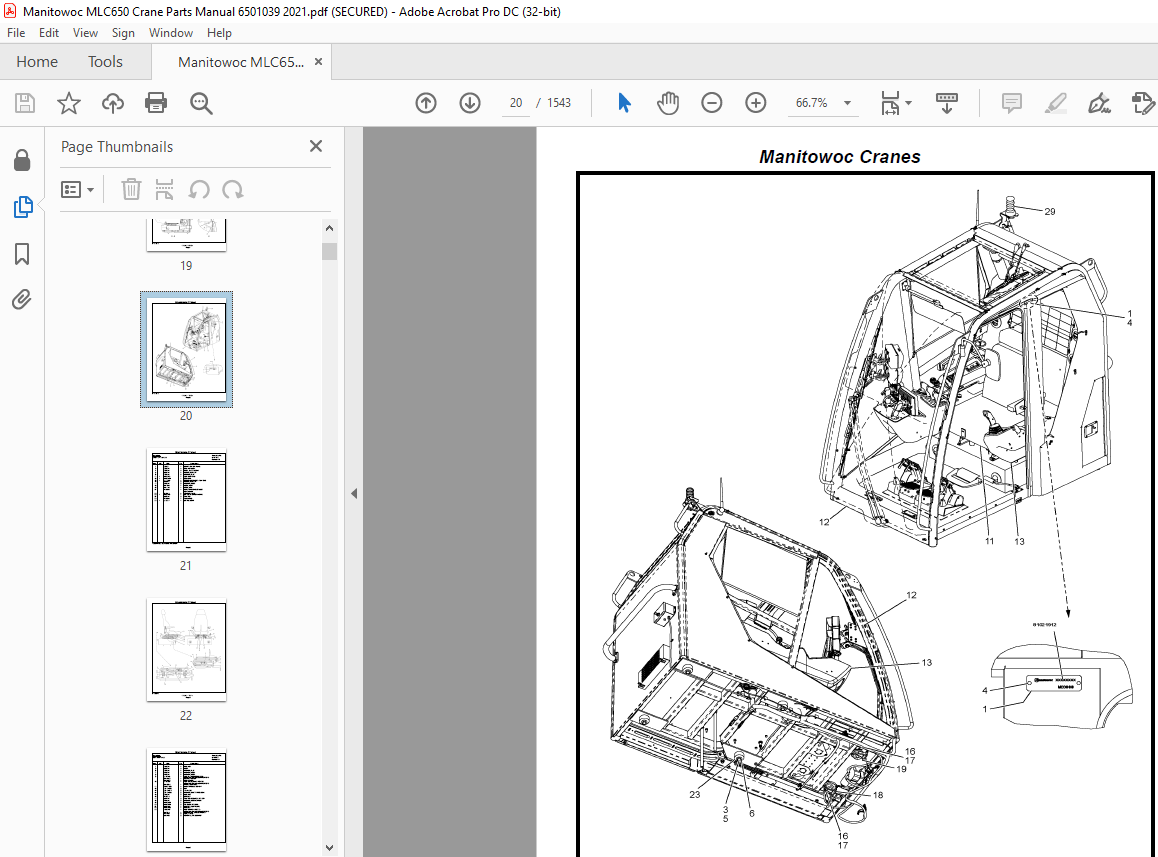

81021879 WINDOW ASSY CAB 19
810219011 WINDSHIELD WIPER ASSY CAB 21
A027140 ROLLER ASSY CAB DOOR FRONT TRO 23
810302802 BRAKE ASSY CAB DOOR BRAKE 25
A037000 ROLLER ASSY 27
810218752 INTERIOR EQUIP CAB AIR DUCTS 29
81021876 INTERIOR EQUIP CAB ASSY 31
810218772 INSULATION ASSY CAB 33
80113630 HVAC ASSY CAB 35
84039648 HVAC KIT CAB INSIDE PARTS 37
90046833 PEDESTAL UNIT 39
810223752 MAT FLOOR ASSY CAB 41

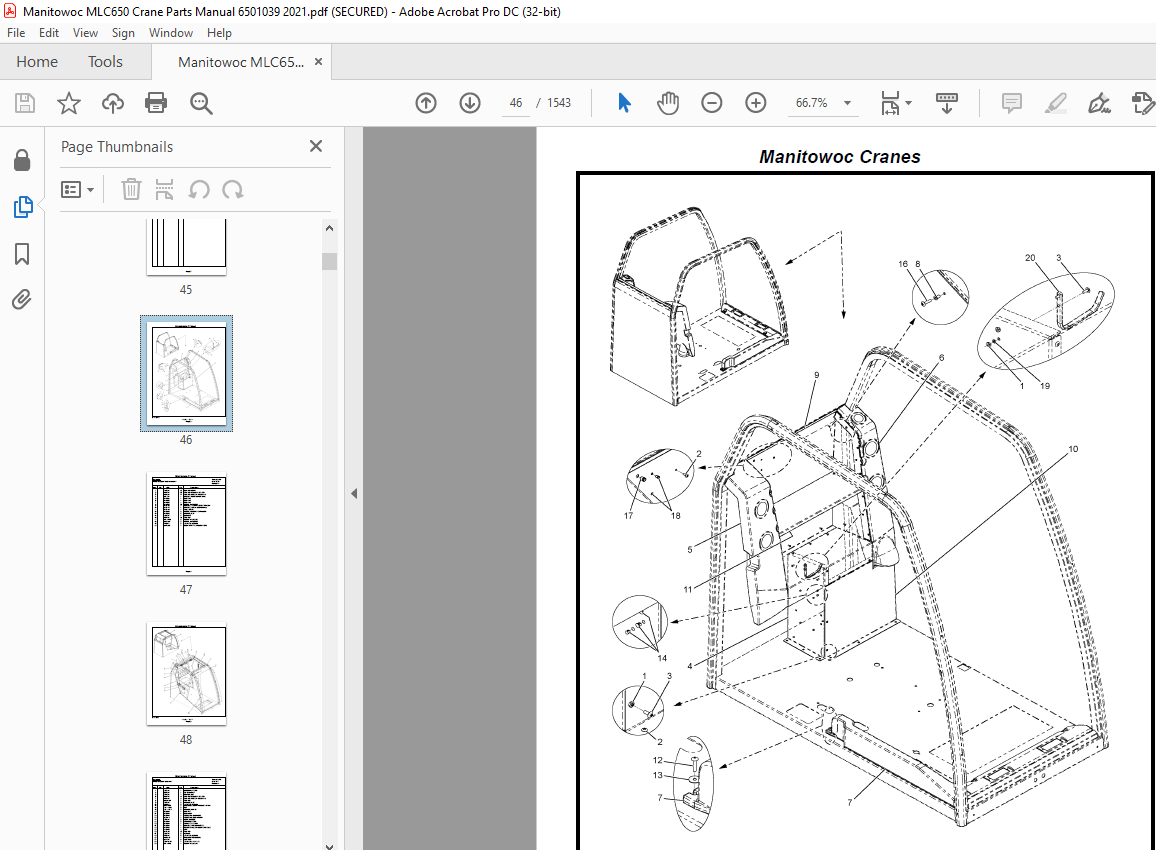

80113624 CONSOLE CONTROL ASSY CAB 43
81019747 CONSOLE LEFT HAND ASSY 47
A024680 CONTROLLER, JOYSTICK 51
80123310 LIGHT ASSY CONSOLE BACKLIGHT 53
81037044 CONSOLE RIGHT HAND ASSY 57
84054782 DISPLAY CCS COLOR 61
810240861 ESI CONSOLE RIGHT HAND 63
A032981 ACCESSORY RADIO ASSY 65
81036291 ESI R CONSOLE RECPT 67
81039868 ESI CAN RECEPTACLE MOUNT 69
80123310 LIGHT ASSY CONSOLE BACKLIGHT 71
A02019 FOOT PEDAL ASSY THROTTLE CONTR 73
81025906 ESI CAB INTERIOR WIRING 75
80125411 ESI RCL LIGHT 77
1 81043247 DECAL INSTL MLC650 STANDARD 79
81043248 DECALS MLC650 STD CAB 83
Manitowoc Cranes

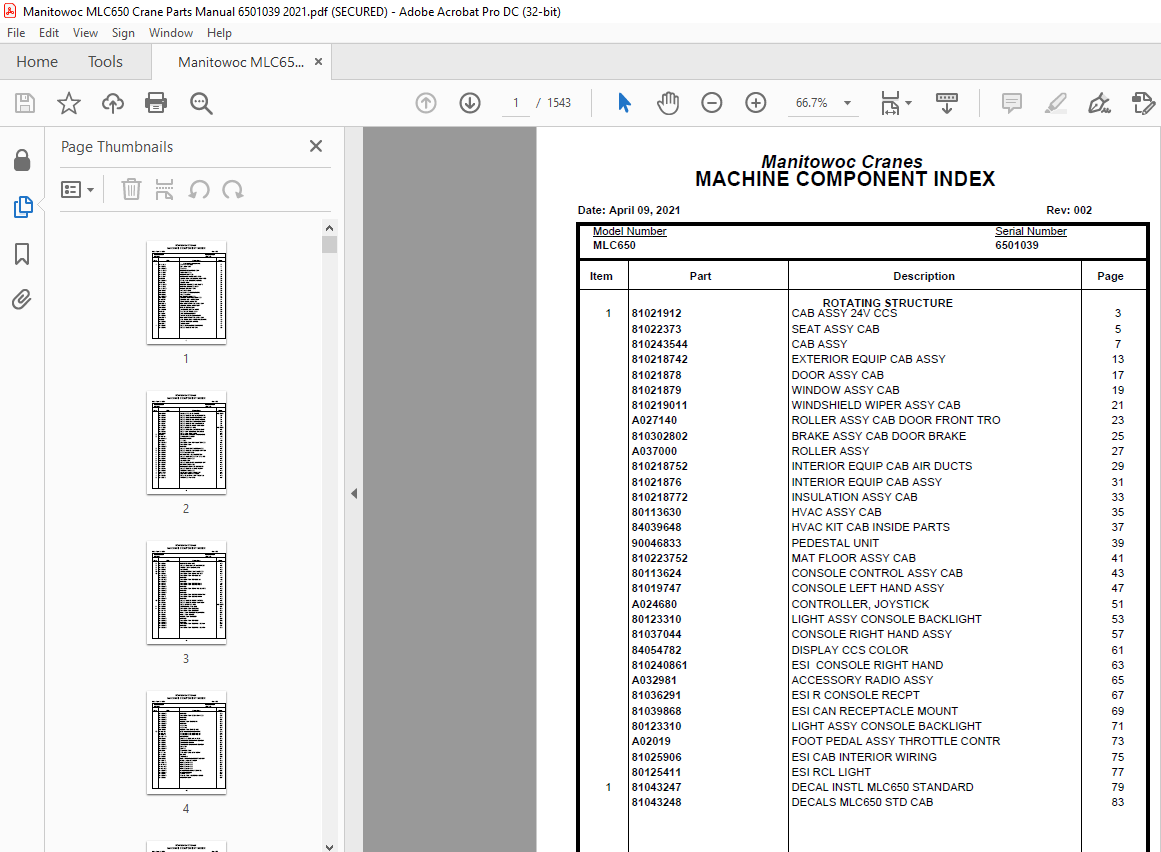

MACHINE COMPONENT INDEX
Date: April 09, 2021 Rev: 002
Model Number Serial Number
MLC650 6501039
Item Part Description Page
II
80102744 PLATE CRANE ID MFG IN SG NO DWG
81043249 DECALS MLC650 STD LOWERWORKS 85
81043269 DECALS MLC650 LOWERWORKS SHIP 87
81043250 DECALS MLC650 STD UPPERWORKS 91
81043270 DECALS MLC650 UPPERWORKS SHIP 93
81043251 DECALS MLC650 STD BASIC BOOM 97
81043266 DECALS MLC650 INSERT SHIPMENT 99
81041859 DECAL INSERT LIFTING NO DWG
81043271 DECALS MLC650 BASIC BOOM SHIP 101
81030238 DECAL ASSY HANDRAIL ID MLC650 105
84020245 DECAL ASSY PARTS BOX 107
2 A03316 COVER ASSY WINDOWS VISION CAB 109
2 810191411 CAB MOUNTING ASSY 113
810106720 CYLINDER HYDR 117
3856245 KIT, SEAL 119
810297792 PLATFORM ASSY INSTALLATION CAB 121
810292711 PLATFORM ASSY 123
810293652 LANYARD 125
2 81043252 DECALS MLC650 NOMENCLATURE 127
3 81043253 DECALS MLC650 SELFERECT OPTION 129
4 81028484 HANDRAIL ASSY CAB 131
4 81027230 LINK ASSY ROT BED ALIGNMENT 133
4 81043254 DECALS MLC650 CARBODY JACKING 135
5 81025807 SWITCH DRUM 2 CAB 137
5 84038896 BUSHING ASSY 139
5 81043255 DECALS MLC650 VPC-MAX PREP OPT 141
6 81033567 LINK ASSY STOWAGE 143
6 81023581 PIN PULLER ASSY ROT BED REAR 145
6 81043256 DECALS MLC650 T4F ENGINE OPT 147
7 81025809 SWITCH DRUM 5 CAB 149
7 84021726 GENERATOR ASSY APU PREP 151
7 81031171 BEAM ASSY ROTATING BED 153
7 81043258 DECAL MLC650T4F FAST FUEL FILL 155
8 81025812 SWITCH CAB TILT CAB 157
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: April 09, 2021 Rev: 002
Model Number Serial Number
MLC650 6501039
Item Part Description Page
III
8 81025532 WEAR PAD ASSY VPC 159
8 81043259 DECALS MLC650 PORT HYD POWER 161
9 81025813 SWITCH TIER 4F ENGINE CAB 163
9 81037083 GEAR RACK 165
10 81025814 SWITCH AIRCRAFT WARNING CAB 167
10 81027339 PLATFORM ASSY ROTATING BED 169
810291222 PLATFORM ASSY ROT BED LH 171
810293652 LANYARD 173
810291942 PLATFORM ASSY ROT BED LH 175
810293652 LANYARD 177
81039774 PLATFORM ASSY BED REAR LH 179
81039775 PLATFORM ASSY BED REAR LH 181
810293652 LANYARD 183
810292722 PLATFORM ASSY ROTATING BED RIG 185
810293652 LANYARD 187
810293652 LANYARD 189
81040458 PLATFORM ASSY BED REAR RH INST 191
81040014 PLATFORM ASSY BED REAR RH 193
810293652 LANYARD 195
10 81043261 DECALS MLC650 INSERT TYPICAL 197
81043266 DECALS MLC650 INSERT SHIPMENT 199
81041859 DECAL INSERT LIFTING NO DWG
11 81023038 FLOOR PLATE ASSY CAB 201
11 81027699 PLATFORM ASSY GENERAL 203
81038176 PLATFORM ASSY CARBODY 205
81038154 STRUT ASSY CARBODY PLATFORM 207
81042792 STRUT ASSY LOWER 209
81038486 LADDER ASSY CARBODY 211
810293652 LANYARD 213
810290992 PLATFORM ASSY ROT BED 215
810293652 LANYARD 217
810292622 PLATFORM ASSY REAR ROT BED LH 219
810293652 LANYARD 221
810292632 PLATFORM ASSY REAR ROT BED RH 223
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: April 09, 2021 Rev: 002
Model Number Serial Number
MLC650 6501039
Item Part Description Page
IV
810293652 LANYARD 225
810294972 PLATFORM ASSY 2469 X 1044 CAB 227
810293652 LANYARD 229
810293652 LANYARD 231
810294952 LADDER ASSY CAB REAR 233
810293652 LANYARD 235
810299471 HANDRAIL 237
810299531 HANDRAIL 239
80116669 LADDER ASSY CAB TO BED 241
12 81019142 MAST WITH BACKHITCH ASSY 243
81019148 DRUM ASSY LIVE MAST HOIST 247
81019318 DRUM ASSY LIVE MAST HOIST 249
810221140 HYD MOTOR 251
90038633 OVERHAUL SEAL KIT, H1B160 255
81035392 GUARD ASSY DRUM WITH CUTOUT 257
81035396 GUARD ASSY DRUM 259
81035394 GUARD ASSY DRUM WITH CUTOUT 261
810234252 GEARBOX 263
810300010 SENSOR 267
84028201 BREATHER ASSY 269
81021129 PAWL ASSY LIVE MAST HOIST 271
81041533 CYL HYD 273
81024562 ESI DRUM 4 275
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 277
81028015 PIPING LIVE MAST HOIST 283
810039140 Q DISCON FITTING 289
810114710 Q DISCON FITTING 291
810121640 Q DISCON FITTING 293
810121650 Q DISCON FITTING 295
810239070 VALVE DIRECTIONAL CONTROL 297
810279320 VALVE MANIFOLD 299
81022627 GANTRY ASSY 301
810338870 SHEAVE ASSY 1.25 ROPE X 30 OD 303
81022688 LIVE MAST ASSY 307
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: April 09, 2021 Rev: 002
Model Number Serial Number
MLC650 6501039
Item Part Description Page
V
810338870 SHEAVE ASSY 1.25 ROPE X 30 OD 311
81026040 ESI LIVE MAST 313
810285341 PIPING LIVE MAST 315
7041130 VALVE, DOUBLE COUNTERBALANCE 319
810039130 Q DISCON FITTING 321
80114873 PIN PULLER DRUM 4 BRACKETS 323
12 81043261 DECALS MLC650 INSERT TYPICAL 325
81043266 DECALS MLC650 INSERT SHIPMENT 327
81041859 DECAL INSERT LIFTING NO DWG
13 81043261 DECALS MLC650 INSERT TYPICAL 329
81043266 DECALS MLC650 INSERT SHIPMENT 331
81041859 DECAL INSERT LIFTING NO DWG
20 81028324 COUNTERWEIGHT WELDMENT NO DWG
21 81028324 COUNTERWEIGHT WELDMENT NO DWG
22 81028898 GUIDE ASSY ROT BED VPC&VPCMAX 333
81022347 LINK CONNECTING VPC ACTUATOR 335
81037523 SLIDE VPC HOSE CHAIN ASSY 337
81029057 HYD LINES INSTL ROT BED VPC 339
810287340 CHAIN ROTATING BED ASSY 341
81042207 PIN HOSE STOWAGE 343
23 81043261 DECALS MLC650 INSERT TYPICAL 345
81043266 DECALS MLC650 INSERT SHIPMENT 347
81041859 DECAL INSERT LIFTING NO DWG
24 810284679 PARTS BOX ASSY 349
810423562 LINK ASSY DEAD END DRUM 2 PREP 351
A062780 SOCKET BUTTON 353
810307552 PIPING HYD ASSY HOSE DOUBLE W/ 355
810121640 Q DISCON FITTING 357
810121650 Q DISCON FITTING 359
810307562 PINPULLER ASSY HAND HELD 361
810121640 Q DISCON FITTING 363
810121650 Q DISCON FITTING 365
810280802 SHAFT COUPLING PINPULLER ASSY 367
810249430 VALVE ASSY QUICK DRAIN 369
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: April 09, 2021 Rev: 002
Model Number Serial Number
MLC650 6501039
Item Part Description Page
VI
81041177 PUMP CRAWLER TENSIONING 371
A041430 PUMP HYD HAND 373
810039130 Q DISCON FITTING 375
810423562 LINK ASSY DEAD END DRUM 2 PREP 377
A062780 SOCKET BUTTON 379
810423562 LINK ASSY DEAD END DRUM 2 PREP 381
A062780 SOCKET BUTTON 383
24 81043261 DECALS MLC650 INSERT TYPICAL 385
81043266 DECALS MLC650 INSERT SHIPMENT 387
81041859 DECAL INSERT LIFTING NO DWG
25 81043261 DECALS MLC650 INSERT TYPICAL 389
81043266 DECALS MLC650 INSERT SHIPMENT 391
81041859 DECAL INSERT LIFTING NO DWG
31 81036848 DRUM ASSY #3 WHIP LINE PREP 393
810271231 HYD LINES INSTL DRUM 3 PREP 397
810039130 Q DISCON FITTING 401
810114700 Q DISCON FITTING 403
81042207 PIN HOSE STOWAGE 405
49 81029718 ENCLOSURE ASSY 407
54 81040138 PIN ASSY VPC MAX PREP 409
55 81022181 COUNTERWEIGHT TRAY ASSY VPC 413
810152201 ROLLER ASSY 417
81022485 HYD LINES INSTL VPC TRAY 421
81028704 VALVE ASSY 1 BANK D03 ALUMINUM 427
810239070 VALVE DIRECTIONAL CONTROL 429
810241911 ESI CWT TRAY VPC 431
80124066 LIGHT ASSY VPC WARNING 433
810295091 CHAIN 435
58 80111790 MOD ROTATING BED 437
UPPERWORKS MACHINERY
3 81020158 UPPER WORKS JACKING 439
A059691 OUTRIGGER PAD SUBASSY 30.5″ 441
4 81026138 HYD LINES INSTL CARBODY JACKIN 445
810121650 Q DISCON FITTING 451
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: April 09, 2021 Rev: 002
Model Number Serial Number
MLC650 6501039
Item Part Description Page
VII
810039130 Q DISCON FITTING 453
7 81020657 HYDRAULIC SCHEMATIC MLC650 NO DWG
13 81028813 CYL HYD ASSY LIVE MAST INSTL 455
810288141 PIPING SELF-ERECT LIVE MAST 457
15 810191494 DRUM ASSY WHIP LINE HOIST 459
81021104 PRESSURE ROLLER ASSY WHIP HOIS 461
81021105 ARM PRESSURE ROLLER ASSY 463
81025879 LINK ASSY PIVOT 465
810245352 ESI DRUM 3 467
810271451 PIPING HYD WHIP HOIST DRUM 3 469
810039140 Q DISCON FITTING 473
810114710 Q DISCON FITTING 475
810239070 VALVE DIRECTIONAL CONTROL 477
81021101 DRUM ASSY WHIP HOIST 479
810239060 HYD MOTOR 481
90038633 OVERHAUL SEAL KIT, H1B160 485
810245240 GEARBOX 487
810300010 SENSOR 491
81035400 GUARD ASSY DRUM WITH CUTOUT 493
81035404 GUARD ASSY DRUM 495
84028201 BREATHER ASSY 497
23 81021787 HYD LINES INSTL ROT BED RTE TO 505
810039130 Q DISCON FITTING 513
810039140 Q DISCON FITTING 515
810114700 Q DISCON FITTING 517
810121640 Q DISCON FITTING 519
810121650 Q DISCON FITTING 521
810269971 VALVE ASSY 523
7034800 VALVE, SELECTOR 525
A113480 DIRECTIONAL CONTROL VALVE 527
81042207 PIN HOSE STOWAGE 529
24 81037480 HYD LINES INSTL ROT BED ACCESS 531
25 81037594 PIPING HYDR ASSY TRANSDUCER MA 535
81037074 MANIFOLD TRANSDUCER AND DIAG 537
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: April 09, 2021 Rev: 002
Model Number Serial Number
MLC650 6501039
Item Part Description Page
VIII
26 81024078 HYD LINES INSTL SUCTION T3/T4 539
27 81025088 HYD LINES INSTL COOLANT HOSE 543
28 81027114 HYD LINES INSTL DRUM 0 ROT BED 547
810039130 Q DISCON FITTING 549
29 81027115 HYD LINES INSTL DRUM 6 PREP 551
810039130 Q DISCON FITTING 553
810114700 Q DISCON FITTING 555
30 81027117 HYD LINES INSTL DRUM 2 PREP 557
810039130 Q DISCON FITTING 559
810114700 Q DISCON FITTING 561
32 81027119 HYD LINES PIN PULLER 563
810121640 Q DISCON FITTING 565
810121650 Q DISCON FITTING 567
33 81037352 PIPING HYDR ASSY ROTATING BED 571
34 81037479 PIPING HYD ASSY ROTATING BED J 577
35 81027334 HYD LINES VPC-MAX PREP 585
810039140 Q DISCON FITTING 589
810120620 PUMP HYDR PISTON VARIABLE 597
7041800 KIT, EDC 599
5827607 KIT, OVERHAUL (GASKET/SEAL) 607
810121650 Q DISCON FITTING 609
45 81036814 PIPING HYD ASSY FAN T4 611
CONTROLS, ELECTRICAL
4 81025495 ESI CAMERA BUTT INSTL 613
5 81042158 ESI BOOM TOP CAM PREP 615
6 81025808 SWITCH DRUM 3 CAB 617
8 81025498 ESI CAMERA BOOM INSERT 4M 619
8 81024939 ELECTRICAL SCHEMATIC MLC650 NO DWG
11 81041718 ESI 12M INSERT CCTV 621
12 81025818 SWITCH CAMERA LIGHTS CAB 623
13 81025501 ACCESSORY CAMERA MONITORS CAB 625
16 81037054 SWITCH AUX. POWER UNIT CAB 627
16 81037025 ESI ROTATING BED 631
81019869 ESI CAB EXTERIOR WIRING 635
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: April 09, 2021 Rev: 002
Model Number Serial Number
MLC650 6501039
Item Part Description Page
IX
81037027 ESI ROTATING BED MOUNT 639
810244811 SWITCH BOOM STOP ASSY 643
810249942 LIMIT SWITCH 645
1768064 BRACKET W/2-289797 BUSHING 647
80129731 LIMIT SWITCH SUBASSY LINEAR 649
810273621 PANEL ELEC BATTERY DISCONNECT 651
810285121 LIMIT SWITCH 653
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 655
84025440 LIMIT SWITCH ASSY 657
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 659
81034121 ESI CAN RECEPTACLE MOUNT 661
810273220 KIT BASE/REMOTE 663
84036350 JUNCTION BOX DC LOAD CENTER 665
81040940 ESI SERVICE LIGHTS 669
81038813 LIGHT SERVICE LIGHT ASSY 671
17 84050450 SWITCH VPC SHUTDOWN 673
17 81026820 ESI UPPER WORKS JACKING 675
18 81036743 ESI VPC-MAX ROT BED PREP 677
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 679
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 681
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 683
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 685
19 81025392 ESI CAMERA BED INSTL 687
20 81038149 ESI AC COMMON 689
25 84032601 ESI BOOM TOP CAMERA 691
27 810308360 LOAD CELL LINK 25,000 KGS NO DWG
44 81019297 ESI QSX15 T4F 695
81041377 BRACKET FUSE PANEL 697
52 81027125 COLD WEATHER KIT INSTL ROT BED 699
81040030 BOX JUNCTION ASSY 701
81040031 BOX JUNCTION ASSY 703
POWER PLANT
18 81036066 GENERATOR ASSY EQUIP 705
81031997 GENERATOR ASSY 709
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: April 09, 2021 Rev: 002
Model Number Serial Number
MLC650 6501039
Item Part Description Page
X
19 81034259 POWER PLANT PORTABLE HYD SUPLY NO DWG
21 81028726 TANK HYDRAULIC INSTL 713
810239030 TANK HYDRAULIC ASSY 715
A164380 VENT BREATHER TANK 719
810039140 Q DISCON FITTING 721
26 81041204 GENERATOR INSTL COMPONENTS 723
81041354 HOSE ASSY FUEL APU RETURN 725
30 90038237 500 HR SERVICE KIT 727
31 90038238 1000 HR SERVICE KIT 729
36 81025703 FUEL TANK INSTALLATION 731
810224620 TANK FUEL ASSY 733
810182880 FUEL TANK FILLER ASSY 735
810272431 FRAME ASSY 737
37 81019289 PWR PLT ASSY T4 ENG CELL W/VPC 741
810192911 GEARBOX ASSY 600 HP 745
810016380 DRIVE PUMP 749
810120620 PUMP HYDR PISTON VARIABLE 757
7041800 KIT, EDC 759
5827607 KIT, OVERHAUL (GASKET/SEAL) 767
810120640 PUMP HYDR PISTON VARIABLE 775
7041800 KIT, EDC 777
5827607 KIT, OVERHAUL (GASKET/SEAL) 785
810238630 PUMP HYDR PISTON VARIABLE 793
7041720 KIT, VALVE 795
7041770 KIT, EDC 797
A052380 PUMP HYDR PISTON VARIABLE 805
7041800 KIT, EDC 811
5827607 KIT, OVERHAUL (GASKET/SEAL) 819
A097352 CLUTCH ASSY 823
810155850 CLUTCH 825
38 81019293 EXHAUST SYST TIER 4F QXS15 829
39 81031063 INTAKE ASSY TIER 4F QSX15 831
810264100 CLEANER AIR 833
40 81019298 COOLER INSTL QSX15 T4 FINAL 837
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: April 09, 2021 Rev: 002
Model Number Serial Number
MLC650 6501039
Item Part Description Page
XI
41 81019296 FUEL CIRCUIT TIER 4F QSX15 841
42 81019295 BATTERY ASSY QSX15 843
43 84039651 HVAC QSX15 845
810246100 AIR CONDITIONER & HEATER UNIT 849
46 81031062 DEF SYSTEM INSTL 853
810219310 MANIFOLD ASSY 857
80117739 TANK DEF 25 GAL 859
80016433 MODULE DOSER-SUPPLY 24V 861
47 81022284 CLUTCH RELEASE ASSY 865
84041196 LUBE SYST CLUTCH RELEASE 867
48 81027247 ENCLOSURE ASSY POWER PLANT 869
810276642 PANEL ENCL ASSY 871
810276672 PANEL ENCL ASSY 873
810302522 COVER ENCLOSURE PANEL 875
810312562 PANEL ENCL ASSY 877
50 81035215 FILLER FUEL ASSY 879
53 81036067 GENERATOR ASSY PREP 881
81036068 HEATER APU 883
84024939 WIRING HARNESS 12 KW, 24V 885
81036069 AIR COND ASSY APU 887
81036070 FUEL CIRCUIT APU 889
81041150 ESI APU PREP 891
81040179 JUNCTION BOX ASSY APU DC 893
57 80106391 T4 ENG LADDER INSTAL MLC650 895
LOWERWORKS
1 810191110 CARBODY ASSEMBLY 899
81020206 SLEWING DRIVE ASSY 903
A056890 MOTOR HYD PISTON 905
5364675 KIT, OVERHAUL/SEAL 907
81020719 HYD ASSY CARBODY/ADAPTER FRAME 909
81020720 HYD LINES INSTL ADAPTER FRAME 915
810039140 Q DISCON FITTING 921
81020721 PIPING HYDR ASSY CARBODY 925
810222460 GEARBOX DUAL INPUT OIL FLUSHED 929
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: April 09, 2021 Rev: 002
Model Number Serial Number
MLC650 6501039
Item Part Description Page
XII
810235821 PINPULLER ASSY FRONT ADAPTER F 931
810262850 HYD CYL FRONT PINPULLER FEMALE 933
810238291 JOINT ROTATING UNION 935
810090270 ROTATING JOINT 937
810242001 GREASE PIPING ASSY 941
810260460 PUMP GREASE 24VDC/2.0A 943
A067160 VALVE ASSY 6 BANK 945
A067180 VALVE ASSY 12 BANK 947
A070050 VALVE ASSY 949
84030411 ESI ADAPTER FRAME 951
81041396 HYD MOTOR 160-42CC PISTON 953
90038633 OVERHAUL SEAL KIT, H1B160 957
810300010 SENSOR 959
810259091 ESI CARBODY 961
810259291 PIN PULLER ASSY CARBODY-CRAWLE 963
810259310 CYLINDER HYDR 965
84032286 PIN PULLER BOOM BUTT SUBASSY 967
1 810181422 CRAWLER ASSY 80 INCH PAD 971
81018581 CRAWLER DRIVE ASSY 975
810209890 DRIVE SHAFT ASSY 979
810247100 DRIVE SHAFT ASSY W/DISCONNECT 981
810194144 ROLLER INTERMEDIATE ASSY CRAWL 983
81026363 CRAWLER TENSIONING ASSY 985
A044794 ROLLER ASSEMBLY 987
2 81027186 AUTOLUBE INSTALL 989
81031503 GREASE GUARD ASSY 991
81019884 GREASE PIPING ASSY 993
810242020 PUMP 995
810243530 VALVE ASSY 997
81025910 ESI CRAWLER 999
3 81022609 CARBODY LOWERWORKS JACKING 1001
81040882 OUTRIGGER PAD ASSY 1003
5 81026552 DRIVE SWING ASSY VPCMAX SWING 1005
81026136 HYD LINES VPCMAX SWING PREP 1007
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: April 09, 2021 Rev: 002
Model Number Serial Number
MLC650 6501039
Item Part Description Page
XIII
81026553 DRIVE SWING ASSY VPC-MAX 3RD D 1009
A056890 MOTOR HYD PISTON 1011
5364675 KIT, OVERHAUL/SEAL 1013
ATTACHMENTS
1 810203030 BUTT ASSY #680 6M STD EQUIP 1015
81019386 DRUM ASSY MAIN HOIST 1017
810239060 HYD MOTOR 1019
90038633 OVERHAUL SEAL KIT, H1B160 1023
810245240 GEARBOX 1025
810342510 GUARD 1029
810300010 SENSOR 1031
810342520 GUARD 1033
84028201 BREATHER ASSY 1035
81020304 BUTT MACHINING #680 6M 1037
81022048 BOOM STOP ASSY #680 BOOM 1039
A060971 STRUT ASSY BOOM STOP 1041
81022349 HYD LINES INSTL BOOM BUTT 1045
810239070 VALVE DIRECTIONAL CONTROL 1051
810039140 Q DISCON FITTING 1053
810114710 Q DISCON FITTING 1055
810233711 ESI BOOM BUTT 1057
81027421 CATWALK ASSY #680 6M BOOM BUTT 1059
1687791 BOOM ANGLE INDICATOR ASSY 1061
81026267 WINCH RIGGING 1063
810099570 WINCH 1069
A131810 BLOCK 1073
A131821 GUIDE ASSY 1075
81027224 PIPING ASSY RIG WINCH DRUM 0 1077
810039140 Q DISCON FITTING 1079
84030729 ADAPTER RIGGING WINCH ASSY 1081
84044934 WIRE ROPE RIGGING W/ FITTING 1083
81028812 HYD LINES INSTL DRUM 6 PREP 1085
810039130 Q DISCON FITTING 1089
810114700 Q DISCON FITTING 1091
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: April 09, 2021 Rev: 002
Model Number Serial Number
MLC650 6501039
Item Part Description Page
XIV
810121640 Q DISCON FITTING 1093
810039140 Q DISCON FITTING 1095
810114710 Q DISCON FITTING 1097
81028696 HYD LINES INSTL DRUM 2 PREP 1099
810039140 Q DISCON FITTING 1103
810114710 Q DISCON FITTING 1105
1 84040990 WIRE ROPE 32 MM ASSYX1000M LG NO DWG
1 81018141 BOOM RIGGING B10:680 NO DWG
2 810255830 WIRE ROPE NO DWG
2 81022686 BOOM RIGGING B60:680 NO DWG
3 810255860 WIRE ROPE NO DWG
3 81022863 BOOM RIGGING B40:680-681-682 NO DWG
4 810243630 WIRE ROPE 32MM DIA W/ EYES X 6 NO DWG
4 81022864 BOOM RIGGING B80:680-681-682 NO DWG
5 81025005 MAST RIGGING M10:684 NO DWG
6 810333440 WEIGHT BALL SWIVEL 22.2 MTON 2 NO DWG
6 81018143 LUFFING JIB RIGGING LJ ON B10 NO DWG
7 810203060 INSERT ASSY #680 4M STD EQUIP 1107
81021742 GUIDE DR1 WR ASSY 4M INSERT 1109
81038934 SHEAVE 30″X1.25 WR AUTO GRS 1111
81038935 SHEAVE ASSY 30″X1.25WRX8.0B 1113
81027235 CATWALK ASSY #680 4M INSERT 1115
81022537 DRUM 2 ASSY 4M INSERT PREP 1117
81038934 SHEAVE 30″X1.25 WR AUTO GRS 1119
81038935 SHEAVE ASSY 30″X1.25WRX8.0B 1121
81022548 DRUM 2 ASSY 4M INSERT EQUIP 1123
81022734 HYDR ASSY DRUM 2 EQUIPPED 1127
810039130 Q DISCON FITTING 1131
810114700 Q DISCON FITTING 1133
810239070 VALVE DIRECTIONAL CONTROL 1135
81042207 PIN HOSE STOWAGE 1137
81023462 DRUM ASSY AUX MAIN HOIST 1139
810239060 HYD MOTOR 1141
90038633 OVERHAUL SEAL KIT, H1B160 1145
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: April 09, 2021 Rev: 002
Model Number Serial Number
MLC650 6501039
Item Part Description Page
XV
810245240 GEARBOX 1147
810342510 GUARD 1151
810300010 SENSOR 1153
810342520 GUARD 1155
84028201 BREATHER ASSY 1157
81024504 ESI BOOM INSERT 4M 1159
81022554 DRUM 3 ASSY 4M INSERT PREP 1161
81040115 SHEAVE 30X1.12 WR AUTO GRS 1163
81040116 SHEAVE ASSY 30″X1.12WRX4.5B 1165
81029089 LUFFING JIB PREP 4M INSERT 1167
7 810070210 BLOCK 60 TON 1169
8 84039500 HOOK BLOCK 160MT 3SH 32WR 1171
9 810234614 CHEEK WEIGHT KIT 135MTON BLOCK 1173
10 81021996 INSERT ASSY 1175
81026853 CATWALK ASSY #680 12M X-HEAVY 1177
81033853 ESI 12M INSERT 1179
810316421 ESI POSITION LIGHT & ANEMOMETE 1181
810209900 SENSOR WIND SPEED 1183
810250570 SUBASSY POSITION LIGHT 1185
81029068 LUFF JIB PREP 12M INS W/SHEAVE 1187
11 81043262 DECALS MLC650 INSERT W/ EQUAL 1189
81043266 DECALS MLC650 INSERT SHIPMENT 1191
81041859 DECAL INSERT LIFTING NO DWG
13 81020427 INSERT ASSY #680 6M HEAVY 1193
810277711 CATWALK ASSY #680, 6.0 M HEAVY 1195
810291481 INSERT LJ PREP-6M HEAVY 1197
14 81022604 INSERT ASSY #680 12M HV W/EQ 1199
81037238 CATWALK ASSY #680, 12M W/EQ 1203
81035617 INSERT 1205
15 81034977 INSERT ASSY #680 12M X-HEAVY 1207
81026622 CATWALK ASSY #680 12M HEAVY 1209
810291451 INSERT LJ PREP 12M HEAVY 1211
16 81035136 INSERT ASSY #680 12M W/SUSP 1215
810353861 CATWALK #680 12M W/SUSP 1219
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: April 09, 2021 Rev: 002
Model Number Serial Number
MLC650 6501039
Item Part Description Page
XVI
81036021 INSERT LJ PREP-12.0M W/SUSP 1221
81036355 SUSPENDER WIRE ROPE #680 1223
20 81043263 DECALS MLC650 1M CAP ASSY 1225
21 81043264 DECALS MLC650 TRANS INSERT 1227
81043266 DECALS MLC650 INSERT SHIPMENT 1229
81041859 DECAL INSERT LIFTING NO DWG
22 81043264 DECALS MLC650 TRANS INSERT 1231
81043266 DECALS MLC650 INSERT SHIPMENT 1233
81041859 DECAL INSERT LIFTING NO DWG
25 810262720 TOP ASSY #682 1M CAP 1235
81027180 ESI 1M BOOM CAP WIRING 1237
81027181 ESI 1M BOOM CAP MTG 1239
84019147 A2B DEVICE MOD TWO SPRINGS 1241
810245682 A2B DEVICE 1243
1770804 LEVER ASSY 1245
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 1247
84046945 GUIDE #682 1 METER CAP 1249
810301181 BOOM POINT LOWER ASSY 1251
81028932 LINK DEAD END ASSY 1253
81033846 SHEAVE 1255
26 810099780 POINT ASSY EXT UPPER #58WA 1259
81033846 SHEAVE 1263
81031323 ESI EXT UPPER POINT WRG 1265
81031324 ESI EXT UPPER POINT MTG 1267
810245682 A2B DEVICE 1269
1770804 LEVER ASSY 1271
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 1273
810245702 A2B DEVICE 1275
1770784 LEVER 1277
80129368 LIMIT SWITCH MOLDED 3P SUBASSY 1279
27 81021310 INSERT ASSY #680/681 12M 1283
810304801 CATWALK ASSY 12.0 M #680/681 1287
28 81021714 TRANS INSERT ASSY #681/682 6M 1289
84047539 LINK ASSY LOAD 1291
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: April 09, 2021 Rev: 002
Model Number Serial Number
MLC650 6501039
Item Part Description Page
XVII
84047535 LINK ASSY LOAD 1293
81030484 CATWALK ASSY #681/682 6M 1295
29 81022004 INSERT ASSY #681 3M 1297
81030481 CATWALK ASSY #681 3M 1299
30 81021204 INSERT ASSY #681 6M 1301
81030479 CATWALK ASSY 6.0 M #681 1303
33 84022978 LINK CONNECTING NO DWG
34 80128376 CVS SHIP OUT PAINT & MISC. 1305
