Manitowoc Crane MLC650VPC-MAX Parts Manual SN 6503019 – PDF DOWNLOAD

Manitowoc Crane MLC650VPC-MAX Parts Manual SN 6503019 – PDF DOWNLOAD

The Manitowoc Crane MLC650VPC-MAX Parts Manual (SN 6503019) is a downloadable PDF guide offering essential information for maintenance and repairs. With detailed specifications, diagrams, and part numbers, it ensures accurate component identification, aiding in efficient operational support.

FILE DETAILS:

Manitowoc Crane MLC650VPC-MAX Parts Manual SN 6503019 – PDF DOWNLOAD

Language : English
Pages : 225
Downloadable : Yes
File Type : PDF

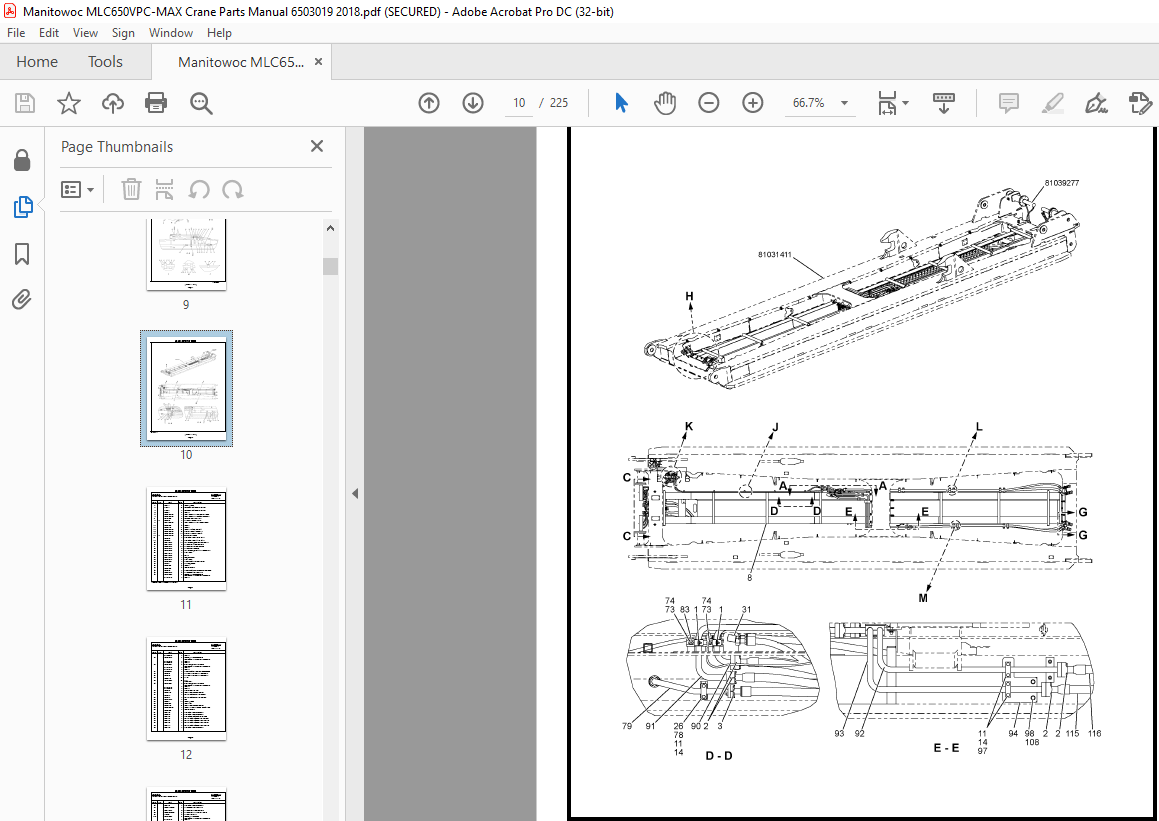

IMAGES PREVIEW OF THE MANUAL:

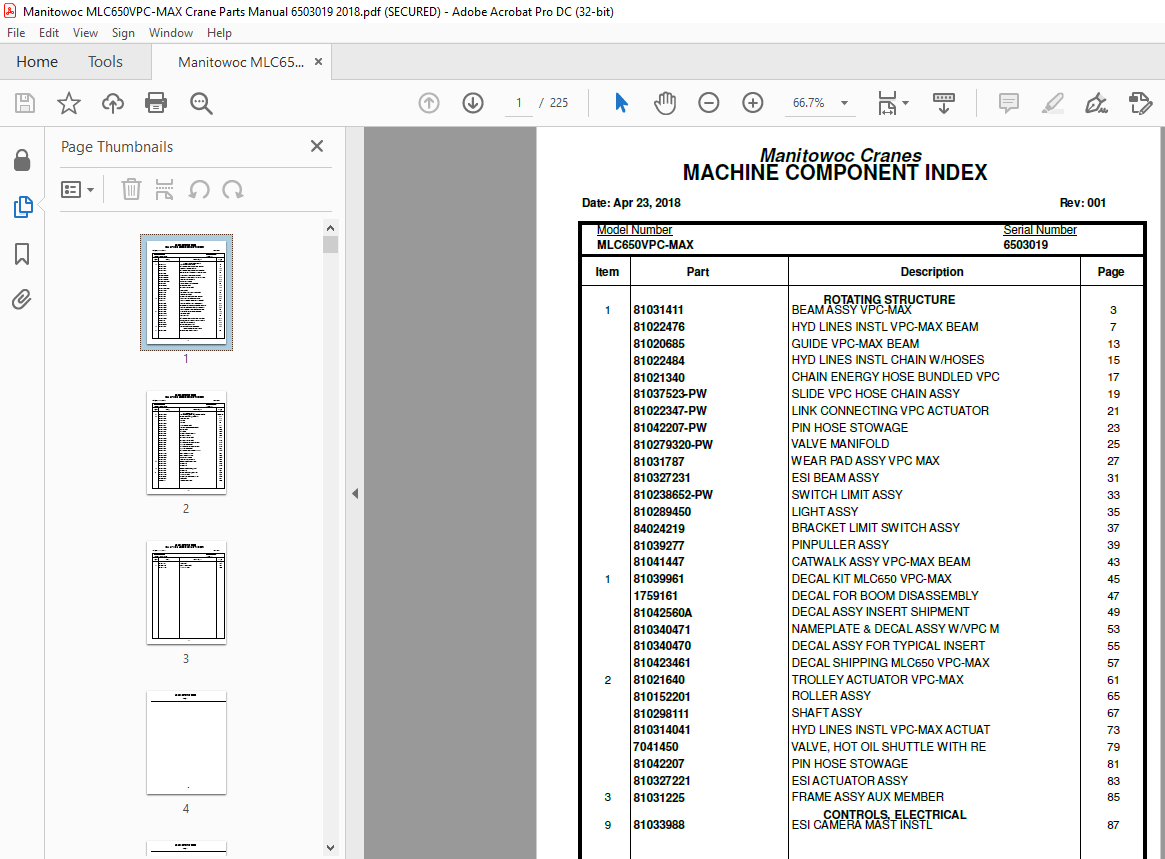

TABLE OF CONTENTS:

Manitowoc Crane MLC650VPC-MAX Parts Manual SN 6503019 – PDF DOWNLOAD

ROTATING STRUCTURE
1 81031411 BEAM ASSY VPC-MAX 3
81022476 HYD LINES INSTL VPC-MAX BEAM 7
81020685 GUIDE VPC-MAX BEAM 13
81022484 HYD LINES INSTL CHAIN W/HOSES 15
81021340 CHAIN ENERGY HOSE BUNDLED VPC 17
81037523-PW SLIDE VPC HOSE CHAIN ASSY 19
81022347-PW LINK CONNECTING VPC ACTUATOR 21
81042207-PW PIN HOSE STOWAGE 23
810279320-PW VALVE MANIFOLD 25
81031787 WEAR PAD ASSY VPC MAX 27
810327231 ESI BEAM ASSY 31
810238652-PW SWITCH LIMIT ASSY 33
810289450 LIGHT ASSY 35
84024219 BRACKET LIMIT SWITCH ASSY 37
81039277 PINPULLER ASSY 39
81041447 CATWALK ASSY VPC-MAX BEAM 43
1 81039961 DECAL KIT MLC650 VPC-MAX 45
1759161 DECAL FOR BOOM DISASSEMBLY 47
81042560A DECAL ASSY INSERT SHIPMENT 49
810340471 NAMEPLATE & DECAL ASSY W/VPC M 53
810340470 DECAL ASSY FOR TYPICAL INSERT 55
810423461 DECAL SHIPPING MLC650 VPC-MAX 57
2 81021640 TROLLEY ACTUATOR VPC-MAX 61
810152201 ROLLER ASSY 65
810298111 SHAFT ASSY 67
810314041 HYD LINES INSTL VPC-MAX ACTUAT 73
7041450 VALVE, HOT OIL SHUTTLE WITH RE 79
81042207 PIN HOSE STOWAGE 81
810327221 ESI ACTUATOR ASSY 83
3 81031225 FRAME ASSY AUX MEMBER 85
CONTROLS, ELECTRICAL
9 81033988 ESI CAMERA MAST INSTL 87
ATTACHMENTS
2 810312591 WIRE ROPE (BRIDON) 28MM ASSY X NO DWG
4 84041644 MAST ASSY #684,6M BUTT 89
81023468 HOIST BOOM 93
810342510 GUARD 95
810342520 GUARD 97
84028201 BREATHER ASSY 99
810302261 ROLLER PRESSURE ASSY 101
810302271 PAWL ASSY 103
81041533 CYL HYD 105
81038648 CATWALK MAST BUTT 107
84034759 ESI MAST BUTT 109
810238652 SWITCH LIMIT ASSY 111
810238652 SWITCH LIMIT ASSY 113
84041640 CYL HYD FIXED MAST STOP 115
84044439 STRUT ASSEMBLY 117
84041641 CYL HYD FIXED MAST STOP 119
84044439 STRUT ASSEMBLY 121
84041645 HYD LINES INSTL MAST BUTT 125
810039130 Q DISCON FITTING 131
810121640 Q DISCON FITTING 133
810279320 VALVE MANIFOLD 135
81042207 PIN HOSE STOWAGE 137
5 81034593 INSERT ASSY #684 12M 139
81035290 CATWALK 143
81038864 CATWALK 145
6 81025376 INSERT ASSY #684, 12M 147
81035290 CATWALK 151
7 81025378 MAST ASSY #684, 6M TOP 153
810258190 SHEAVE ASSY 157
81036796 CATWALK ASSY MAST TOP 159
81037384 LINK ASSY 161
A062780 SOCKET BUTTON 163
81042471 LINK ASSY 165
8 81027149 EQUALIZER ASSY 167
810258190 SHEAVE ASSY 169
