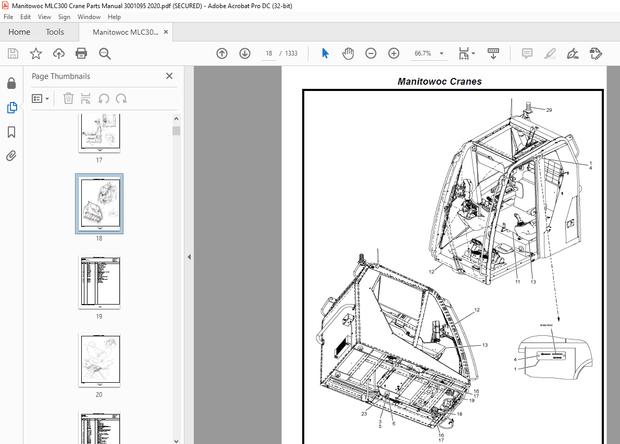

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

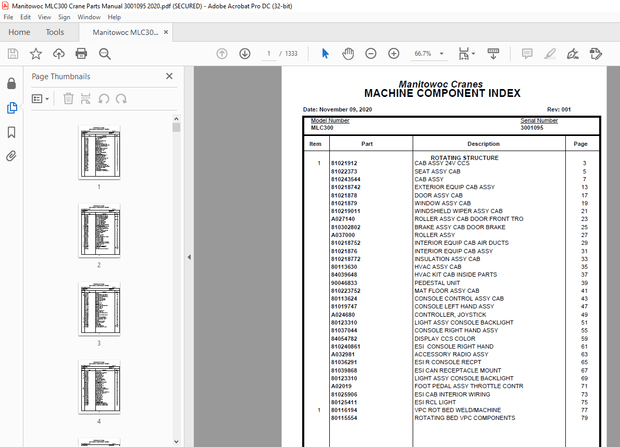

Manitowoc MLC300 Crane Parts Manual SN 3001095 – PDF DOWNLOAD

ROTATING STRUCTURE
1 81021912 CAB ASSY 24V CCS 3
81022373 SEAT ASSY CAB 5
810243544 CAB ASSY 7
810218742 EXTERIOR EQUIP CAB ASSY 13
81021878 DOOR ASSY CAB 17
81021879 WINDOW ASSY CAB 19
810219011 WINDSHIELD WIPER ASSY CAB 21
A027140 ROLLER ASSY CAB DOOR FRONT TRO 23
810302802 BRAKE ASSY CAB DOOR BRAKE 25
A037000 ROLLER ASSY 27
810218752 INTERIOR EQUIP CAB AIR DUCTS 29
81021876 INTERIOR EQUIP CAB ASSY 31
810218772 INSULATION ASSY CAB 33
80113630 HVAC ASSY CAB 35
84039648 HVAC KIT CAB INSIDE PARTS 37
90046833 PEDESTAL UNIT 39
810223752 MAT FLOOR ASSY CAB 41
80113624 CONSOLE CONTROL ASSY CAB 43
81019747 CONSOLE LEFT HAND ASSY 47
A024680 CONTROLLER, JOYSTICK 49
80123310 LIGHT ASSY CONSOLE BACKLIGHT 51
81037044 CONSOLE RIGHT HAND ASSY 55
84054782 DISPLAY CCS COLOR 59
810240861 ESI CONSOLE RIGHT HAND 61
A032981 ACCESSORY RADIO ASSY 63
81036291 ESI R CONSOLE RECPT 65
81039868 ESI CAN RECEPTACLE MOUNT 67
80123310 LIGHT ASSY CONSOLE BACKLIGHT 69
A02019 FOOT PEDAL ASSY THROTTLE CONTR 71
81025906 ESI CAB INTERIOR WIRING 73
80125411 ESI RCL LIGHT 75
1 80116194 VPC ROT BED WELD/MACHINE 77
80115554 ROTATING BED VPC COMPONENTS 79
1 810253011 WIRE ROPE 28MM ASSY X 950 LG 81
810253010 WIRE ROPE 28MM ASSY GENERIC NO DWG
1 80110863 DECAL KIT MLC300 STANDARD EN 83
80106691 DECAL ASSY ROT BED/CARBODY 89
80102744 PLATE CRANE ID MFG IN SG NO DWG
80106692 DECAL ASSY CRAWLER 93
80106693 DECAL ASSY BOOM B10:500 97
81033968 DECAL ASSY HANDRAIL ID 101
84020213 DECAL ASSY PARTS BOX 103
2 A03316 COVER ASSY WINDOWS VISION CAB 105
2 81023984 SLEWING RING BRG ASSY 107
2 80110864 DECAL KIT MLC300 NOMENCLAT STD 109
3 84028005 ROTATING BED STRUT SUBASSY 111
3 80110896 DECAL KIT VPCMAX PREP STD LETT 113
4 81025807 SWITCH DRUM 2 CAB 115
4 80125052 LUBE SYST TURNTABLE BEARING 119
810260460 PUMP GREASE 24VDC/2.0A 123
A067160 VALVE ASSY 6 BANK 125
A067170 VALVE ASSY 127
A067180 VALVE ASSY 12 BANK 129
6 81025809 SWITCH DRUM 5 CAB 131
6 810240152 SLEWING DRIVE ASSY LEFT SWING 133
A056890 MOTOR HYD PISTON 135
5364675 KIT, OVERHAUL/SEAL 137
A056890 MOTOR HYD PISTON 139
5364675 KIT, OVERHAUL/SEAL 141
6 80112312 DECAL KIT DRUM 2 OR 3 STANDARD 143
7 80125051 ROTATING BED HYDRAZORB INSTALL 147
8 81025812 SWITCH CAB TILT CAB 149
8 81026236 BUSHING ASSY 151
9 81025813 SWITCH TIER 4F ENGINE CAB 153
9 810239780 CAB MOUNTING ASSEMBLY 159
5638710 PIN, SAFETY NO DWG
810296433 PLATFORM ASSY 2327 X 540 CAB S 163
810293652 LANYARD 165
10 81025814 SWITCH AIRCRAFT WARNING CAB 167
10 80126148 PLATFORM ASSY ROTATING BED 171
80126168 PLATFORM ASSY ROT BED INSIDE 175
810315282 LANYARD ASSY PIN 177
81042928 PLATFORM ASSY ROT BED 179
81042929 PLATFORM ASSY ROT BED 181
81042931 LANYARD ASSY PIN 183
810293652 LANYARD 185
810298032 PLATFORM ASSY 187
810293652 LANYARD 189
810315282 LANYARD ASSY PIN 191
81040151 PLATFORM ASSY ROT BED REAR 193
81041140 LANYARD ASSY PIN 195
81041142 LANYARD ASSY PIN 197
81041286 PLATFORM ASSY 199
810293652 LANYARD 201
84025515 LADDER FOLDING ASSY 203
81041140 LANYARD ASSY PIN 205
84046402 PLATFORM ASSY ROTATING BED 207
810293651 LANYARD 209
84046403 PLATFORM ASSY ROTATING BED 211
810293651 LANYARD 213
11 81029348 PLATFORM ASSY GENERAL 215
11 80112860 DECAL KIT VARIABLE POS CWT 217
12 81023986 MAST RAISING ASSY, LIVE 219
A055540 CYL HYD 221
13 81023038 FLOOR PLATE ASSY CAB 223
13 81023987 MAST ASSY, LIVE MAST 225
81042537 STRAP ASSY 229
810258220 SHEAVE ASSY 231
81033389 ESI LIVE MAST 233
810292880 BUSHING, COMPOSITE NO DWG
15 81026648 EQUALIZER ASSY MAST HOIST 235
810258220 SHEAVE ASSY 237
17 81028324 COUNTERWEIGHT WELDMENT NO DWG
20 81042356 LINK ASSY DEAD END 239
A062780 SOCKET BUTTON 241
24 84053582 TANK HYDR ASSY 552L 243
84019925 LANYARD ASSY PIN 247
30 810287691 PARTS BOX ASSY 249
81038439 KIT SELF ASSY RIGGING 251
810249430 VALVE ASSY QUICK DRAIN 253
810039130 Q DISCON FITTING 255
81041177 PUMP CRAWLER TENSIONING 257
A041430 PUMP HYD HAND 259
81042356 LINK ASSY DEAD END 261
A062780 SOCKET BUTTON 263
81042356 LINK ASSY DEAD END 265
A062780 SOCKET BUTTON 267
59 81042358 GUARD CYL & HOSE STOW 269
68 84045983 ROTATING BED VPC COMPONENTS 271
81026037 GEAR RACK ASSY VPC 273
84028440 WEAR PAD ASSY VPC 275
81034766 BRACKET ASSY VPC-MAX WEAR PAD 277
84045984 HYD LINES INSTL VPC LINES 281
810039140 Q DISCON FITTING 283
84049860 ESI ROT BED VPC 285
69 81025626 TROLLEY ASSY VPC 289
810240551 ROLLER ASSY VPC 291
810282121 ESI VPC WIRING 295
81028670 ESI VPC MOUNTING 297
810293291 LIMIT SWITCH 299
810238652 SWITCH LIMIT ASSY 301
810238652 SWITCH LIMIT ASSY 303
810293281 GUARD ASSY VPC WEAR PAD 305
810295501 HYD EQUIP CTWT TROLLEY DRIVE 307
81011301 HYD LINES INSTL ENERGY CHAIN 309
810039130 Q DISCON FITTING 311
81024056 HYD LINES INSTL VPC TROLLEY 315
81028880 HYD EQUIP VPC TROLLEY 319
810136490 VALVE MANIFOLD ASSY 2 BK D03 2 323
810136500 VALVE MANIFOLD 325
810239070 VALVE DIRECTIONAL CONTROL 327
810255720 VALVE MANIFOLD 329
810357471 ENERGY CHAIN TRAY SUPPORT 331
810300471 GUARD ASSY VPC 333
810366431 WEAR PAD ASSY VPC TROLLEY 335
81040002 ENCODER ASSY VPC POSITION 337
81042362 ENERGY CHAIN ASSY SHIPPING 339
81042366 BRACKET ASSY HOSE STOWAGE 341
81042207 PIN HOSE STOWAGE 343
81042177 GUARD ASSY VPC ROLLERS 345
81042257 GUARD ASSY ROLLER 347
84030409 HYD MOTOR TROLLEY LEFT SIDE 349
84030410 HYD MOTOR TROLLEY RIGHT SIDE 351
81037248 HYD LINES INSTL VPC-MAX PREP 353
810039140 Q DISCON FITTING 355
80106581 PIN LANYARD ASSY 357
70 81024050 COUNTERWEIGHT TRAY ASSY 359
810289431 ESI COUNTERWEIGHT TRAY 361
80124066 LIGHT ASSY VPC WARNING 363
810299161 CHAIN ASSY 365
71 84030423 MOD BED LEVEL SENSOR NO DWG
74 81042919 ROTATING BED MOD LIFT LUG PLUG 367
75 80105152 PLATFORM ASSY 60 INCH SHOE 369
80105279 PLATFORM ASSY CARBODY SIDE 371
80105352 PLATFORM ASSY CARBODY SIDE 373
UPPERWORKS MACHINERY
1 81023948 SCHEMATIC HYDRAULIC NO DWG
3 81025061 DRUM 1 ASSY MAIN LOAD HOIST 375
810240160 GEAR BOX HOIST 84.7:1 RATIO 377
810256240 HYD MOTOR 250CC PIS VAR B1 24V 383
90038633 OVERHAUL SEAL KIT, H1B160 387
81039856 ROLLER ASSY 389
810300010 SENSOR 391
84021470 HYD LINES INSTL BOOM BUTT DRUM 393
810239070 VALVE DIRECTIONAL CONTROL 397
4 81027708 HOIST ASSY LUFFING 399
81041533 CYL HYD 401
810259471 ESI DRUM 6 403
810245252 LIMIT SWITCH 405
81041430 HYD MOTOR 407
90038633 OVERHAUL SEAL KIT, H1B160 411
810277041 HOIST ASSY LUFFING HOIST 413
810284644 PAWL ASSY 415
810345341 HYD EQUIP DRUM 6 419
810136400 VALVE MANIFOLD 423
810239070 VALVE DIRECTIONAL CONTROL 425
810300010 SENSOR 427
5 81027453 HYD LINES INSTL DRUM 0 DRUM 7 429
810039140 Q DISCON FITTING 431
6 81027454 HYD LINES INSTL DRUM 1 PREP 435
810039140 Q DISCON FITTING 439
7 81027455 HYD LINES INSTL DRUM 6 PREP 443
810039140 Q DISCON FITTING 447
14 81024009 HOIST LIVE MAST 449
81041430 HYD MOTOR 451
90038633 OVERHAUL SEAL KIT, H1B160 455
810267791 PAWL 457
810277261 ESI DRUM 4 459
810245252 LIMIT SWITCH 461
810300010 SENSOR 463
810426831 HYD EQUIP DRUM 4 467
810039140 Q DISCON FITTING 473
810121650 Q DISCON FITTING 475
810136400 VALVE MANIFOLD 477
810239070 VALVE DIRECTIONAL CONTROL 479
16 81024019 HOIST ASSEMBLY DRUM #2 AND #3 481
810240222 GEARBOX HOIST 120.5 485
810361101 ESI DRUM 2/3 487
810340131 HYD EQUIP DRUM 2 OR 3 491
810114710 Q DISCON FITTING 495
810239070 VALVE DIRECTIONAL CONTROL 497
810039140 Q DISCON FITTING 499
810300010 SENSOR 501
25 81037691 HYD LINES INSTL POWER PLANT SU 503
26 81026734 HYD LINES INSTL FAN COOLING 507
810254400 VALVE FLOW CONTROL 511
27 84048120 HYD EQUIP ROT BED VALVES 513
7041130 VALVE, DOUBLE COUNTERBALANCE 517
810136400 VALVE MANIFOLD 519
810239070 VALVE DIRECTIONAL CONTROL 521
810136500 VALVE MANIFOLD 523
810239070 VALVE DIRECTIONAL CONTROL 525
810255720 VALVE MANIFOLD 527
810337762 VALVE MANIFOLD 529
28 84048121 HYD LINES INSTL PUMP DISCH 531
29 81027438 HYD EQUIP LIVE MAST RAISE CYL 533
30 84048122 HYD LINES INSTL TRANSDUCER 535
31 84048123 HYD LINES INSTL TANK RETURN 539
810039140 Q DISCON FITTING 545
81039171 MANIFOLD BLOCK 547
81042207 PIN HOSE STOWAGE 549
32 81038067 HYD LINES INSTL CIRC COOLER FI 551
33 84048124 HYD LINES INSTL DRUM 4 553
810039130 Q DISCON FITTING 555
810114700 Q DISCON FITTING 557
810121640 Q DISCON FITTING 559
81042207 PIN HOSE STOWAGE 561
34 81027447 HYD LINES INSTL ROT BED ACCESS 565
810121650 Q DISCON FITTING 569
810210270 Q DISCON FITTING 571
35 80127024 HYD EQUIP HYD SYS FILTERS 573
36 84053764 HYD LINES INSTL ACCESS LOWPRES 575
37 84048125 HYD LINES INSTL ACC HIGH PRESS 579
38 84048126 HYD LINES INSTL SWIVEL ROT BED 581
39 810279571 HYD LINES INSTL SWING MOTOR CI 583
84022262 HYD LINES INSTL SWING MOTOR CI 585
40 81029633 HYD LINES INSTL LIVE MAST CYL 587
810210270 Q DISCON FITTING 589
41 84045991 HYD LINES INSTL DRUM 0 PREP 593
810039130 Q DISCON FITTING 595
81040102 VALVE 597
81042207 PIN HOSE STOWAGE 599
42 80125199 HYD LINES INSTL DRUM 2 603
810039130 Q DISCON FITTING 605
810114700 Q DISCON FITTING 607
81041424 FRAME HOSE STOWAGE 609
81042207 PIN HOSE STOWAGE 611
43 84045990 HYD LINES INSTL DRUM 1 PREP 615
810039130 Q DISCON FITTING 617
81042207 PIN HOSE STOWAGE 619
44 84048127 HYD LINES INSTL ROT BED DRUM 5 621
810039140 Q DISCON FITTING 625
810114710 Q DISCON FITTING 627
810121650 Q DISCON FITTING 629
45 84048129 HYD LINES INSTL DRUM 6 631
810039130 Q DISCON FITTING 633
81042207 PIN HOSE STOWAGE 635
46 81029382 HYD LINES INSTL LIVE MAST CYL 637
CONTROLS, ELECTRICAL
2 81023949 ELECTRICAL SCHEMATIC MLC300 NO DWG
3 81023950 DIAGRAM ELECTRICAL MLC300 NO DWG
10 81025946 ESI BOOM BUTT CCTV 639
11 81041880 ESI CCTV DRUM 6 641
12 81041916 ESI BOOM TOP CAM PREP 643
14 81025818 SWITCH CAMERA LIGHTS CAB 645
15 81025501 ACCESSORY CAMERA MONITORS CAB 647
18 80126211 ESI ROTATING BED 651
81029114 ESI CAB EXTERIOR WIRING 655
80114385 WINDOW WIPER RELAY ASSY 657
81032876 ESI MOUNTING ASSY 661
810238652 SWITCH LIMIT ASSY 665
84036350 JUNCTION BOX DC LOAD CENTER 667
81034121 ESI CAN RECEPTACLE MOUNT 671
81041521 LIMIT SWITCH 673
1768064 BRACKET W/2-289797 BUSHING 675
810249950 LIMIT SWITCH 677
81029825 KIT BASE/REMOTE 2.4 GHZ 679
81038809 ESI SERVICE LIGHTS 681
81038813 LIGHT SERVICE LIGHT ASSY 683
19 81037054 SWITCH AUX. POWER UNIT CAB 685
19 81026120 ESI BED CAMERAS 687
20 81041734 ESI 12M INSERT CCTV 689
20 84050450 SWITCH VPC SHUTDOWN 691
20 81041991 ESI CCTV DRUM 2 EQUIP 693
21 81041958 ESI VPCMAX CAMERA EQUIP 695
22 81041072 ESI VPC-MAX PREP 697
810245252 LIMIT SWITCH 699
810245252 LIMIT SWITCH 701
22 84032601 ESI BOOM TOP CAMERA 703
5638710 PIN, SAFETY NO DWG
54 81025886 ESI CUMMINS QSG12 T4F 705
81042368 BRACKET FUSE PANEL 707
63 81041448 COLD WEATHER KIT ROT BED INSTL 711
81040030 BOX JUNCTION ASSY 713
81040031 BOX JUNCTION ASSY 715
5 81028434 TANK FUEL INSTALLATION 719
5 80110905 DECAL KIT T4F ENGINE 721
23 81041522 GENERATOR INSTL COMPONENTS 723
81041523 HOSE ASSY FUEL APU SUPPLY 725
81041524 HOSE ASSY FUEL APU RETURN 727
27 90046856 SERVICE KIT 250 HRS 729
28 90046857 SERVICE KIT 500 HRS 731
47 81023960 POWERTRAIN QSG12 TIER 4F 735
810248891 GEAR BOX ASSY 450 HP 737
810247210 PUMP 739
810247220 PUMP HYD PIS 165CC EH24V 743
810247230 PUMP HYD CL PIS VAR 100CC 749
810249430 VALVE ASSY QUICK DRAIN 751
A097353 CLUTCH ASSY CUMMINS QSG-12 755
810155850 CLUTCH 757
48 81023962 EXHAUST SYST QSG12 T4 FINAL 759
49 81023968 AIR CLEANER INST 450HP CUMMINS 761
810333972 COVER AIR CLEANER ENCL 765
50 81023970 COOLER ASSY 450 HP CUMMINS 771
810295572 PANEL ENCL ASSY 775
810295582 PANEL ENCL ASSY 777
810295592 PANEL ENCL ASSY 779
51 80110213 FUEL CIRCUIT 450 HP CUMMINS 781
81041516 FUEL CIRCUIT 783
52 81023973 BATTERY INSTL CUMMINS QSG12 785
53 84039655 HVAC 450 HP CUMMINS 789
810287752 AIR COND KIT OUTSIDE CAB 793
55 81027419 DEF SYSTEM INSTL CUMMINS QSG12 795
56 81028410 CLUTCH RELEASE ASSY 799
57 81026650 ENCLOSURE ASSY POWER PLANT 801
810324152 COVER ASSY ENCLOSURE 803
810293652 LANYARD 805
810318962 PANEL POWER PLANT ENCL 807
810318992 PANEL ENCL ASSY POWER PLANT 809
810319022 PANEL POWER PLANT ENCL 811
81042535 COVER ASSY ENCLOSURE 813
81042536 COVER ASSY ENCLOSURE 815
60 81037290 GENERATOR ASSY PREP 817
81037291 HEATER APU 819
81037292 AIR COND ASSY APU 821
81037293 FUEL CIRCUIT APU 823
81041768 ESI APU PREP 827
81040179 JUNCTION BOX ASSY APU DC 831
62 81037289 GENERATOR ASSY EQUIP 833
81031997 GENERATOR ASSY 837
LOWERWORKS
1 80126776 CARBODY ASSY 60″ SHOES W/ JACK 839
810239549 CARBODY ASSEMBLY 841
84051903 SWIVEL MOUNTING PLATE ASSY 843
81024036 PIN PULLER CARBODY-CRAWLER 845
810259310 CYLINDER HYDR 847
80128139 ESI CARBODY 849
84051933 PIPING HYD EQUIP 851
81026883 HYD EQUIP CARBODY VALVES 853
810254400 VALVE FLOW CONTROL 855
81028704 VALVE ASSY 1 BANK D03 ALUMINUM 857
810239070 VALVE DIRECTIONAL CONTROL 859
810279320 VALVE MANIFOLD 861
84051931 HYD LINES INSTL CARBODY PIN 863
810039140 Q DISCON FITTING 867
84051932 HYD LINES INSTL CARBODY 869
810114710 Q DISCON FITTING 873
81028817 CARBODY HYDRAZORB INSTALL 875
80105871 PLATFORM ASSY CARBODY 877
84032560 JACK CYL ASSY CARBODY 879
81027448 HYD LINES INS CARBODY JACK CYL 881
81027972 JACK CYL ASSY LOWERWORKS 883
5638710 PIN, SAFETY NO DWG
81040882 OUTRIGGER PAD ASSY 885
84032559 HYD EQUIP JACKING CYL VALVES 887
810136490 VALVE MANIFOLD ASSY 2 BK D03 2 889
1 80109603 CRAWLER ASSY W/ A-LUBE 60″SHOE 891
84040523 CRAWLER ASSEMBLY 895
81024041 CRAWLER DRIVE ASSY 897
810240480 ROLLER ASSY CRAWLER INTER 899
81040547 ROLLER ASSY TOP 901
84040527 CRAWLER TENSIONING ASSY 903
84043010 HYD LINES INSTL CRAWLER 905
810039130 Q DISCON FITTING 909
810114700 Q DISCON FITTING 911
81042207 PIN HOSE STOWAGE 913
84046047 ESI CRAWLER 915
84043587 CRAWLER GREASE PIPING ASSY 917
84043588 CRAWLER GREASE PIPING ASSY 921
810268840 PUMP GREASE 24VDC/2 .0 A 925
810268890 VALVE ASSY 927
810349820 VALVE ASSY 929
A067180 VALVE ASSY 12 BANK 931
A067180 VALVE ASSY 12 BANK 933
84044205 CRAWLER GREASE GUARD ASSY 935
81028768 CRAWLER ASSY 60 INCH SHOE 937
ATTACHMENTS
1 810280360 BOOM BUTT ASSY #500 8.00 M 939
1687791 BOOM ANGLE INDICATOR ASSY 941
81025601 PIN PULLER BOOM HINGE 943
3856240 CYLINDER, HYDRAULIC 947
3856245 KIT, SEAL 949
810121640 Q DISCON FITTING 951
80110581 STOP ASSY #500 953
810259451 ESI BOOM BUTT 955
810295781 CATWALK ASSY #500 8.00M BUTT 957
84020120 MANIFOLD BLOCK RETURN ASSY 959
2 81024072 WINCH RIGGING ASSY 961
810099570 WINCH 967
810280071 GUIDE ASSY 971
A131815 BLOCK .3125 IN WIRE ROPE, 4MT 973
A131810 BLOCK 975
84030729 ADAPTER RIGGING WINCH ASSY 977
84044934 WIRE ROPE RIGGING W/ FITTING 979
2 810260241 WIRE ROPE 26MM ASSY X 425M LG NO DWG
3 810253001 WIRE ROPE 28MM ASSY X 440 LG 981
810253000 WIRE ROPE 28MM ASSY GENERIC NO DWG
4 81039219 WIRE ROPE 28MM ASSY X 460 LG NO DWG
4 81023380 BOOM RIGGING B10:500 NO DWG
5 81023382 BOOM RIGGING B60:500 NO DWG
6 81023385 JIB RIGGING JIB NO.148 NO DWG
7 80118154 HOOK BLOCK 45T SSHV 1.13ROP CE NO DWG
7 81025690 MAST RIGGING M10:503 NO DWG
8 810319870 BLOCK 100 M TON 28MM ROPE 3 SH NO DWG
8 81023383 LUFFING JIB RIGGING LJ10:501 O NO DWG
9 81023384 LUFFING JIB RIGGING LJ10:501 NO DWG
10 81038141 REEVING DIAGRM #500 TOP 1 DRUM NO DWG
11 81038142 REEVING DIAGRM #500 TOP 2 DRUM NO DWG
12 80112861 DECAL KIT MLC300 BOOM INSERT 983
12 84050216 BOOM RIGGING B65:505-500 NO DWG
13 810278030 INSERT ASSY 12M HEAVY #500 985
810296271 GUIDE ASSY 987
810300071 CATWALK ASSY #500 12M HEAVY 989
810338541 ESI 12M INSERT 991
13 80112862 DECAL KIT MLC300 BOOM INS W/EQ 993
13 84050217 LUFFING JIB RIGGING LJ ON B65 NO DWG
14 81030008 INSERT LUFF JIB PREP 12M HEAVY 995
A120120 SHEAVE ASSY RIG WINCH ZINC RIC 997
14 80112861 DECAL KIT MLC300 BOOM INSERT 999
15 80112861 DECAL KIT MLC300 BOOM INSERT 1001
16 81027946 GUIDE ASSY DRUM 6 UPPER 1003
810258190 SHEAVE ASSY 1005
16 80112861 DECAL KIT MLC300 BOOM INSERT 1007
17 81027949 GUIDE ASSY DRUM 6 LOWER 1009
810258190 SHEAVE ASSY 1011
18 81029022 GUIDE ASSY DRUM 2,3 LOWER 1013
810258190 SHEAVE ASSY 1015
19 81029628 GUIDE ASSY DRUM 2,3 UPPER 1017
810258190 SHEAVE ASSY 1019
22 81027719 TOP ASSY #500, 10.0 M 1021
81025353 ESI BOOM TOP WIRING 1025
81025948 ESI BOOM TOP 1027
84019148 A2B DEVICE MOD TWO SPRINGS 1029
810245702 A2B DEVICE 1031
1770784 LEVER 1033
810238652 SWITCH LIMIT ASSY 1035
810316421 ESI POSITION LIGHT & ANEMOMETE 1037
5638710 PIN, SAFETY NO DWG
810209900 SENSOR WIND SPEED 1039
810250570 SUBASSY POSITION LIGHT 1041
81027767 GUIDE WIRE ROPE ASSY 1043
810258190 SHEAVE ASSY 1045
810315121 SHEAVE SPEED SENSOR PREP 1047
81042564 ESI WIRE ROPE GUIDE 1049
810290361 CATWALK ASSY #500, BOOM TOP 1051
23 81027736 POINT #500 LOWER ASSY 1053
5638710 PIN, SAFETY NO DWG
24 81034794 SHEAVE ASSY #500 LWR PT DE 1055
84028414 SHEAVE ASSY #500 DEAD END 1057
81028932 LINK DEAD END ASSY 1059
24 84018961 SLING 50000 LBS 6.15 FT NO DWG
25 81034795 SHEAVE ASSY #500 LOWER POINT 1061
81027766 SHEAVE BANK ASSY #500 LOWER PT 1063
27 81042719 TOP 10.0 M LUFF JIB PREP 1065
28 810278200 INSERT ASSY 6M #500 1067
810312801 CATWALK ASSY #500 6M INSERT 1069
29 81031626 INSERT LJ PREP 6M MEDIUM 1071
31 6462460 SOCKET/WEDGE, 1″ (26 MM) 1073
33 810278110 INSERT ASSY 12M WITH EQ M #500 1075
81036544 CATWALK #500 12M MED W/EQ 1079
33 84018961 SLING 50000 LBS 6.15 FT NO DWG
34 81036541 INSERT LJ PREP 12M MED W/EQ 1081
37 810333440 WEIGHT BALL SWIVEL 22.2 MTON 2 NO DWG
38 810278080 INSERT ASSY 12M M #500 1083
810279002 CATWALK ASSY #500 12 M INSERT 1085
39 81029537 INSERT LUFF JIB PREP 12M MED 1087
39 80103460 LINK ASSY A2B 1089
40 80128376 CVS SHIP OUT PAINT & MISC. NO DWG
43 810278080 INSERT ASSY 12M M #500 1091
810279002 CATWALK ASSY #500 12 M INSERT 1093
44 81029537 INSERT LUFF JIB PREP 12M MED 1095
48 810278170 INSERT LUFF #500 L 12M W/SUSP 1097
810319501 CATWALK ASSY #500 12M W/SUSP 1101
49 81032279 INSERT LJ PREP-12M W/SUSPN 1103
58 81028313 PIN PULLER MAST & EQUALIZER 1105
81032872 CYLINDER HYD LIVE MAST PIN PUL 1107
64 810297695 BOOM PT UPR FRAME ASSY 28MMSHE 1109
81034286 ESI UPPER BOOM POINT 1111
810245682 A2B DEVICE 1113
1770804 LEVER ASSY 1115
810238652 SWITCH LIMIT ASSY 1117
81033846 SHEAVE 1119
65 81036285 ROLLER ASSY BOOM POINT UPPER F 1121
67 81039609 MAST SUPPORT ASSY 1123
5638710 PIN, SAFETY NO DWG
81040796 HINGE SUPPORT ASSY 1125
