Manitowoc MLC300VPC-MAX® Crane Parts Manual 605504 PDF

Manitowoc MLC300VPC-MAX® Crane Parts Manual 605504 – PDF DOWNLOAD

FILE DETAILS:

The Manitowoc MLC300VPC-MAX® Crane Parts Manual (605504) in PDF format is indispensable for maintenance. Detailed diagrams and genuine part information streamline efficient repairs and servicing for the Manitowoc MLC300VPC-MAX® model.

Manitowoc MLC300VPC-MAX® Crane Parts Manual 605504 – PDF DOWNLOAD

Language : English
Pages :220
Downloadable : Yes
File Type : PDF

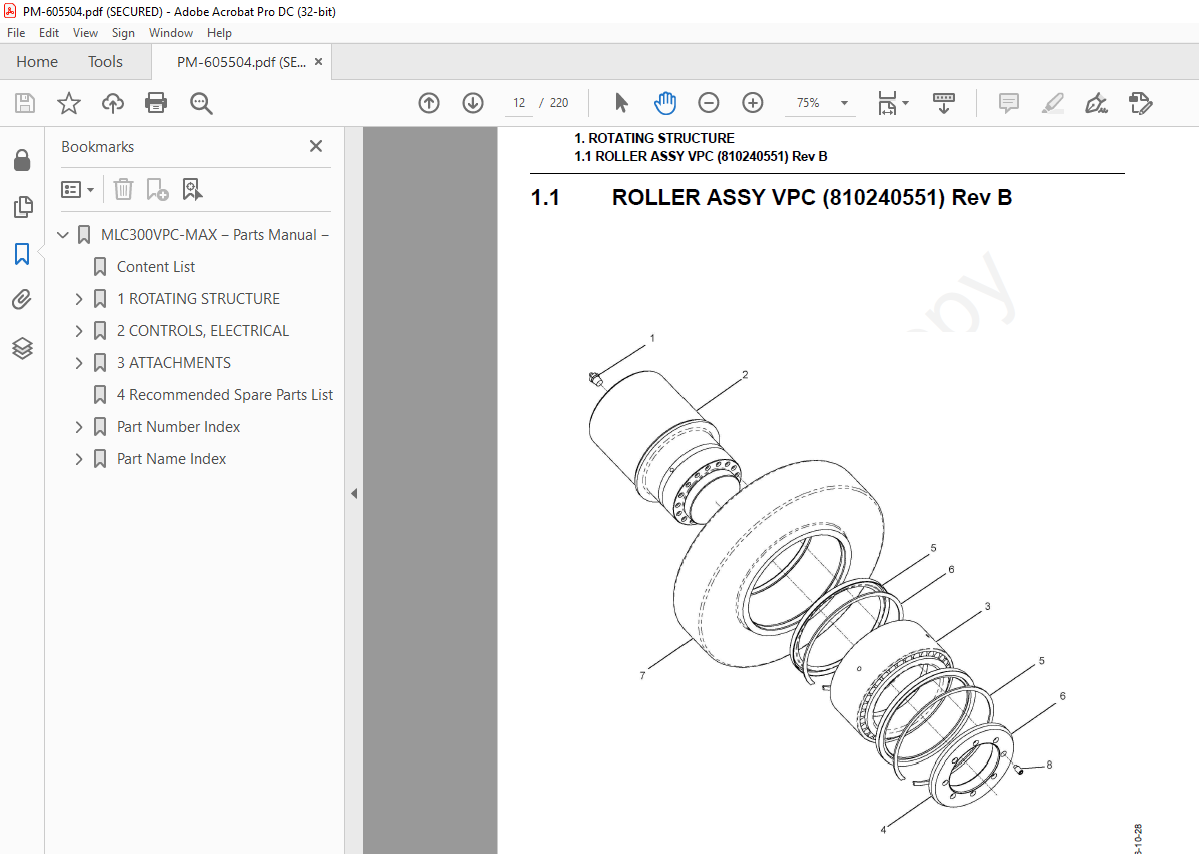

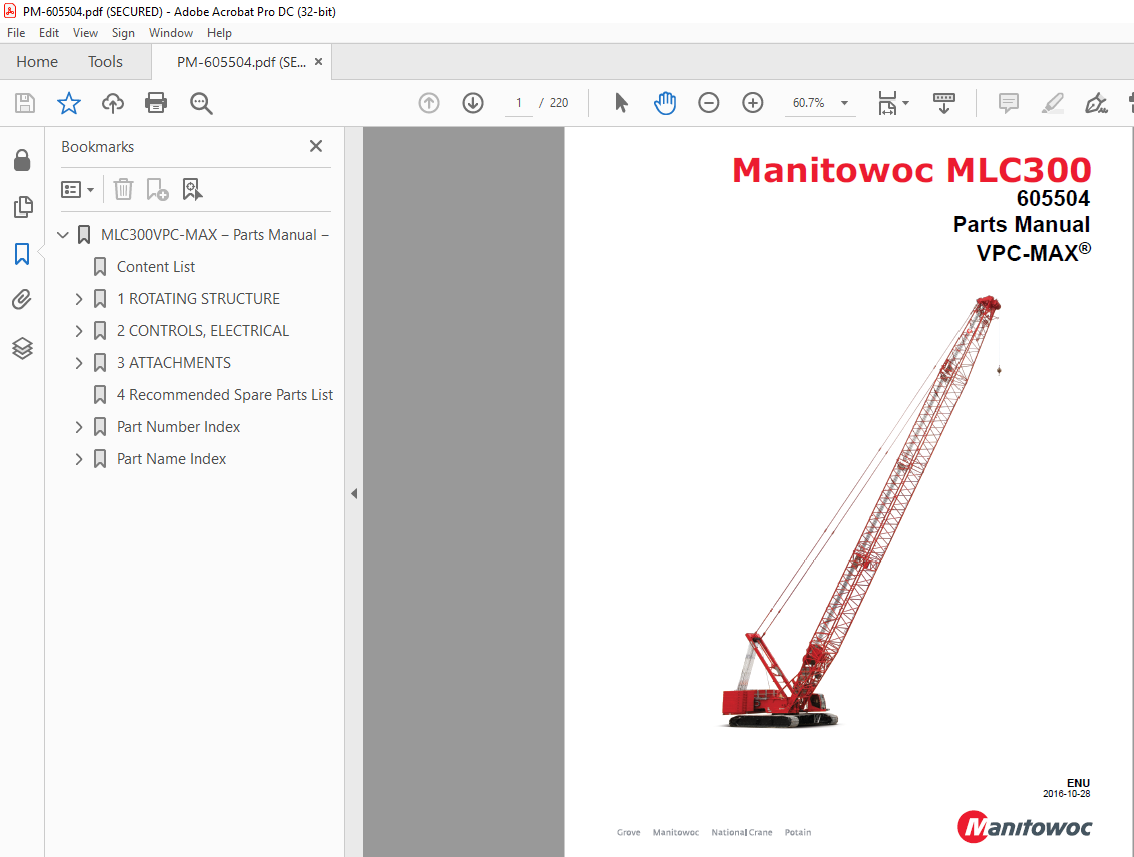

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Manitowoc MLC300VPC-MAX® Crane Parts Manual 605504 – PDF DOWNLOAD

1 ROTATING STRUCTURE
1 1 ROLLER ASSY VPC (810240551) Rev B 1-4
1 2 BEAM ASSY VPC-MAX (810240591) Rev G 1-6
1 2 1 FRAME ASSY AUXILIARY MEMBER (81031800) Rev C 1-10
1 2 2 HYD LINES INSTL VPC-MAX BEAM (81033985) Rev C 1-12
1 2 3 ESI VPC MAX BEAM (810339931) Rev F 1-20
1 2 4 HINGE ASSY VPC-MAX (81035289) Rev C 1-24
1 2 5 WEAR PAD ASSY VPC-MAX (84029113) Rev A 1-26
1 2 6 PLATFORM ASSY VPC-MAX BEAM (81041250) Rev A 1-28
1 2 7 SPREADER BEAM ASSY VPC-MAX (84025252) Rev A 1-50
1 2 8 SPREADER BEAM ASSY VPC-MAX (84024672) Rev A 1-52
1 3 TROLLEY CWT VPC-MAX (810240632) Rev D 1-54
1 3 1 HYD LINES INSTL VPC-MAX TROLLEY (810288791) Rev C 1-56
1 3 2 ESI VPCMAX TROLLEY (81024071) Rev F 1-74
1 3 3 GUARD ASSY VPC-MAX PATH (81042665) Rev A 1-82
1 3 4 GUARD ASSY VPC MAX ROLLERS (81042242) Rev A 1-84
1 3 5 FRAME ASSY ENERGY CHAIN (81042267) Rev A 1-86
1 4 GUARD ASSY VPC WEAR PAD (810293281) Rev C 1-88
1 5 GUARD ASSY VPC (810300471) Rev A 1-90
1 6 WEAR PAD ASSY VPC TROLLEY (810366431) Rev C 1-92
1 7 NAMEPLATE & DECAL ASSY W/VPC MAX (EN) (810340481) Rev F 1-94
2 CONTROLS, ELECTRICAL
2 1 ENCODER ASSY VPC POSITION (81040002) Rev A 2-4
2 2 ESI CAMERA MAST INSTL (81041699) Rev D 2-6
3 ATTACHMENTS
3 1 BUTT ASSY #503 MAST (81025137) Rev H 3-3
3 1 1 HYD LINES INSTL DRUM 5 FIXED MAST (81027457) Rev J 3-6
3 1 2 HOIST ASSY BOOM (810291071) Rev F 3-23
3 1 3 ROLLER PRESSURE ASSY (81034504) Rev A 3-29
3 1 4 PAWL ASSY BOOM HOIST (81034553) Rev C 3-31
3 1 5 ESI MAST BUTT (81036353) Rev D 3-35
3 1 6 SHEAVE 27 0X1 12WR AUTO GRS (81038938) Rev C 3-41
3 1 7 CATWALK ASSY MAST BUTT (81040382) Rev A 3-45
3 1 8 CYLINDER HYDRAULIC MAST STOP ASSY (81041867) Rev C 3-47
3 1 9 STRUT ASSY (A138641) Rev B 3-49
3 2 INSERT ASSY 12M #503 (81026064) Rev E 3-51
3 2 1 SHEAVE 27 0X1 12WR AUTO GRS (81038938) Rev C 3-55
3 2 2 CATWALK ASSY #503 12M INSERT (81040540) Rev B 3-59
3 3 INSERT ASSY 6M #503 (81026067) Rev C 3-61
3 3 1 CATWALK ASSY #503 6 0 M INSERT (81040010) Rev A 3-63
3 4 EQUALIZER ASSY (81029025) Rev B 3-65
3 4 1 SHEAVE ASSY 605 0 26 NYLON (810258220) Rev C 3-67
3 5 TOP ASSY #503 MAST 6 0 M (81032859) Rev E 3-69
3 5 1 SOCKET/WEDGE ASSY 1 00″ (6462460) Rev C 3-73
3 5 2 SHEAVE ASSY 605 0 26 NYLON (810258220) Rev C 3-75
3 5 3 CATWALK ASSY #503 MAST TOP (81039737) Rev A 3-77
3 6 DECAL ASSY FOR TYPICAL INSERT (EN) (810340488) Rev F 3-79
3 7 DECAL ASSY INSERT SHIPMENT (81042560A) Rev E 3-80
4 Recommended Spare Parts List
Part Number Index
Part Name Index
