Manitowoc Traditional Crane 3900W Parts Manual SN 395038 - PDF

Manitowoc Traditional Crane 3900W Parts Manual SN 395038  – PDF DOWNLOAD

The Manitowoc Traditional Crane 3900W Parts Manual (SN 395038) is a detailed PDF guide for assembly, maintenance, and troubleshooting. Download for convenient access to vital information, ensuring effective management of the specified crane model.

FILE DETAILS:

Manitowoc Traditional Crane 3900W Parts Manual SN 395038  – PDF DOWNLOAD

Language : English
Pages :408
Downloadable : Yes
File Type : PDF

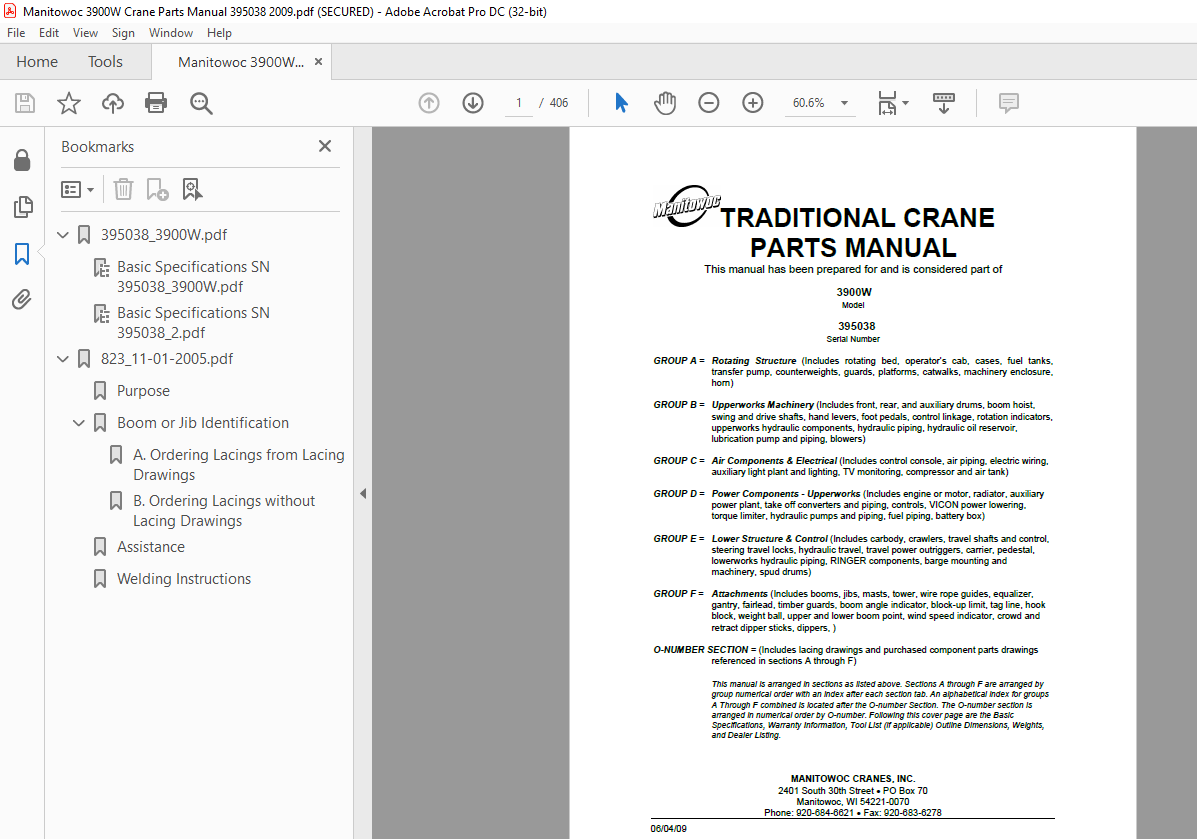

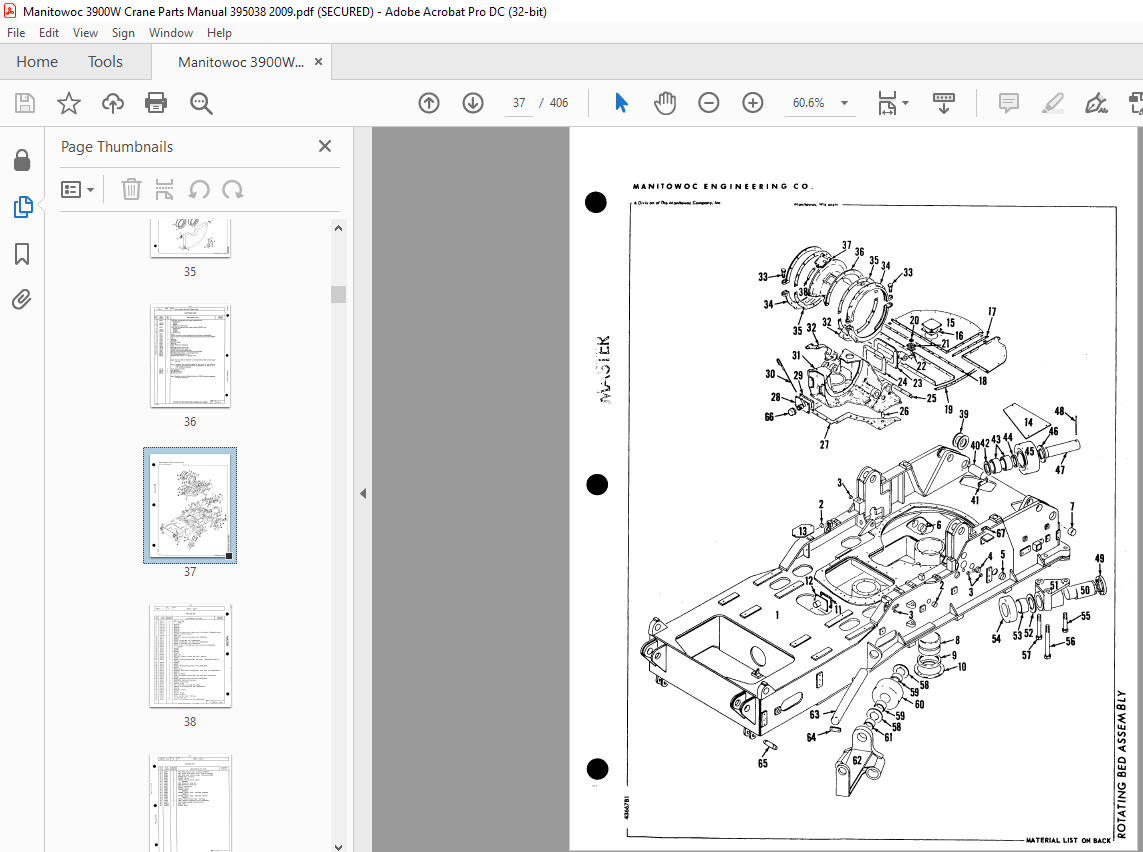

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Manitowoc Traditional Crane 3900W Parts Manual SN 395038  – PDF DOWNLOAD

395038_3900W pdf 0
Basic Specifications SN 395038_3900W pdf 3
Basic Specifications SN 395038_2 pdf 4
823_11-01-2005 pdf 0
Purpose 9
Boom or Jib Identification 9
A Ordering Lacings from Lacing Drawings 10
B Ordering Lacings without Lacing Drawings 11
Assistance 11
Welding Instructions 11

GROUP A = Rotating Structure (Includes rotating bed, operator’s cab, cases, fuel tanks,
transfer pump, counterweights, guards, platforms, catwalks, machinery enclosure,
horn)
GROUP B = Upperworks Machinery (Includes front, rear, and auxiliary drums, boom hoist,
swing and drive shafts, hand levers, foot pedals, control linkage, rotation indicators,
upperworks hydraulic components, hydraulic piping, hydraulic oil reservoir,
lubrication pump and piping, blowers)
GROUP C = Air Components & Electrical (Includes control console, air piping, electric wiring,
auxiliary light plant and lighting, TV monitoring, compressor and air tank)
GROUP D = Power Components – Upperworks (Includes engine or motor, radiator, auxiliary
power plant, take off converters and piping, controls, VICON power lowering,
torque limiter, hydraulic pumps and piping, fuel piping, battery box)
GROUP E = Lower Structure & Control (Includes carbody, crawlers, travel shafts and control,
steering travel locks, hydraulic travel, travel power outriggers, carrier, pedestal,
lowerworks hydraulic piping, RINGER components, barge mounting and
machinery, spud drums)
GROUP F = Attachments (Includes booms, jibs, masts, tower, wire rope guides, equalizer,
gantry, fairlead, timber guards, boom angle indicator, block-up limit, tag line, hook
block, weight ball, upper and lower boom point, wind speed indicator, crowd and
retract dipper sticks, dippers, )
O-NUMBER SECTION = (Includes lacing drawings and purchased component parts drawings
referenced in sections A through F)
