Manitowoc Traditional Crane 4000W Parts Manual SN 40448 – PDF DOWNLOAD

Manitowoc Traditional Crane 4000W Parts Manual SN 40448 – PDF DOWNLOAD

The Manitowoc Traditional Crane 4000W Parts Manual (SN 40448) in PDF format is crucial for maintenance. Download for detailed insights into crane components, facilitating effective servicing and operational comprehension.

FILE DETAILS:

Manitowoc Traditional Crane 4000W Parts Manual SN 40448 – PDF DOWNLOAD

Language : English
Pages :444
Downloadable : Yes
File Type : PDF

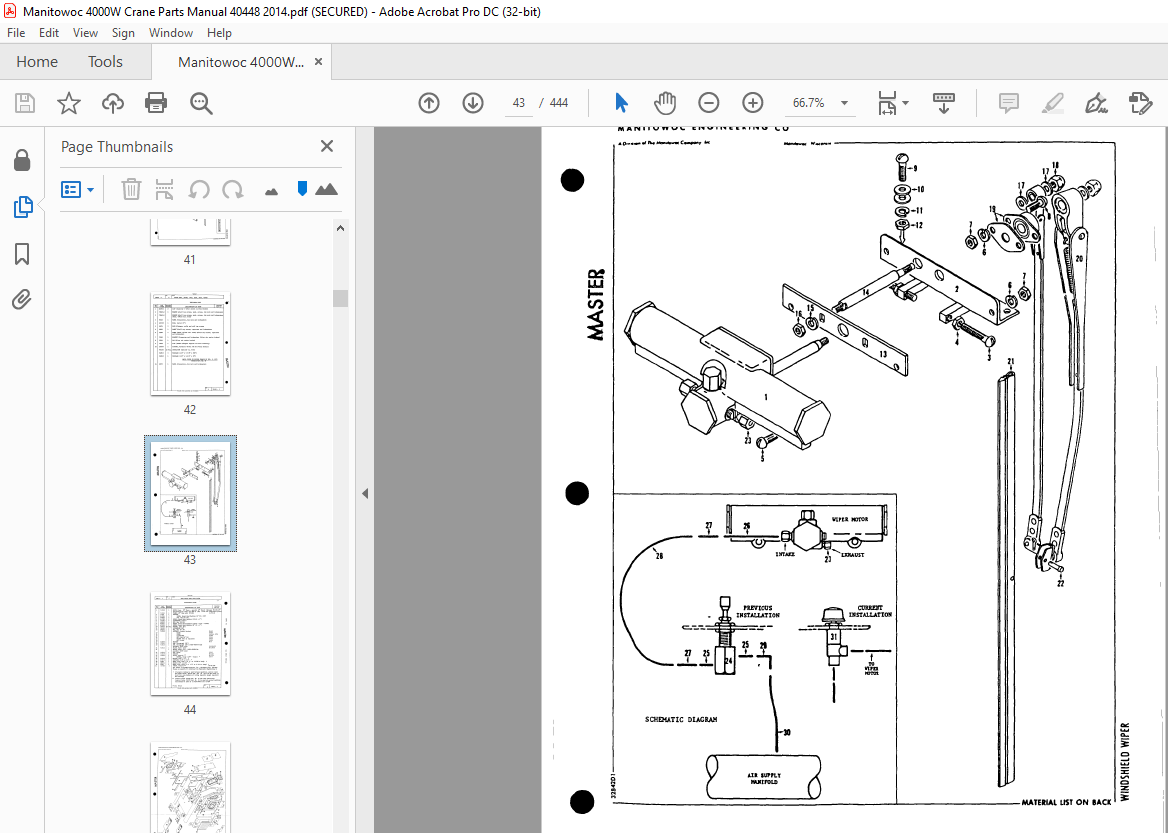

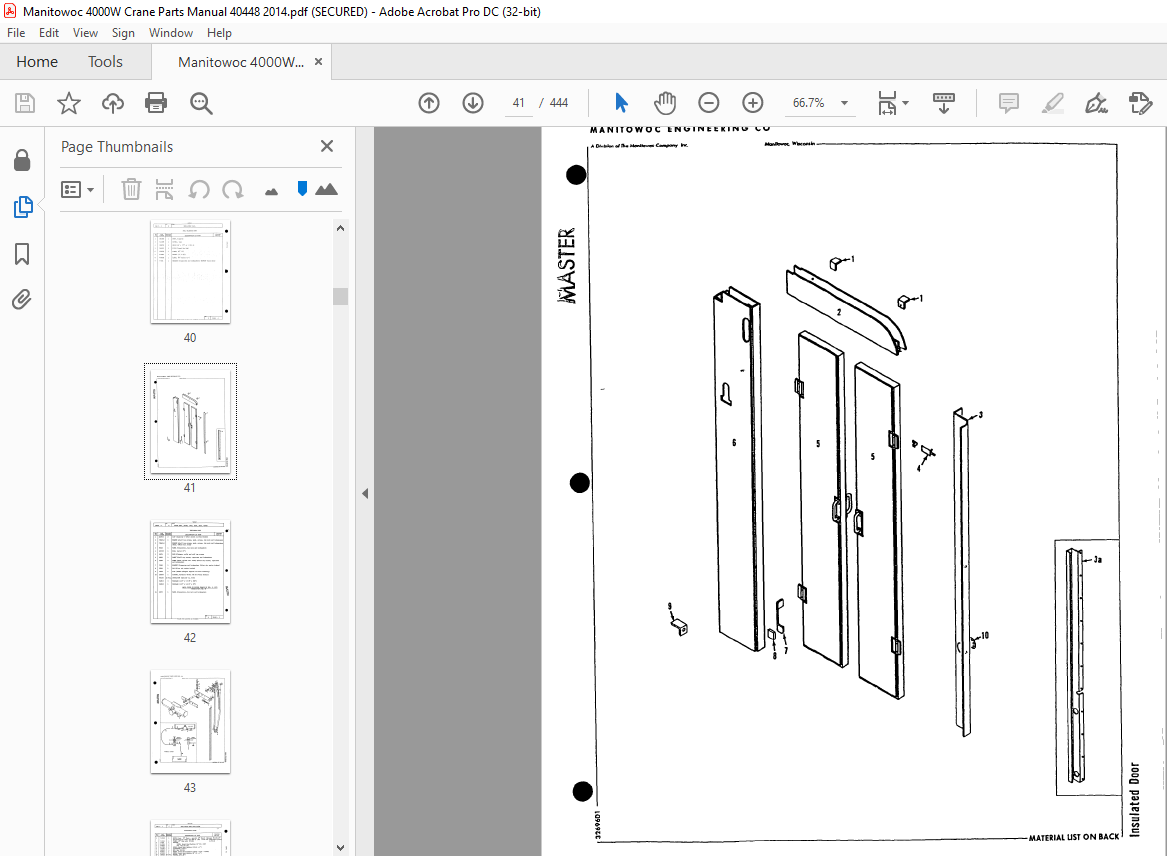

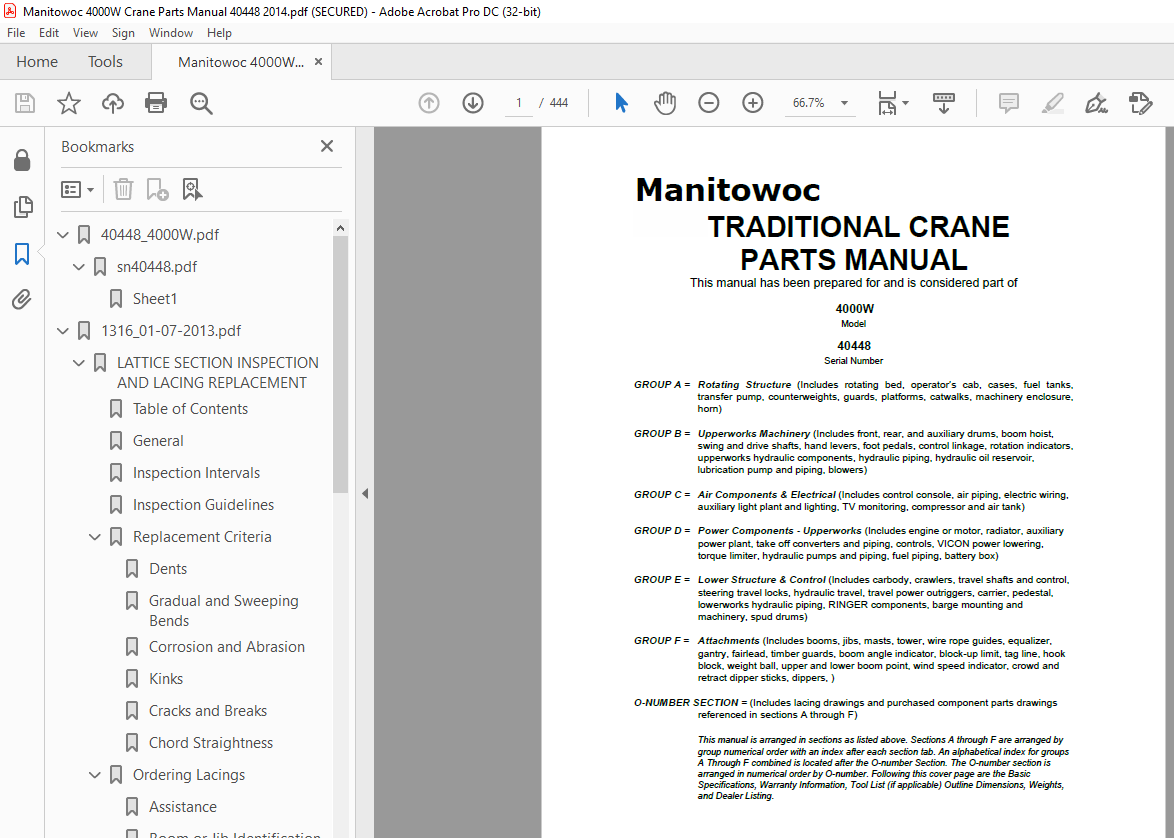

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Manitowoc Traditional Crane 4000W Parts Manual SN 40448 – PDF DOWNLOAD

40448_4000W pdf 0
sn40448 pdf 0
Sheet1 4
1316_01-07-2013 pdf 0
LATTICE SECTION INSPECTION AND LACING REPLACEMENT 7
Table of Contents 7
General 7
Inspection Intervals 7
Inspection Guidelines 9
Replacement Criteria 9
Dents 9
Gradual and Sweeping Bends 9
Corrosion and Abrasion 11
Kinks 11
Cracks and Breaks 11
Chord Straightness 13
Ordering Lacings 13
Assistance 13
Boom or Jib Identification 13
A Ordering Lacings from Lacing Drawings 14
B Ordering Lacings without Lacing Drawings 15
Repair Procedure 16
Extent of Repair 16
Preparing for Welding 16
Repair Facility 16
Outdoor Repairs 16
General Equipment Requirements 16
Repair Procedures and Processes 17
Lacing Replacement 17
End Lacing Replacement 18
End Lacing Replacement on an Insert (Angle and Tubular Chords) 19
End Lacing Replacement on Tapered Sections (Tubular Chords) 19
Lacing Removal — Boom Section with a Bent or Bowed Chord Member 19
Determining Amount of Stick Electrode Needed 20
Inspection Checklist 25
Record Keeping 25
43730_-_06-30-1971_11-06-2012 pdf 0
043730_01 275
043730_02 276
