Motorcycles IZH 6.113-01(Jupiter 5-01)iIZH6.113-03(Jupiter 5-03) Parts Manual - PDF DOWNLOAD

Motorcycles IZH 6.113-01(Jupiter 5-01)iIZH6.113-03(Jupiter 5-03) Parts Manual - PDF DOWNLOAD

FILE DETAILS:

Motorcycles IZH 6.113-01(Jupiter 5-01)IZH 6.113-03(Jupiter 5-03) Parts Manual - PDF DOWNLOAD

Language : English, Spanish, French
Pages : 182
Downloadable : Yes
File Type : PDF

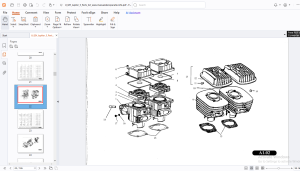

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Motorcycles IZH 6.113-01(Jupiter 5-01)IZH 6.113-03(Jupiter 5-03) Parts Manual - PDF DOWNLOAD

Engine and Gearbox Systems:

• Engine
• Cylinder and parts
• Engine crankcase
• Engine crankcase assembly
• Engine crankcase parts
• Piston and crankshaft
• Clutch
• Gearbox
• Gearshift mechanism
• Kickstarter
• Engine systems
• Fuel system
• Exhaust system
• Cooling system
• Liquid cooling system parts

Motorcycle Running Gear:

• Motorcycle frame
• Front suspension with pneumatic adjustment for mounting front wheel disc brake, handlebar damper
• Front suspension (telescopic fork) for mounting front wheel drum brake, handlebar damper
• Rear wheel suspension

Additional Motorcycle Parts:

• Instrument panel
• Tools and accessories
• Fastenings
• Hexagon-head bolts
• Button-head screws
• Self-tapping pointed screws

DESCRIPTION:

Motorcycles IZH 6.113-01(Jupiter 5-01)IZH 6.113-03(Jupiter 5-03) Parts Manual - PDF DOWNLOAD

HOW TO USE THE CATALOGUE:

• The Catalogue of parts for IZH 6.113-01, Jupiter 5-01 motorcycles is an illustrative guide to be used for studying the design of different modifications and complete sets of the above-mentioned motorcycles and for drawing up applications for spare parts.
• The Catalogue presents information on design features of the motorcycle complete sets. When using the Catalogue bear in mind that it is not a specification of spare parts supplied to the trading network. All parts and assembly units in the Catalogue are listed within functional groups in the order of their assembling.
• Given in the Specifications for the illustrations are the reference No, designa- tion of assembly units and parts, their description and quantity per one motor- cycle. Schematically the motorcycle design is divided in the following groups: group A - engines with gearbox and engine systems; group B-running gear; group C-electrical equipment units; group D tools and accessories; group E-fastenings, roller bearings, mechanical-rubber sealing products used in motorcycles.
• The Section "Group and Subgroup Index" contains indices, descriptions of groups and subgroups, and numbers of the figures in which they are illustrated. The subunits are indicated in the Catalogue both in the figures and in all the sheets of the particular subgroup specification.

To find the part in the Catalogue proceed as follows: 1. Refer to the Group and Subgroup Index and find the index of the subgroup and the figure with the necessary illustration.2. By the illustration and specification to it determine the code of the part, its designation, description and quantity in the particular subgroup. The necessary part may be found also in the Number Index of Codes given atdow the end of the Catalogue. Go to Settings to acti
