INTRODUCTION

• This manual was prepared to assist the experienced mechanic in troubleshooting and repair of the MLJSTANG Model 2060. It contains the latest information available for proper procedures and adjustments. For detaile~ information on the engine, hydrostatic pump, hydraulic pump, and drive motor .
• repair, refer to the individual m~nufacturers service manual. When referred to, left and right sides of the machine are determined as if sitting in the operator’s seat facing forward. All MUSTANG products are designed with operator safety as top priority. In some cases safety equipment must be removed for access to major components.
• Photos may show removal of safety equipment to complete repairs. Be sure to replace all safety equipment and be sure of proper operation when servicing is complete. Always have the model and ·serial number when ordering parts or requesting service information.
• The serial number tag is located on the right rear upright, near the lift arm pivot pin. (See figure 0-1) · MUSTANG is continually striving to make improvements. We therefore reserve the right to make changes in product and/or specifications without notice and are under no obligation to make changes to equipment manufactured previously. Figure

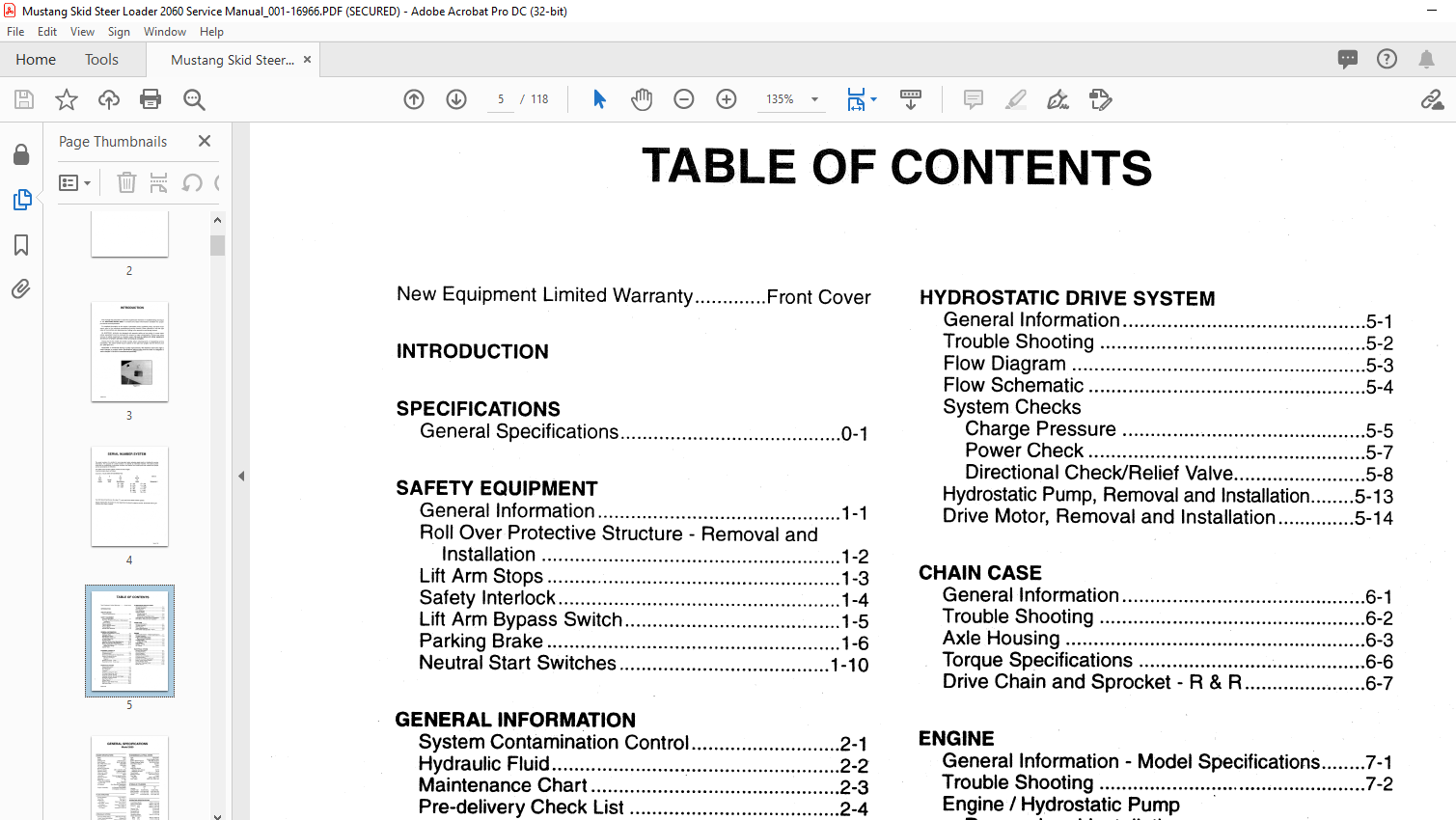

TABLE OF CONTENTS:

Mustang Skid Steer Loader 2060 Service Manual (001-16966) – PDF DOWNLOAD

New Equipment Limited Warranty
Front Cover HYDROSTATIC DRIVE SYSTEM
General Information 5-1
INTRODUCTION Trouble Shooting 5-2
Flow Diagram 5-3
Flow Schematic 5-4
SPECIFICATIONS System Checks
General Specifications 0-1
Charge Pressure 5-5
Power Check 5-7
Directional Check/Relief Valve 5-8
SAFETY EQUIPMENT
General Information 1-1
Hydrostatic Pump, Removal and Installation 5-13
Drive Motor, Removal and Installation 5-14
Roll Over Protective Structure – Removal and
Installation 1-2
Lift Arm Stops 1-3
Safety Interlock 1-4
Lift Arm Bypass Switch 1-5
Parking Brake 1-6
Neutral Start Switches 1-1 o
CHAIN CASE
General Information 6-1
Trouble Shooting 6-2
Axle Housing 6-3
Torque Specifications 6-6
Drive Chain and Sprocket – R & R 6-7
GENERAL INFORMATION
System Contamination Control 2-1
Hydraulic Fluid 2-2
Maintenance Chart 2-3
Pre-delivery Check List 2-4
50 Hour Check List 2-5
ENGINE
General Information – Model Specifications 7-1
Trouble Shooting 7-2
Engine / Hydrostatic Pump ·
Removal and Installation 7-3
Access Panels 2-6
Cooling System 7-5
Standard Torque Value Specifications 2-1 O
Metric Torque Value Specifications 2-11
Torque Specifications and Procedures 2-12
Hoses and Fittings
Trouble Shooting 7-6
Fuel System 7-7
Injection Timing ;7-8
Air Cleaner 7-9
Special Tools 2-13
ELECTRICAL SYSTEM
STEERING CONTROLS General Information 8-1
General Information 3-1
Trouble Shooting 8-2
Troubleshooting 3-2

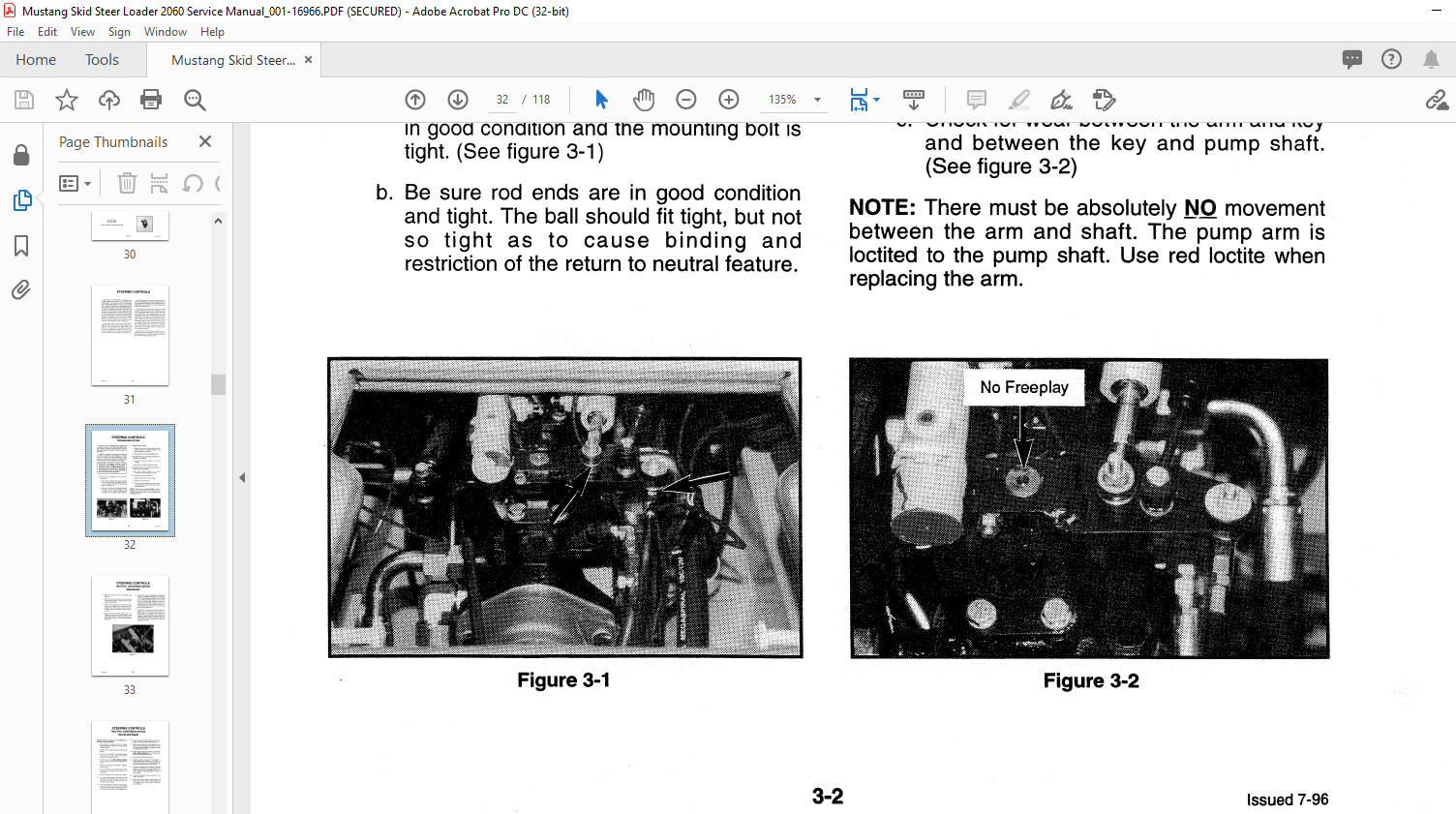

Neutral Centering Device Adjustments 3-3
Neutral Centering Device
Service and Repair 3-4
Diagram 3-5
Steering Controls – T-Bar 3-6
Steering Controls – Dual Lever 3-7
Wiring Diagram 8-4
Instrument Panel 8-5
Interlock Circuit Testing 8-6
Trouble Shooting 8-7
Interlock Circuit Wiring Diagram 8-8
Brake Circuit Wiring Diagram 8-9
Control Module Tests 8-10
Alternator Charging Circuit 8-12
Starter Circuit 8-13
HYDRAULIC SYSTEM
General Information 4-1
Troubleshooting 4-2
Flow Diagram 4-4
Controls 4-5
Lift Circuit Leak Down Test 4-7
Tilt Circuit Leak Down Test 4-8
Hydraulic Cylinder Testing 4-9
Hydraulic Cylinder Service and Repair 4-10
Pressure and Flow Check 4-14
Gear Pump R & R 4-16
Control Valve 4-17
Reservoir and Header Tank 4-20
Self-Level Valve 4-22
