New Holland 1431 Disc Mower Service Repair Manual (40143110) New Holland 1431 – PDF Download

File Details:

New Holland 1431 Disc Mower Repair Manual_40143110
Size: 17.4 MB
Format: PDF
Language: English
Number of Pages: 234 pages
Brand: New Holland
Type of document: Repair Manual
Model: 1431 Disc Mower
Part No: 40143110

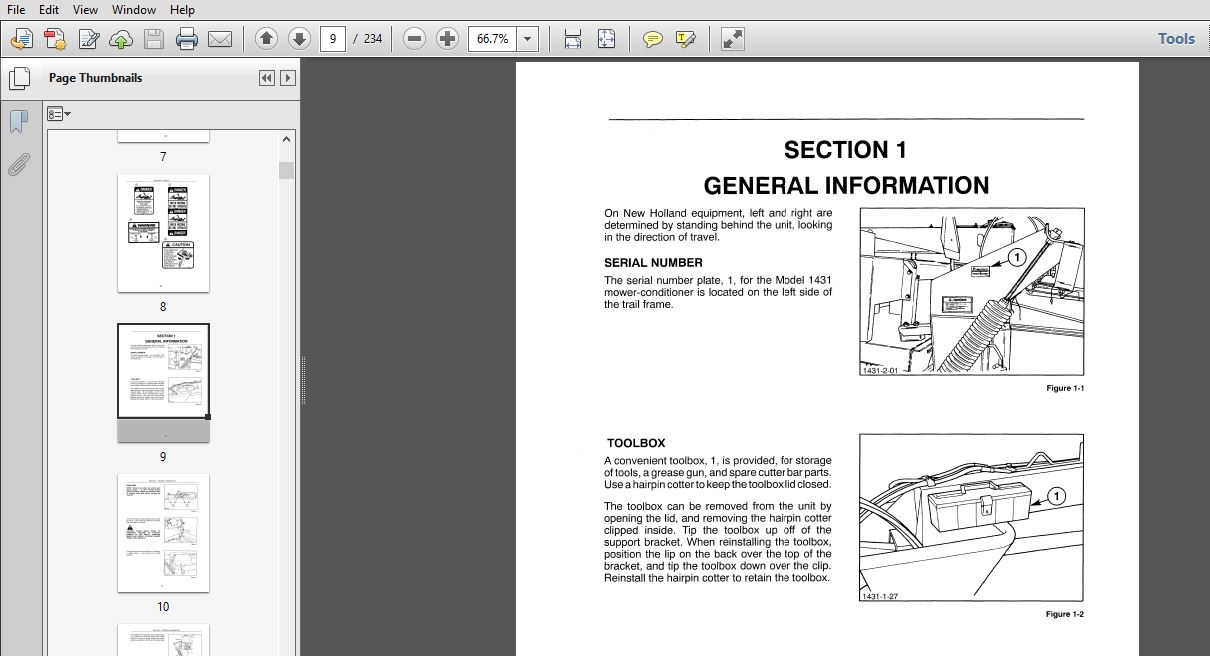

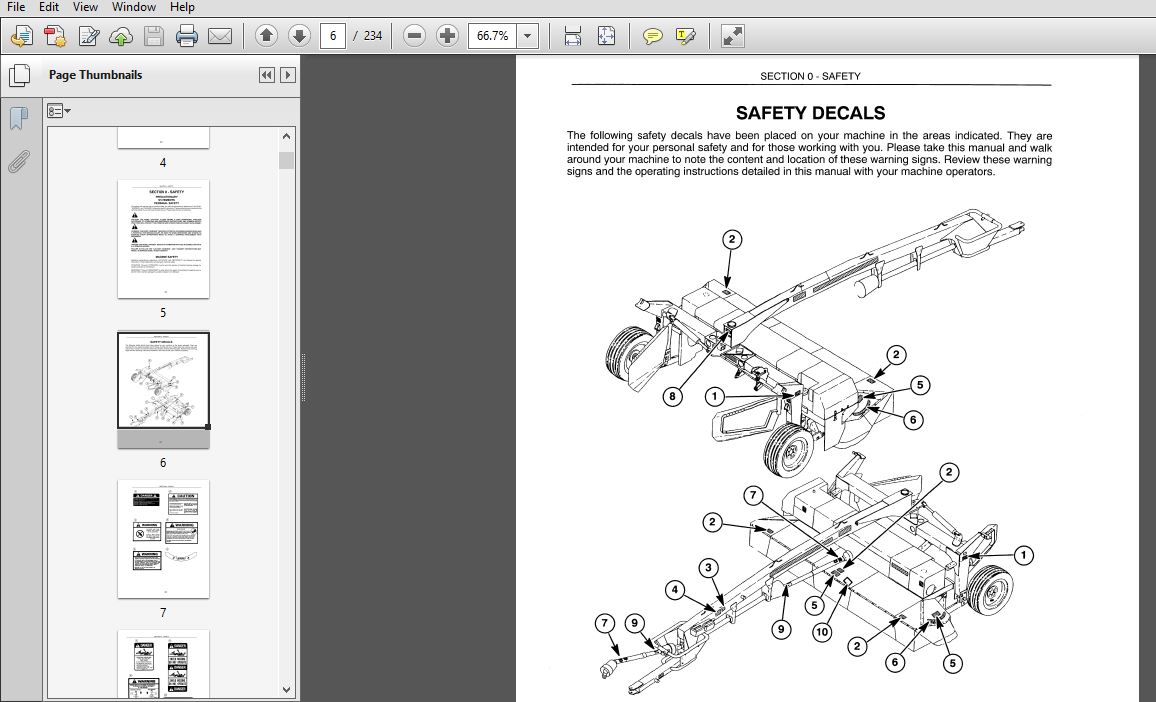

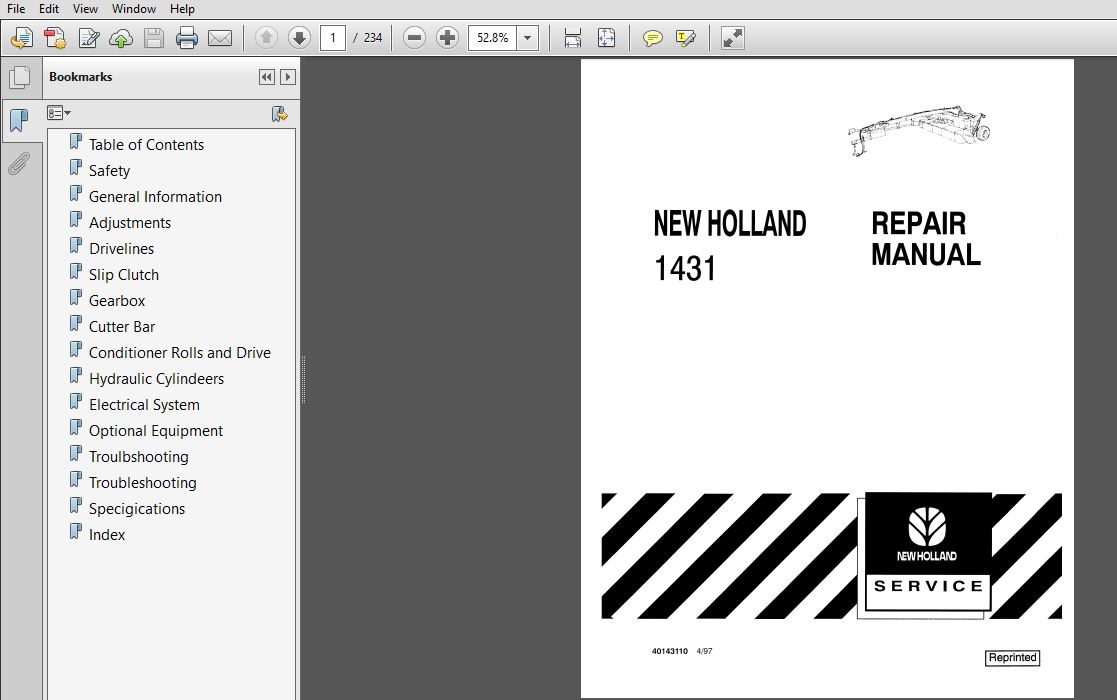

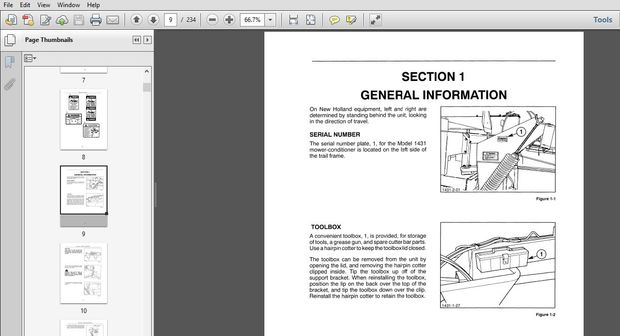

Image Preview:

Sample Page From The Manual:

New Holland 1431 Disc Mower Service Repair Manual (40143110) New Holland 1431

• Three gearboxes and a pedestal shaft assembly are used to power the header components. namely the cutter bar and the conditioner rolls. The driveline on the tongue connects to the center pivoting gearbox, 1. on the header; the center gearbox pivots with the tongue through a mechanical sliding linkage. 6. to minimize U-jolnt angles on the secondary drive shaft.
• The center bevel gearbox drives two 2H8 banded. kevlar cord v-belts. 2. to power the header. The left side  belt drives a pedestal shaft. 3. which is connected to the #2 disc on the cutter bar with a U-joint drive shaft.
• The right side belt drive powers a bevel gearbox, 4. which drives the #9 cutter bar disc module through a U-ioint drive shaft. and also drives the conditioner rolls.
• The dual cutter bar drives reduces the loading experienced by the #2 & #9 disc modules; the cutter bar is completely connected with intermodule shafts for power transmittal and disc timing. The right side bevel gearbox also drives a 4HB banded. kevlar cord v-belt, 5. to the conditioner drive gearbox which powers the rolls using two multispline telescoping u-joint drive shafts.

Table of Contents:

New Holland 1431 Disc Mower Service Repair Manual (40143110) New Holland 1431

Table of Contents ………….. 3
Safety ……………………. 5
General Information ………… 9
Adjustments ……………….. 27
Drivelines ………………… 37
Slip Clutch ……………….. 57
Gearbox …………………… 69
Cutter Bar …………………125
Conditioner Rolls and Drive ….161
Hydraulic Cylindeers ………..187
Electrical System …………..205
Optional Equipment ………….221
Troulbshooting ……………..225
Troubleshooting …………….225
Specigications ……………..229
Index ……………………..231
