File Details:

New Holland 1441 1442 Service Repair Manual
Size : 23.4 MB
Format : PDF
Language : English
Number of Pages : 350 Pages
Brand: New Holland
Type of document: Service Manual
Type of Machine: Tractor
Model: 1441 1442
Part No: 86614447

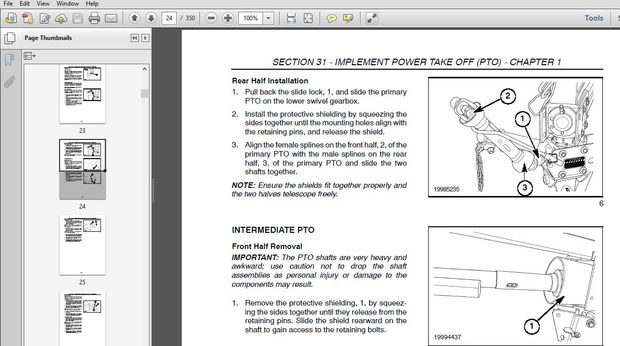

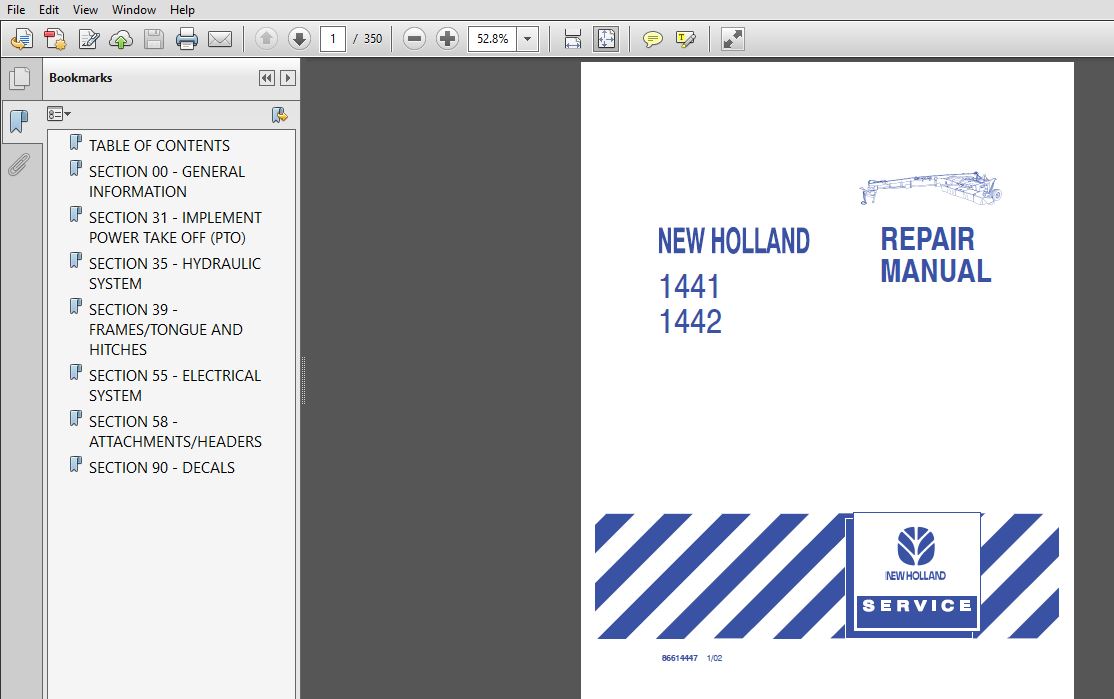

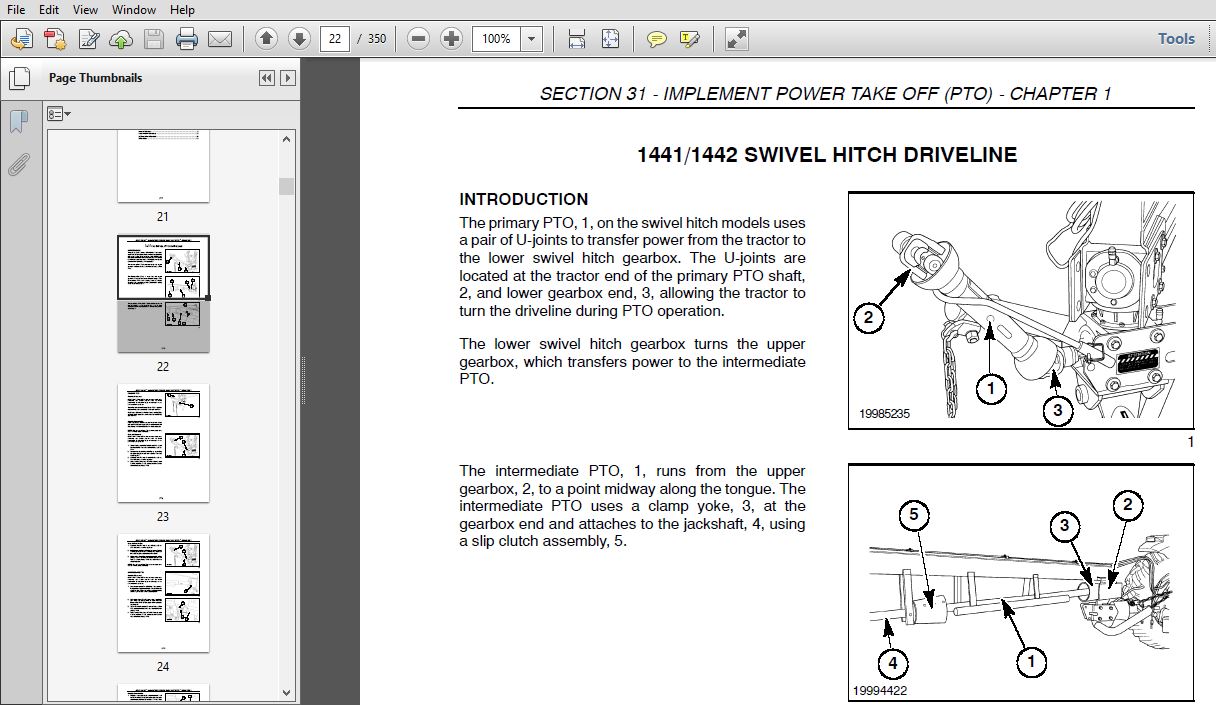

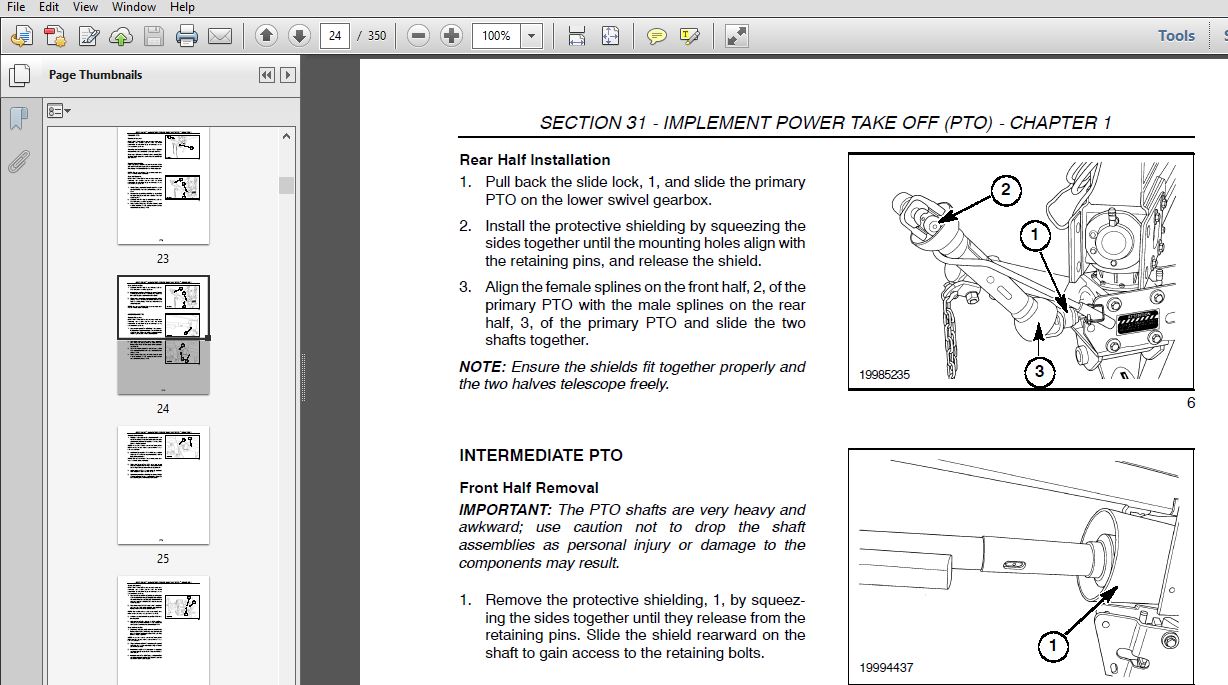

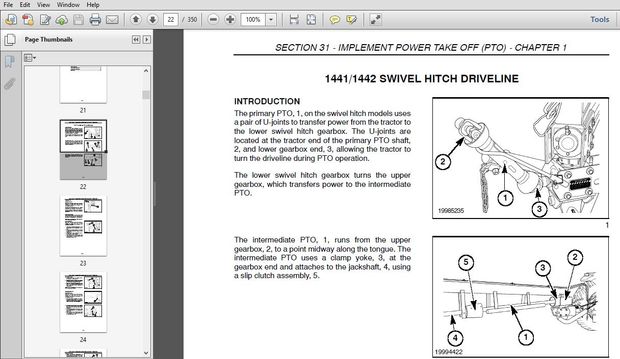

Image Preview:

Sample Page from The Manual:

New Holland 1441 1442 Service Repair Manual (86614447) – New Holland 1441 1442

• Three gearboxes and a pedestal shaft assembly are used to power the cutter bar and the conditioner rolls. The driveline on the tongue connects to the center pivoting gearbox, 1, on the header; the center gearbox pivots with the tongue through a mechanical sliding linkage, 6, to minimize U-joint angles on the secondary drive shaft.
• The center bevel gearbox drives two 2HB banded, kevlar cord v-belts, 2, to power the header. The left side belt drives a pedestal shaft, 3, which is connected to the #3 disc on the cutter bar with a U-joint drive shaft.
• The right side belt drive powers a bevel gearbox, 4, which drives the #10 cutter bar disc module through a U-joint drive shaft, and also drives the conditioner rolls. The dual cutter bar drives reduces the loading experienced by the #3 & #10 disc modules; the cutter bar is completely connected with intermodule shafts for power transmittal and disc timing.
• The right side bevel gearbox also drives a 4HB banded, kevlar cord v-belt, 5, to the conditioner drive gearbox which powers the rolls using two multispline telescoping u-joint drive shafts.

Table Of Contents:

New Holland 1441 1442 Service Repair Manual (86614447) – New Holland 1441 1442

TABLE OF CONTENTS .............................  2
SECTION 00 - GENERAL INFORMATION............... 11
SECTION 31 - IMPLEMENT POWER TAKE OFF (PTO).... 21
SECTION 35 - HYDRAULIC SYSTEM..................115
SECTION 39 - FRAMES/TONGUE AND HITCHES.........141
SECTION 55 - ELECTRICAL SYSTEM.................151
SECTION 58 - ATTACHMENTS/HEADERS...............161
SECTION 90 - DECALS............................329
