New Holland 3415 Tractor Service Repair Manual
Size : 27.9 MB
Format : PDF
Language : English
Number of Pages : 424 Pages
Brand: New Holland
Type of document: Service Manual
Model: 3415
Part No: 87028646

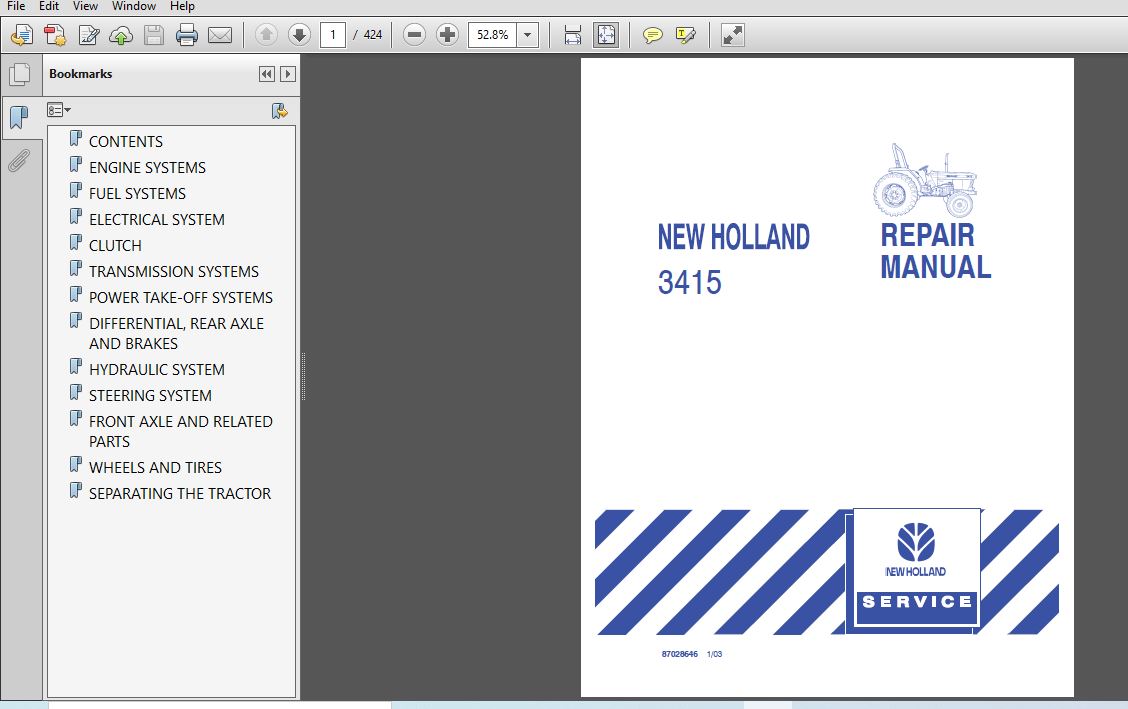

Image Preview:

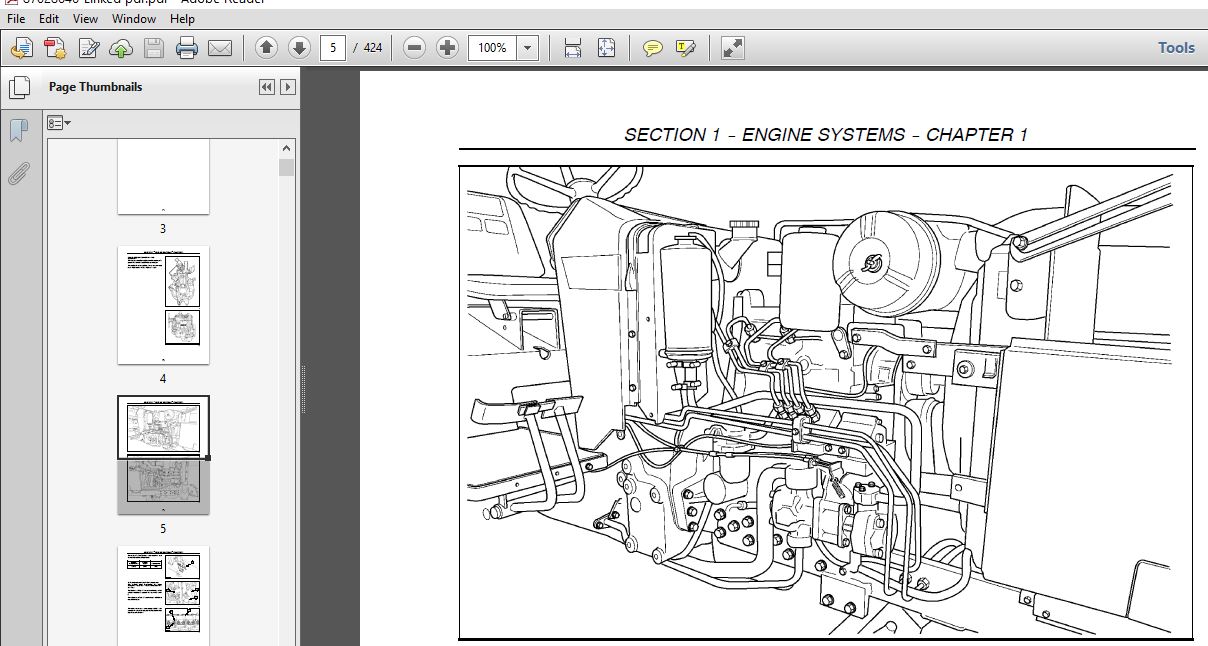

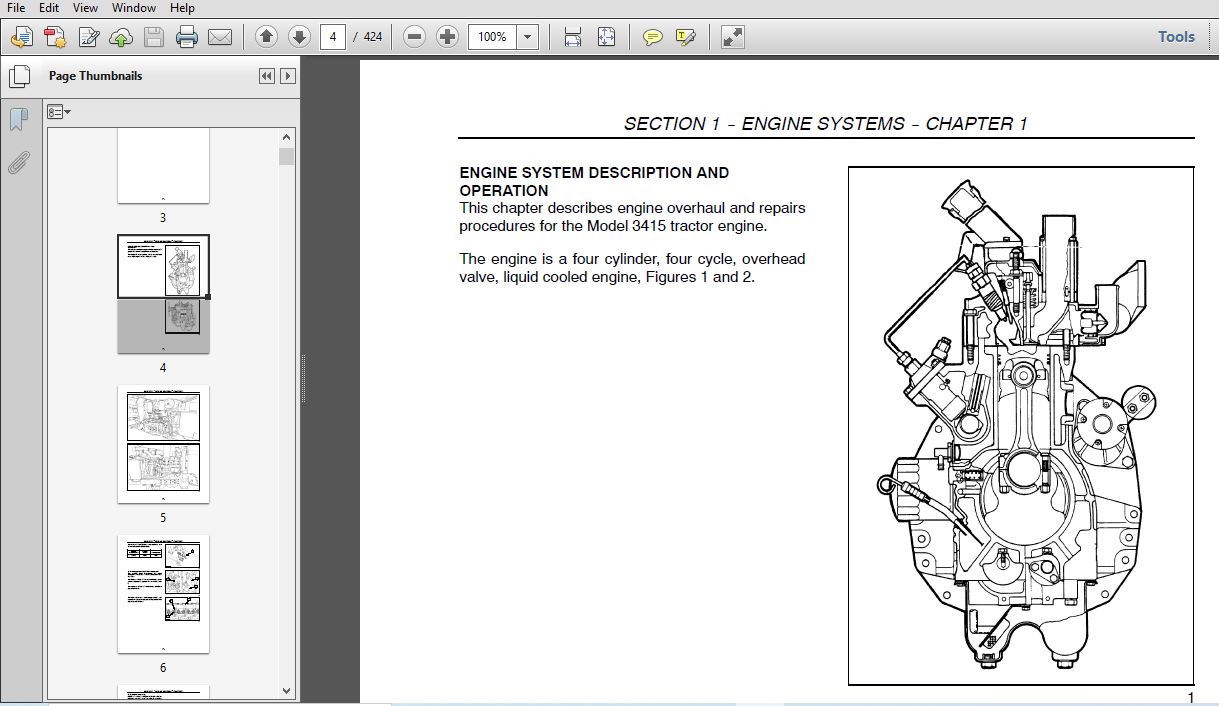

Sample Page from The Manual:

New Holland 3415 Tractor Service Repair Manual (87028646) – New Holland 3415

1. Loosen and remove the nozzle nut, 10, from the injector body, 4, being careful not to drop or damage the nozzle.
2. Remove the nozzle assembly, 9, spacer, 8, spring, 6, and shim (s), 5.
3. Clean the nozzle body and the needle valve. Check the nozzle for any burn or score marks. Check the needle seat for evidence of fuel leakage or carbon deposits.
4. Correct fuel leakage at the seat using a polishing stick and polish the seat area.
5. Inspect the upper and lower contact surfaces of the nozzle holder for a clean contact surface area.
6. Check the contact area between the push rod and spring seat.

Table Of Contents:

New Holland 3415 Tractor Service Repair Manual (87028646) – New Holland 3415

CONTENTS..............................  2
ENGINE SYSTEMS........................  3
FUEL SYSTEMS.......................... 81
ELECTRICAL SYSTEM.....................117
CLUTCH................................195
TRANSMISSION SYSTEMS..................209
POWER TAKE-OFF SYSTEMS................243
DIFFERENTIAL, REAR AXLE AND BRAKES....251
HYDRAULIC SYSTEM......................273
STEERING SYSTEM.......................357
FRONT AXLE AND RELATED PARTS..........389
WHEELS AND TIRES......................397
SEPARATING THE TRACTOR................405
