New Holland FIAT Trattori 115-90 130-90 140-90 160-90 180-90 Turbo Service Manual

New Holland FIAT Trattori 115-90 130-90 140-90 160-90 180-90 Turbo Service Manual

DESCRIPTION:

New Holland FIAT Trattori 115-90 130-90 140-90 160-90 180-90 Turbo Service Manual

• The manual is divided into separately numbered sections.
• Two-digit sections whose second digit is zero contain:
• — tractor specification (00)
• — tractor sub-assembly specification and data (10-Engine; 20-Power Train; 30-Front
• Axle-Steering; 40-Front Wheel Drive; 50-Hydraulic Lift Unit; 60-Electrical System;
• 90-Service Tools).
• Two-digit sections whose second digit is from one to nine deal with overhaul of the sub-assemblies whose data are listed in the sections described above.
• The first digit is the same as that of the corresponding data section (e. g. 20 – Power
• Train, is associated with 22 – Clutch; 23 – Transmission and Splitter; 24 – Creeper,
• Mechanical Reverse 3 etc… ).
• A contents list is provided to facilitate retrieval of desired information.
• The print number of the manual and the date of issue is shown at the bottom of each page.
• Revised sheets will carry the same print number followed by a two-digit number (e.g. first revision 603.54.252.01; second revision 603.54.252.02; etc.) and date of issue.
• Revised sheets will be accompanied by the updated contents sheet.
• All information herein is correct at the time of printing but is subject to alteration without prior notice in case of discrepancies contact the nearest dealer, distributor of branch.

TABLE OF CONTENTS:

New Holland FIAT Trattori 115-90 130-90 140-90 160-90 180-90 Turbo Service Manual

TABLE OF CONTENTS ……………………………………………. 5
GENERAL …………………………………………………….. 9
SPECIFICATIONS ………………………………………………. 13
ENGINE: Specification and Data ………………………………… 31
ENGINE: Description – Performance Data – Removal – Installation …. 53
ENGINE: Engine Block – Cylinder head …………………………… 57
ENGINE: Valve Gear …………………………………………… 65
ENGINE: Crankgear ……………………………………………. 69
ENGINE: Fuel System ………………………………………….. 75
ENGINE: Lubrication System ……………………………………. 87
ENGINE: Cooling System ……………………………………….. 93
POWER TRAIN: Specification and Data ……………………………. 97
POWER TRAIN: Removal and Installation …………………………..121
POWER TRAIN: Clutch …………………………………………..123
POWER TRAIN: Transmission and Splitter …………………………137
POWER TRAIN: Power Shift ………………………………………152
POWER TRAIN: Creeper – Reverser ………………………………..179
POWER TRAIN: Bevel Drive and Differential ……………………….183
POWER TRAIN: Brakes …………………………………………..211
POWER TRAIN: Final Drives ……………………………………..219
POWER TRAIN: Power Take-Off ……………………………………223
FRONT AXLE – STEERING: Specification and Data ……………………235
FRONT AXLE – STEERING: Front Axle ………………………………237
FRONT AXLE – STEERING: Power Steering …………………………..239
FRONT WHEEL DRIVE: Specification and Data ……………………….253
FRONT WHEEL DRIVE: Front Axle ………………………………….257
FRONT WHEEL DRIVE: Drive Shafts – Axle Drive …………………….271
HYDRAULIC LIFT UNIT: Specification and Data ……………………..277
HYDRAULIC LIFT UNIT: Lift ……………………………………..283
HYDRAULIC LIFT UNIT: Lift Pump …………………………………307
HYDRAULIC LIFT UNIT: Implement Attachment ……………………….309
HYDRAULIC LIFT UNIT: Remote Control Valves ………………………313
ELECTRICAL SYSTEM: Specification and Data ……………………….325
SERVICE TOOLS ………………………………………………..339

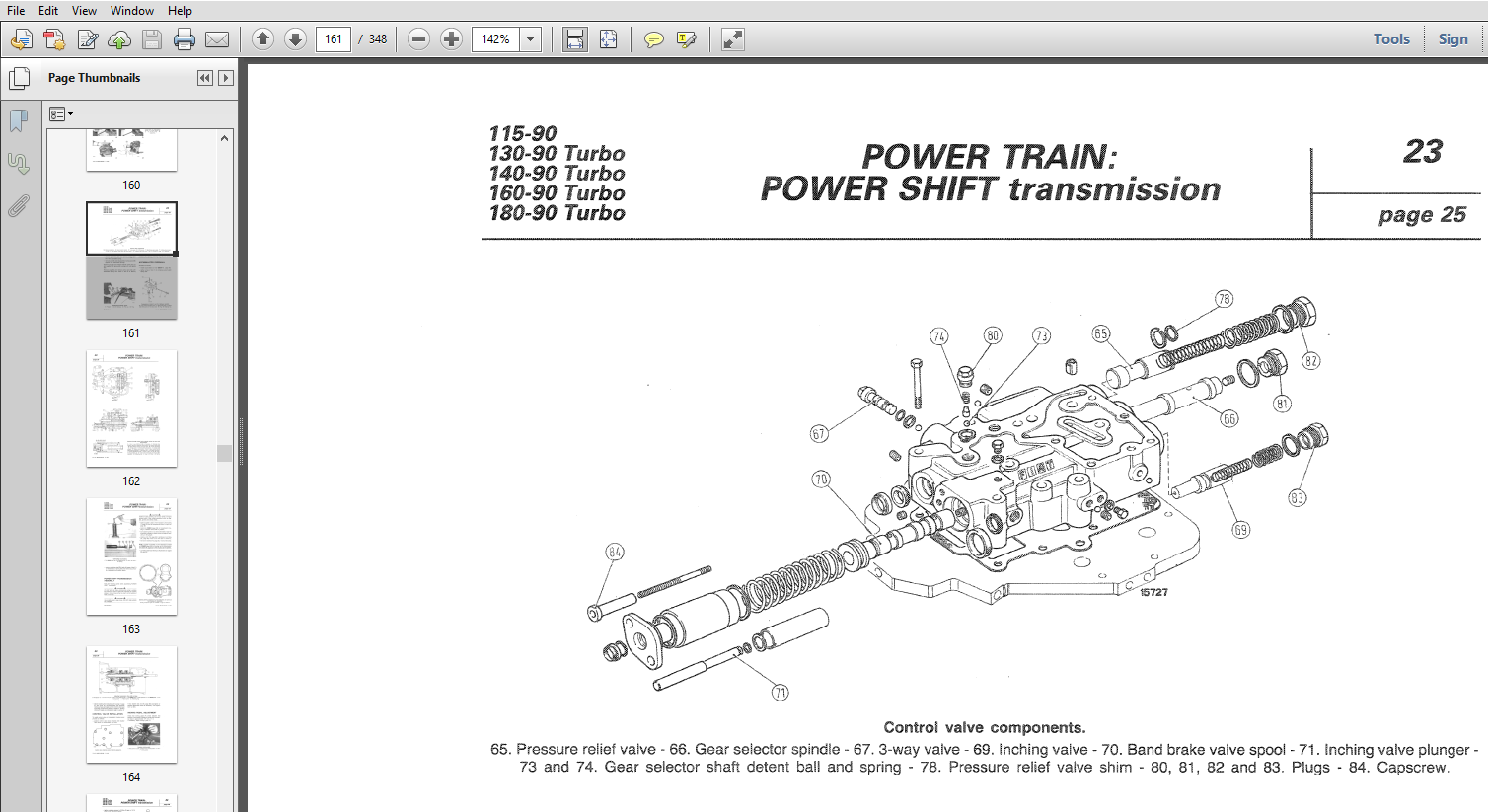

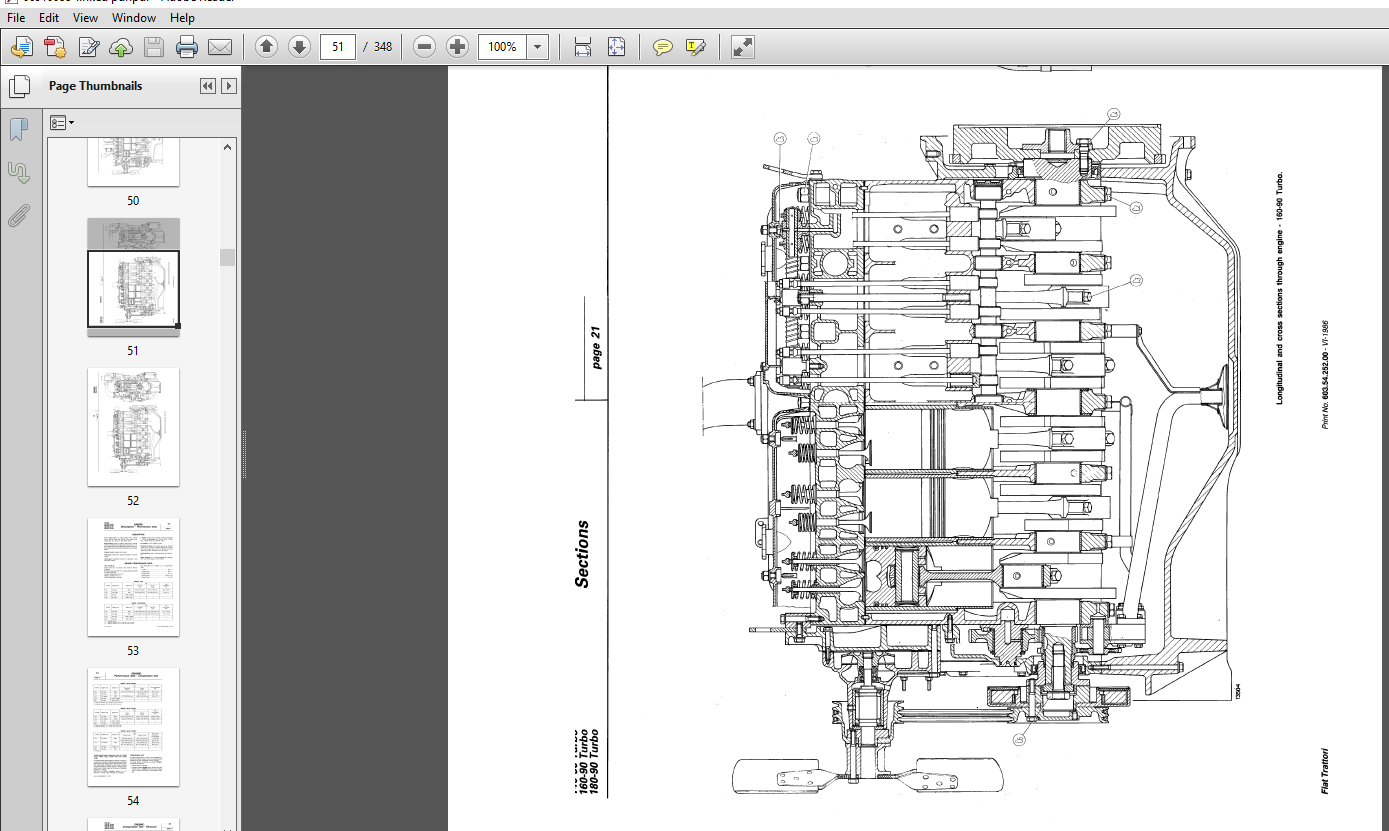

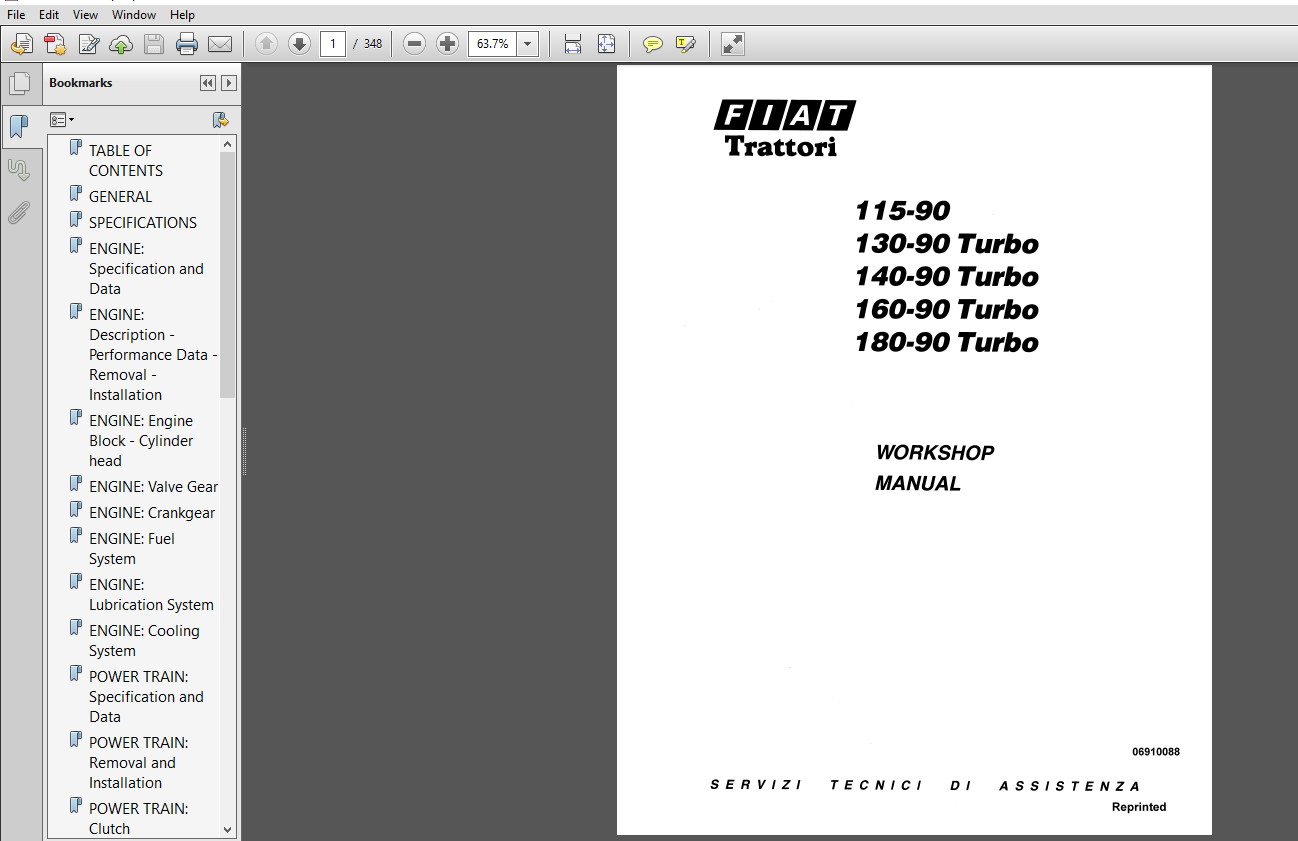

SCREENSHOOTS OF THE MANUAL:
