New Holland Ford 256 276 276 II Bi-directional Versatile Tractor Service Repair Manual (40025631)-NH

New Holland Ford 256 276 276 II Bi-directional Versatile Tractor Service Repair Manual (40025631)-NH

File Details:

New Holland Ford 256,276,276 II Bi-directional Versatile Tractor Service Manual_40025631
Size: 85.9 MB
Format: PDF
Language: English
Number of Pages: 382 pages
Brand: New Holland
Type of document: Service Manual
Model: Ford 256,276,276 II Bi-directional Versatile Tractor
Part No: 40025631

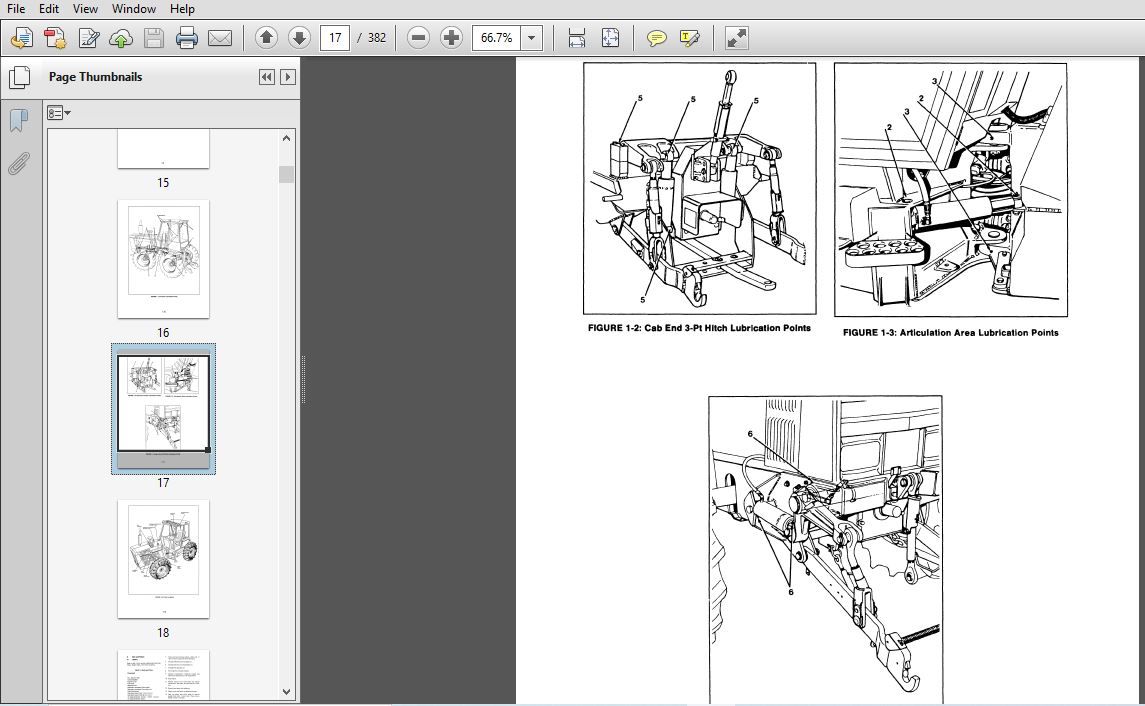

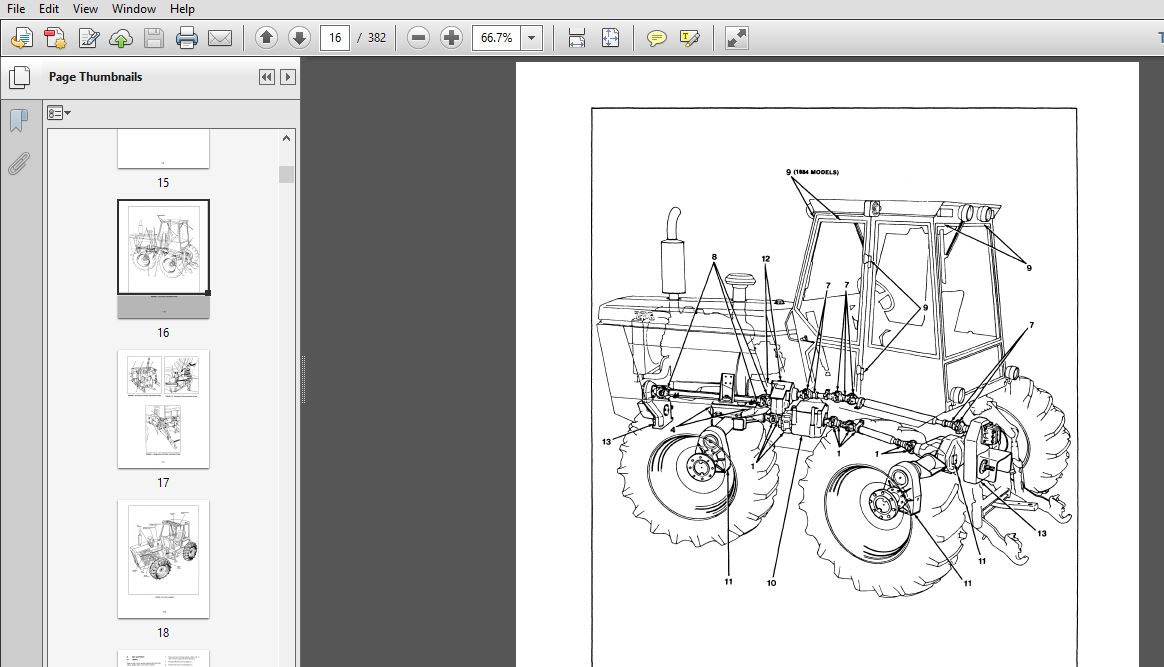

Image Preview:

Description:

New Holland Ford 256 276 276 II Bi-directional Versatile Tractor Service Repair Manual (40025631)-NH

1. Mount a fire extinguisher near the service area. Maintain it as recommended by the manufacturer.
2. Never operate the tractor in an enclosed building. If it is absolutely necessary to do so. be sure the building ls well ventilated and ducting is used to carry exhaust fumes outside.
3. Always keep sleeves, jackets or other loose clothing relatively tight and belted. Loose clothing might catch in moving tractor parts.
4. Never jump from the tractor cab. Always use steps and handholds when mounting and dismountlng tractor.
5. Park the tractor on a clear, level area before beginning any maintenance procedure. Shut down the engine and remove key; apply parkbrake; chock the front and back of at least two wheels. Ensure all operating controls are in neutral. Always disengage the PTO clutch and three-point hitch. Engage articulation lock.
6. Always lower implements to the ground when leaving equipment.
7. Always operate tractor controls from the operator’s seat.
8. Use articulation lock during tractor servicing. See Section 10. STRUCTURES.

Table of Contents:

New Holland Ford 256 276 276 II Bi-directional Versatile Tractor Service Repair Manual (40025631)-NH

Table of Contents
..........  3
Specifications and Data
....  7
Engine Systems
............. 21
Transfer Gearbox Repair
.... 55
Drivetrain
................. 77
Hydrostatic System..........131
Hydraulics
.................221
Three-Point Hitch
..........273
Electrical System
..........321
Environmental Systems
......347
Structu
res.................367
Index
......................375
