New Holland Ford 2610 3610 4110 4610 5610 6610 6710 7610 7710 Data Book Service Manual

New Holland Ford 2610 3610 4110 4610 5610 6610 6710 7610 7710 Data Book Service Manual

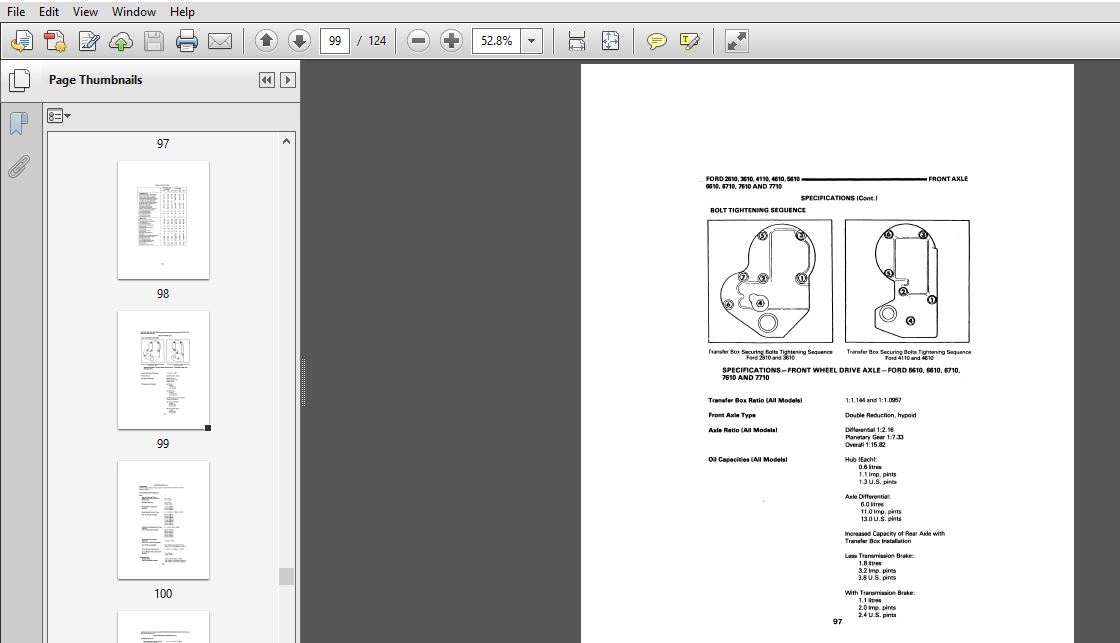

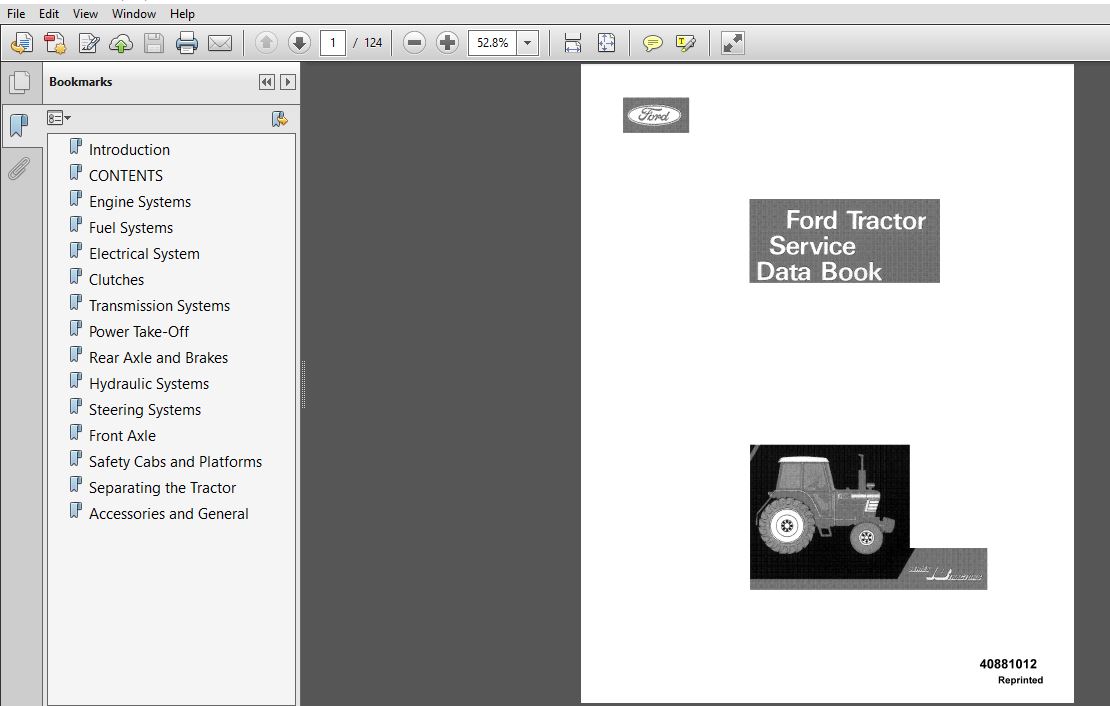

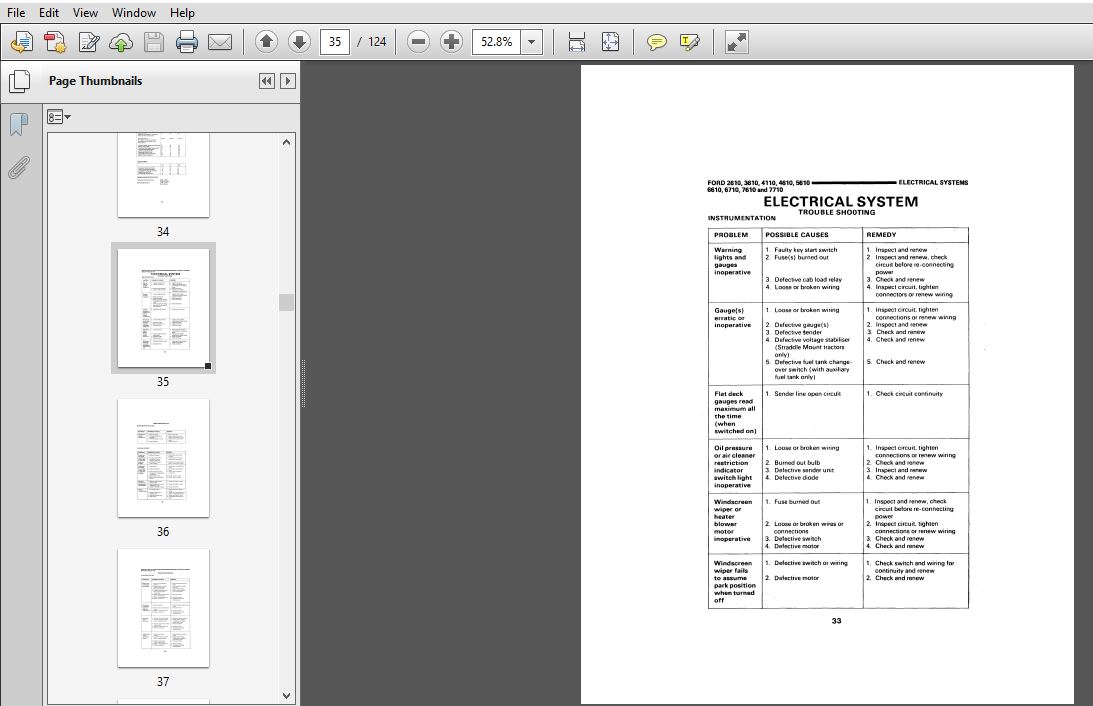

VIDEO PREVIEW:SCREENSHOOTS OF THE MANUAL:

DESCRIPTION:

New Holland Ford 2610 3610 4110 4610 5610 6610 6710 7610 7710 Data Book Service Manual

• This Service Data Book is issued for your information and as a ready reference guide when carrying out repairs and adjustments on Ford agricultural and industrial tractors. Contents include torque values, fault diagnosis, trouble- shooting and service remedies but, in a reference book designed to be compact it is not feasible to include extensive service information.
• Instead the contents have been selected by placing emphasis on the more complex assemblies such as hydraulics and electrical systems where guidance is possibly more in demand. Your Service Data Book is complementary to the current Repair Manuals but at no time should this book be considered as a substitute.
• Where a torque range is indicated set the wrench to the mid-point and ensure wrenches used are frequently monitored for accuracy.
• The information in this Service Data Book was correct at the time of going to press but changes to specification or repair procedures of a significant nature will continue to be advised through the medium of Service Bulletins, and every endeavour should be made accordingly to update or amend the information in your book.
• Several pages in your Service Data Book have been left blank and are ruled and headed up ’Notes‘. Utilise these pages for entering any revised detaiis and additional pertinent service information you consider would be useful.

TABLE OF CONTENTS:

New Holland Ford 2610 3610 4110 4610 5610 6610 6710 7610 7710 Data Book Service Manual

Introduction…………….. 3
CONTENTS………………… 4
Engine Systems…………… 5
Fuel Systems…………….. 21
Electrical System………… 35
Clutches………………… 47
Transmission Systems……… 49
Power Take-Off…………… 65
Rear Axle and Brakes……… 69
Hydraulic Systems………… 75
Steering Systems…………. 85
Front Axle………………. 93
Safety Cabs and Platforms….103
Separating the Tractor…….105
Accessories and General……107
