New Holland MegaCutter 512 530 Tractor Mounted Disc Mower Conditioner Service Manual

Starting from:

$45

Home Baumann

FILE DETAILS:

New Holland MegaCutter 512 530 Tractor Mounted Disc Mower Conditioner Service Manual

Size: 41.2 MB
Format: PDF
Language: English
Number of Pages: 527 pages
Brand: New Holland
Type of document: Service Manual
Model: MegaCutter 512_530 Tractor Mounted Disc Mower-Conditioner
Part No: 47937741

DESCRIPTION:

New Holland MegaCutter 512 530 Tractor Mounted Disc Mower Conditioner Service Manual

Foreword – Important notice regarding equipment servicing:

All repair and maintenance work listed in this manual must be carried out only by qualified dealership personnel, strictly complying with the instructions given, and using, whenever possible, the special tools. Anyone who performs repair and maintenance operations without complying with the procedures provided herein shall be responsible for any subsequent damages.

The manufacturer and all the organizations of its distribution chain, including – without limitation – national, regional, or local dealers, reject any responsibility for damages caused by parts and/or components not approved by the manufacturer, including those used for the servicing or repair of the product manufactured or marketed by the manufacturer.
In any case, no warranty is given or attributed on the product manufactured or marketed by the manufacturer in case of damages caused by parts and/or components not approved by the manufacturer. The manufacturer reserves the right to make improvements in design and changes in specifications at any time without notice and without incurring any obligation to install them on units previously sold.
Specifications, descriptions, and illustrative material herein are as accurate as known at time of publication but are subject to change without notice. In case of questions, refer to your NEW HOLLAND Sales and Service Networks.

Safety rules – Ecology and the environment:

Soil, air, and water quality is important for all industries and life in general. When legislation does not yet rule the treatment of some of the substances that advanced technology requires, sound judgment should govern the use and disposal of products of a chemical and petrochemical nature. Familiarize yourself with the relative legislation applicable to your country, and make sure that you understand this legislation. Where no legislation exists, obtain information from suppliers of oils, filters, batteries, fuels, anti-freeze, cleaning agents, etc., with regard to the effect of these substances on man and nature and how to safely store, use, and dispose of these substances.

Helpful hints:

• Avoid the use of cans or other inappropriate pressurized fuel delivery systems to fill tanks. Such delivery systems may cause considerable spillage.
• In general, avoid skin contact with all fuels, oils, acids, solvents, etc. Most of these products contain substances that may be harmful to your health.
• Modern oils contain additives. Do not burn contaminated fuels and or waste oils in ordinary heating systems.
• Avoid spillage when you drain fluids such as used engine coolant mixtures, engine oil, hydraulic fluid, brake fluid, etc. Do not mix drained brake fluids or fuels with lubricants. Store all drained fluids safely until you can dispose of the fluids in a proper way that complies with all local legislation and available resources.
• Do not allow coolant mixtures to get into the soil. Collect and dispose of coolant mixtures properly.
• The air-conditioning system contains gases that should not be released into the atmosphere. Consult an air-conditioning specialist or use a special extractor to recharge the system properly.
• Repair any leaks or defects in the engine cooling system or hydraulic system immediately.
• Do not increase the pressure in a pressurized circuit as this may lead to a component failure.
• Protect hoses during welding. Penetrating weld splatter may burn a hole or weaken hoses, allowing the loss of oils, coolant, etc.

TABLE OF CONTENTS:

New Holland MegaCutter 512 530 Tractor Mounted Disc Mower Conditioner Service Manual

INTRODUCTION
Main gearbox and drive 14
[14100] Main gearbox and drive 141
Power Take-Off (PTO) 31
[31201] Power Take-Off (PTO) drive shaft 311
[31214] Secondary Power Take-Off (PTO) 312
[31225] Clutches 313
Hydraulic systems 35
[35000] Hydraulic systems351
[35100] Main lift system352
[35300] Reservoir, cooler, and filters 353
[35359] Main control valve 354
[35410] Header or attachment height system 355
[35947] Frame positioning swinging356
Frames and ballasting 39
[39110] Drawbar and hitch assembly 391
Electrical systems 55
[55000] Electrical system 551
[55036] Hydraulic system control552
[55048] Rear Power Take-Off (PTO) control system 553
[55100] Harnesses and connectors554
[55404] External lighting555
[55860] Frame positioning system 556
Attachments/Headers 58
[58110] Attachment/Header cutting mechanism581
[58130] Attachment/Header frame 582
47937741 10/02/2016
Product feeding 60
[60630] Flail conditioning 601
Platform, cab, bodywork, and decals 90
[90116] Fenders and guards 901
[90119] Guards and shields 902

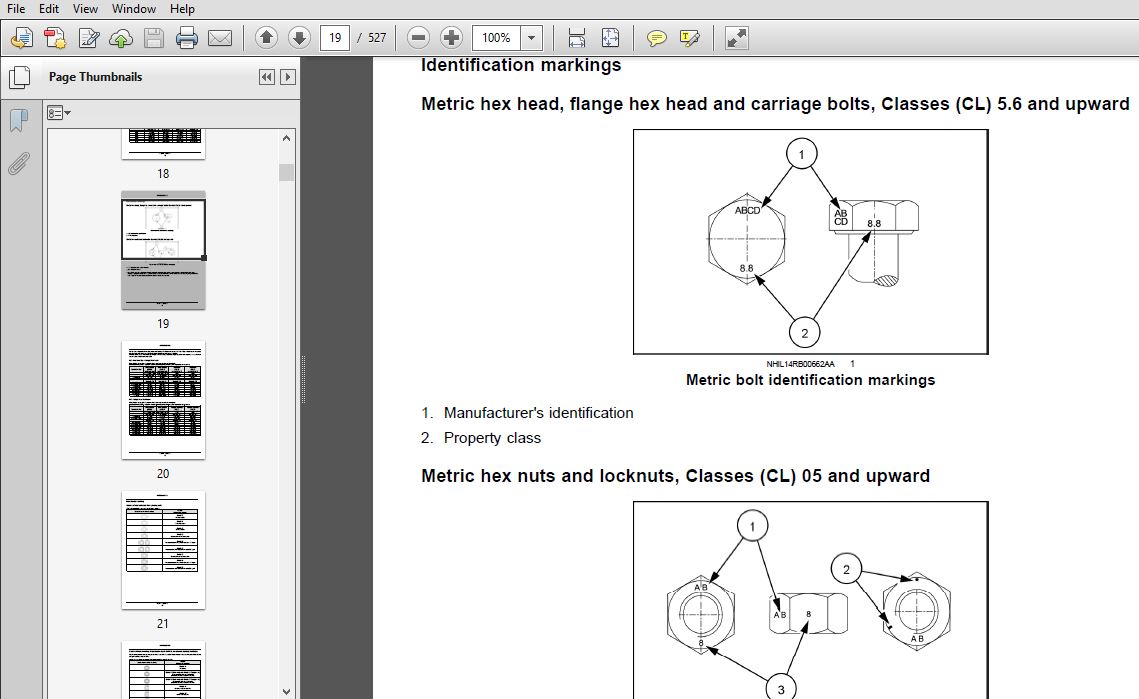

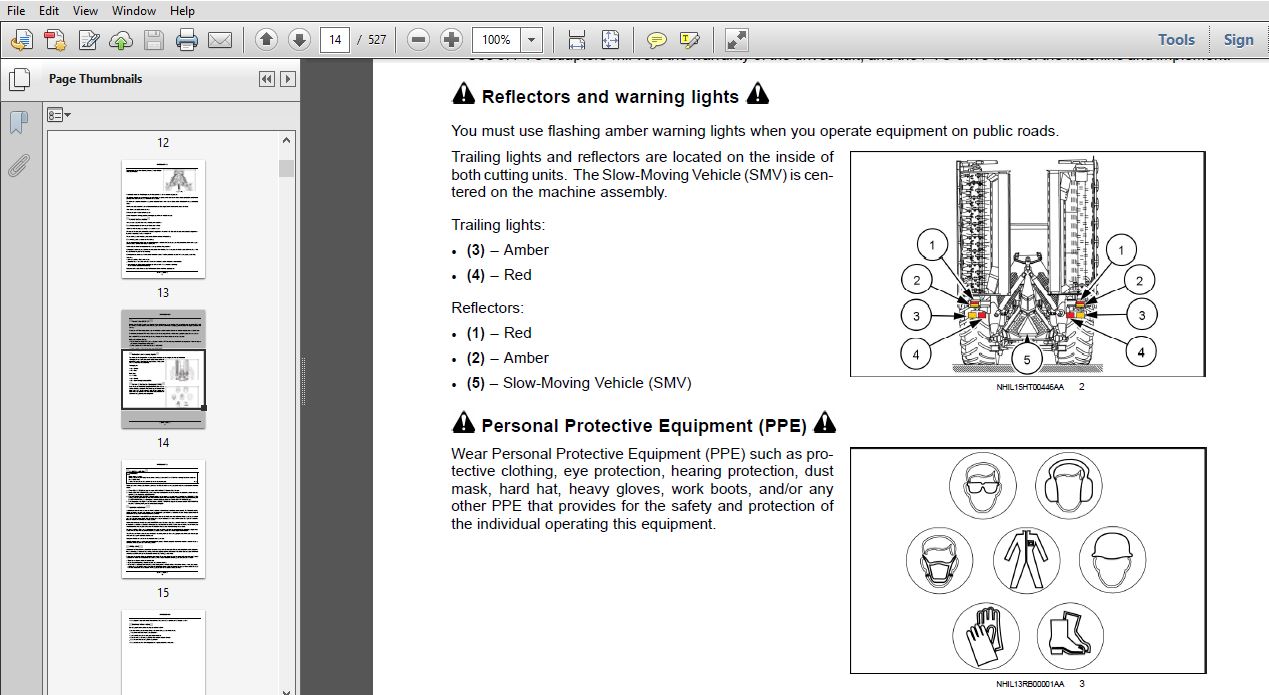

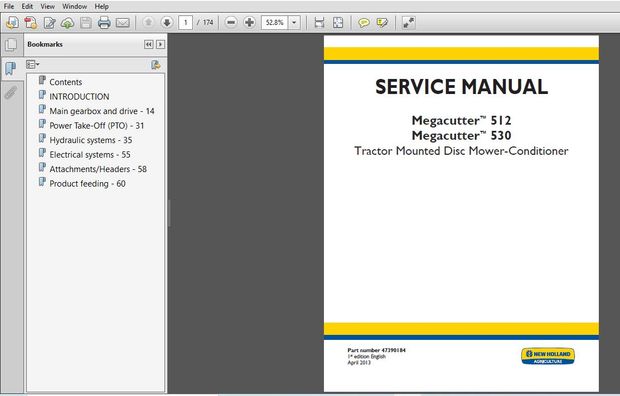

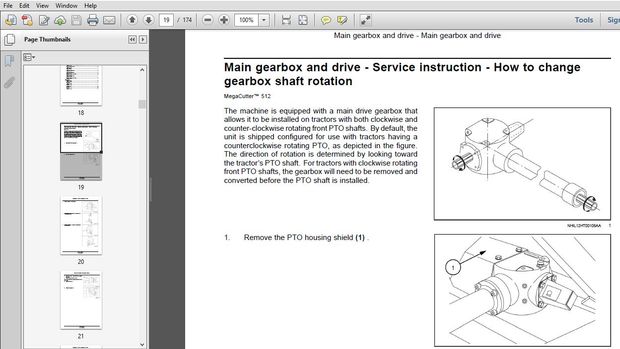

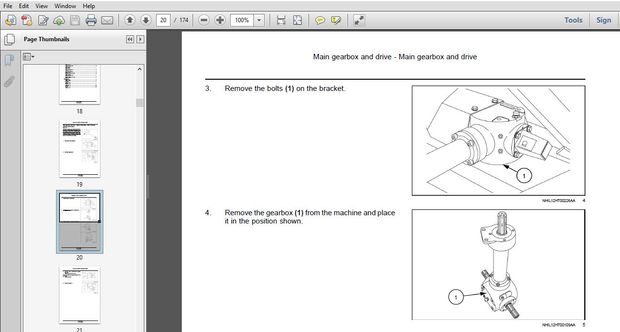

IMAGES PREVIEW OF THE MANUAL:
