New Holland Sprayer Guardian SP.295F, SP.300F, SP.345F Tier 4B Service Manual

New Holland Sprayer Guardian SP.295F, SP.300F, SP.345F Tier 4B Service Manual

FILE DETAILS:

New Holland Sprayer Guardian SP.295F, SP.300F, SP.345F Tier 4B Service Manual

Size: 129 MB
Format: PDF
Language: English
Number of Pages: 779 pages
Brand: New Holland
Type of document: Service Manual
Model: Guardian SP.295F, SP.300F, SP.345F Tier 4B
Part No: 47828471

DESCRIPTION:

New Holland Sprayer Guardian SP.295F, SP.300F, SP.345F Tier 4B Service Manual

Foreword – Important notice regarding equipment servicing:

All repair and maintenance work listed in this manual must be carried out only by qualified dealership personnel, strictly complying with the instructions given, and using, whenever possible, the special tools. Anyone who performs repair and maintenance operations without complying with the procedures provided herein shall be responsible for any subsequent damages.

• The manufacturer and all the organizations of its distribution chain, including – without limitation – national, regional, or local dealers, reject any responsibility for damages caused by parts and/or components not approved by the manufacturer, including those used for the servicing or repair of the product manufactured or marketed by the manufacturer.
• In any case, no warranty is given or attributed on the product manufactured or marketed by the manufacturer in case of damages caused by parts and/or components not approved by the manufacturer. The manufacturer reserves the right to make improvements in design and changes in specifications at any time without notice and without incurring any obligation to install them on units previously sold.
• Specifications, descriptions, and illustrative material herein are as accurate as known at time of publication but are subject to change without notice. In case of questions, refer to your NEW HOLLAND Sales and Service Networks.

Foreword:

Soil, air, and water are vital factors of agriculture and life in general. When legislation does not yet rule the treatment of some of the substances required by advanced technology, sound judgment should govern the use and disposal of products of a chemical and petrochemical nature.

NOTE: The following are recommendations that may be of assistance:

• Become acquainted with and ensure that you understand the relative legislation applicable to your country.
• Where no legislation exists, obtain information from suppliers of oils, filters, batteries, fuels, antifreeze, cleaning agents, etc., with regard to their effect on man and nature and how to safely store, use, and dispose of these substances.
• Agricultural consultants will, in many cases, be able to help you as well.

Helpful hints:

• Avoid the use of cans or other inappropriate pressurized fuel delivery systems to fill tanks. Such delivery systems may cause considerable spillage.
• In general, avoid skin contact with all fuels, oils, acids, solvents, etc. Most of these products contain substances that may be harmful to your health.
• Modern oils contain additives. Do not burn contaminated fuels and or waste oils in ordinary heating systems.
• Avoid spillage when you drain fluids such as used engine coolant mixtures, engine oil, hydraulic fluid, brake fluid, etc. Do not mix drained brake fluids or fuels with lubricants. Store all drained fluids safely until you can dispose of the fluids in a proper way that complies with all local legislation and available resources.
• Do not allow coolant mixtures to get into the soil. Collect and dispose of coolant mixtures properly.
• The air-conditioning system contains gases that should not be released into the atmosphere. Consult an air-conditioning specialist or use a special extractor to recharge the system properly.
• Repair any leaks or defects in the engine cooling system or hydraulic system immediately.
• Do not increase the pressure in a pressurized circuit as this may lead to a component failure.
• Protect hoses during welding. Penetrating weld splatter may burn a hole or weaken hoses, allowing the loss of oils, coolant, etc.

TABLE OF CONTENTS:

New Holland Sprayer Guardian SP.295F, SP.300F, SP.345F Tier 4B Service Manual

INTRODUCTION
Engine 10
[10001] Engine and crankcase 101
[10114] Pump drives 102
[10216] Fuel tanks 103
[10206] Fuel filters 104
[10202] Air cleaners and lines 105
[10500] Selective Catalytic Reduction (SCR) exhaust treatment 106
[10400] Engine cooling system 107
[10414] Fan and drive 108
Front axle system 25
[25100] Powered front axle251
Hydrostatic drive 29
[29218] Pump and motor components291
Brakes and controls 33
[33202] Hydraulic service brakes331
Hydraulic systems 35
[35000] Hydraulic systems351
[35300] Reservoir, cooler, and filters 352
[35220] Auxiliary hydraulic pump and lines 353
[35752] Hydraulic fan drive cooling system 354
[35610] Machine leveling control system 355
Pneumatic system 36
[36100] Pneumatic system361
[36908] Pneumatic suspension 362
Steering 41
47828471 25/09/2015
[41101] Steering control 411
[41216] Cylinders 412
Wheels 44
[44511] Front wheels441
[44520] Rear wheels 442
Cab climate control 50
[50100] Heating501
[50104] Ventilation 502
[50200] Air conditioning 503
Electrical systems 55
[55000] Electrical system 551
[55100] Harnesses and connectors 552
[55015] Engine control system 553
[55201] Engine starting system 554
[55301] Alternator 555
[55302] Battery556
[55640] Electronic modules557
[55050] Heating, Ventilation, and Air-Conditioning (HVAC) control system 558
[55047] Steering control system 559
Spraying 78
[78110] Chemical spraying781
[78111] Spraying pump 782
[78120] Foam marking system 783
Platform, cab, bodywork, and decals 90
[90151] Cab interior 901
[90120] Mechanically-adjusted operator seat 902
[90100] Engine hood and panels903
47828471 25/09/2015
[90116] Fenders and guards 904

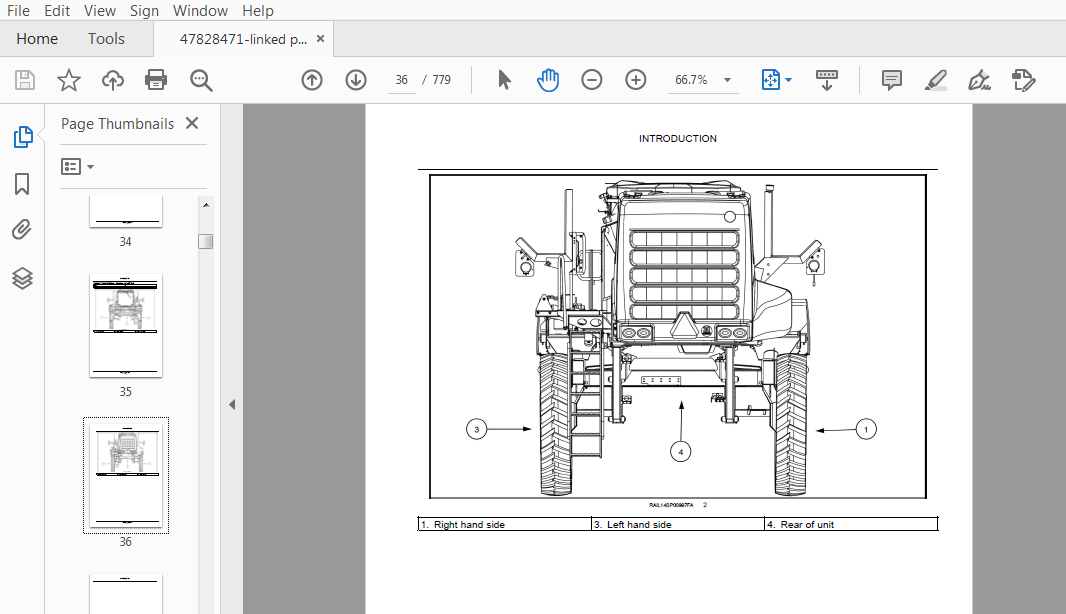

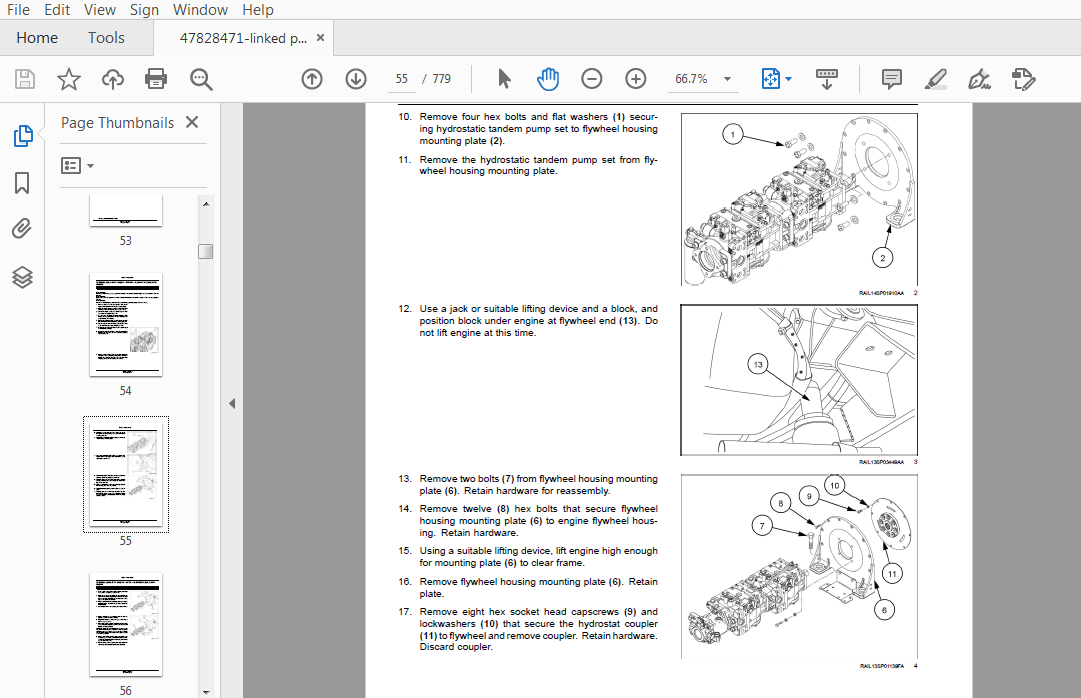

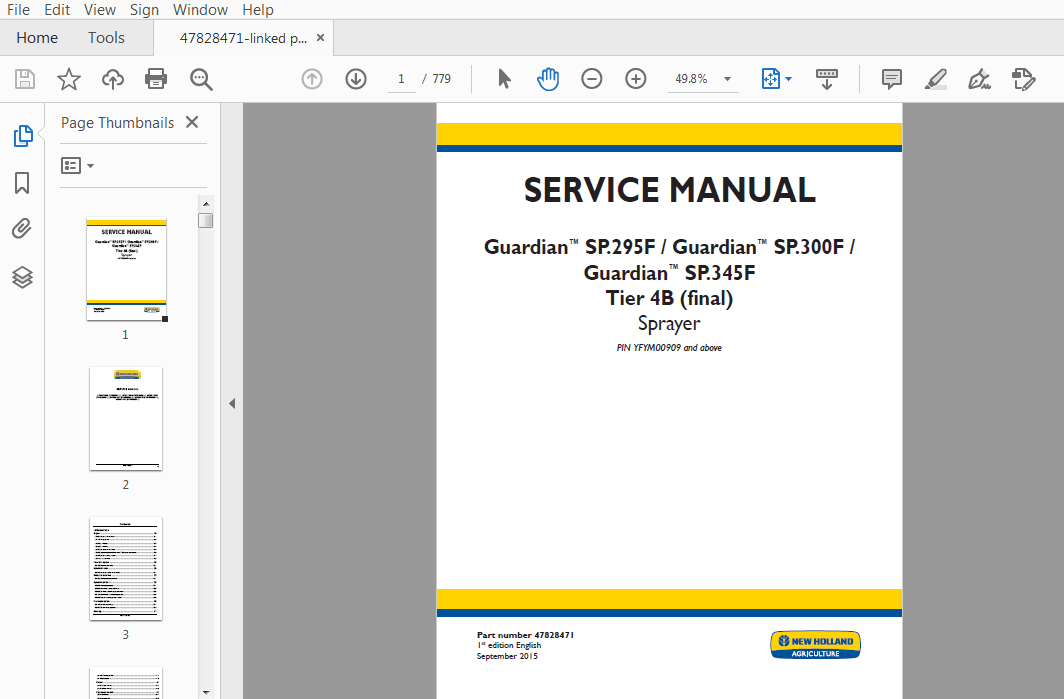

IMAGES PREVIEW OF THE MANUAL:
