New Holland T7030 T7040 T7050 T7060 Repair Manual - PDF DOWNLOAD

New Holland T7030 T7040 T7050 T7060 Repair Manual - PDF DOWNLOAD

FILE DETAILS:

New Holland T7030 T7040 T7050 T7060 Repair Manual - PDF DOWNLOAD

Language :English
Pages :332
Downloadable : Yes
File Type : PDF

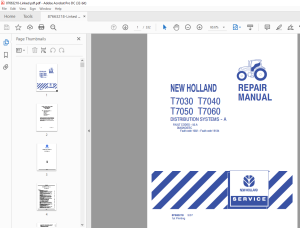

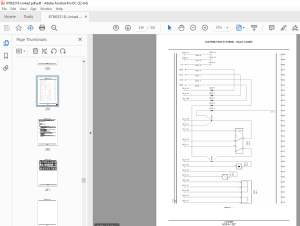

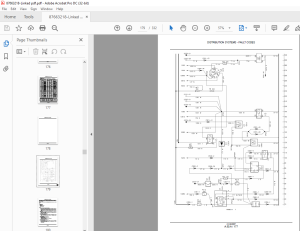

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland T7030 T7040 T7050 T7060 Repair Manual - PDF DOWNLOAD

DIAGNOSTIC
ELECTRONIC SYSTEM
CHARGE
PRESSURE WARNING SYMBOL / LIGHT 17
1002POOR
OR NO SIGNAL FROM TRACTOR PERFORMANCE MONITOR RADAR 18
1003Radar
signal higher than groundspeed signal 22
1004HITCH
Electronic draft control Sensing system , High signal , Wheel Speed
Sensor signal
too high
23
1006SLIP
CONTROL VOLTAGE LOW (SHORT OR OPEN CIRCUIT) 24
1007SLIP
CONTROL VOLTAGE HIGH (DAMAGED POTENTIOMETER OR SHORT
TO +VE VOLTAGE)
28
1008RAISE/
WORK SWITCH FAILURE 32
1009BOTH
EXTERNAL HPL FENDER SWITCHES ARE BEING OPERATED
SIMULTANEOUSLY
36
1010HEIGHT
LIMIT CONTROL VOLTAGE LOW (SHORT OR OPEN CIRCUIT) 40
1011HEIGHT
LIMIT CONTROL VOLTAGE HIGH (DAMAGED POTENTIOMETER
OR SHORT TO +VE VOLTAGE)
44
1012DROP
RATE CONTROL VOLTAGE LOW (SHORT OR OPEN CIRCUIT) 48
1013DROP
RATE CONTROL VOLTAGE HIGH (DAMAGED POTENTIOMETER OR
SHORT TO +VE VOLTAGE)
52
1014RIGHT
HAND LOAD SENSING PIN SIGNAL TOO LOW 56
1015RIGHT
HAND LOAD SENSING PIN SIGNAL TOO HIGH 60
1016LEFT
HAND LOAD SENSING PIN SIGNAL TOO LOW 64
1017LEFT
HAND LOAD SENSING PIN SIGNAL TOO HIGH 68
1018BOTH
LOAD SENSING PINS DISCONNECTED 72
1019LOAD
SENSING PIN VOLTAGE LESS THAN 8 VOLTS (SHORT OR OPEN
CIRCUIT)
76
1020LOAD
SENSING PIN VOLTAGE GREATER THAN 8 VOLTS (SHORT TO +12
VOLTS)
80
1021DRAFT
SENSITIVITY CONTROL VOLTAGE LOW (SHORT OR OPEN CIRCUIT) 84
1022DRAFT
SENSITIVITY CONTROL VOLTAGE HIGH (DAMAGED
POTENTIOMETER OR SHORT TO +VE VOLTAGE)
88
1023CONTROL
PANEL DISCONNECTED 92
1024PERFORM
THE HYDRAULIC LIFT AUTCALIBRATION 93
1025POSITION
CONTROL POTENTIOMETER CONTROL VOLTAGE LOW (SHORT
OR OPEN CIRCUIT)
94
1026POSITION
CONTROL POTENTIOMETER CONTROL VOLTAGE HIGH
(DAMAGED POTENTIOMETER OR SHORT TO +VE VOLTAGE)
1027LIFT
ARM POSITION SENSING CONTROL VOLTAGE LOW (SHORT OR OPEN
CIRCUIT)
102
1028LIFT
ARM POSITION SENSING CONTROL VOLTAGE HIGH (DAMAGED
POTENTIOMETER OR SHORT TO +VE VOLTAGE)
106
1029HYDRAULIC
CONTROL VALVE DISCONNECTED 110
1030SIGNAL
GROUND OPEN CIRCUIT 111
1031CHASSIS
HARNESS DISCONNECTED 114
1032DRAFT
CONTROL POTENTIOMETER VOLTAGE HIGH (DAMAGED
POTENTIOMETER OR SHORT TO +VE VOLTAGE)
115
1033DRAFT
CONTROL POTENTIOMETER VOLTAGE LOW (SHORT OR OPEN
CIRCUIT)
118
1049WHEEL
SPEED SENSOR OPEN OR SHORT CIRCUIT 122
1053CONTROLLER
5 VOLT REFERENCE SHORTED TO +VE VOLTAGE 126
1054CONTROLLER
5 VOLT REFERENCE SHORT TO GROUND 130
1059WORKING
ARM HITCH Electronic draft control Electronic control , DIAGNOSTIC
ERROR Connection/Electrical Open circuit , 8 Volt reference error (Draft Load Pins)
134
1063EDC
HYDRAULIC VALVE LOWER SOLENOID OPEN CIRCUIT 138
1064EDC
HYDRAULIC VALVE RAISE SOLENOID OPEN CIRCUIT 142
1065EDC
HYDRAULIC VALVE LOWER SOLENOID SHORT CIRCUIT 146
1066EDC
HYDRAULIC VALVE RAISE SOLENOID SHORT CIRCUIT 150
1067EDC
HYDRAULIC VALVE SUPPLY VOLTAGE TOO LOW 154
1068HEIGHT
LIMIT CALIBRATION ERROR 158
2001TRANSMISSION
Powershift , Disabled , Shuttle Too Fast (N) 159
2002TRANSMISSION
Powershift , Disabled , Flash "N" Error 160
2003CP
clutch
pedal required 161
14013Steering
Angle Sensor Short
Circuit to VCC 162
14014Steering
Angle Sensor Short
Circuit to Ground or Open Circuit 166
14021Cranking
Line Shorted
to +12V 170
14022Cranking
Line Shorted
to Ground 174
14051FUEL
TANK LEVEL SENDER OPEN CIRCUIT OR SHORT TO HIGH VOLTAGE 178
14052FUEL
TANK LEVEL SENDER SHORT TO GROUND 182
14061Air
Brake Pressure Sensor Short
Circuit to VCC or Option Set But Sensor
Not Connected
186
14100Airbrake
system not configured 190
14102SWCD
Present but not configured 191
14900Transmission
Controller Missing (RD) 192
14901Engine
Controller Missing (EDC16) 196
14902Auxiliary
Controller Missing (RC) 200
14905Keypad
Missing (JA) 204
14906Steering
Controller Missing (KA) 208
14908TECU
Missing (OA) 212
14909SWCD
Missing (VA) 216
14910Climate
Controller Missing 220
14911Enhanced
Cluster Without Keypad 224
14912Basic
Cluster With Keypad 225
14920Configuration
Error 226
15002STEERING
Hydraulic Electronic steering system , Open circuit , Steering wheel
control proximity sensor open circuit.
227
15003TRAVELLING
STEERING Hydraulic Fast steer system Processor , DIAGNOSTIC
ERROR Connection/Electrical Short circuit , Steering wheel control proximity sensor
230
15006STEERING
Hydraulic Fast steer system Processor Spit
Valve LVDT _ Open
circuit
234
15007TRAVELLING
STEERING Hydraulic Fast steer system Processor , DIAGNOSTIC
ERROR Connection/Electrical Short circuit , Split valve LVDT
238
15008TRAVELLING
STEERING Hydraulic Fast steer system Processor , DIAGNOSTIC
ERROR Connection/Electrical Open circuit , Change valve solenoid
242
15009TRAVELLING
STEERING Hydraulic Fast steer system Processor , DIAGNOSTIC
ERROR Connection/Electrical Short circuit , Change valve solenoid short
circuit across
itself
246
15024TRAVELLING
STEERING Hydraulic Fast steer system Processor , DIAGNOSTIC
ERROR Calibration Not calibrated , System not calibrated
250
16111Cab
Sensor Open or Shorted to Power 251
16112Cab
Sensor Shorted to Ground 254
16113Outlet
Sensor Open or Shorted to Power 258
16114Outlet
Sensor Shorted to Ground 262
16115Evaporator
Sensor Open or Shorted to Power 266
16116Evaporator
Sensor Shorted to Ground 270
16117Outside
Air Sensor Open or Shorted to Power 274
16118Outside
Air Sensor Shorted to Ground 278
16120Blower
Speed Select Potentiometer Open or Shorted to Power 282
16121Temperature
Select Potentiometer Open or Shorted to Power 286
16122Mode
Select Potentiometer Open or Shorted to Power 290
16125High
Pressure Switch (+) Input Shorted to Power 294
16126High
Pressure Switch (+) Input Shorted to Ground 298
16127High
Pressure Switch ()
Input Shorted to Power 302
16128High
Pressure Switch ()
Input Shorted to Ground 306
16129High
Pressure Cycling Error (2 in 1 Minute) 310
16130Low
Pressure Switch (+) Input Shorted to Power 311
16131Low
Pressure Switch (+) Input Shorted to Power 314
16132Low
Pressure Switch ()
Shorted to Power 318
16133Low
Pressure Switch ()
Input Shorted to Ground 322
16134Low
Pressure Switch Open For Greater Than 1 Minute 326
2004 (P)HANDBRAKE
ERROR 330
2005Creeper
selection error 331
2009TRANSMISSION
Powershift , Undervoltage , Seat Switch Input Voltage
too Low 334
2010TRANSMISSION
Powershift , Overvoltage , Seat Switch Input Voltage
too high 338
2011CLUTCH
PEDAL POTENTIOMETER SIGNAL LOW 342
2012CLUTCH
PEDAL POTENTIOMETER SIGNAL HIGH 346
2016Creeper
solenoid solenoid error 350
2021CHASSIS
HARNESS DISCONNECTED 354
2024ALL
CLUTCHES AND SYNCHRONISERS REQUIRE CALIBRATION 355
2037CLUTCH
PEDAL DISCONNECT SWITCH OPEN CIRCUIT 356
2046FUSE
OPEN CIRCUIT 360
2047CLUTCH
DISCONNECT SWITCH SET TOO HIGH 364
2048CLUTCH
DISCONNECT SWITCH SET TOO LOW 365
2049WHEEL
SPEED SENSOR OPEN CIRCUIT, SHORT TO GROUND OR HIGH
VOLTAGE
366
2050TRANSMISSION
Powershift Sensing system Speed sensor , Short circuit 370
2051OIL
TEMPERATURE SENSOR OPEN CIRCUIT 374
2052OIL
TEMPERATURE SENSOR SHORT TO GROUND OR HIGH VOLTAGE 378
2053+
5 VOLT REFERENCE VOLTAGE TOO HIGH 382
2054+
5 VOLT REFERENCE VOLTAGE TOO LOW 386
2055Output
speed sensor no
signal 390
2058Seat
switch closed 394
2059SHUTTLE
LEVER SWITCH DISAGREEMENT 398
2070SHUTTLE
LEVER FORWARD SWITCH VOLTAGE HIGH 402
2071SHUTTLE
LEVER FORWARD SWITCH VOLTAGE LOW 406
2072SHUTTLE
LEVER REVERSE SWITCH VOLTAGE HIGH 410
2073SHUTTLE
LEVER REVERSE SWITCH VOLTAGE LOW 414
2075No
signal or faulty signal from flywheel torque sensor 418
2076FLYWHEEL
SPEED SENSOR OPEN CIRCUIT 422
2077Flywheel
speed sensor short
circuit 426
2124Calibrate
flywheel torque sensor 430
2300TRANSMISSION
Powershift Electrical control , Open or short circuit , 19th gear
solenoid
431
2302TRANSMISSION
Powershift Electrical control , Open or short circuit , 19th Gear
Dump Solenoid
434
2303TRANSMISSION
Powershift , Under limit value , Damper Calibration 438
2304TRANSMISSION
Powershift , Over limit value , Damper Calibration 439
2305TRANSMISSION
Powershift Electrical control , Overvoltage , 19th Gear Clutch
Solenoid
440
2306TRANSMISSION
Powershift Electrical control , Overvoltage , 19th Gear Dump
Solenoid
444
2308TRANSMISSION
Powershift , Not engaging , Reverse 448
2310TRANSMISSION
Powershift Command , Undervoltage , Upshift Switch 449
2311TRANSMISSION
Powershift Command , Overvoltage , Upshift Switch 452
2312Downshift
switch voltage too low 456
2313Downshift
switch voltage too high 460
2314TRANSMISSION
Powershift Sensing system Pressure transducer , Open or short
circuit , Forward Clutch
464
2315TRANSMISSION
Powershift Sensing system Pressure transducer , Open or short
circuit , Reverse Clutch
468
2323TRANSMISSION
Powershift Sensing system Speed sensor , Open circuit , Mid
Speed Sensor
472
2324TRANSMISSION
Powershift Sensing system Speed sensor , Short circuit to
ground , Mid Speed Sensor
2325TRANSMISSION
Powershift Sensing system Speed sensor , Bad connection ,
Mid and output speed sensors swapped
480
2326TRANSMISSION
Powershift Sensing system Speed sensor , Bad connection ,
Engine torque /RPM sensor swapped with either mid or output speed sensors
481
2330TRANSMISSION
Powershift , Over limit value , Transmission output RPM too
high for selected gear
482
2331Clutch
Slipping fault 483
2334TRANSMISSION
Powershift , Incorrect value , Pressure indicated on the forward
clutch pressure switches when the clutch solenoids are off
486
2335TRANSMISSION
Powershift , Incorrect value , Pressure indicated on the reverse
clutch pressure switch when the clutch solenoids are off
490
2336ADDITIONAL
REDUCERS Creeper , Not engaging 494
2337ADDITIONAL
REDUCERS Creeper , Not disengaging 498
2338Creeper
potentiometer short
circuit to +8V or +12V 502
2339ADDITIONAL
REDUCERS Creeper Sensing system Position potentiometer ,
Open or short circuit
506
2342TRANSMISSION
Powershift Electrical control , TRANSMISSION Powershift
Clutch and gear , Open or short circuit , Clutch A
510
2343TRANSMISSION
Powershift Electrical control , Open or short circuit , Clutch B
Solenoid
514
2344TRANSMISSION
Powershift Electrical control , Open or short circuit , Clutch C
Solenoid
518
2345TRANSMISSION
Powershift Electrical control , Open or short circuit , Clutch D
solenoid
522
2346TRANSMISSION
Powershift Electrical control , Open or short circuit , Clutch E
solenoid
526
2347TRANSMISSION
Powershift Electrical control , Open or short circuit , Low range
Clutch Solenoid
530
2348TRANSMISSION
Powershift Electrical control , Open or short circuit , Medium
Range Clutch Solenoid
534
2349TRANSMISSION
Powershift Electrical control , Open or short circuit , High Range
Clutch Solenoid
538
2350TRANSMISSION
Powershift Electrical control , Open or short circuit , Reverse
Clutch Solenoid
542
2351ADDITIONAL
REDUCERS Creeper , Open or short circuit , Creeper Solenoid 546
2352TRANSMISSION
Powershift Electrical control , Overvoltage , Clutch A Solenoid 550
2353TRANSMISSION
Powershift Electrical control , Overvoltage , Clutch B Solenoid 554
2354TRANSMISSION
Powershift Electrical control , Overvoltage , Clutch C Solenoid 558
2355TRANSMISSION
Powershift Electrical control , Overvoltage , Clutch D Solenoid 562
2356TRANSMISSION
Powershift Electrical control , Overvoltage , Clutch E Solenoid 566
2357TRANSMISSION
Powershift Electrical control , Overvoltage , Low Range Clutch
Solenoid
570
2358TRANSMISSION
Powershift Electrical control , Overvoltage , Medium Range
Clutch Solenoid
574
2359TRANSMISSION
Powershift Electrical control , Overvoltage , High Range Clutch
Solenoid
578
2360TRANSMISSION
Powershift Electrical control , Overvoltage , Reverse Clutch
Solenoid
582
2361ADDITIONAL
REDUCERS Creeper , Overvoltage , Creeper Solenoid 586
2362TRANSMISSION
Powershift Clutch and gear , Not calibrated , Clutch A 590
2363TRANSMISSION
Powershift Clutch and gear , Not calibrated , Clutch B 591
2364TRANSMISSION
Powershift Clutch and gear , Not calibrated , Clutch C 592
2365TRANSMISSION
Powershift Clutch and gear , Not calibrated , Clutch D 593
2366TRANSMISSION
Powershift Clutch and gear , Not calibrated , Clutch E 594
2367TRANSMISSION
Powershift Clutch and gear , Not calibrated , Low Range Clutch 595
2368TRANSMISSION
Powershift Clutch and gear , Not calibrated , Medium Range
Clutch
596
2369TRANSMISSION
Powershift Clutch and gear , Not calibrated , High Range Clutch 597
2370TRANSMISSION
Powershift Clutch and gear , Not calibrated , Reverse Clutch 598
2371Creeper
Position Out of Range 599
2372Creeper
Not Calibrated 600
2373Clutch
19 Not Calibrated 601
2374Creeper
Calibration Error 602
2375Creeper
Cold
Oil 603
2376Fault
on 19th Gear Valve 604
2377Fault
on 19th Gear Dump Valve 608
3006Coolant
Temperature Sensor Signal
not Plausible 612
3007Coolant
Temperature Sensor Signal
Above Range 613
3008Coolant
Temperature Sensor Signal
Below Range Minimum 616
3010Air
Intake Temperature Sensor Signal
Above Range Maximum 620
3011Air
Intake Temperature Sensor Signal
Below Range Minimum 624
3015Fuel
Temperature Sensor Signal
Above Maximum 628
3016Fuel
Temperature Sensor Signal
Below Range Minimum 632
3019Boost
Pressure Sensor Signal
Above Range Maximum 636
3022Boost
Pressure Sensor Signal
not Plausible 640
3023Atmospheric
Pressure Sensor Signal
not Plausible 644
3024Atmospheric
Pressure Sensor Signal
Above Range Maximum 645
3025Atmosperic
Pressure Sensor Signal
Below Range Minimum 646
3028Oil
Pressure too low 647
3029Oil
Pressure Sensor Short
Circuit to Battery 650
3030Oil
Pressure Sensor Short
Circuit to Ground 654
3031Oil
Pressure Sensor Hardware
Error 658
3032Oil
Pressure Sensor Value
too High 659
3033Oil
Temperature Sensor Signal
not Plausible (Compared with Coolant
Temperature)
660
3034Oil
Temperature Sensor Signal
Above Range Maximum 661
3035Oil
Temperature Sensor Signal
Below Range Minimum 664
3037Boost
Pressure Sensor Signal
Low 668
3047Main
Relay Failure Short
Circuit to Battery 672
3048Main
Relay Failure Short
Circuit to Ground 676
3051Battery
Voltage to Engine Controller Voltage
too High 680
3052Battery
Voltage to Engine Controller Voltage
too Low 681
3060Cylinder
1 Unclassifiable
Error in Injector 684
3061Cylinder
1 Injector
Cable Short Circuit (Low Side to Battery) 688
3063Cylinder
1 Injector
Cable Short Circuit (High Side to Ground) 692
3064Cylinder
5 Unclassifiable
Error in Injector 696
3065Cylinder
5 Injector
Cable Short Circuit (Low Side to Battery) 700
3067Cylinder
5 Injector
Cable Short Circuit (High Side to Ground) 704
3068Cylinder
3 Unclassifiable
Error in Injector 708
3069Cylinder
3 Injector
Cable Short Circuit (Low Side to Battery) 712
3071Cylinder
3 Injector
Cable Short Circuit (High Side to Ground) 716
3072Cylinder
6 Unclassifiable
Error in Injector 720
3073Cylinder
6 Injector
Cable Short Circuit (Low Side to Battery) 724
3075Cylinder
6 Injector
Cable Short Circuit (High Side to Ground) 728
3076Cylinder
2 Unclassifiable
Error in Injector 732
3077Cylinder
2 Injector
Cable Short Circuit (low side to Battery) 736
3079Cylinder
2 Injector
Cable Short Circuit (High Side to Ground) 740
3080Cylinder
4 Unclassifiable
Error in Injector 744
3081Cylinder
4 Injector
Cable Short Circuit (Low Side to Battery) 748
3083Cylinder
4 Injector
Cable Short Circuit (High Side to Ground) 752
3088Crankshaft
Sensor No
Signal 756
3089Crankshaft
Sensor Invalid
Signal 760
3090Camshaft
Sensor No
Signal 764
3091Camshaft
Sensor Invalid
Signal 768
3093Offset
Between Camshaft and Crankshaft Outside
Boundaries 772
3095Operating
with Camshaft Sensor Only Backup
Mode 776
3096CAN
A LINE NO SIGNAL 780
3102Rail
Pressure Sensor CP3 Signal
Below Range minimum 784
3104Rail
Pressure Relief Valve Open
788
3105Rail
Pressure Relief Valve Pressure
Shock Requested 789
3106Rail
Pressure Relief Valve Did
Not Open After Pressure Shock 790
3107FUEL
METERING UNIT SHORT TO VCC 791
3108FUEL
METERING UNIT SHORT TO GROUND 794
3110Rail
Pressure Sensor Monitoring Signal
Above Range Maximum 798
3111Rail
Pressure Sensor Monitoring Signal
Below Range Minimum 802
3112Rail
Pressure Sensor CP3 Signal
Above Maximum Range 806
3131Grid
Heater Always Switched On 810
3137Metering
Unit Open
Load 814
3138Metering
Unit Temperature
too High 818
3141Fuel
Flow Setpoint too Low 822
3142High
Pressure Test Test
Active 823
3145Terminal
15 No
Signal 824
3147Oil
Temperature too High 828
3148Coolant
Temperature Sensor Dynamic Test Failure
829
3154Grid
Heater Relay Short
Circuit to Battery 830
3060Cylinder
1 Unclassifiable
Error in Injector 684
3061Cylinder
1 Injector
Cable Short Circuit (Low Side to Battery) 688
3063Cylinder
1 Injector
Cable Short Circuit (High Side to Ground) 692
3064Cylinder
5 Unclassifiable
Error in Injector 696
3065Cylinder
5 Injector
Cable Short Circuit (Low Side to Battery) 700
3067Cylinder
5 Injector
Cable Short Circuit (High Side to Ground) 704
3068Cylinder
3 Unclassifiable
Error in Injector 708
3069Cylinder
3 Injector
Cable Short Circuit (Low Side to Battery) 712
3071Cylinder
3 Injector
Cable Short Circuit (High Side to Ground) 716
3072Cylinder
6 Unclassifiable
Error in Injector 720
3073Cylinder
6 Injector
Cable Short Circuit (Low Side to Battery) 724
3075Cylinder
6 Injector
Cable Short Circuit (High Side to Ground) 728
3076Cylinder
2 Unclassifiable
Error in Injector 732
3077Cylinder
2 Injector
Cable Short Circuit (low side to Battery) 736
3079Cylinder
2 Injector
Cable Short Circuit (High Side to Ground) 740
3080Cylinder
4 Unclassifiable
Error in Injector 744
3081Cylinder
4 Injector
Cable Short Circuit (Low Side to Battery) 748
3083Cylinder
4 Injector
Cable Short Circuit (High Side to Ground) 752
3088Crankshaft
Sensor No
Signal 756
3089Crankshaft
Sensor Invalid
Signal 760
3090Camshaft
Sensor No
Signal 764
3091Camshaft
Sensor Invalid
Signal 768
3093Offset
Between Camshaft and Crankshaft Outside
Boundaries 772
3095Operating
with Camshaft Sensor Only Backup
Mode 776
3096CAN
A LINE NO SIGNAL 780
3102Rail
Pressure Sensor CP3 Signal
Below Range minimum 784
3104Rail
Pressure Relief Valve Open
788
3105Rail
Pressure Relief Valve Pressure
Shock Requested 789
3106Rail
Pressure Relief Valve Did
Not Open After Pressure Shock 790
3107FUEL
METERING UNIT SHORT TO VCC 791
3108FUEL
METERING UNIT SHORT TO GROUND 794
3110Rail
Pressure Sensor Monitoring Signal
Above Range Maximum 798
3111Rail
Pressure Sensor Monitoring Signal
Below Range Minimum 802
3112Rail
Pressure Sensor CP3 Signal
Above Maximum Range 806
3131Grid
Heater Always Switched On 810
3137Metering
Unit Open
Load 814
3138Metering
Unit Temperature
too High 818
3141Fuel
Flow Setpoint too Low 822
3142High
Pressure Test Test
Active 823
3145Terminal
15 No
Signal 824
3147Oil
Temperature too High 828
3148Coolant
Temperature Sensor Dynamic Test Failure
829
3154Grid
Heater Relay Short
Circuit to Battery 830
3155Grid
Heater Relay Short
Circuit to Ground 834
3156Grid
Heater Relay No
Load 838
3160Fan
Actuator Short
Circuit to Battery 842
3161Fan
Actuator Short
Circuit to Ground 846
3162Fan
Actuator Open
Load 850
3163Fan
Actuator No
Load 854
3176Setpoint
of Metering Unit Not Plausible in Overrun 855
3177Engine
Overspeed Detected 856
3179Timeout
of CAN Message BC2EDC2 857
3180Timeout
of CAN Message VM2EDC 858
3182Timeout
of CAN Message RxCCVS 859
3185Timeout
of CAN Message TF 860
3188Cylinder
1 Warning Open
Load 861
3192Cylinder
2 warning Open
Load 864
3196Cylinder
3 Warning Open
Load 868
3200Cylinder
4 Warning Open
Load 872
3204Cylinder
5 Warning Open
Load 876
3208Cylinder
6 Warning Open
Load 880
3210Bank
1 General
Short Circuit to Injector Cable 884
3211Bank
1 Injector
cable Short Circuit Low Side to Ground 888
3213Bank
1 Unclassifiable
Error 892
3218Bank
2 General
Short Circuit on Injector Cable 893
3219Bank
2 Injector
Cable Short Circuit Low Side to Ground 896
3221Bank
2 Unclassifiable
Error 900
3227Injection
Processor Error Internal
Reset/Clock Loss/Voltage too Low 901
3228Injection
Processor Error Unlocked/
Initialisation Error 904
3229Injection
Processor Error Injections
Limited by Software 905
3230Injection
Processor Error SPI
Communication Failure 906
3231Injection
Processor Error Internal
Reset/Clock Loss/Voltage too Low 907
3232Injection
Processor Error Unlocked/
Initialisation Failure 908
3233Injection
Processor Error Test
Mode 909
3234Injection
Processor Error SPI
Communication Failure 910
3238Engine
Controller Internal SPI Communication Error 911
3239Engine
Controller EEPROM Read
Operation Error 912
3240Engine
Controller EEPROM Write
Operation Failure 913
3241Engine
Controller EEPROM Default
Value Used 914
3242Engine
Controller (Locked) Recovery Ocurred 915
3243Engine
Controller Recovery (Suppressed) Recovery
Occured 916
3244Engine
Controller Recovery (Visible) Recovery
Occurred 917
3245Engine
Controller Watchdog
not Plausible 918
3246Shutoff
Paths During Initialisation Watchdog
919
3247Shutoff
Paths Failed during Initialisation Supply
Voltage too High 920
3248Shutoff
Paths During Initialisation Supply
Voltage too Low 921
3249TPU
Monitoring Time
Deviation Between TPU and System Not Plausible 922
3250Dataset
Variant
Defect 923
3251Dataset
Requested
Variant Could Not be Set 924
3252Controller
Watchdog SPI
Comunication Failure 925
3253ADC
Monitoring Reference
Voltage too Low 926
3254ADC
Monitoring Reference
Voltage too High 927
3265Overrun
Monitoring 928
3266Redundant
Engine Speed in Overrun Monitoring 929
3278Engine
Controller Supply Voltage too High 930
3279Engine
Controller Internal Supply Voltage too Low 931
3280Sensor
Supply Voltage 1 High
934
3281Sensor
Supply Voltage 1 Low
935
3283Sensor
Supply Voltage 2 High
936
3284Sensor
Supply Voltage 2 Low
937
3285Sensor
Supply Voltage 3 High
938
3286Sensor
Supply Voltage 3 Low
939
3297Rail
Pressure Poistive Deviation High and High Fuel Flow Setpoint Value 940
3301Rail
Pressure Negative Deviation too High on Minimum Metering 941
3305Rail
Pressure Below Minimum Limit in Controller Mode 946
3309Rail
Pressure Above Maximum Limit in Controlled Mode 947
3313Rail
Pressure Drop Rate too High 950
3316Minimum
Number of Injections Not Reached Stop
Engine 951
3334Timeout
of CAN Message TCS1PE
Torque When
Active 952
3335Timeout
of CAN Message TSC1PE
Torque When
Inactive 953
3338Timeout
of CAN Message TSC1VE
Speed When
Inactive 954
3339Timeout
of CAN Message TSC1VE
Speed When
Active 955
3367Coolant
Temperature Test Failure 956
3368Torque
Limitation Due to OBD Performance Limiter by Legislation 957
3369Torque
Reduction Due to Smoke Reduction 958
3370Torque
Limitation Due to Engine Protection (Against Excessive Torque, Engine
Overspeed and Overheat)
959
3371Torque
Limitation Due to Fuel Quantity Limitation Because of Injector System
Errors
960
4100REMOTE
NO.1 NO CONTROL MESSAGE RECEIVED 961
4101REMOTE
NO.1 CONTROL MESSAGE NOT PLAUSIBLE 964
4102REMOTE
NO.1 EEPROM ERROR 968
4103REMOTE
NO.1 SWITCHED TO FAILSAFE 969
4104REMOTE
NO.1 UNDER VOLTAGE 970
4105REMOTE
NO.1 OVER VOLTAGE 974
4106REMOTE
NO.1 SPOOL MOVEMENT TOO LOW 975
4107REMOTE
NO.1 SPOOL MOVEMENT TOO HIGH 976
4108REMOTE
NO.1 FLOAT POSITION NOT REACHED 977
4109Remote
No. 1 Manually operated 978
4110REMOTE
NO.1 DRIVER FAULTY 979
4111REMOTE
NO.1 POTENTIOMETER FAULTY 980
4112REMOTE
NO.1 UNABLE TO REACH NEUTRAL 981
4113REMOTE
NO.1 SPOOL NOT IN NEUTRAL AT KEY ON 982
4114REMOTE
NO.2 NO CONTROL MESSAGE RECEIVED 983
4115REMOTE
NO.2 CONTROL MESSAGE NOT PLAUSIBLE 986
4116REMOTE
NO.2 EEPROM ERROR 990
4117REMOTE
NO.2 SWITCHED TO FAILSAFE 991
4118Remote
No. 2 Undervoltage 992
4119REMOTE
NO.2 OVER VOLTAGE 996
4120REMOTE
NO.2 SPOOL MOVEMENT TOO LOW 997
4121REMOTE
NO.2 SPOOL MOVEMENT TOO HIGH 998
4122REMOTE
NO.2 FLOAT POSITION NOT REACHED 999
4123REMOTE
NO.2 MANUALLY OPERATED 1000
4124REMOTE
NO.2 DRIVER FAULTY 1001
4125REMOTE
NO.2 POTENTIOMETER FAULTY 1002
4126REMOTE
NO.2 UNABLE TO REACH NEUTRAL 1003
4127REMOTE
NO.2 SPOOL NOT IN NEUTRAL AT KEY ON 1004
4128REMOTE
NO.3 NO CONTROL MESSAGE RECEIVED 1005
4129REMOTE
NO.3 CONTROL MESSAGE NOT PLAUSIBLE 1008
4130REMOTE
NO.3 EEPROM ERROR 1012
4131REMOTE
NO.3 SWITCHED TO FAILSAFE 1013
4132REMOTE
NO.3 UNDER VOLTAGE 1014
4133REMOTE
NO.3 OVER VOLTAGE 1018
4134REMOTE
NO.3 SPOOL MOVEMENT TOO LOW 1019
4135REMOTE
NO.3 SPOOL MOVEMENT TOO HIGH 1020
4136REMOTE
NO.3 FLOAT POSITION NOT REACHED 1021
4137REMOTE
NO.3 MANUALLY OPERATED 1022
4138REMOTE
NO.3 DRIVER FAULTY 1023
4139REMOTE
NO.3 POTENTIOMETER FAULTY 1024
4140REMOTE
NO.3 UNABLE TO REACH NEUTRAL 1025
4141REMOTE
NO.3 SPOOL NOT IN NEUTRAL AT KEY ON 1026
4142REMOTE
NO.4 NO CONTROL MESSAGE RECEIVED 1027
4142REMOTE
NO.4 NO CONTROL MESSAGE RECEIVED 1030
4143REMOTE
NO.4 CONTROL MESSAGE NOT PLAUSIBLE 1034
4144REMOTE
NO.4 EEPROM ERROR 1038
4145REMOTE
NO.4 SWITCHED TO FAILSAFE 1039
4146REMOTE
NO.4 UNDER VOLTAGE 1040
4147REMOTE
NO.4 OVER VOLTAGE 1044
4148REMOTE
NO.4 SPOOL MOVEMENT TOO LOW 1045
4149REMOTE
NO.4 SPOOL MOVEMENT TOO HIGH 1046
4150REMOTE
NO.4 FLOAT POSITION NOT REACHED 1047
4151REMOTE
NO.4 MANUALLY OPERATED 1048
4152REMOTE
NO.4 DRIVER FAULTY 1049
4153REMOTE
NO.4 POTENTIOMETER FAULTY 1050
4154REMOTE
NO.4 UNABLE TO REACH NEUTRAL 1051
4155REMOTE
NO.4 SPOOL NOT IN NEUTRAL AT KEY ON 1052
4156PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve Remote
control valve Remote valve 5 , No signal , No control message received
1053
4157PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve Remote
control valve Remote valve 5 , Control Message not plausible
1056
4158PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve Remote
control valve Remote valve 5 , Malfunction , EEPROM error
1060
4159PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve Remote
control valve Remote valve 5 , Switched to "Failsafe mode"
1061
4160PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve Remote
control valve Remote valve 5 , Undervoltage
1062
4161PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve Remote
control valve Remote valve 5 , Overvoltage
1066
4162PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve Remote
control valve Remote valve 5 , Under limit value , Spool movement too low
1067
4163PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve Remote
control valve Remote valve 5 , Over limit value , Spool movement too high
1068
4164PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve Remote
control valve Remote valve 5 , Inadequate travel , Float position not reached
1069
4165PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve Remote
control valve Remote valve 5 , Selfengage
, Manually operated
1070
4166PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve Remote
control valve Remote valve 5 , Malfunction , Driver faulty
1071
4167PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve Remote
control valve Remote valve 5 , Malfunction , Potentiometer faulty
1072
4168PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve Remote
control valve Remote valve 5 , Inadequate travel , Unable to reach neutral
1073
4169PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve Remote
control valve Remote valve 5 , Incorrect value , Spool not in neutral at key on
1074
4170EHR
CONTROL NO.1 NOT CALIBRATED 1075
4171EHR
CONTROL LEVER NO.1 OPEN CIRCUIT 1076
4172EHR
CONTROL LEVER NO.1 SHORT CIRCUIT 1080
4173EHR
CONTROL NO.2 NOT CALIBRATED 1084
4174EHR
CONTROL LEVER NO.2 OPEN CIRCUIT 1085
4175EHR
CONTROL LEVER NO.2 SHORT CIRCUIT 1090
4176TIMER
SWITCH NO.1 / NO.2 DISCONNECTED 1094
4177EHR
CONTROL NO.3 NOT CALIBRATED 1098
4178EHR
CONTROL LEVER NO.3 OPEN CIRCUIT 1099
4179EHR
CONTROL LEVER NO.3 SHORT CIRCUIT 1104
4180EHR
CONTROL NO.4 NOT CALIBRATED 1108
4181EHR
CONTROL LEVER NO.4 OPEN CIRCUIT 1109
4182EHR
CONTROL LEVER NO.4 SHORT CIRCUIT 1114
4183TIMER
SWITCH NO.3 / NO.4 DISCONNECTED 1118
4190NO
COMMUNICATION FROM EHR NO.1 1122
4191NO
COMMUNICATIONS FROM EHR NO.2 1126
4192NO
COMMUNICATIONS FROM EHR NO.3 1130
4193NO
COMMUNICATION FROM EHR NO.4 1134
4194MOTOR
MODE NO.1 SWITCH FAULTY 1138
4195MOTOR
MODE NO.2 SWITCH FAULTY 1142
4196MOTOR
MODE NO.3 SWITCH FAULTY 1146
4197MOTOR
MODE NO.4 SWITCH FAULTY 1150
4198PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve Remote
control valve Remote valve 5 , No signal
1154
4300HITCH
Rear hitch , No detects , Top link switch not fitted 1158
4301HITCH
Rear hitch , No detects , Side link switch not fitted 1162
4500PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , No signal , Front remote no.1 no
control message
received
1166
4501PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Incorrect value , Front remote no.1 control
message
not plausible
1170
4502PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Malfunction , Front remote no.1 EEPROM
error
1174
4503PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Switched to "Failsafe mode" , Front remote no.1
1175
4504PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Undervoltage , Front remote no.1
1176
4505PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Overvoltage , Front remote no.1
1180
4506PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Under limit value , Front remote no.1 spool
movement too low
1181
4507PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Over limit value , Front remote no.1 spool
movement
too high
1182
4508PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Inadequate travel , Front remote no.1 float
position
not reached
1183
4509PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Selfengage
, Front remote no.1 manually
operated
1184
4510PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Malfunction , Front remote no.1 driver
faulty
1185
4511PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Malfunction , Front remote no.1 potentiometer
faulty
1186
4512PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Inadequate travel , Front remote no.1 unable
to
reach neutral
1187
4513PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Incorrect value , Front remote no.1 spool
not in
neutral at key on
1188
4514PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , No signal , Front remote no.2 no
control message
received
1189
4515PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve ,
Incorrect value , Front remote no.2 control
message not plausible
4516PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Malfunction , Front remote no.2 EEPROM
error
1196
4517PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Switched to "Failsafe mode" , Front remote no. 2
1197
4518PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Undervoltage , Front remote no.2
1198
4519PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Overvoltage , Front remote no.2
1202
4520PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Under limit value , Front remote no.2 spool
movement too low
1203
4521PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Over limit value , Front remote no.2 spool
movement
too high
1204
4522PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Inadequate travel , Front remote no.2 float
position
not reached
1205
4523PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Selfengage
, Front remote no.2 manually
operated
1206
4524PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Malfunction , Front remote no.2 driver
faulty
1207
4525PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Malfunction , Front remote no. 2 potentiometer
faulty
1208
4526PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Inadequate travel , Front remote no.2 unable
to
reach neutral
1209
4527PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Incorrect value , Front remote no.2 spool
not in
neutral at key on
1210
4528PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , No signal , Front remote no. 3 no
control message
received
1211
4529PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Incorrect value , Front remote no. 3 control
message
not plausible
1214
4530PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Malfunction , Front remote no. 3 EEPROM
error
1218
4531PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Switched to "Failsafe mode" , Front remote no. 3
1219
4532PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Undervoltage , Front remote no. 3
1220
4533PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Overvoltage , Front remote no. 3
1224
4534PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Under limit value , Front remote no. 3 spool
movement too low
1225
4535PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Over limit value , Front remote no. 3 spool
movement
too high
1226
4536PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Inadequate travel , Front remote no. 3 float
position
not reached
4516PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Malfunction , Front remote no.2 EEPROM
error
1196
4517PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Switched to "Failsafe mode" , Front remote no. 2
1197
4518PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Undervoltage , Front remote no.2
1198
4519PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Overvoltage , Front remote no.2
1202
4520PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Under limit value , Front remote no.2 spool
movement too low
1203
4521PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Over limit value , Front remote no.2 spool
movement
too high
1204
4522PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Inadequate travel , Front remote no.2 float
position
not reached
1205
4523PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Selfengage
, Front remote no.2 manually
operated
1206
4524PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Malfunction , Front remote no.2 driver
faulty
1207
4525PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Malfunction , Front remote no. 2 potentiometer
faulty
1208
4526PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Inadequate travel , Front remote no.2 unable
to
reach neutral
1209
4527PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Incorrect value , Front remote no.2 spool
not in
neutral at key on
1210
4528PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , No signal , Front remote no. 3 no
control message
received
1211
4529PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Incorrect value , Front remote no. 3 control
message
not plausible
1214
4530PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Malfunction , Front remote no. 3 EEPROM
error
1218
4531PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Switched to "Failsafe mode" , Front remote no. 3
1219
4532PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Undervoltage , Front remote no. 3
1220
4533PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Overvoltage , Front remote no. 3
1224
4534PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Under limit value , Front remote no. 3 spool
movement too low
1225
4535PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Over limit value , Front remote no. 3 spool
movement
too high
1226
4536PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , Inadequate travel , Front remote no. 3 float
position
not reached
4563PRIMARY
HYDRAULIC POWER SYSTEM Electrohydraulic
remote valve
Midmount
remote control valve , No signal , Front remote no. 4 no
communications
1266
5003REAR
PTO BRAKE OUTPUT OPEN CIRCUIT 1270
5005REAR
PTO BRAKE SWITCH OPEN CIRCUIT 1274
5007REAR
PTO SOLENOID STUCK OFF 1278
5033REAR
PTO CAB NORMALLY CLOSED SWITCH OPEN CIRCUIT 1282
5034FENDER
MOUNTED REAR PTO SWITCH OPEN CIRCUIT OR SHORT TO
GROUND
1286
5035FENDER
MOUNTED REAR PTO SWITCH SHORT TO +VE VOLTAGE 1290
5037REAR
PTO CAB NORMALLY OPEN SWITCH STUCK CLOSED 1294
5042PTO
Management Switch Stuck
Closed 1298
5043Rear
PTO Fender Switch Stuck On 1302
5098Rear
PTO Fender Switch Option Not Enabled 1306
5099Auto
PTO Mode Not Enabled 1307
7014DIFFERENTIAL
LOCK SWITCH ERROR 1308
7017DIFFERENTIAL
LOCK SOLENOID OPEN CIRCUIT 1312
7024STEERING
ANGLE SENSOR NOT CALIBRATED 1316
7032Steering
Angle Sensor Signal
Too High 1317
7033No
Differential Lock Pressure 1320
7034Differential
Lock Pressure Switch Stuck
On 1324
8033FRONT
PTO CAB NORMALLY CLOSED SWITCH OPEN CIRCUIT 1328
8037FRONT
PTO CAB NORMALLY OPEN SWITCH STUCK CLOSED 1332
8099Front
PTO option not activated 133

S.M 8/3/2025
