New Holland TD5030, TD5040, TD5050 Tractors Service Manual (84221708)

New Holland TD5030, TD5040, TD5050 Tractors Service Manual (84221708)

FILE DETAILS:

New Holland TD5030, TD5040, TD5050 Tractors Service Manual (84221708)

• Format: PDF
• Language: English
• Number of Pages: 774 pages
• Brand: New Holland
• Type of document: Service Manual
• Model: TD5030, TD5040, TD5050 Tractors
• Part No: 84221708

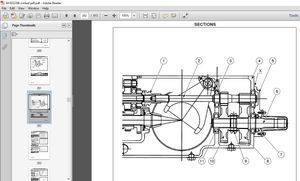

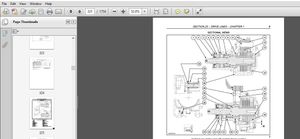

• SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

New Holland TD5030, TD5040, TD5050 Tractors Service Manual (84221708)

• The following pages are the collation of the contents pages trom each section and chapter of the TD5030, T05040, Tososo Service manual. Complete Service part # 84221704.
• The sections used through out all New Holland product Service manuals may not be used for each product. Each Service manual will be made up of one or several books.
• Each book will be labeled as to which sections are in the overall Service manual and which sections are in each book.
• The sections listed above are the sections utilized for the TDSO30, TD5040. TDSOSO Tractors.
• All maintenance and repair operations descrbed in this manual should be carried out exdusivety by the authorized workshops. All instructions detailed should be caretully observed and special equipment indicated should be used if necessary.
• Everyone who carries out service operations described without carelutty observing these direco lives will be directly responsible tor resulting consequences.
• SHIMMING
• At each adiustment. select adjusting shims. measure them individually using a micrometer and then sum up recorded values. Do not rely on measuring the whoie shimming set. which may be incorrect. or en the rated value indicated ler each shim.

TABLE OF CONTENTS:

New Holland TD5030, TD5040, TD5050 Tractors Service Manual (84221708)

SECTIONOO-GENERAL …………………..2
SECTION 10-ENGINE ………….2
SECTION18-CLUTCH ……………7
SECTION21-TRANSMISSIONS ……………….8
SECTION23-DRIVELINES…………………………………… 10
SECTION25-FWDFRONTAXLE 10
SECTION27-REARAXLEANDTRANSMISSION…………………. 12
SECTION31-POWERTAKE-OFF……………………………… 13
SECflON33-BRAKINGSYSTEM 14
SECTIONSS-HYDRAULICSYSTEM……………………………. 15
SECTIONM-STEERING…………………………………….. 18
SECTIONM-FRONTAXLEANDWHEELS(2WD)…………… 20
SECTIONSO-CABAIRCONDITIONINGSYSTEM…………………. 21
SECTIONSS-ELECTRICALSYSTEM…………………………… 23
SECTION 90 – PLATFORM, CAB, BODYWORK AND DECALS . . . . . . . . . . . 28
