New Holland Tecumseh Peerless Motion Drive Systems (Transmissions Transaxles Differentials Right Angle) Mechanic’s HandBook

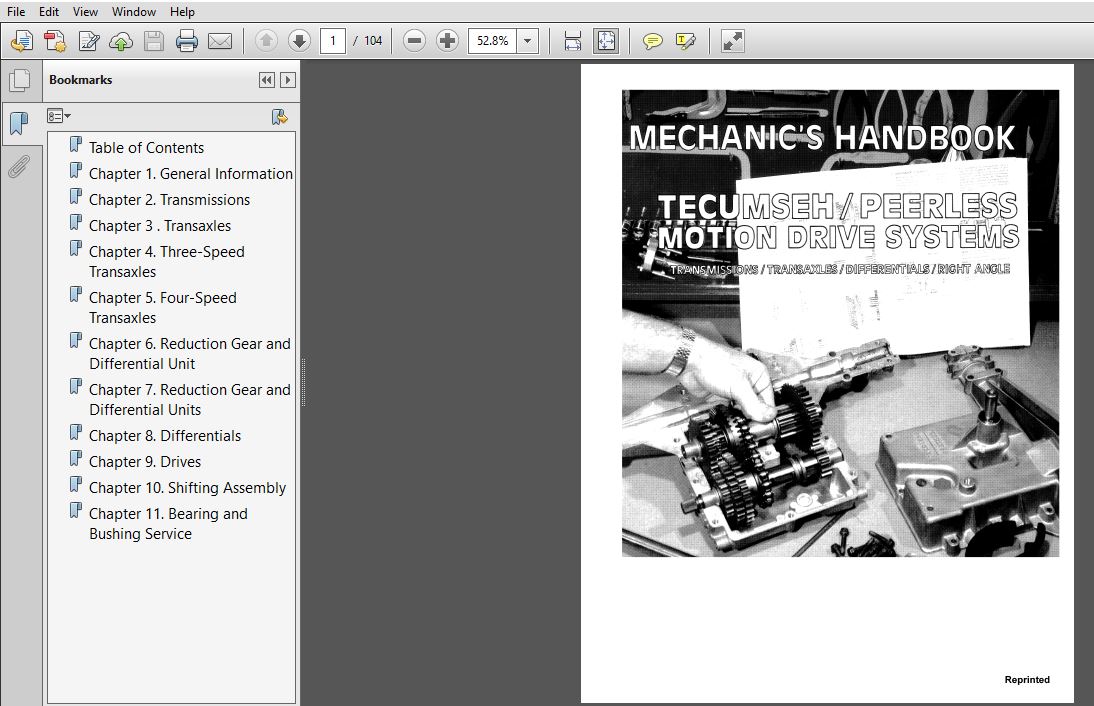

IMAGE PREVIEW:

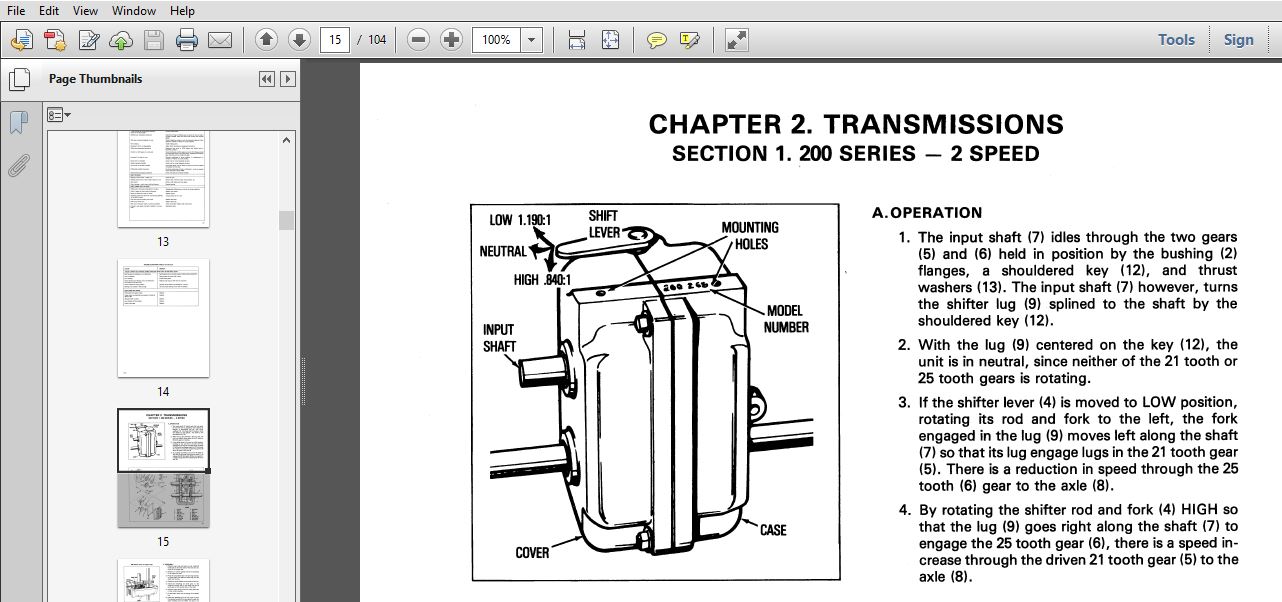

SAMPLE PAGE FROM THE MANUAL:

• 1. GENERAL
• Peerless makes power transmission gear drives for use in all types of lawn and garden equip- ment.
• 2. TRANSAXLES
• Combination of transmission and differential axle are in one compact unit. Peerless transaxles are manufactured in many different gear ratio combinations and from 2 to 5 forward speeds with one “reverse.
• A.600 Series : The 600 series is a lightweight unit usually used in riding mower or similar ap- plication. The 600 series has a vertical input shaft at the top of the case.
• The case is aluminum, contributing to a considerable weight saving. Variations in the series (which determines the specific model number such as 603, 603A, 609, etc.) includes:
• 1. Shift lever shape.
• 2. Axle lengths.
• 3. Axle machining for wheel hub attachment.
• 4. Axle housing variations.
• 5. Size of the brake shaft. There may be other slight differences, however, these are present as a result of pro- duct improvement which are not options to an O.E.M. (Original Equipment Manufacturer).

DESCRIPTION:

New Holland Tecumseh Peerless Motion Drive Systems (Transmissions Transaxles Differentials Right Angle) Mechanic’s HandBook

Item Number:40641011Description: Tecumseh , Peerless Motin Drive Systems Trans AxlesLanguage:EnglishType:Mechanic’s HandBook

TABLE OF CONTENTS:

New Holland Tecumseh Peerless Motion Drive Systems (Transmissions Transaxles Differentials Right Angle) Mechanic’s HandBook

CHAPTER 1. GENERAL INFORMATION
SECTION1. TermsUsed 1-1
SECTION 2. Lubrication Requirements 1-6

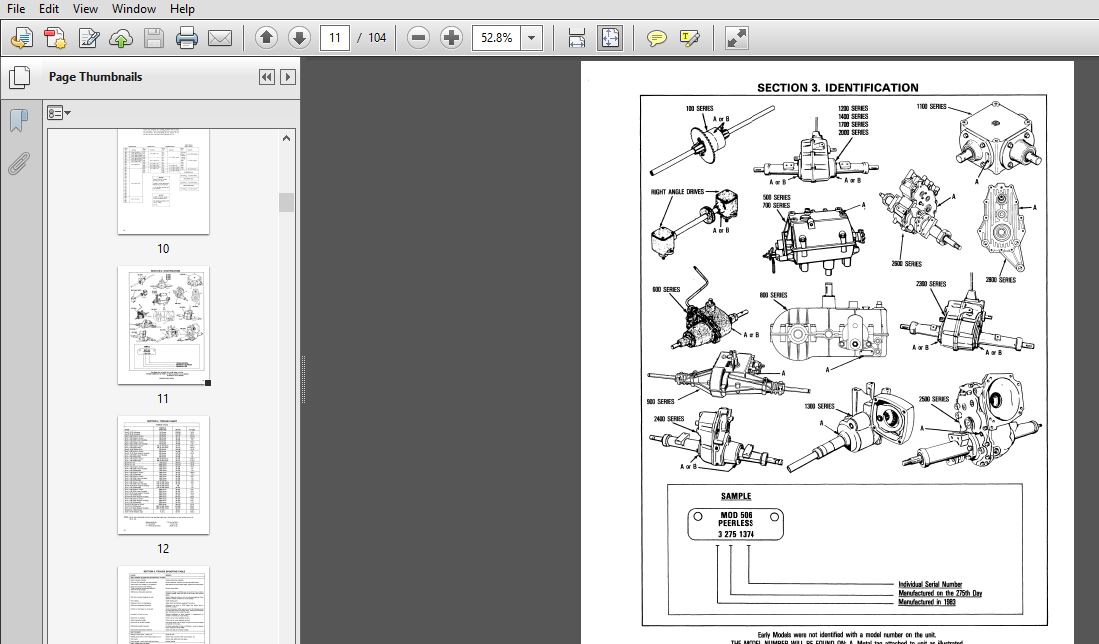

SECTION3. Identifications 1-7
SECTION 4. TorqueSpecifications……………….. 1-8
SECTION 5. Trouble Shooting Table 1—9

CHAPTER 2. TRANSMISSIONS
SECTIONI. ZOOSerieSZ-Speed 21
SECTION 2. ZOOSeries 3-Speed 2-3
SECTION 3. 350and4OOSeries………………….. 2-6
SECTION4. SOOSeries………………………… 2-9
SECTION 5. 7OOSeries………………………… 2-12
SECTIONS. 7OOHSeries 2-15
SECTION7. 28008eries……………………….. 2-18

CHAPTER 3. TRANSAXLES
SECTION1. 6008eries……………………-….. 31
SECTION 2. 601 SlowSpeedSeries………………. 3-6
SECTION3. 800$eries………………………… 3-7
SECTION4. BOOSeries………………………… 3-12
SECTIONS. 9103eries………………………… 3-16
SECTION6. 920$eries………………………… 3-20

CHAPTER 4. 3-SPEED TRANSAXLES
SECTION 1. 1200, 1400, 1700 and 2000 Series ………. 4-1

CHAPTER 5. FOUR-SPEED TRANSAXLES
SECTION1. 23008eries……………………….. 5-1

CHAPTER 6. REDUCTION GEAR and DIFFERENTIAL
UNIT
SECTION1.13OOSeries……………………….. 6-1

CHAPTER 7. REDUCTION GEAR and DIFFERENTIAL
UNITS
SECTION 1. 24OOSeries……………………….. 7-1
SECTION 2. ZSOOSeries……………………….. 7-3
SECTION 3. ZGOOSeries……………………….. 7-7

CHAPTER 8. DIFFERENTIALS

CHAPTER 9. DRIVES

CHAPTER 10. ‘SHIFTING ASSEMBLY

CHAPTER 11. BEARING and BUSHING SERVICE
