FILE DETAILS:

New Holland TM Series TM120-TM190 REPAIR MANUAL – PDF DOWNLOAD

Language : English
Pages :428
Downloadable : Yes
File Type : PDF

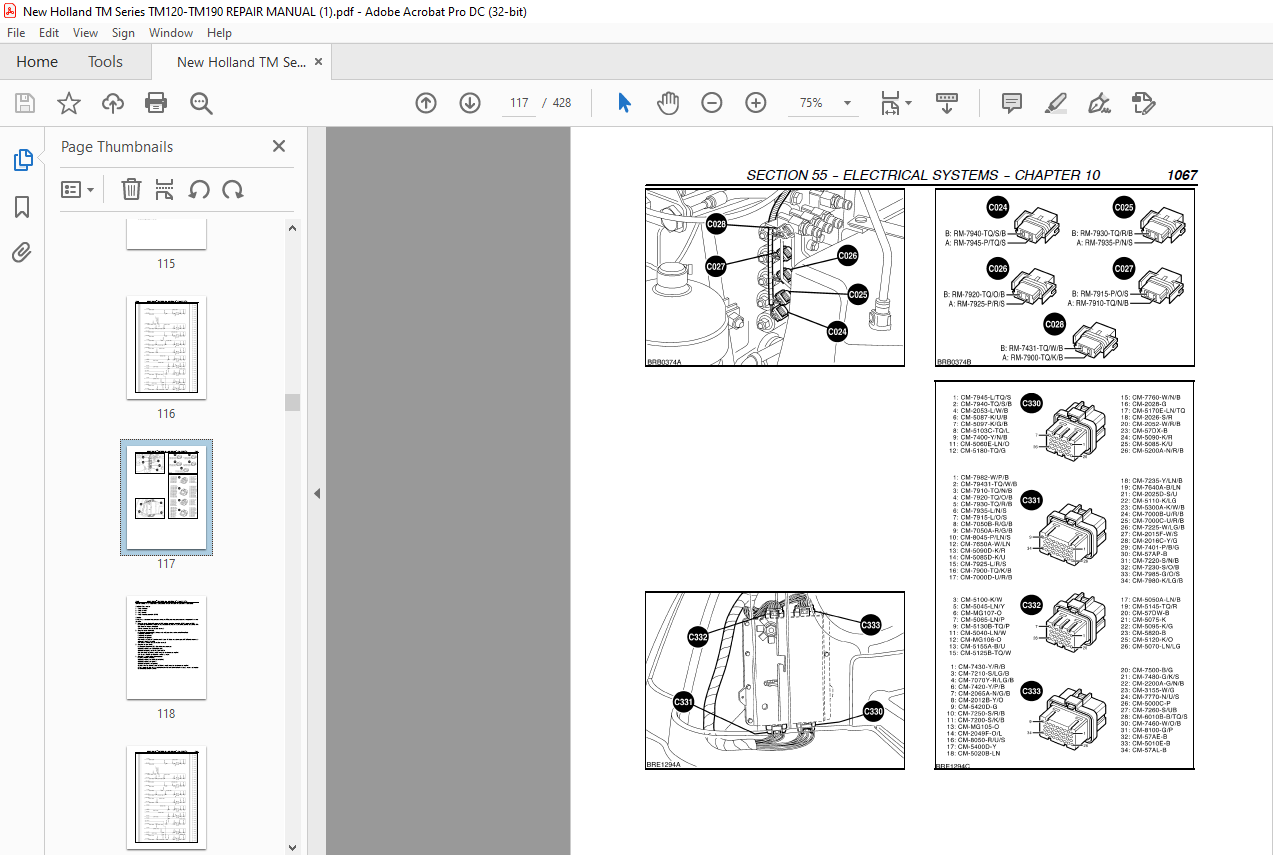

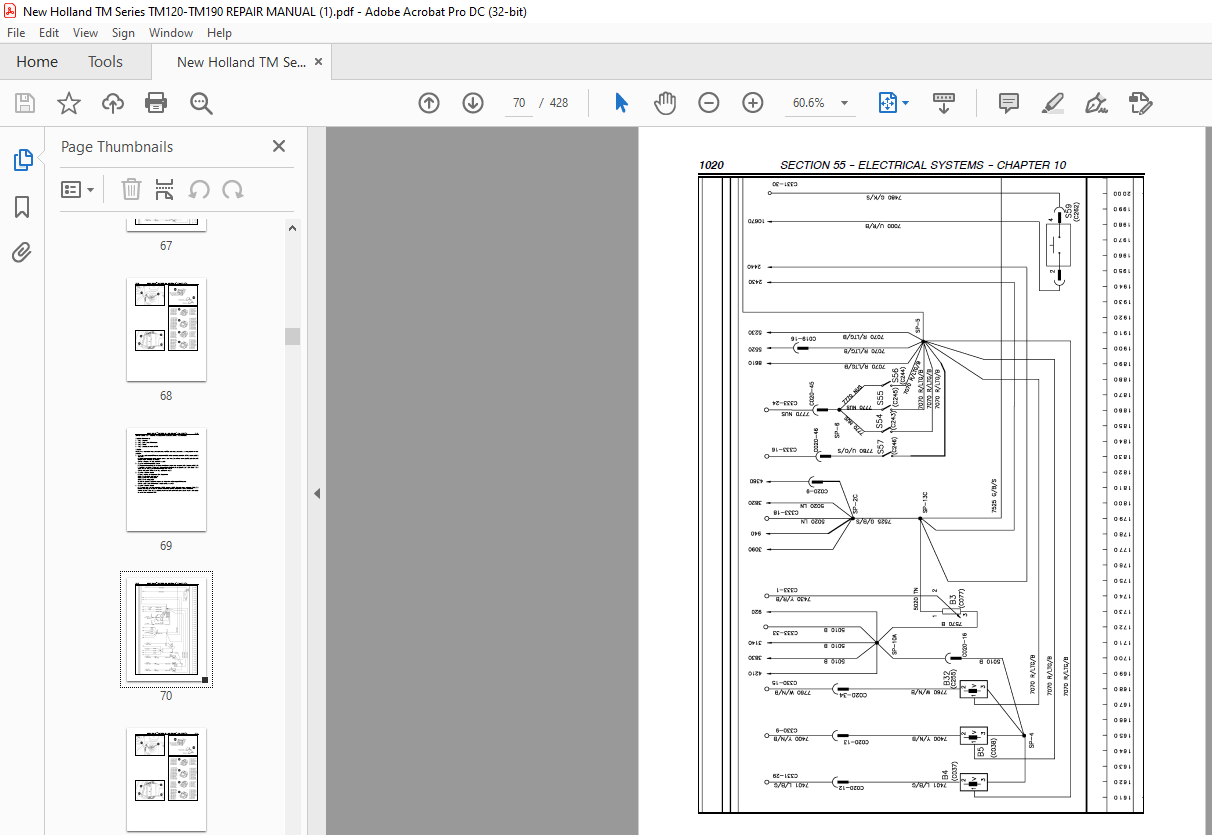

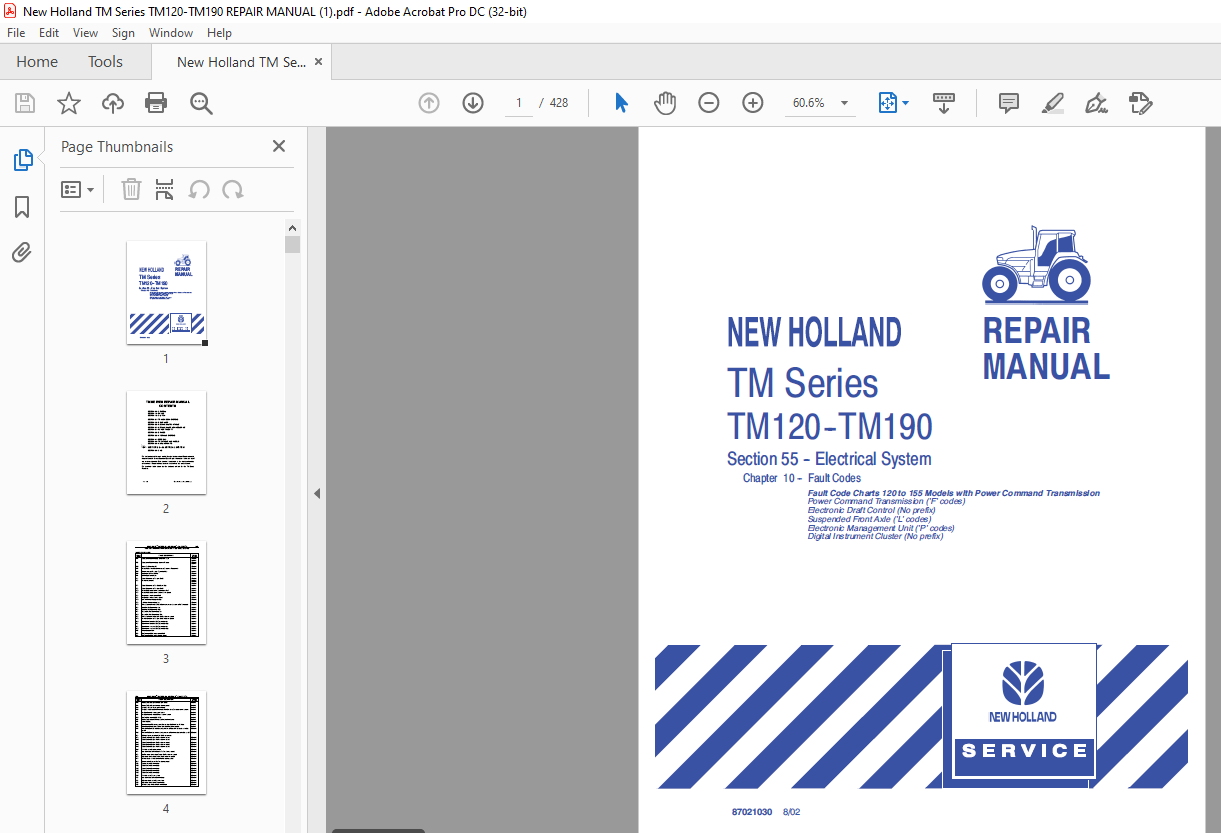

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

New Holland TM Series TM120-TM190 REPAIR MANUAL – PDF DOWNLOAD

F11 Clutch potentiometer voltage below valid range Disabled
Enabled
F12 Clutch potentiometer voltage above valid range Disabled
Enabled
F13 Open circuit from fuse 13 Disabled
F21 Transmission extension harness to main harness disconnected Disabled
F23 Creeper engaged in a gear higher than 10th Enabled
F24 All clutches need calibration Disabled
F27 ERPM signal not present Enabled
F37 Clutch disconnect switch open circuit Disabled
F38 Reverse not allowed Enabled
Disabled
Disabled
F47 Clutch disconnect switch misadjusted high Enabled
F48 Clutch disconnect switch short circuit Enabled
F49 Transmission output speed sensor open circuit Enabled
F50 Transmission output speed sensor short to ground Enabled
F51 Temperature sender open circuit Enabled
F52 Temperature sensor short to ground Enabled
F53 +5 Volt reference voltage too high Disabled
F54 + 5 Volts reference voltage low Disabled
F59 Forward/neutral/reverse switch disagreement (more than one switch is engaged) Disabled
F60 Upshift switch input voltage low Enabled
F61 Upshift switch input voltage high Enabled
F62 Downshift switch input voltage low Enabled
F63 Downshift switch input voltage high Enabled
F64 Forward pressure switch open circuit or short to ground Enabled
F65 Reverse pressure switch open circuit or short to ground Enabled
F66 Shuttle lever forward switch input voltage low Enabled
F67 Shuttle lever forward switch input voltage high Enabled
F68 Shuttle lever reverse switch input voltage low Enabled
F69 Shuttle lever reverse switch input voltage high Enabled
F70 Torque Damper Fault Enabled
F71 Engine torque/RPM sensor open circuit Enabled
F72 Engine torque/RPM sensor short to ground Enabled
F73 Transmission mid speed sensor open circuit Enabled
F74 Transmission mid speed sensor short to ground Enabled
F75 Swapped mid and output speed sensors Enabled
F76 Swapped engine torque/RPM sensor with either the mid or output speed sensors Enabled
F77 No signal from the output speed sensor Enabled
F78 No signal from the transmission mid speed sensor Enabled
F79 Engine RPM exceeds 3000 RPM Enabled
F80 Transmission output RPM too high for the selected gear Enabled
F81 Clutch slipping Disabled
F82 Foot throttle position sensor potentiometer short circuit to +8 or +12 Volts Enabled
F83 Foot throttle sensor potentiometer open circuit or short to ground Enabled
F84 Pressure indicated on forward clutch pressure switchs when the clutch solenoids
are off
Disabled
F85 Pressure indicated on reverse clutch pressure switch when clutch solenoids are off Disabled
F91 Display of gears controller (CAN DOG) not present
FAA Clutch A solenoid open circuit or short to ground Disabled
FAB Clutch B solenoid open circuit or short to ground Disabled
FAC Clutch C solenoid open circuit or short to ground Disabled
FAD Clutch D solenoid open circuit or short to ground Disabled
FAE Clutch E solenoid open circuit or short to ground Disabled
FAF PTO lube solenoid under voltage Disabled
FA1 Low range clutch solenoid open circuit or short to ground Disabled
FA2 Medium range clutch solenoid open circuit or short to ground Disabled
FA3 High range clutch solenoid open circuit or short to ground Disabled
FA4 Reverse clutch solenoid open circuit or short to ground Disabled
FA5 Creeper solenoid open circuit or short to ground Enabled
FBA Clutch A solenoid over voltage Disabled
FBB Clutch B solenoid over voltage Disabled
FBC Clutch C solenoid over voltage Disabled
FBD Clutch D solenoid over voltage Disabled
FBE Clutch E solenoid over voltage Disabled
FBF PTO lube solenoid over voltage Disabled
FB1 Low range clutch solenoid over voltage Disabled
FB2 Mid range clutch solenoid over voltage Disabled
FB3 High range clutch solenoid over voltage Disabled
FB4 Reverse range clutch solenoid over voltage Disabled
FB5 Creeper solenoid over voltage Enabled
FCA Clutch A not calibrated Enabled
FCB Clutch B not calibrated Enabled
FCC Clutch C not calibrated Enabled
FCD Clutch D not calibrated Enabled
FCE Clutch E not calibrated Enabled
FCF Low range clutch not calibrated Enabled
FC1 Medium range clutch not calibrated Enabled
FC2 High range clutch not calibrated Enabled
FC3 Reverse clutch not calibrated Enabled
FC0 Secondary controller (CFPS) is not configured Enabled
CP Depress the clutch pedal to to re–enable the transmission Disabled
N Shift to neutral to re-enable transmission Disabled
CALIBRATION FAULTS
U19 Oil temperature below 10 degrees centigrade
U21 Engine RPM too low
U22 Engine RPM too high
U23 Shuttle lever in neutral
U26 Clutch pedal not released
U31 Output speed sensed — tractor moving
U33 Handbrake not applied
U34 Seat switch not activated
U36 Maximum allowed clutch calibration value exceeded
U37 ERPM dropped too soon during clutch cal
CALIBRATION MESSAGES
CF Calibration procedure completed successfully
CH Oil temperature above 105 degrees centigrade — Press upshift to proceed
CL Oil temperature between 10 and 60 degrees centigrade — press upshift to proceed
