New Holland Tractor T4 85 T4 95 T4 105 Service Manual

Starting from:

$45

Home

FILE DETAILS:

New Holland Tractor T4 85 T4 95 T4 105 Service Manual

Size: 184 MB
Format: PDF
Language: English
Number of Pages: 2647 pages
Brand: New Holland
Type of document: Service Manual
Model: T4.85, T4.95, T4.105 Tractor
Part No: 47531609

DESCRIPTION:

New Holland Tractor T4 85 T4 95 T4 105 Service Manual

SAMPLE PAGE FROM THE MANUAL:

Starting the system at low temperatures can damage the compressor. Only operate the air conditioner when the engine is hot and the temperature inside the cab is at least 20 °C (68.00 °F). When disconnecting the hoses, close the ends with plastic caps to prevent foreign matter and humidity from getting inside the hoses. Handle the thermostatic sensor carefully to avoid damage that may prevent efficient system operation.
Always use two spanners to unscrew the hose fittings to avoid twisting the fitting. Do not use any type of engine oil to lubricate the compressor and the system. Never leave the compressor oil container open, always make sure that it is tightly closed. If left exposed the oil will absorb humidity from the air and may, subsequently, damage the system. Do not transfer compressor oil from the original container to another container.
Do not introduce any additives to the compressor oil. Any additional substances could contain elements which are incompatible with the chemical base of the refrigerant and thus alter its characteristics. Check that the thermostatic sensor is correctly inserted in the fins on the evaporator to ensure efficient system operation.
Most accidents or injuries that occur in workshops are the result of non–observance of simple and fundamental safety regulations. For this reason, IN MOST CASES THESE ACCIDENTS CAN BE AVOIDED: by foreseeing possible causes and consequently acting with the necessary caution and care
. Accidents may occur with all types of vehicle, regardless of how well it was designed and built. A careful and judicious service technician is the best guarantee against accidents. Precise observance of the most basic safety rule is normally sufficient to avoid many serious accidents. DANGER: Never carry out any cleaning, lubrication or maintenance operations when the engine is running.

• Carefully follow specified repair and maintenance procedures.

• Do not wear rings, wristwatches, jewellery, unbuttoned or loose articles of clothing such as: ties, torn clothing, scarves, open jackets or shirts with open zips that may remain entangled in moving parts. It is advised to wear approved safety clothing, e.g: non–slip footwear, gloves, safety goggles, helmets, etc.

• Do not carry out repair operations with someone sitting in the driver’s seat, unless the person is a trained technician who is assisting with the operation in question.

• Operate the vehicle and use the implements exclusively from the driver’s seat.

• Do not carry out operations on the vehicle with the engine running, unless specifically indicated. • Stop the engine and ensure that all pressure is relieved from hydraulic circuits before removing caps, covers, valves, etc. • All repair and maintenance operations must be carried out using extreme care and attention.

• Service steps and platforms used in a workshop or in the field should be built in compliance with the safety rules in force.

• Disconnect the batteries and label all controls to indicate that the vehicle is being serviced. Block the machine and all equipment which should be raised.

• Do not check or fill fuel tanks, accumulator batteries, nor use starting liquid when smoking or near naked flames, as these fluids are inflammable

. • Brakes are inoperative if manually released for repair or maintenance purposes. In such cases, the machine should be kept constantly under control using blocks or similar devices.

• The fuel nozzle should always be in contact with the filling aperture. Maintain this position until filling operations are completed in order to avoid possible sparks caused by the accumulation of static electricity. • Only use specified towing points for towing the tractor, connect parts carefully.Make sure that all pins and/or locks are secured in position before applying traction. Never remain near the towing bars, cables or chains that are operating under load

• Transport vehicles that cannot be driven using a trailer or a low–loading platform trolley, if available.

• When loading or unloading the vehicle from the trailer (or other means of transport), select a flat area capable of sustaining the trailer or truck wheels, firmly secure the tractor to the truck or trailer and lock the wheels in the position.

• Electric heaters, battery–chargers and similar equipment must only be powered by auxiliary power supplies with efficient ground insulation to avoid electrical shock hazards.

• Always use suitable hoisting or lifting devices when raising or moving heavy parts.

• Take extra care if bystanders are present.

• Never pour gasoline or diesel oil into open, wide and low containers. • Never use gasoline, diesel oil or other inflammable liquids as cleaning agents. Use non-flammable non-toxic proprietary solvents.

• Wear safety goggles with side guards when cleaning parts with compressed air.

• Limit the air pressure to a maximum of 2.1 bar (30.5 psi), according to local regulations.

VIDEO PREVIEW OF THE MANUAL:

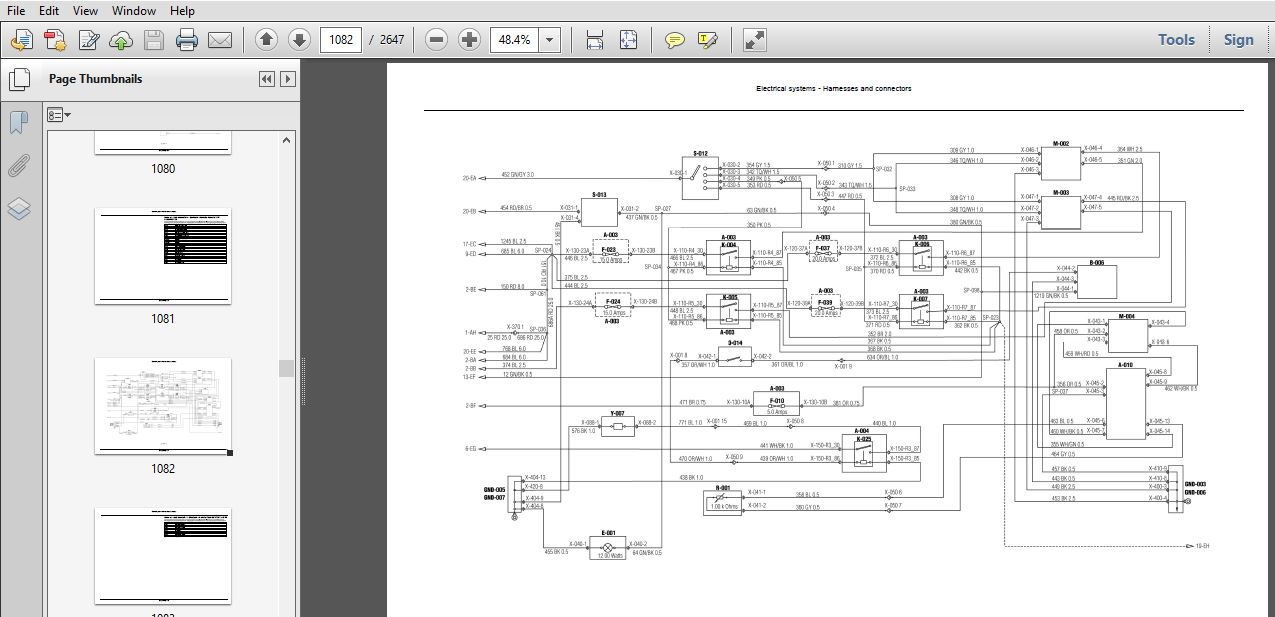

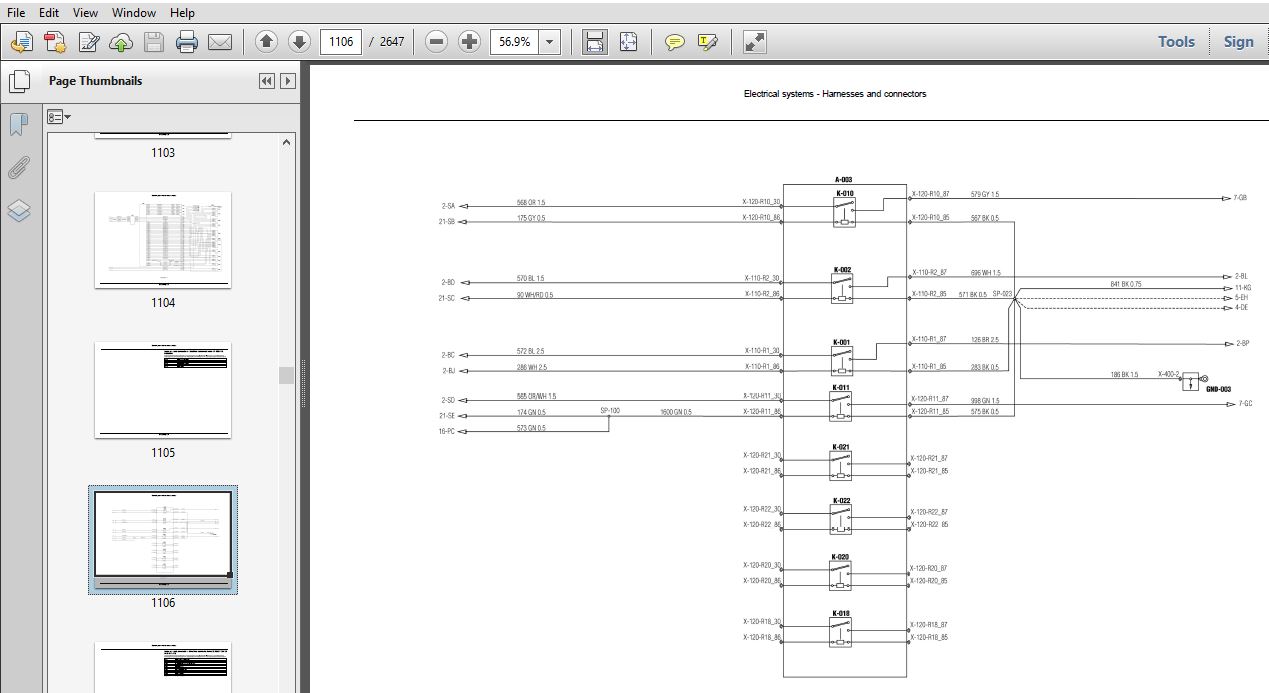

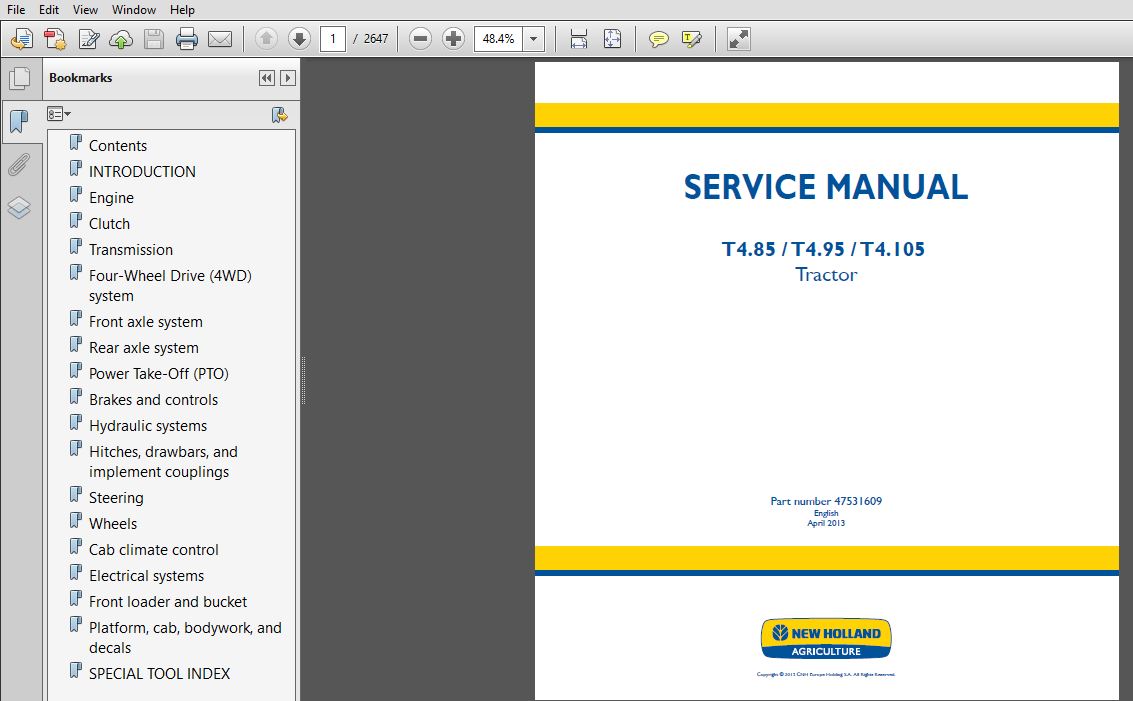

IMAGES PREVIEW OF THE MANUAL:

New Holland Tractor T4 85 T4 95 T4 105 Service Manual

INTRODUCTION
Engine 10
[10 001] Engine and crankcase 10 1
Clutch 18
[18 100] Clutch mechanical release control 18 1
[18 110] Clutch and components 18 2
[18 112] Slip clutch or flywheel damper 18 3
Transmission 21
[21 AAA] Transmission generic sub-group 21 1
[21 130] Mechanical transmission external controls 21 2
[21 140] Mechanical transmission internal components 21 3
[21 112] Power shuttle transmission 21 4
[21 110] Master clutch housing 21 5
[21 134] Power shuttle transmission external controls 21 6
[21 154] Power shuttle transmission internal components 21 7
[21 160] Creeper 21 8
[21 162] Reverser 21 9
[21 168] Hi-Lo unit 21 10
[21 118] Transmission/Rear drive 21 11
Four-Wheel Drive (4WD) system 23
[23 202] Electro-hydraulic control 23 1
[23 314] Drive shaft 23 2
Front axle system 25
[25 100] Powered front axle 25 1
[25 102] Front bevel gear set and differential 25 2
[25 108] Final drive hub, steering knuckles, and shafts 25 3
47531609 06/05/2013
Rear axle system 27
[27 106] Rear bevel gear set and differential 27 1
[27 120] Planetary and final drives 27 2
Power Take-Off (PTO) 31
[31 101] Rear mechanical control 31 1
[31 104] Rear electro-hydraulic control 31 2
[31 114] Two-speed rear Power Take-Off (PTO) 31 3
[31 116] Three-speed rear Power Take-Off (PTO) 31 4
Brakes and controls 33
[33 202] Hydraulic service brakes 33 1
[33 110] Parking brake or parking lock 33 2
[33 220] Trailer brake hydraulic control 33 3
[33 204] Front axle brake 33 4
Hydraulic systems 35
[35 104] Fixed displacement pump 35 1
[35 322] Regulated/Low pressure system 35 2
[35 204] Remote control valves 35 3
[35 100] Main lift system 35 4
[35 114] Three-point hitch control valve 35 5
[35 116] Three-point hitch cylinder 35 6
[35 701] Front loader arm hydraulic system 35 7
[35 723] Front loader bucket hydraulic system 35 8
Hitches, drawbars, and implement couplings 37
[37 108] Rear three-point hitch external controls 37 1
[37 110] Rear three-point hitch 37 2
[37 120] Rear three-point hitch linkage 37 3
[37 162] Front hitch 37 4
Steering 41
47531609 06/05/2013
[41 200] Hydraulic control components 41 1
[41 206] Pump 41 2
[41 216] Cylinders 41 3
Wheels 44
[44 511] Front wheels 44 1
Cab climate control 50
[50 100] Heating 50 1
[50 104] Ventilation 50 2
[50 200] Air conditioning 50 3
Electrical systems 55
[55 000] Electrical system 55 1
[55 100] Harnesses and connectors 55 2
[55 201] Engine starting system 55 3
[55 301] Alternator 55 4
[55 302] Battery 55 5
[55 640] Electronic modules 55 6
[55 DTC] FAULT CODES 55 7
Front loader and bucket 82
[82 AAA] Front loader and bucket generic sub-group 82 1
Platform, cab, bodywork, and decals 90
[90 150] Cab 90 1
[90 154] Cab doors and hatches 90 2
[90 110] Operator platform less cab 90 3
[90 100] Engine hood and panels 90 4
[90 116] Fenders and guards
