New Holland Versatile 1150 Tractor Service Repair Manual (40115610)

New Holland Versatile 1150 Tractor Service Repair Manual (40115610)

FILE DETAILS:

New Holland Versatile 1150 Tractor Service Repair Manual (40115610)

• Format: PDF
• Language: English
• Number of Pages: 560 pages
• Brand: New Holland
• Type of document: Service Manual
• Model: Versatile Tractor 1150
• Part No: 40115610
• SCREENSHOOTS OF THE MANUAL:

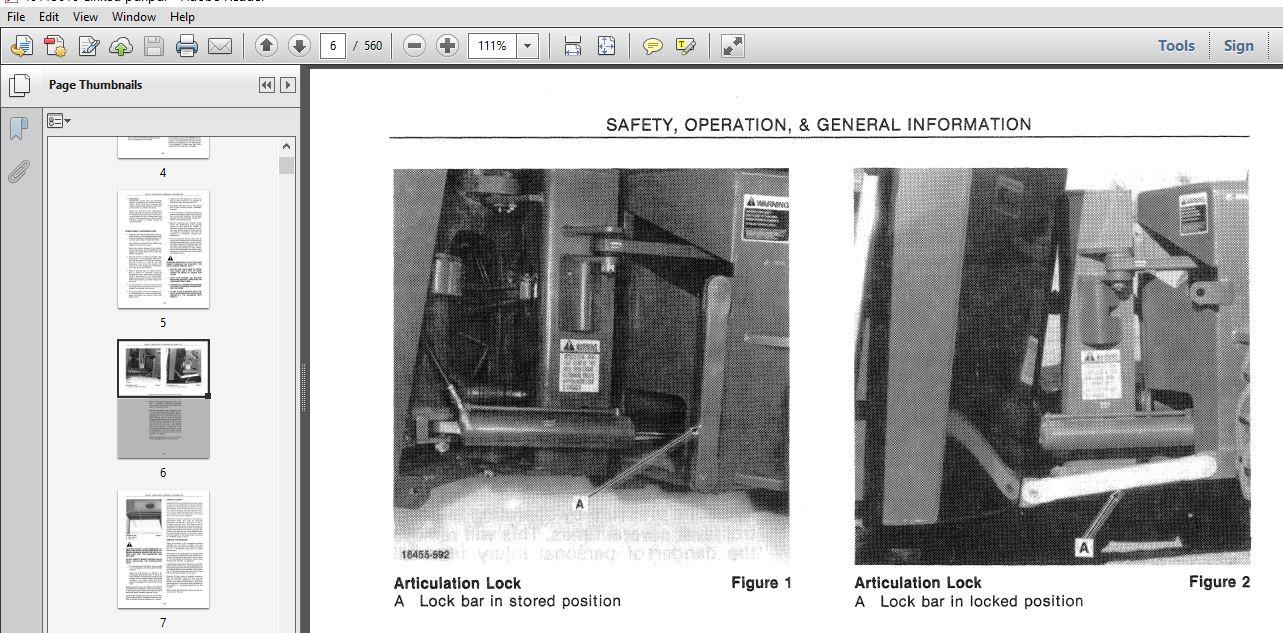

SAMPLE PAGE FROM THE MANUAL:

New Holland Versatile 1150 Tractor Service Repair Manual (40115610)

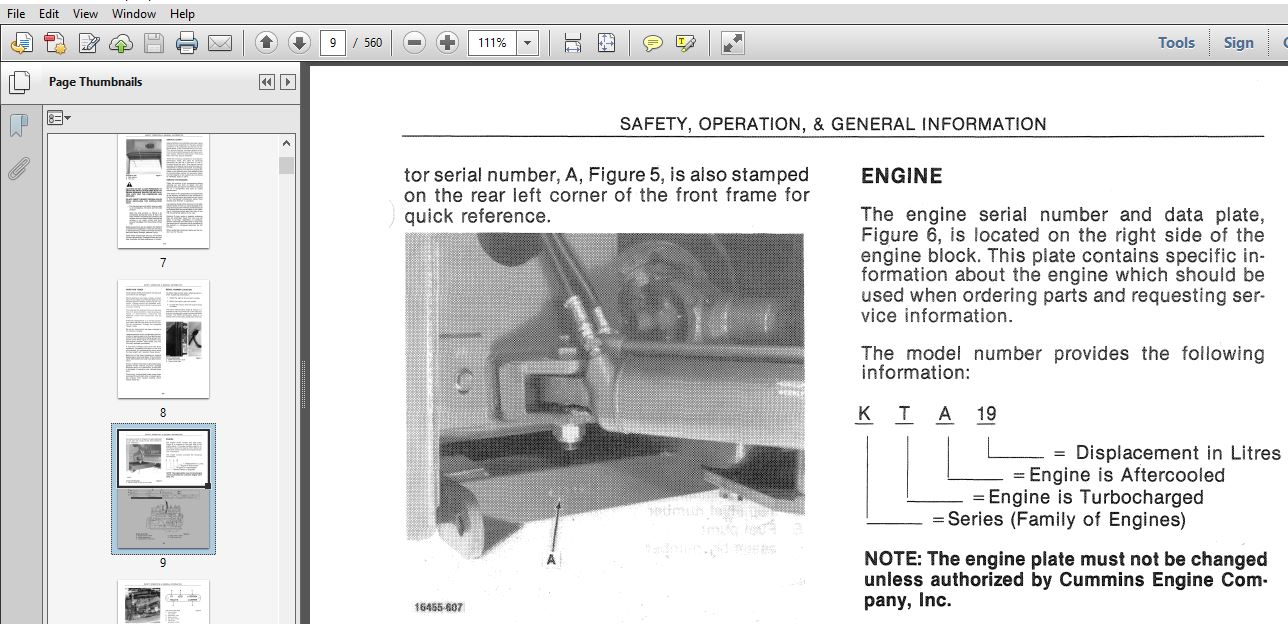

• The Versatile 1156 tractor uses a Cummins Big Cam III slx cylinder KTA19-A470 engine. This section contains service procedures for the engine-related subsystems.
• For service pro- cedures and engine overhaul information not covered in this manual, refer to “Cummins  Assistance” in this section. Operation, maintenance and engine service manuals are available from the Cummins Engine Company via any of their authorized dealers and distributors worldwide.
• Efficiency of this engine is enhanced by the use of a CROSS-FLOW CYLINDER HEAD with the exhaust manifold on one side of the head and the intake manifold on the other. Coupled with 4 VALVES PER CYLINDER (2 intake. 2 ex- haust) the engine Is able to process huge quan- tities of fuellalr mixture formaxlmum efficien- cy and ample torque over a wide rpm range.
• A “Constant Power” engine achieves peak power over a wide range of engine speeds. Therefore. even though the engine is Iugged down. the horsepower output of the engine re- mains constant.
• Torque builds very quickly. much faster than the decrease in rpm. forthe first 10% of rpm reduc- tion. Torque then Increases more gradually un- til maximum torque is reached.
• The “Constant- Power“ engine maintains horsepower even though rpm declines. The “CONSTANT- POWER” concept is an exclusive feature of Cummins engines. “Constant Power” is the ability to produce a nearly uniform power out- put over a broad operating range.
• This is achieved by Increasing the peak torque to pro- vide more power at reduced engine speeds. The increased torque at lower engine speeds translates directly into more usable power.

TABLE OF CONTENTS:

New Holland Versatile 1150 Tractor Service Repair Manual (40115610)

Table of Contents Volume 1 …………………… 2
Section 1: Engine Systems ……………………. 17
Section 2: Fuel System ………………………. 85
Section 3: Electrical System ………………….103
Section 4: Clutch ……………………………219
Section 5: Transmission and Brake System ……….241
Table of Contents Volume 2 ……………………320
Section 6: Driveline System …………………..321
Section 7: Axles …………………………….335
Section 8: Hydraulic System …………………..383
Section 9: Steering System …………………..419
Section 11: Cab, Seat, Frame and Environmental ….457
Section 13: Wheels, Tires and Weighting ………..525
Section 17: Specifications ……………………543
