New Holland Versatile Tractor 700, 900 4WD Service Manual_40070020
Size: 28.1 MB
Format: PDF
Language: English
Number of Pages: 311 pages
Brand: New Holland
Type of document: Service Manual
Model: 700, 900 4WD
Part No: 40070020

Image Preview:

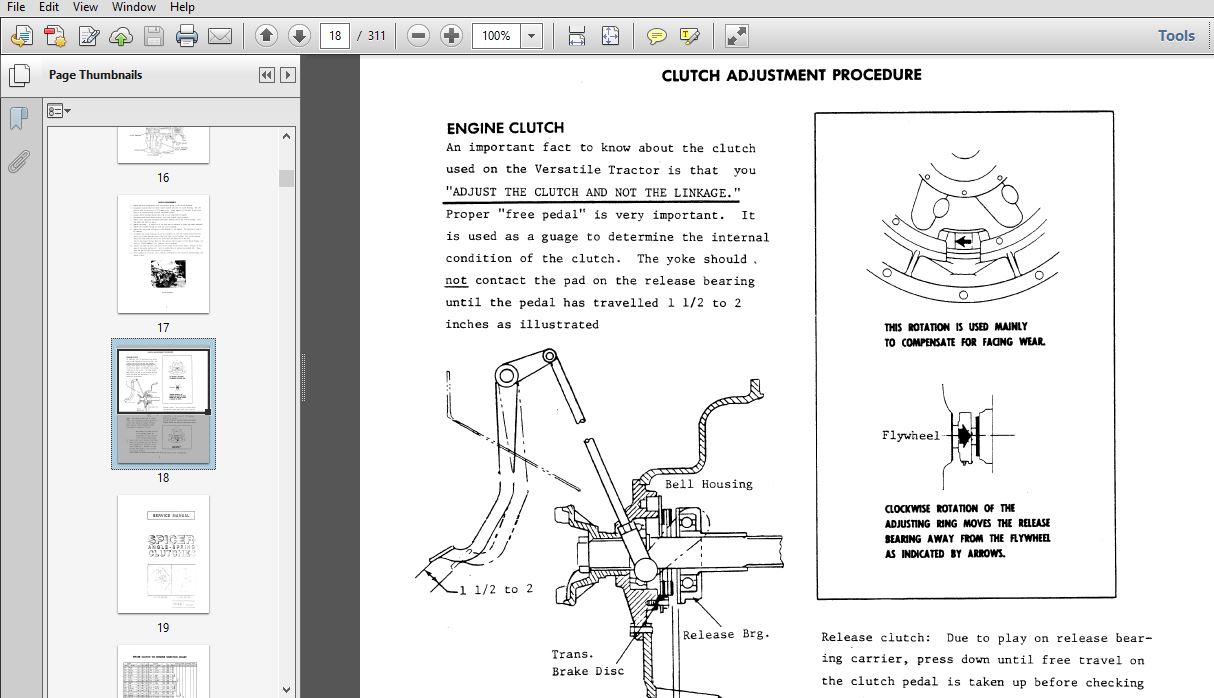

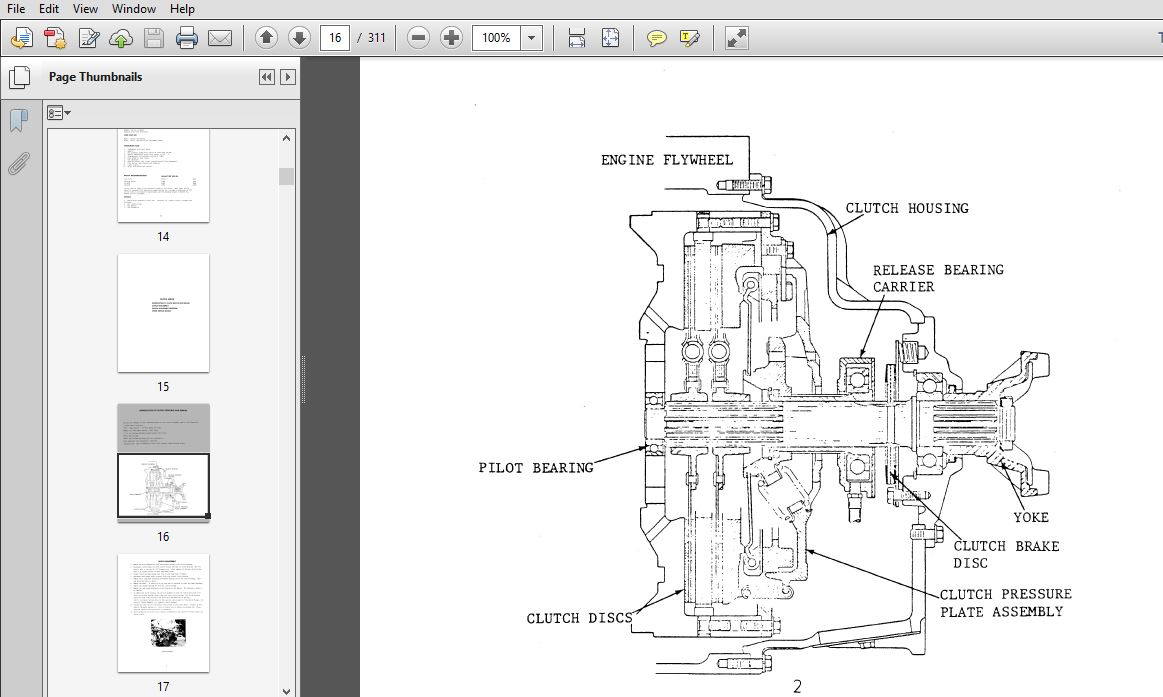

Sample Page from The Manual:

New Holland Versatile 700, 900 4 Wheel Drive Tractor Service Repair Manual (40070020) New Holland

• All gears in the transmission are constantly in nesh. i.e. engaged uhile the engine clutch is engaged. Shifting selects the position of the collars which engage the splines on the gears to those on the particular shafts. To assist the splines to engage it is necessary to allow some notion within the transmission.
• This is an essential step in gear shifting since the transnissicn input is stopped by an internal clutch brake when the clutch pedal is fully depressed, i.e. disengaged. The transmission is constantly ongaged to the front and rear axle drive train, therefore it is necessary to stop the tractor to select the required speed.

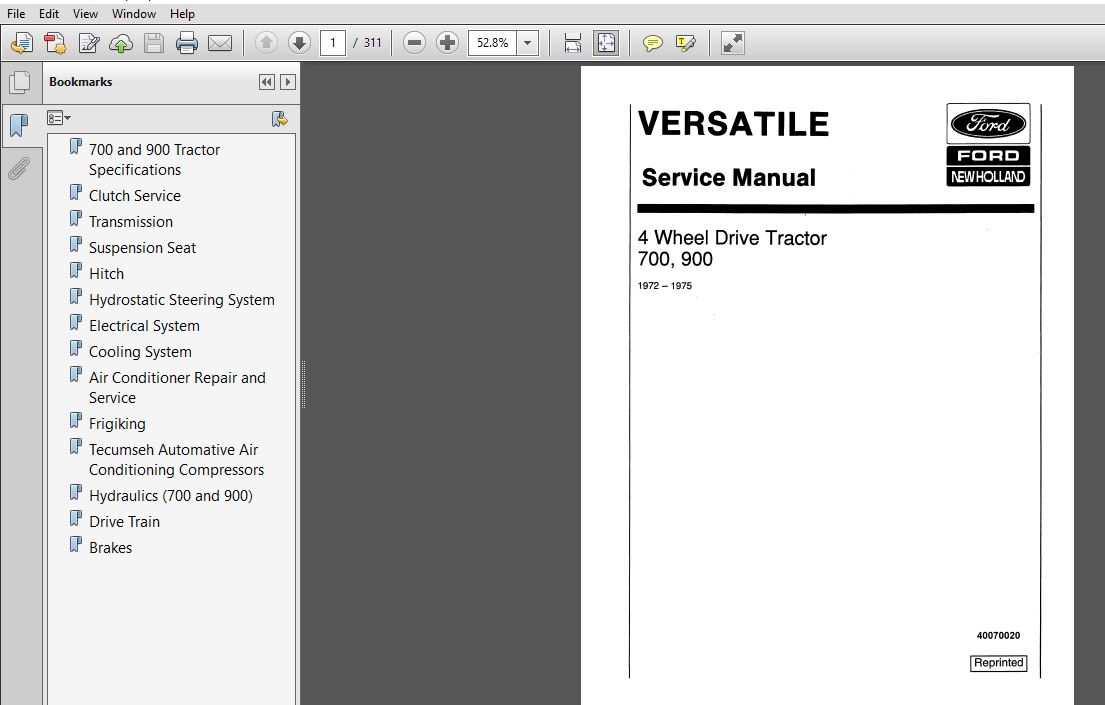

Table of Contents:

New Holland Versatile 700, 900 4 Wheel Drive Tractor Service Repair Manual (40070020) New Holland

700 and 900 Tractor Specifications
.................  3
Clutch Service
..................................... 15
Transmission
....................................... 55
Suspension Seat..................................... 77
Hitch............................................... 85
Hydrostatic Steering System.........................106
Electrical System
..................................128
Cooling System
.....................................140
Air Conditioner Repair and Service
.................146
Frigiking ..........................................172
Tecumseh Automative Air Conditioning Compressors....210
Hydraulics (700 and 900)
...........................218
Drive Train
........................................270
Brakes
.............................................306
