Poclain MSE02MS11 Hydraulic Motors Service Manual 917122 – PDF DOWNLOAD

Poclain MSE02MS11 Hydraulic Motors Service Manual 917122 – PDF DOWNLOAD

FILE DETAILS:

Poclain MSE02MS11 Hydraulic Motors Service Manual 917122 – PDF DOWNLOAD

Language : English
Pages : 80
Downloadable : Yes
File Type : PDF
Size: 3.89 MB

IMAGES PREVIEW OF THE MANUAL:

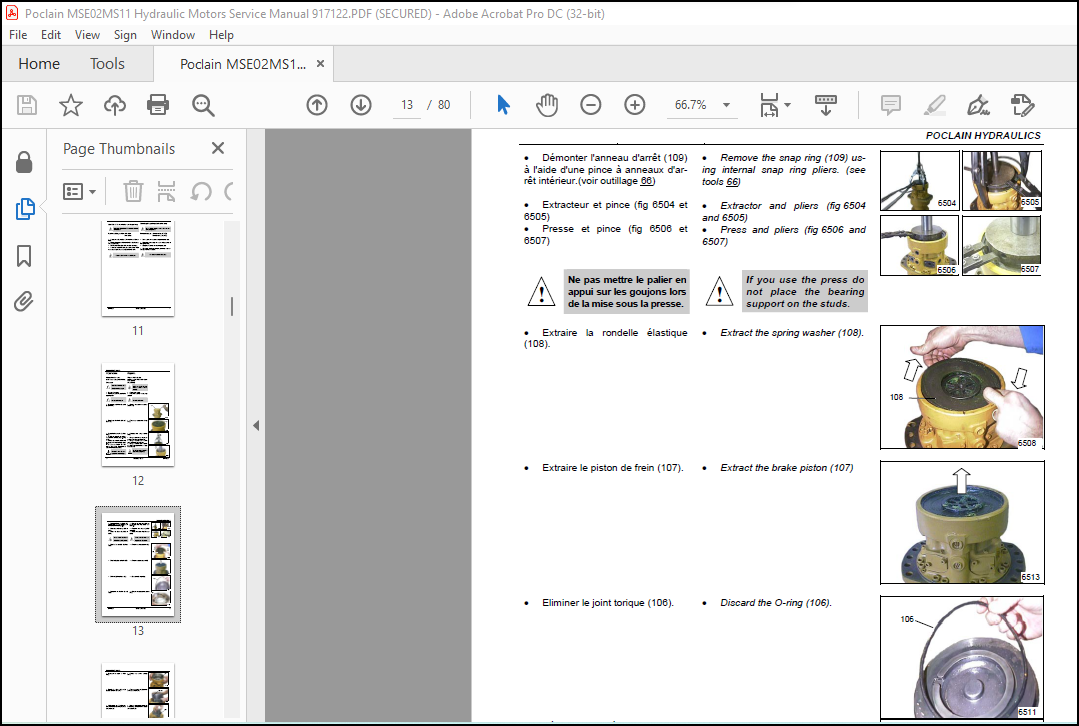

DESCRIPTION:

Poclain MSE02MS11 Hydraulic Motors Service Manual 917122 – PDF DOWNLOAD

Safety and QualityBefore servicing

• Be extremely careful to prevent personal injury and to avoid damage to maten‘al. Comply with all safety regulations- Apply the parking brake and prevent the machine from rolling with tire blocks.
• Stop the hydraulic system power source (engine) and disconnect the battery. 0 If necessary, block off the safety area. Wash dirt and grease from exterior of the compo- nents. – Await the complete cooling down and depressurization of the hydraulic system (accumulators mustbe purged)-

TABLE OF CONTENTS:

Poclain MSE02MS11 Hydraulic Motors Service Manual 917122 – PDF DOWNLOAD

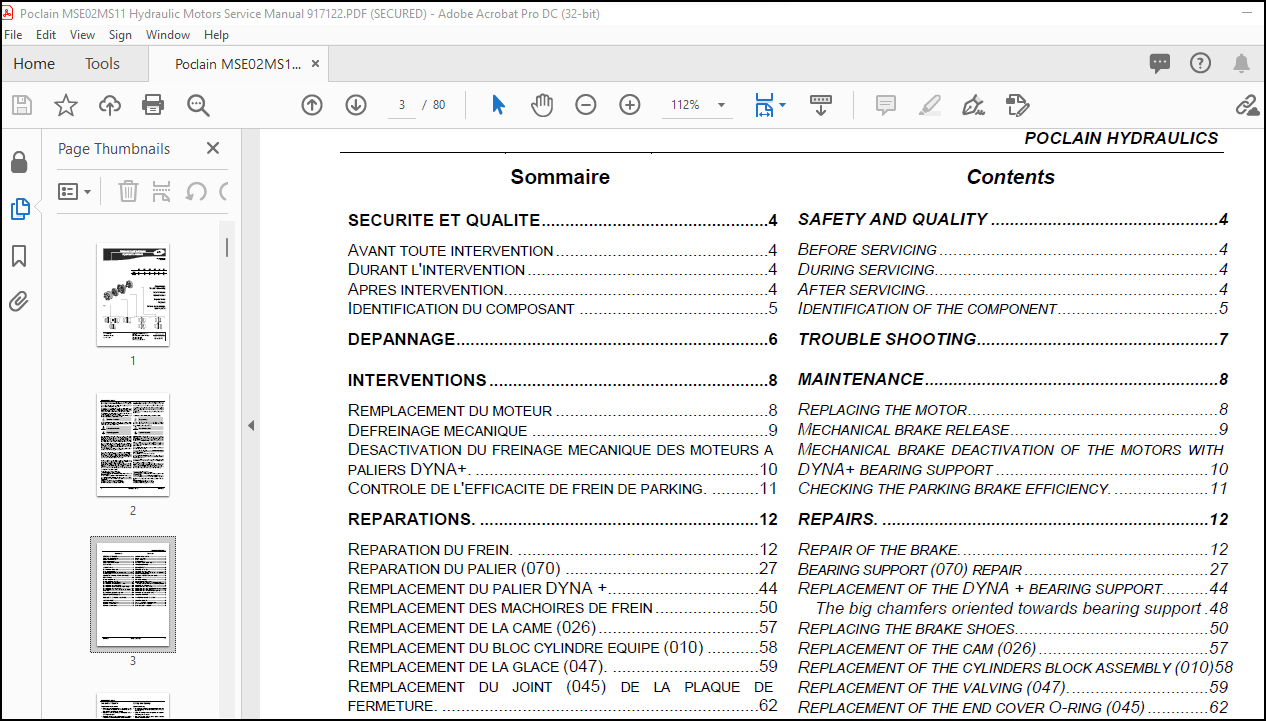

SAFETY AND QUALITY4
BEFORE SERVICING4
DURING SERVICING4
AFTER SERVICING4
IDENTIFICATION OF THE COMPONENT 5
TROUBLE SHOOTING7
MAINTENANCE8
REPLACING THE MOTOR8
MECHANICAL BRAKE RELEASE9
MECHANICAL BRAKE DEACTIVATION OF THE MOTORS WITH
DYNA+ BEARING SUPPORT10
CHECKING THE PARKING BRAKE EFFICIENCY 1 1
REPAIR OF THE BRAKE12
BEARING SUPPORT (070) REPAIR 27
REPLACEMENT OF THE DYNA + BEARING SUPPORT 44
The big chamfers oriented towards bearing SUppOIt 48
REPLACING THE BRAKE SHOES50
REPLACEMENT OF THE CAM (026)57
REPLACEMENT OF THE CYLINDERS BLOCK ASSEMBLY (010)58
REPLACEMENT OF THE VALVING (047)59
REPLACEMENT OF THE END COVER O RING (045) 62
REPLACING THE SENSOR (OPTIONAL) 64
TOOLING INVENTORY66
TIGHTENING TORQUE SUMMARY 69
SPARE PARTS LIST73
MOTOR WITH DYNA+ BEARING SUPPORT 75
SINGLE DISPLACEMENTMOTORS 76
DUAL DISPLACEMENTMOTORS 781
