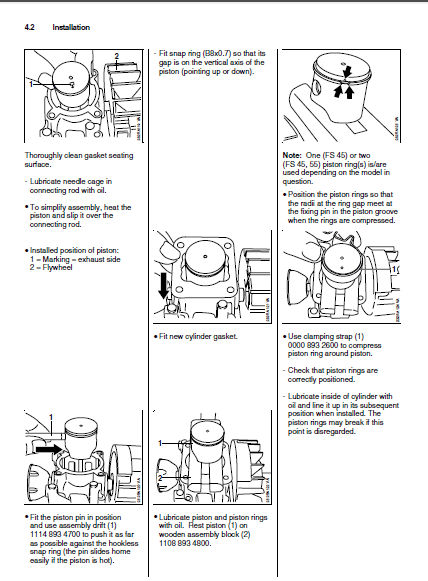

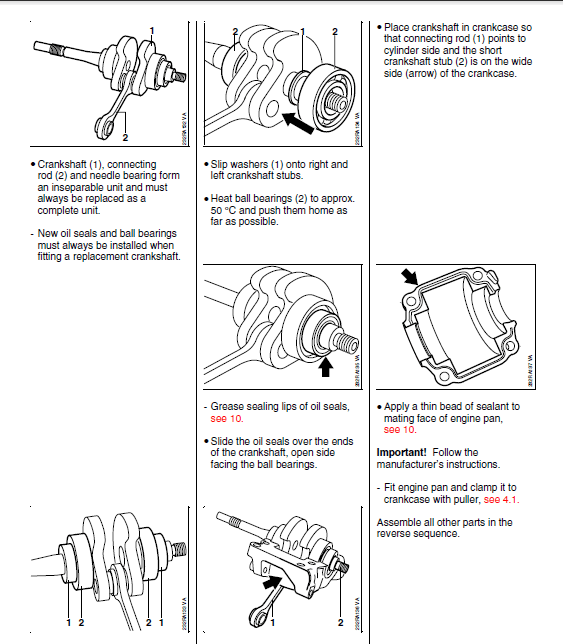

The “basic engine 4140” is used to drive a number of power tools: FS 45, 46, 55; FC 55; BG 45, 55, 65, 85; SH 55, 85; HS 45; HL 45. Servicing procedures for specific machine components are described in the handbook “Machine components 4140”. There are separate handbooks for servicing procedures for standardized parts and assemblies that are installed in several STIHL power tool models (“Standard Repairs, Troubleshooting”, “Carburetors”). Reference is made to these handbooks in the appropriate chapters in this manual. You should make use of the illustrated parts lists while carrying out repair work. They show the installed positions of the individual components and assemblies.

• Refer to the latest edition of the relevant parts list to check the part numbers of any replacement parts needed. Parts lists on microfiche and CD-ROM are always more up to date than printed lists.
• A fault in the machine may have several causes. To help locate the fault, consult the troubleshooting charts for all assemblies in the “Standard Repairs, Troubleshooting” handbook.

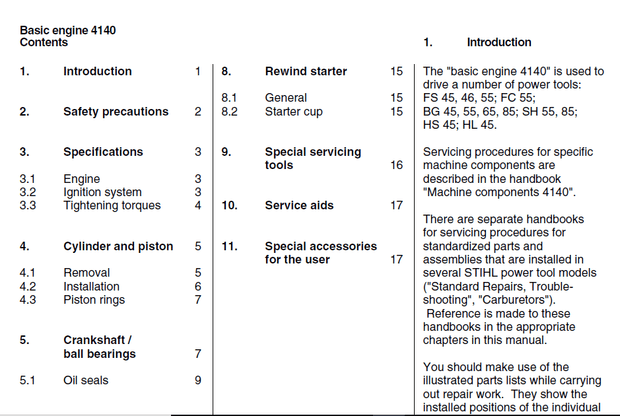

TABLE OF CONTENTS:
