STILL Hydraulic battery carrier Workshop MANUAL – PDF DOWNLOAD

STILL Hydraulic battery carrier Workshop MANUAL - PDF DOWNLOAD

FILE DETAILS:

STILL Hydraulic battery carrier Workshop MANUAL - PDF DOWNLOAD

Language : English
Pages : 48
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

STILL Hydraulic battery carrier Workshop MANUAL - PDF DOWNLOAD

00 Product information
Foreword oo-
Product overview for the hydraulic battery carrier 00-
Safety information oo- 2
Parking the truck so it is secured for service work
01 Service
Maintenance
Maintenance
02 Hydraulic battery carrier
Components
Hydraulic battery carrier
Potentiometer9B17,supportroller
Sensor 9B15, battery carrier
Sensor 9B16, support roller
Hydraulic unit
Valve strainers EV1 and EV2
Interlock
Removing the battery carrier
Installing the battery carrier
Calibrating and parameters 02-19
Parameters
Calibrating
Troubleshooting 02-23
Troubleshooting electrics/electronics 02-23
Hydraulic motor not working 02-25
Misfiring drive unit during operation 02-25
Fault in the mechanics of the battery carrier 02-26
Malfunctions when extending
Malfunctions when retracting
STILL 50638042207 [EN)

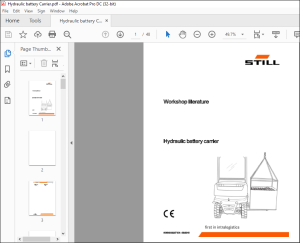

IMAGES PREVIEW OF THE MANUAL:
