Still KOMATSU FB_IRJX-2 FB_IRJCX-2 Reach mast stacker Spare Parts List Manual – PDF DOWNLOAD

Still KOMATSU FB_IRJX-2 FB_IRJCX-2 Reach mast stacker Spare Parts List Manual – PDF DOWNLOAD

FILE DETAILS:

Still KOMATSU FB_IRJX-2 FB_IRJCX-2 Reach mast stacker Spare Parts List Manual – PDF DOWNLOAD

Language : English
Pages : 272
Downloadable : Yes
File Type : PDF

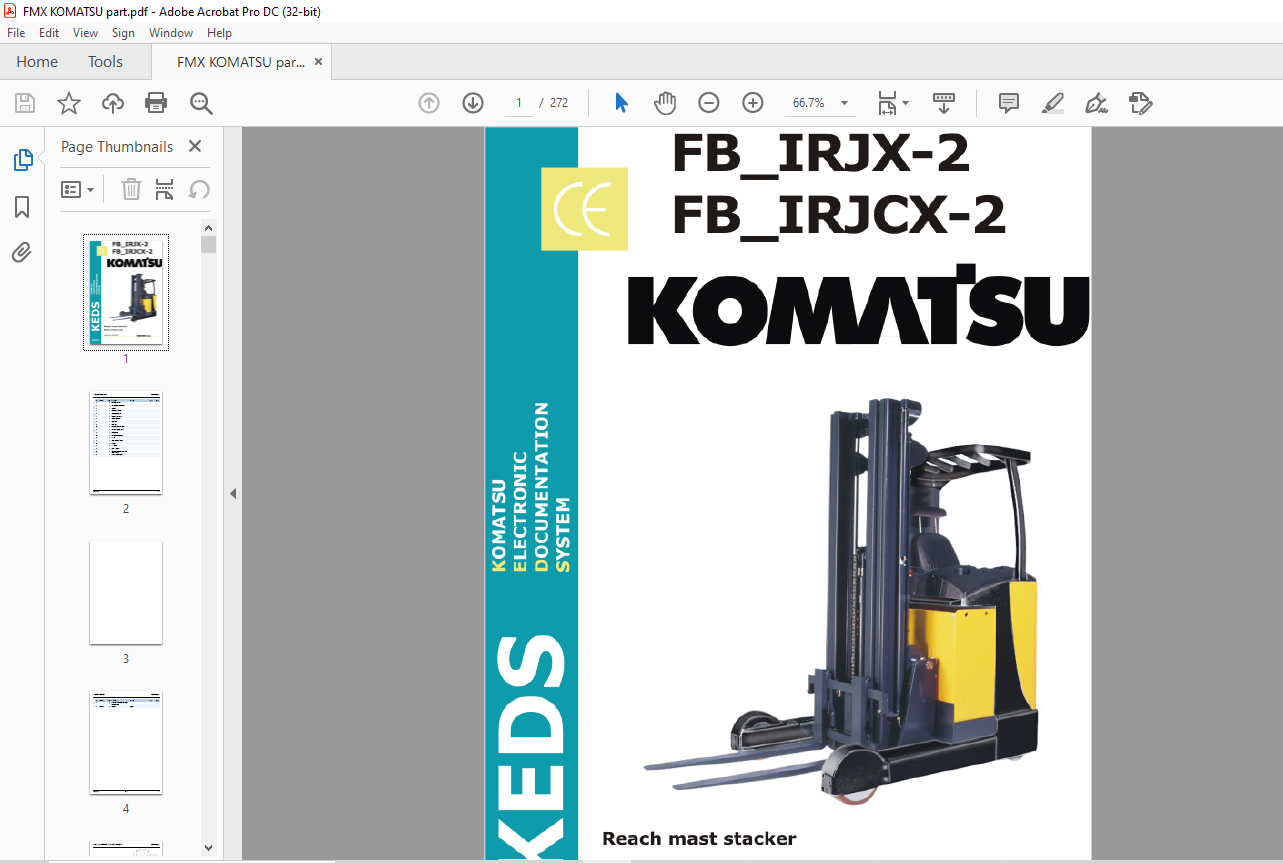

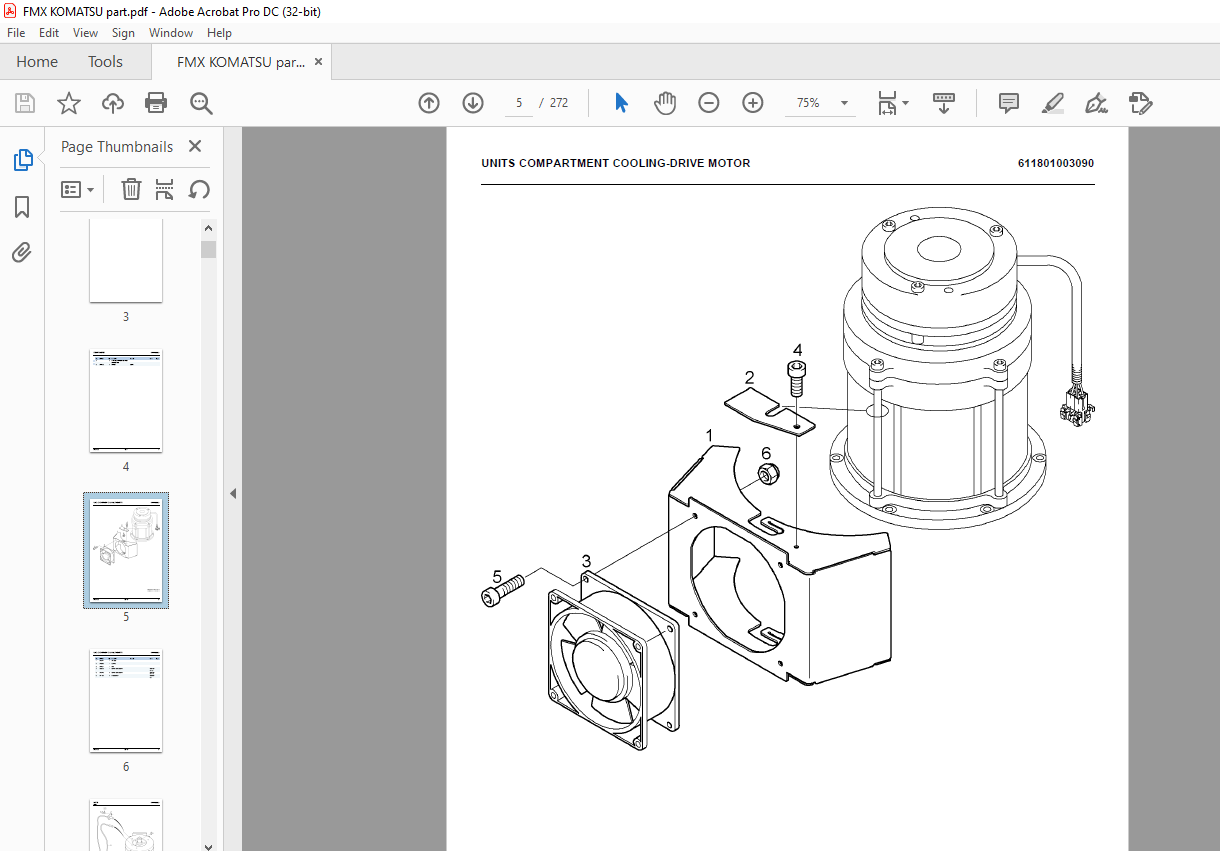

IMAGES PREVIEW OF THE MANUAL:

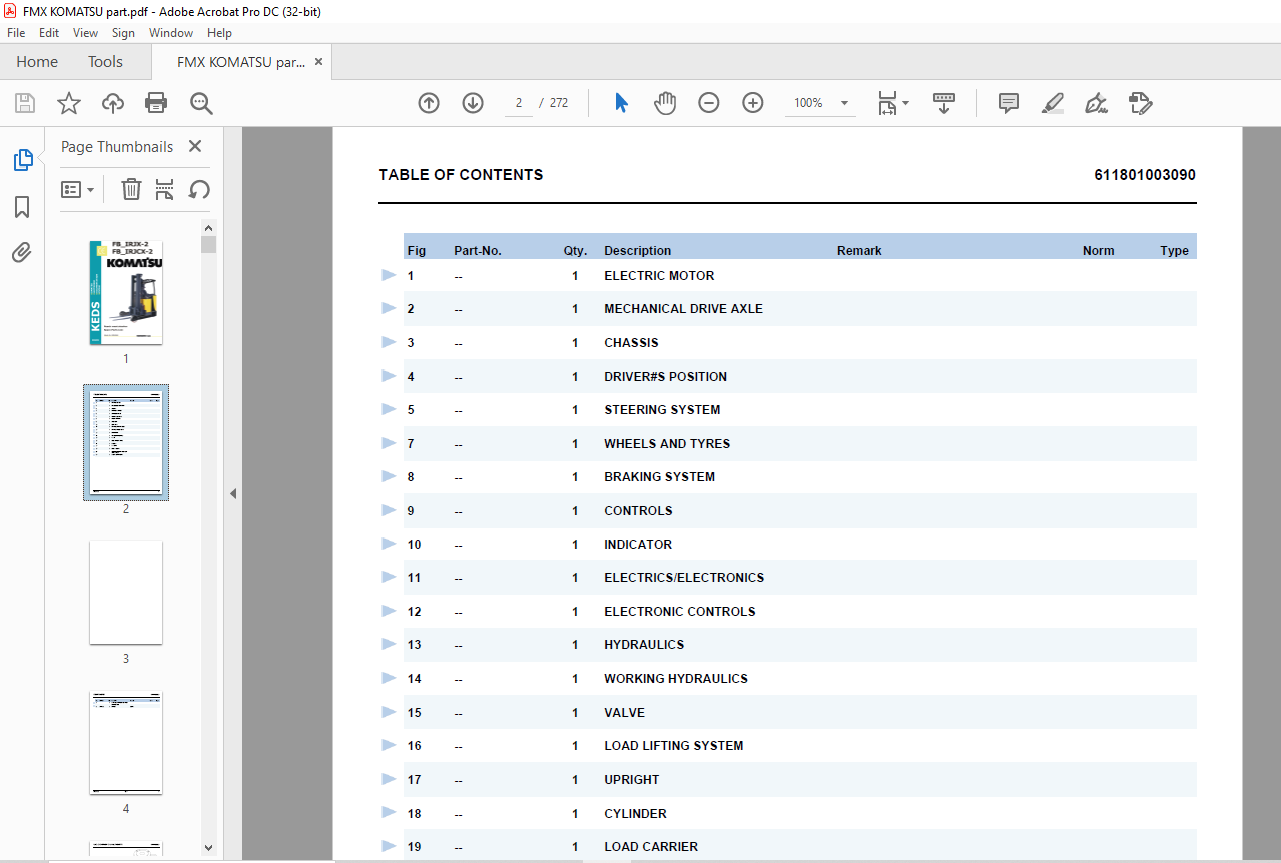

TABLE OF CONTENTS:

Still KOMATSU FB_IRJX-2 FB_IRJCX-2 Reach mast stacker Spare Parts List Manual – PDF DOWNLOAD

611801003090..........................................  2
	ELECTRIC MOTOR....................................  3
		UNITS COMPARTMENT COOLING-DRIVE MOTOR.........  6
		MOTOR.........................................  8
	MECHANICAL DRIVE AXLE.............................  9
		WHEEL DRIVE................................... 12
			TRANSMISSION.............................. 14
			MOTOR.....................................  8
			SPRING-OPERATED BRAKE.....................102
		TRANSMISSION.................................. 14
	CHASSIS........................................... 15
		TRUCK FRAME-PART III.......................... 18
		BATTERY CARRIER............................... 19
			BATTERY CARRIER........................... 22
		BATTERY COVER................................. 23
			BATTERY COVER............................. 26
		SCHUBSCHLITTEN................................ 27
			SCHUBSCHLITTEN............................ 30
		REACH CARRIAGE-COVERS......................... 32
		SUPPORT-BUILT IN.............................. 33
			SUPPORT-BUILT IN.......................... 36
		STOP-MOUNTING ................................ 38
		FLOOR PLATE................................... 39
			FLOOR PLATE............................... 42
				TRAVEL SENDER.........................112
		DOOR.......................................... 43
			DOOR...................................... 46
		COVERING...................................... 47
			COVERING.................................. 50
	DRIVER#S POSITION................................. 51
		SEAT, COMPL................................... 53
			SEAT, COMPL............................... 56
		SEAT.......................................... 57
			SEAT...................................... 60
		SUPPORT-BUILT IN.............................. 64
		COVERING...................................... 65
			COVERING.................................. 68
		HOOD.......................................... 69
			HOOD...................................... 72
		COVERS........................................ 73
			COVERS.................................... 76
		DOCUMENT TRAY................................. 78
		HEAD PROTECTION PAD........................... 80
	STEERING SYSTEM................................... 81
		STEERING WHEEL................................ 84
		LENKANTRIEB................................... 85
			LENKANTRIEB............................... 88
		STEERING TRANSMITTER.......................... 90
	WHEELS AND TYRES.................................. 91
		LAUFRAD....................................... 94
		WHEEL MOUNTING................................ 96
			LOAD WHEEL BRAKE..........................100
	BRAKING SYSTEM.................................... 97
		LOAD WHEEL BRAKE..............................100
		SPRING-OPERATED BRAKE.........................102
		FOOTBRAKE.....................................104
		HYDR.BREMSSCHEMA..............................105
			HYDR.BREMSSCHEMA..........................108
	CONTROLS..........................................109
		TRAVEL SENDER.................................112
		INDIVIDUAL CONTROL LEVER......................114
		LOCK SWITCH...................................116
	INDICATOR.........................................117
		DISPLAY.......................................120
	ELECTRICS/ELECTRONICS.............................121
		BATTERY LOCK..................................124
		SWITCHING UNIT-REACH CARRIAGE.................125
			SWITCHING UNIT-REACH CARRIAGE.............128
		WORKING LIGHT.................................129
			WORKING LIGHT.............................132
		HORN..........................................134
		CABLE TREE....................................136
			KABELBAUM.................................140
		KABELBAUM.....................................140
		MEASUREMENT OF HEIGHT.........................144
	ELECTRONIC CONTROLS...............................147
		CONTROL UNIT..................................149
			CONTROL UNIT..............................152
	HYDRAULICS........................................155
		OIL TANK......................................157
			OIL TANK..................................160
		CABLE CONDUIT-BULT IN ........................161
			CABLE CONDUIT-BULT IN ....................164
		CABLE CONDUIT-BULT IN ........................165
			CABLE CONDUIT-BULT IN ....................168
		HOSE CONDUIT..................................170
			HOSE CONDUIT..............................172
		HYDRAULIC INSTALLATION-REACH CYLINDER ........173
			HYDRAULIC INSTALLATION-REACH CYLINDER ....176
				CYLINDER..............................228
	WORKING HYDRAULICS................................177
		MOTOR-PUMP UNIT...............................179
			MOTOR-PUMP UNIT...........................182
				PUMP MOTOR............................184
		PUMP MOTOR....................................184
	VALVE.............................................185
		CONTROL VALVE.................................187
			CONTROL VALVE.............................190
	LOAD LIFTING SYSTEM...............................191
		MAST BEARING..................................193
			MAST BEARING..............................196
				TILT CYLINDER.........................222
				CYLINDER-MAST CROSS THRUST............224
	UPRIGHT...........................................197
		UPRIGHT-MOUNTING PARTS .......................200
		END POSITION DAMPING .........................203
			END POSITION DAMPING .....................206
		MAST, COMPLETE................................207
			MAST, COMPLETE............................210
				LIFT CYLINDER.........................214
				LIFT CYLINDER.........................218
		LIFT CYLINDER-MAIN UNIT.......................211
			LIFT CYLINDER.............................214
		LIFT CYLINDER-CENTRE..........................215
			LIFT CYLINDER.............................218
	CYLINDER..........................................219
		TILT CYLINDER.................................222
		CYLINDER-MAST CROSS THRUST....................224
		CYLINDER......................................225
			CYLINDER..................................228
	LOAD CARRIER......................................229
		LOAD GUARD....................................231
			LOAD GUARD................................234
		FORK CARRIAGE.................................235
			FORK CARRIAGE.............................238
			FORK CARRIAGE.............................240
		FORK CARRIAGE-MOUNTING PARTS..................241
			FORK CARRIAGE-MOUNTING PARTS..............244
		DAMPING PLATE.................................248
		FORK..........................................250
	SPECIAL EQUIPMENT NARROW AISLE TRUCKS.............253
	OTHER ACCESSORIES.................................254
		SCHILDERANORDNUNG.............................256
index parts...........................................257
