FILE DETAILS:

STILL STED Forklift CS 16S Horizontal order picker Truck Spare Parts List Manual – PDF DOWNLOAD

Language : English
Pages : 270
Downloadable : Yes
File Type : PDF

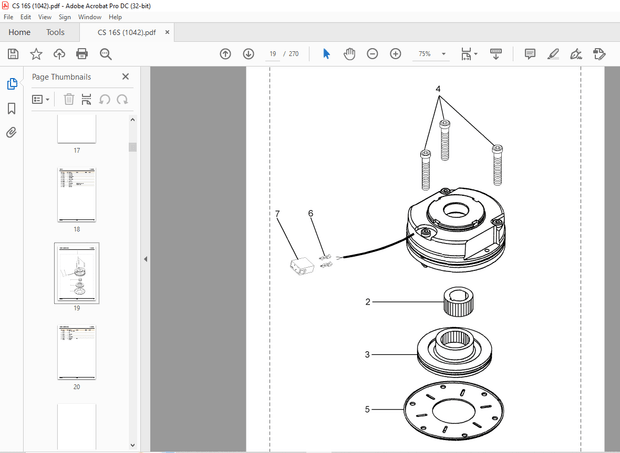

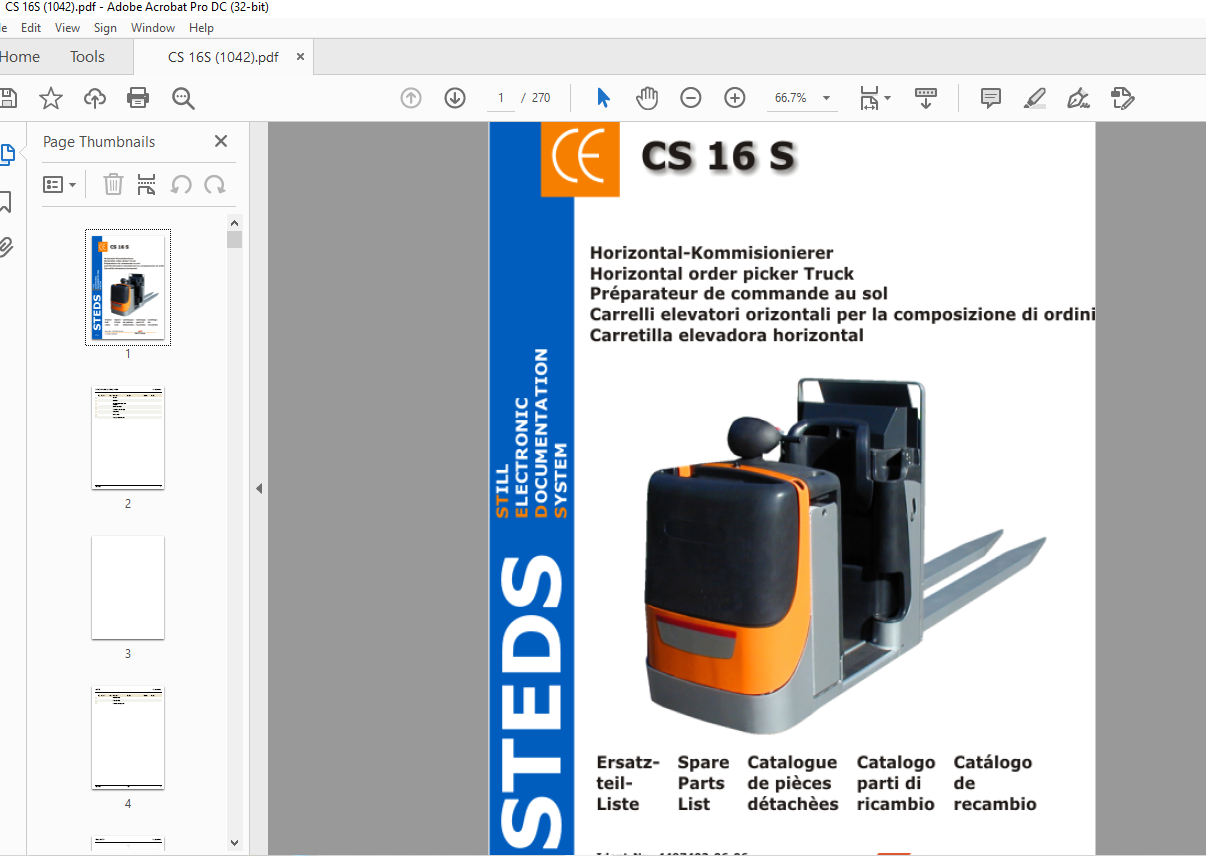

IMAGES PREVIEW OF THE MANUAL:

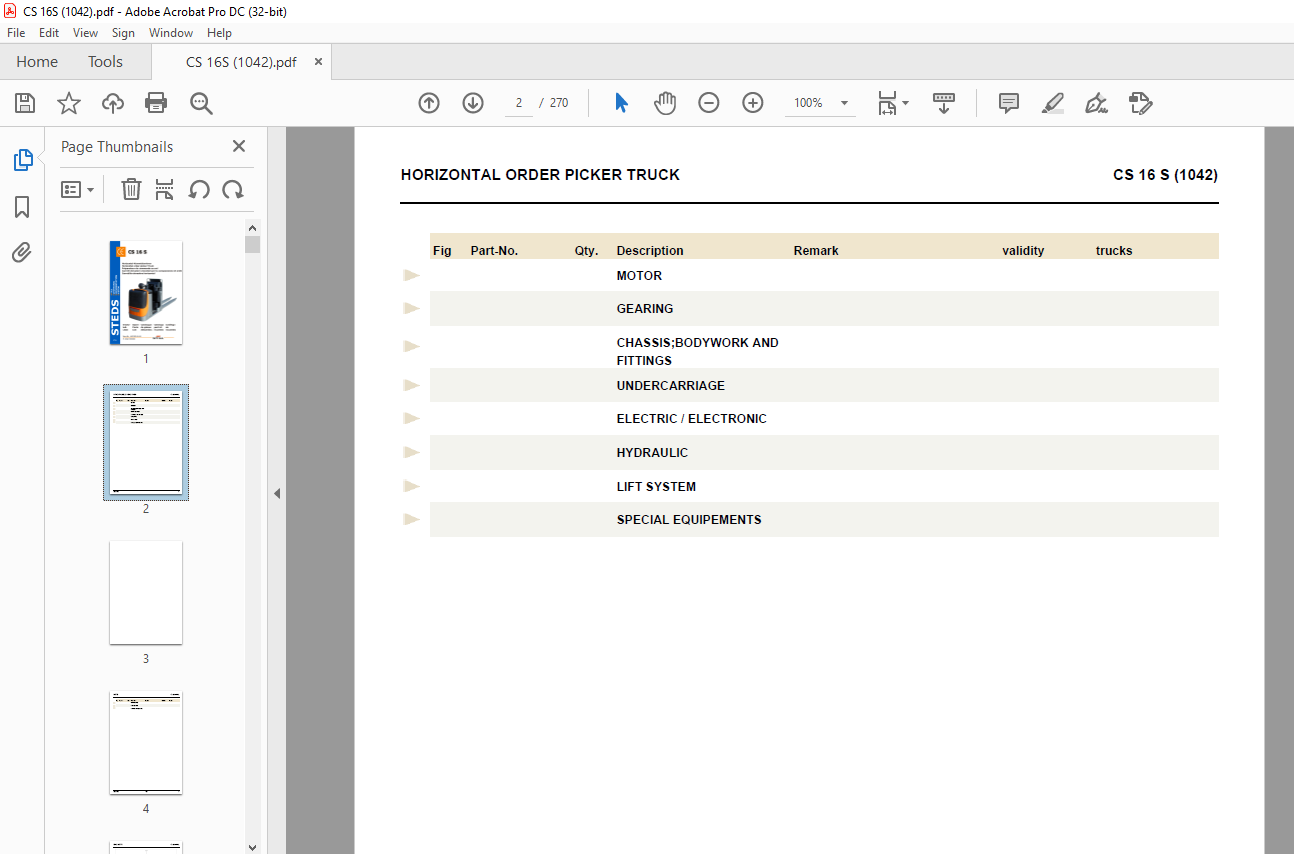

TABLE OF CONTENTS:

STILL STED Forklift CS 16S Horizontal order picker Truck Spare Parts List Manual – PDF DOWNLOAD

HORIZONTAL ORDER PICKER TRUCK .........................................  2
	MOTOR .............................................................  4
		DRIVE MOTOR ...................................................  6
		PUMP MOTOR ....................................................  8
		POWER STEER MOTOR ............................................. 10
	GEARING ........................................................... 12
		GEARBOX, COMPL. ............................................... 14
			GEARING ................................................... 16
			DRIVE MOTOR ...............................................  6
			ELECTROMAGNETIC BRAKE ..................................... 20
	CHASSIS;BODYWORK AND FITTINGS ..................................... 22
		BOX SECTION FRAME ............................................. 24
		PART FOR FORK FRAME (WITHOUT CHOPPER BAR)...................... 26
			STABILITY WHEEL ........................................... 28
			DEAD MAN PEDAL ............................................ 30
		PART FOR FORK FRAME (WITH CHOPPER BAR)......................... 32
			STABILITY WHEEL ........................................... 28
			DEAD MAN PEDAL ............................................ 30
		COVERING (TROG97).............................................. 34
			JACK LATCH ................................................ 38
			BATTERY COWL HOOK ......................................... 40
		COVERING (TROG91).............................................. 42
			JACK LATCH ................................................ 46
			BATTERY COWL HOOK ......................................... 40
	UNDERCARRIAGE ..................................................... 48
		DRIVE WHEEL ................................................... 50
		ROLLER BRACKET ................................................ 52
		STABILITY WHEEL ............................................... 28
		TILLER HEAD ................................................... 54
			TILLER HEAD ............................................... 56
			TILLER HEAD (BATTERY)...................................... 58
			TILLER HEAD (COLD STORE)................................... 60
			TILLER HEAD (COLD STORE - BATTERY)......................... 62
		POWERED STEERING .............................................. 64
			POWER STEER MOTOR ......................................... 10
		ELECTROMAGNETIC BRAKE ......................................... 20
	ELECTRIC / ELECTRONIC ............................................. 66
		WIRING DIAGRAM ................................................ 68
		ELECTRICAL INSTALLATION ....................................... 72
			ELECTRICAL INSTALLATION (2 KEY SWITCH)..................... 74
				CABLE HARNESS (OPTION)................................. 76
				COVERING (2 KEY SWITCH)................................ 78
				SWITCHBOARD ........................................... 80
			ELECTRICAL INSTALLATION (3 KEY SWITCH)..................... 84
				CABLE HARNESS (OPTION)................................. 76
				COVERING (3 KEY SWITCH)................................ 86
				COVERING (3 KEY SWITCH)................................ 88
				SWITCHBOARD ........................................... 80
			ELECTRICAL INSTALLATION (4 KEY SWITCHES)................... 90
				CABLE HARNESS (OPTION)................................. 76
				COVERING (4 KEY SWITCHES).............................. 92
				SWITCHBOARD ........................................... 80
		BATTERY CABLE ................................................. 94
			BATTERY CABLE (SOCKET) (SBE 160A).......................... 96
			BATTERY CABLE (SOCKET) (SBE 320A).......................... 98
			BATTERY CABLE (SOCKET) (DIN 160A)..........................100
			BATTERY CABLE (SOCKET) (SBE 160A AIR)......................102
			BATTERY CABLE (SOCKET) (SBE 320A AIR)......................104
			BATTERY CABLE (SOCKET) (DIN 160A AIR)......................106
			BATTERY CABLE (PLUG) (SBE 160A)............................108
			BATTERY CABLE (PLUG) (SBE 320A)............................110
			BATTERY CABLE (PLUG) (DIN 160A)............................112
		hotplate ......................................................114
			CABLE HARNESS (heater).....................................116
		DEAD MAN PEDAL ................................................ 30
		SENSOR ........................................................118
		SENSOR ........................................................120
		RELAY .........................................................122
	HYDRAULIC .........................................................124
		HYDRAULICS ....................................................126
			pump unit .................................................128
				PUMP MOTOR ............................................  8
	LIFT SYSTEM .......................................................130
		CENTRAL UPRIGHT ...............................................132
			LIFT CYLINDER (MEDIUM).....................................134
			SENSOR ....................................................118
			SENSOR ....................................................120
			CYLINDER HEAD .............................................136
		LIFT CYLINDER (MEDIUM).........................................134
		CYLINDER HEAD .................................................136
		MAST PIVOT ....................................................138
		SCHERE KOMPLETT ...............................................140
			BRACKET ...................................................142
			HINGED BRACKET ............................................144
			ROLLER BRACKET ............................................ 52
	SPECIAL EQUIPEMENTS ...............................................146
		LABEL .........................................................148
		PRODUCT IDENTIF. ..............................................150
		PRODUCT IDENTIF. (STILL (D))...................................152
		CHOPPER BAR ...................................................154
			CHOPPER BAR (FRONT; LOW)...................................156
			CHOPPER BAR (FRONT; HIGH)..................................158
			CHOPPER BAR (FRONT; HIGH; CROSS BAR).......................160
		TERMINAL BOARD ................................................162
		FLEET MANAGER .................................................164
		BATTERY TRANSPORT WAGON (TROG90 / TROG97)......................166
		BATTERY TRANSPORT WAGON (TROG91)...............................168
		PLATTFORM .....................................................170
			COVERING (TROG97 - PLATFORM)...............................174
				JACK LATCH ............................................ 46
				BATTERY COWL HOOK ..................................... 40
			COVERING (TROG97 - PLATFORM)...............................178
				JACK LATCH ............................................ 46
				BATTERY COWL HOOK ..................................... 40
			PART FOR FORK FRAME (PLATFORM/CS20)........................182
				STABILITY WHEEL ....................................... 28
				DEAD MAN PEDAL (PLATFORM)..............................184
				SCREEN GRID (LIFT CONSOLE).............................186
			PART FOR FORK FRAME (PLATFORM / WITH CHOPPER BAR)..........188
				STABILITY WHEEL ....................................... 28
				DEAD MAN PEDAL (PLATFORM)..............................184
				SCREEN GRID (LIFT CONSOLE).............................186
			PART FOR FORK FRAME (WITHOUT CHOPPER BAR/CS10M)............190
				STABILITY WHEEL ....................................... 28
				DEAD MAN PEDAL (PLATFORM)..............................184
				SCREEN GRID ...........................................192
				MAST PIVOT ............................................194
			PART FOR FORK FRAME (WITH CHOPPER BAR/CS10M)...............196
				STABILITY WHEEL ....................................... 28
				DEAD MAN PEDAL (PLATFORM)..............................184
				SCREEN GRID ...........................................192
				MAST PIVOT ............................................194
			PART FOR FORK FRAME (WITHOUT CHOPPER BAR/CS16S)............198
				STABILITY WHEEL ....................................... 28
				DEAD MAN PEDAL (PLATFORM)..............................184
			PART FOR FORK FRAME (WITH CHOPPER BAR/CS16S)...............200
				STABILITY WHEEL ....................................... 28
				DEAD MAN PEDAL (PLATFORM)..............................184
			PART FOR FORK FRAME (WITHOUT CHOPPER BAR/CS30Z)............202
				STABILITY WHEEL .......................................204
				DEAD MAN PEDAL (PLATFORM)..............................184
			PART FOR FORK FRAME (WITH CHOPPER BAR/CS30Z)...............206
				STABILITY WHEEL .......................................204
				DEAD MAN PEDAL (PLATFORM)..............................184
			STABILITY WHEEL ........................................... 28
			STABILITY WHEEL ...........................................204
			WIRING DIAGRAM (PLATFORM)..................................208
			ELECTR.INSTALLATION (PLATFORM/CS20)........................212
				CABLE HARNESS (PLATFORM)...............................214
				SWITCHBOARD ........................................... 80
			ELECTR.INSTALLATION (PLATFORM/2 KEY SWITCH/CS20)...........216
				CABLE HARNESS (PLATFORM)...............................214
				COVERING (SEE SEPARATE LIST)...........................218
				SWITCHBOARD ........................................... 80
			ELECTR.INSTALLATION (PLATFORM/CS10M/CS16S).................220
				CABLE HARNESS (PLATFORM)...............................214
				COVERING (SEE SEPARATE LIST)...........................218
				SWITCHBOARD ........................................... 80
			ELECTR.INSTALLATION (PLATFORM/4 KEY SWITCH/CS10M/CS16S)....222
				CABLE HARNESS .........................................224
				COVERING (4 KEY SWITCHES).............................. 92
				SWITCHBOARD ........................................... 80
			ELECTR.INSTALLATION (PLATFORM/CS30Z).......................226
				CABLE HARNESS (PLATFORM)...............................228
				SWITCHBOARD (CS30Z)....................................230
			ELECTR.INSTALLATION (PLATFORM/2 KEY SWITCH/CS30Z)..........232
				CABLE HARNESS (PLATFORM)...............................228
				COVERING (SEE SEPARATE LIST)...........................218
				SWITCHBOARD (CS30Z)....................................230
			COVERING (SEE SEPARATE LIST)...............................218
			COVERING (4 KEY SWITCHES).................................. 92
			DEAD MAN PEDAL (PLATFORM)..................................184
			SWITCHBOARD ............................................... 80
			SWITCHBOARD (CS30Z)........................................230
			CABLE HARNESS (PLATFORM)...................................214
			CABLE HARNESS (PLATFORM)...................................228
			CABLE HARNESS (PLATFORM)...................................234
			HYD. HOSE LINE (PLATFORM/CS20).............................236
				HYDRAULIC UNIT (PLATFORM)..............................238
					PUMP MOTOR (PLATFORM)..............................240
				HYDRAULIC UNIT ADD. ...................................242
				LIFT CYLINDER (PLATFORM)...............................244
			HYD. HOSE LINE (PLATFORM/CS10M/CS16S)......................246
				HYDRAULIC UNIT (PLATFORM)..............................238
					PUMP MOTOR (PLATFORM)..............................240
				HYDRAULIC UNIT ADD. ...................................242
				LIFT CYLINDER (PLATFORM)...............................244
			HYD. HOSE LINE (PLATFORM/CS30Z)............................248
				HYDRAULIC UNIT (PLATFORM)..............................238
					PUMP MOTOR (PLATFORM)..............................240
				HYDRAULIC UNIT ADD. ...................................242
				LIFT CYLINDER (PLATFORM)...............................244
			HYDRAULIC UNIT (PLATFORM)..................................238
				PUMP MOTOR (PLATFORM)..................................240
			HYDRAULIC UNIT ADD. .......................................242
			PUMP MOTOR (PLATFORM)......................................240
			LIFT CYLINDER (PLATFORM)...................................244
			MAST PIVOT ................................................194
			SCREEN GRID (LIFT CONSOLE).................................186
			SCREEN GRID ...............................................192
			SCREEN GRID (CS16S)........................................250
			PLATFORM (PLATFORM)........................................252
				LIFT CYLINDER (PLATFORM)...............................244
				CABLE HARNESS (PLATFORM)...............................234
index parts............................................................255
