STILL STED Forklift MX-X order picker Generation 1,2 80V Workshop Manual – PDF DOWNLOAD

STILL STED FORKLIFT MX-X ORDER PICKER GENERATION 1,2 80V WORKSHOP MANUAL – PDF DOWNLOAD

FILE DETAILS:

Still STED Forklift MX-X Order Picker Generation 1,2 80V Workshop Manual – PDF DOWNLOAD

Language : English
Pages : 778
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Still STED Forklift MX-X Order Picker Generation 1,2 80V Workshop Manual – PDF DOWNLOAD

General product Information
Speed optimisation
General

• Speed optimisation is a software function in the FZS that reduces the driving speed of the truck in relation to the lift height and the load it is carrying.
• Apart from the actual driving speed, the rate of acceleration and deceleration is reduced, as are those of the auxiliary movements.
• This means, for example, that acceleration of the shift function takes place more gently at 10m than in the lowered state. Speed optimisation comes in different versions( 2X, 3.X, 4.X) and releases (e.g. 3.0, 3.1, 3.2,3.3 ).

Since each truck can have its own (customer specific) dimensions, a different reduction char acteristic must be calculated for each truck. This is done with the help of a special software pro gram (“VNAP tool”). The corner points (P1-P5) resulting from these calculations are important for the stability of the truck.

The comer points are stored in the FZS. The following factors are the basis for the calcu lation mentioned above:

• Battery type• max load carrying capability A-dimension of the turret head• Max outreach• Max. lift height of main lift• Max. lift height of auxiliary lift Overall height of truck• Width of load wheel axe Mechanical rail guidance or inductive guide ring• Traction drive version

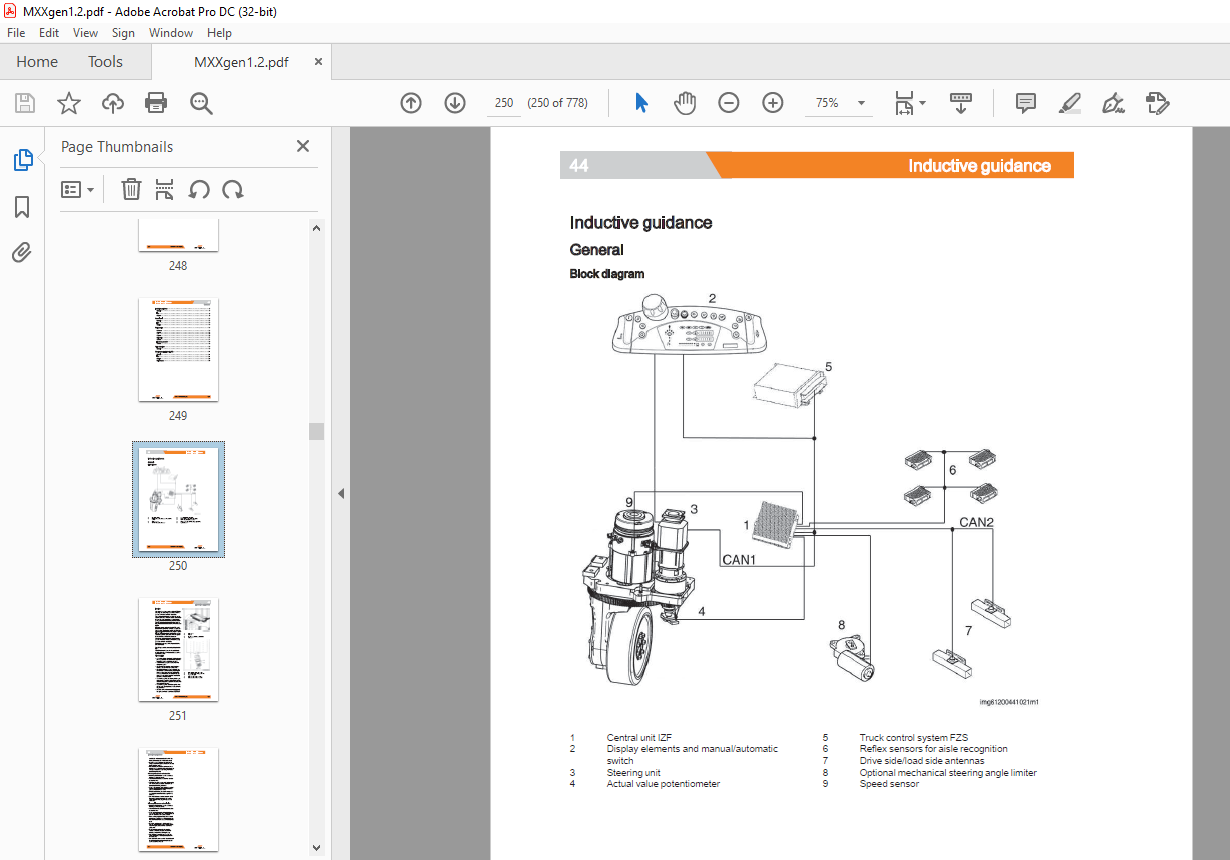

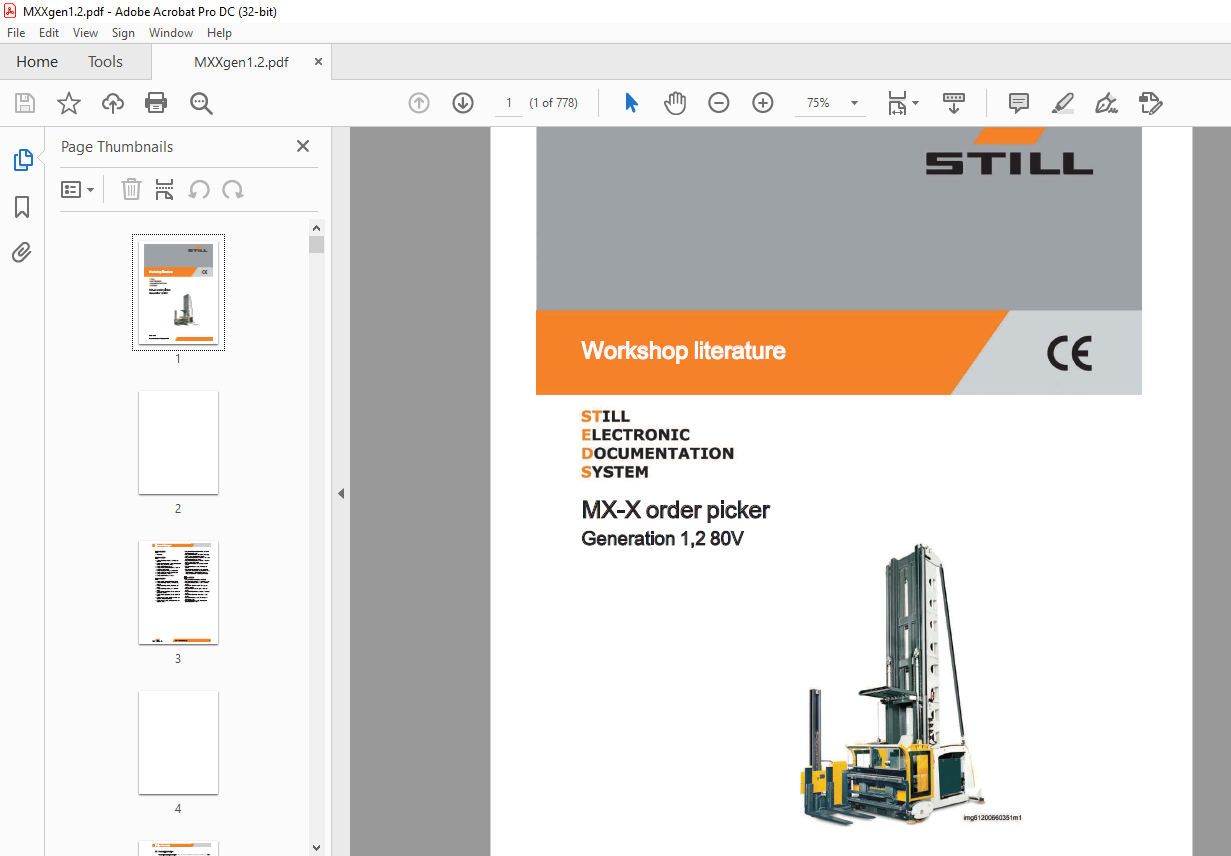

IMAGES PREVIEW OF THE MANUAL:

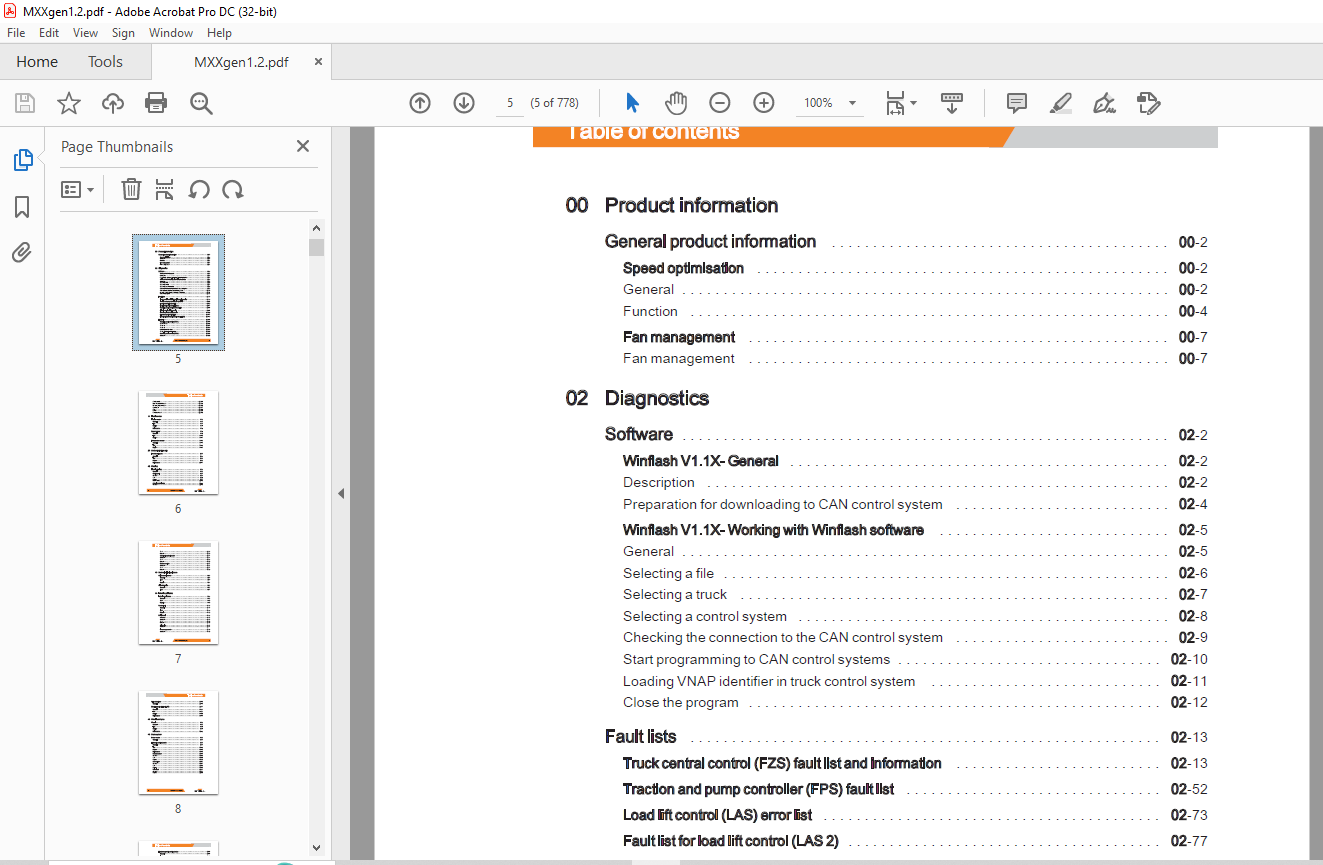

TABLE OF CONTENTS:

Still Sted Forklift MX-X Order Picker Generation 1,2 80V Workshop Manual – PDF DOWNLOAD

00 Product Information General product Information
Speed op misation General
Function
Fan management
Fan management
02 Diagnostics
Software
Winlash V1.1X-General
Description
Preparation for downloading to CAN control system
Winlash V1.1X-Worlding with Winash software
General
Selecting a fle
Selecting a truck
Selecting a control system
Checking the connection to the CAN control system
Start programming to CAN control systems
Loading VNAP identifier in truck control system Close the program
Fault Ests
Truck central control (FZS) faults and Information
Tracon and pump controller (FPS) fault st
Loadt control (LAS) error s
Faultst for load control (LAS)
Operating panel controller (BPS) fault Ist
ectic steering (K) error st
Inductive guidance (IZF) error st
Fleet Manager Errorst (FLM)
Error UstInput/Output Extension Module (OX)
Teach-In
Operating panel controler (BPS 1)
Service Mode
Teach-In
Teach-In
Deleting teach-in values
Teach-in of hydraulic functions
Operating panel controller (BPS2)
General
Service mode
Main lift, double liftmast Liftmast, triplex liftmast
Auxiliary lift
Shift
Swivel
Fork adjustment
11 Electric motor
Traction motor
General
Test
Repairs
Maintenance
Speed sensor
General
Test Repair
Temperature sensor
General
Test
Repair
20 Mechanical drive axle
Front bevel gears
General
Test
Repairs
Maintenance
42 Steering
Blectric steering
General
Sleeding unit General
Test Repairs
Maintenance
Setpoint potentiometer
General
Alsle detection Generall
Steering angle Imiter (LWB)
General
Test
Repairs
Maintenance
Wheels and tyres
Wheels
General
Test
Repairs
Maintenance
Brake system
Brake modes
General
Hydraulic parking brake
General
Test
Repairs
Maintenance
Pressure sensor
General
Test
Repairs
Accumulator
General
Test
Repairs
Valve block
General
Repairs
Blectromagnetic parking brake
General
Test
Repairs
Maintenance
50 Controls
Operating panel
Controls and displays (BPS 1)
General
Repair
Operating lever teach-in
Controls and displays (BPS 2)
General
Repair
Teach-in of the operating lever
Braking deceleration values-measurement and display
60 Bectrics/Bectronics
Sensors
Maintpoon sensor
General
Repair
Maintenance
64 Bectronic controllers
Traction and pump control (FPS) A10
General
Test
Inverters
General
Repal
Maintenance
Other electronic controllers
Truck centrall control (ZS) 8U60
General
Repairs
Load control (LAS) 8U61
General
Repair
Emergency stop and amper module (NAV) 7A22
General
On-board charge controler BLS
General
Repair
Input/output controller IOX
General
Repair
CANbus
General
Test
70 Hydraulics, general
Basic hydraulics
C tank
General
Test
Repairs
Maintenance
Breather
General
Test
Maintenance
71 Worlding hydraulics
Pump units General
Test
Repairs
Maintenance
Hydrau pump General
Testing
Repairs
Pump motor General
Test
Repairs
Maintenance
Temperature sensor
General
Testing
Repairs
Speed sensor General
Testing Repairs
76 Valves
Pressure relief valve
General
Testing
Repairs
Proportional valves
Lowermain Ift proportional valve
General
Repair
Reach proportional valve
General
Checking
Repair
Swivel proportional valve
General
Checking
Lower aux ary It proportional valve
General
Checking
Repair
Valve block
Chassis valve block
General
Testing
Repairs
Maintenance
