STILL STED Forklift R 07-25 R 08-20 Electric Tractor Spare Parts List Manual – PDF DOWNLOAD

STILL STED Forklift R 07-25 R 08-20 Electric Tractor Spare Parts List Manual – PDF DOWNLOAD

FILE DETAILS:

STILL STED Forklift R 07-25 R 08-20 Electric Tractor Spare Parts List Manual – PDF DOWNLOAD

Language : English
Pages : 360
Downloadable : Yes
File Type : PDF

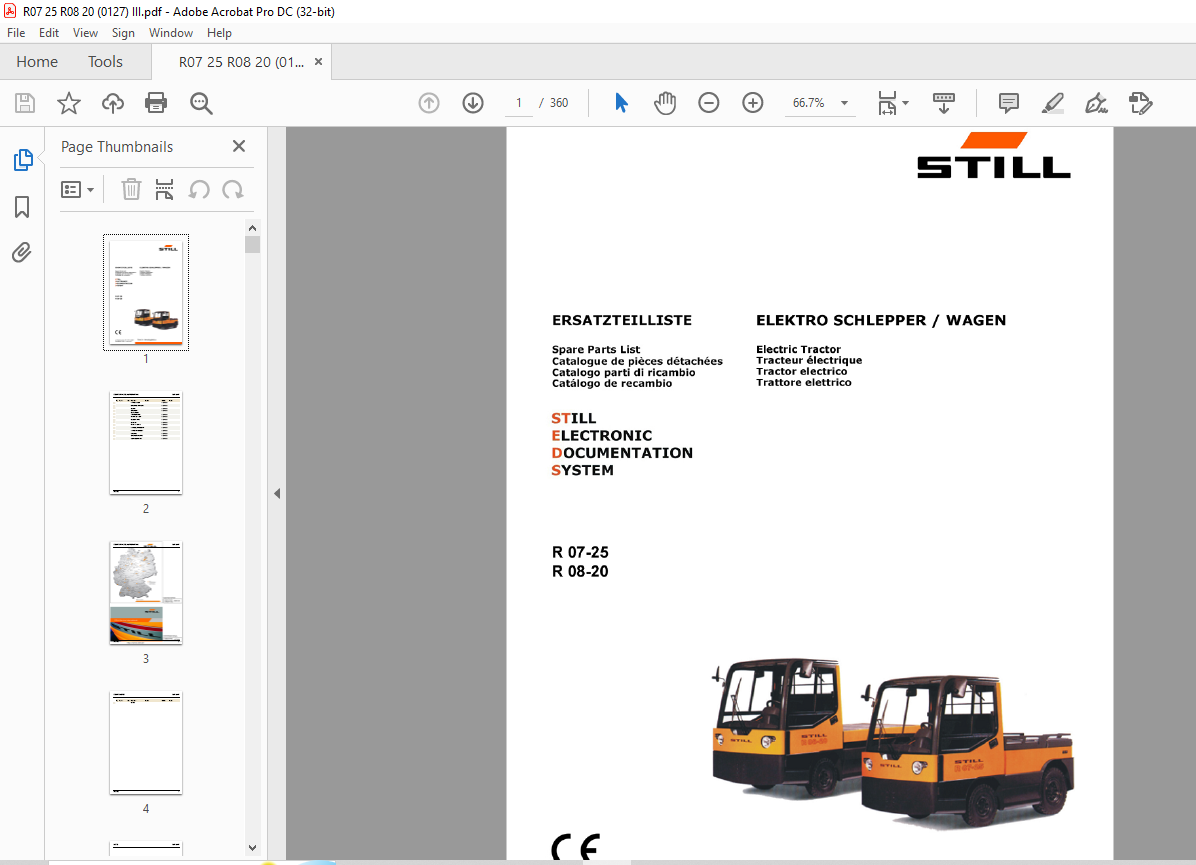

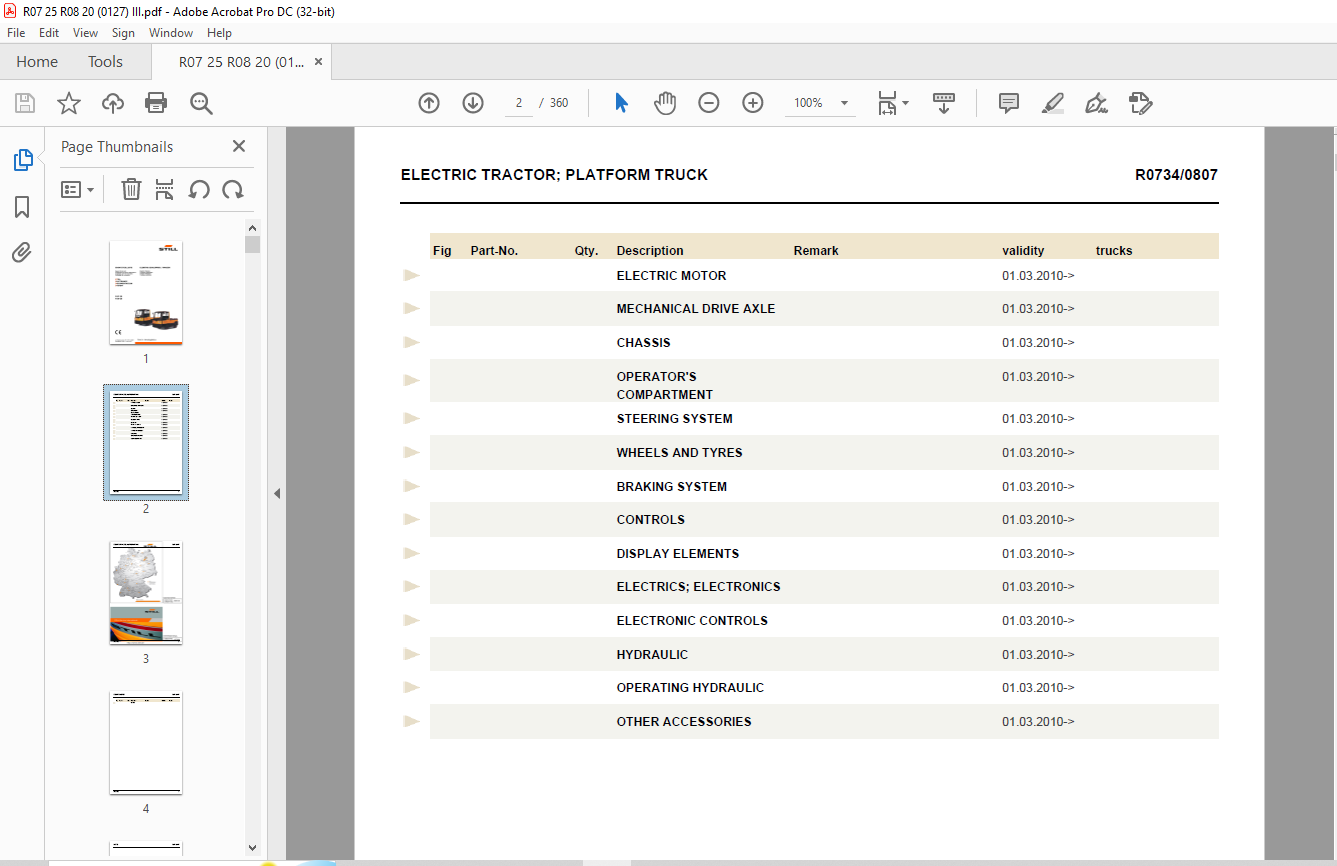

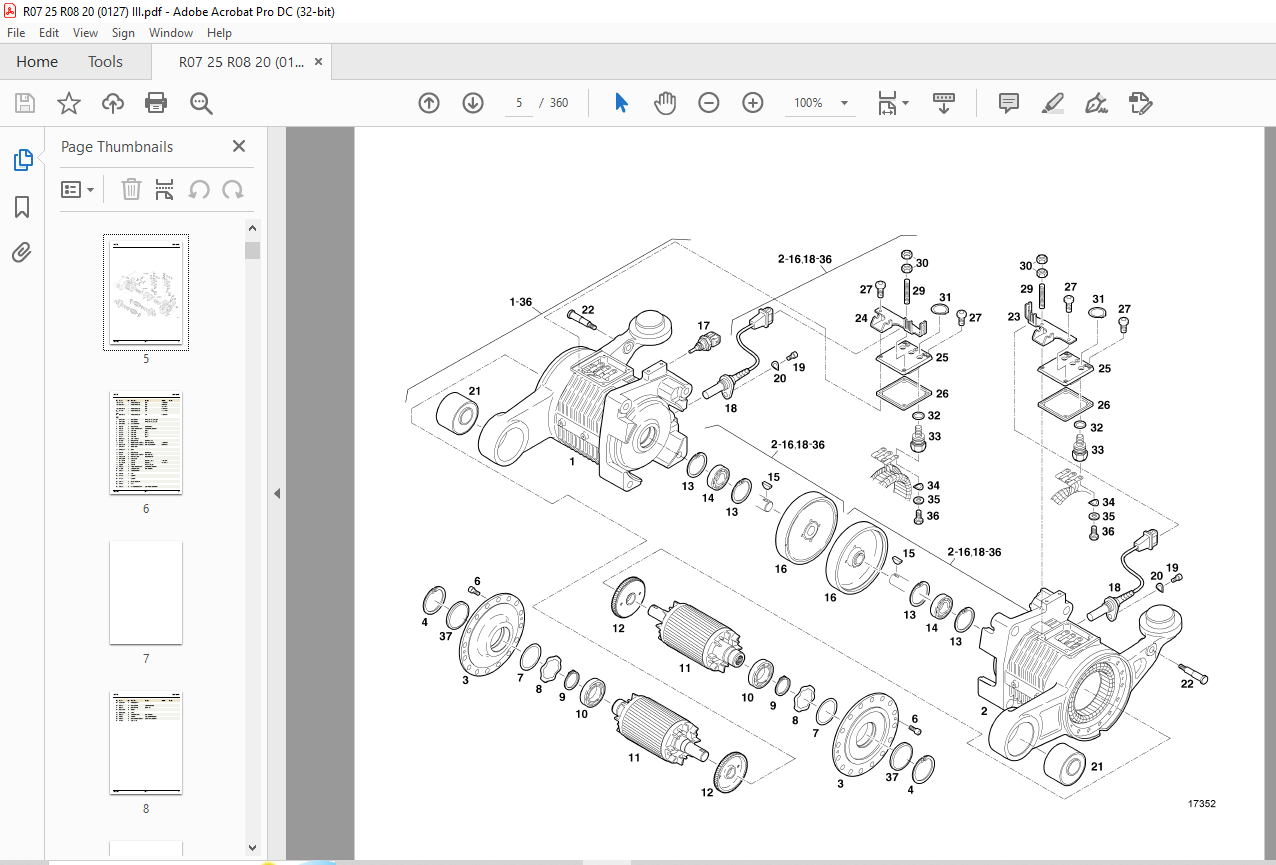

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

STILL STED Forklift R 07-25 R 08-20 Electric Tractor Spare Parts List Manual – PDF DOWNLOAD

ELECTRIC TRACTOR; PLATFORM TRUCK .................................  2
	ELECTRIC MOTOR ...............................................  4
		MOTOR ....................................................  6
	MECHANICAL DRIVE AXLE ........................................ 10
		DRIVE AXLE (SUPPL.EQUIPMENT).............................. 12
			axle electrical ...................................... 16
			axle electrical ...................................... 18
				drive wheel unit (left and right)................. 20
		drive axle (WHEEL SUSPENSION)............................. 22
		drive wheel unit (left and right)......................... 20
	CHASSIS ...................................................... 24
		FRAME (TOW TRACTOR)....................................... 26
		FRAME (PLATFORM TRUCK).................................... 32
		coupling tow ............................................. 38
		trailer coupling (Rockinger 243A 35000)................... 42
		tow coupling (OPTION)..................................... 44
		COVER AND PANELS-INSULATION (TOW TRACTOR)................. 46
		COVER AND PANELS-INSULATION (PLATFORM TRUCK).............. 54
	OPERATOR'S COMPARTMENT ....................................... 62
		CAB HEATING (electric heater)............................. 64
		CAB HEATING (Diesel Teil 1)............................... 68
		CAB HEATING (Diesel Teil 2)............................... 72
		thermostat (diesel heater)................................ 76
		heating control .......................................... 78
		DRIVER´S SEAT ............................................ 80
		CAB PARTS ................................................ 84
		cabin (without roof)...................................... 88
		CABIN (with tarpaulin doors).............................. 90
		CABIN (with sliding doors)................................ 96
		CABIN (mit Scharnier).....................................106
		door right vermillion ....................................114
		door right vermillion ....................................120
		SLIDING DOOR .............................................124
	STEERING SYSTEM ..............................................130
		STEERING COLUMN ..........................................132
		STEERING AXLE ............................................136
	WHEELS AND TYRES .............................................142
		WHEEL ASSEMBLY (Drive axle)...............................144
		AIR WHEEL, COMPL. (drive axle; 7.00-12; 16 PR-IC70).......146
		AIR WHEEL, COMPL. (drive axle; 7.00-12TL/16PR-RV20).......148
		WHEEL ASSEMBLY (steering axle)............................150
		AIR WHEEL, COMPL. (steering axle; 6.00 9;12PR-IC70).......152
		AIR WHEEL, COMPL. (steering axle; 6.00-9TL/12PR-RV20).....154
		EARTH SHEATHING ..........................................156
	BRAKING SYSTEM ...............................................158
		MECHANICAL SERVICE BRAKE .................................160
		PARKING BRAKE (brake cylinder)............................162
		HYDRAULIC SERVICE BRAKE ..................................164
	CONTROLS .....................................................172
		PEDAL ....................................................174
	DISPLAY ELEMENTS .............................................176
		INSTRUMENTS ..............................................178
	ELECTRICS; ELECTRONICS .......................................182
		WIRING (battery cable)....................................184
		WIRING (CONTROLS).........................................190
		WIRING (MAIN HARNESS).....................................192
		WIRING (lighting).........................................196
		WIRING (remote controlled trailer coupling)...............198
		WIRING (ROTATING LIGHT + WORKING LIGHT)...................200
		WIRING (Rückleuchten).....................................202
		WIRING (SEAT HEATER)......................................204
		LIGHTING (front; rear)....................................206
		lighting (LED)............................................214
		SPOT LIGHT (trailer coupling).............................216
		WIRING (working lamp).....................................218
		CIRCUITRY (switch)........................................220
		harness assy. (STANDARD CABIN)............................226
		harness assy. (STANDARD CABIN)............................228
		harness assy. (lower cab options).........................232
		harness assy. (cab remote controlled trailer coupling)....234
		harness assy. (cab display)...............................242
		harness assy. (cabin display with key)....................244
		harness assy. (cabin display with key)....................246
		FLEETMANAGER (card reader)................................248
		SOCKET (12V/5A + 24V/5A)..................................250
	ELECTRONIC CONTROLS ..........................................252
		TRACTION CONTROL (TOW TRACTOR)............................254
		TRACTION CONTROL (PLATFORM TRUCK).........................260
		ELECTRICAL ENCLOSURE (TOW TRACTOR; LAC-24)................266
		COVER (COOLING)...........................................274
		ELECTRICAL ENCLOSURE (PLATFORM TRUCK; LAC-24).............276
		COVER (PLATFORM TRUCK; COOLING)...........................284
		HARNESS, COMPL. (LAC-24; MAIN HARNESS)....................286
		HARNESS, COMPL. (LAC-24; Control Unit)....................288
		HARNESS, COMPL. (LAC-24; main harness options)............290
		WIRING (LAC-24; HEATING)..................................292
		WIRING (LAC-24; options)..................................294
		WIRING (LAC-24)...........................................296
		WIRING (BATTERY CABLE)....................................298
		CABLE (LAC-24)............................................300
	Hydraulic ....................................................302
		hydraulic ................................................304
	OPERATING HYDRAULIC ..........................................308
		pump unit ................................................310
	OTHER ACCESSORIES ............................................312
		plates (STILL)............................................314
		LABEL (road version)......................................318
		LABEL (WARNING SIGN)......................................320
		adhesive  label (door)....................................322
index parts.......................................................323
