Still STED Forklift TLR 20 Electric Fork Truck Spare Parts Manual – PDF DOWNLOAD

Still STED Forklift TLR 20 Electric Fork Truck Spare Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Still STED Forklift TLR 20 Electric Fork Truck Spare Parts Manual – PDF DOWNLOAD

Language : English
Pages : 160
Downloadable : Yes
File Type : PDF

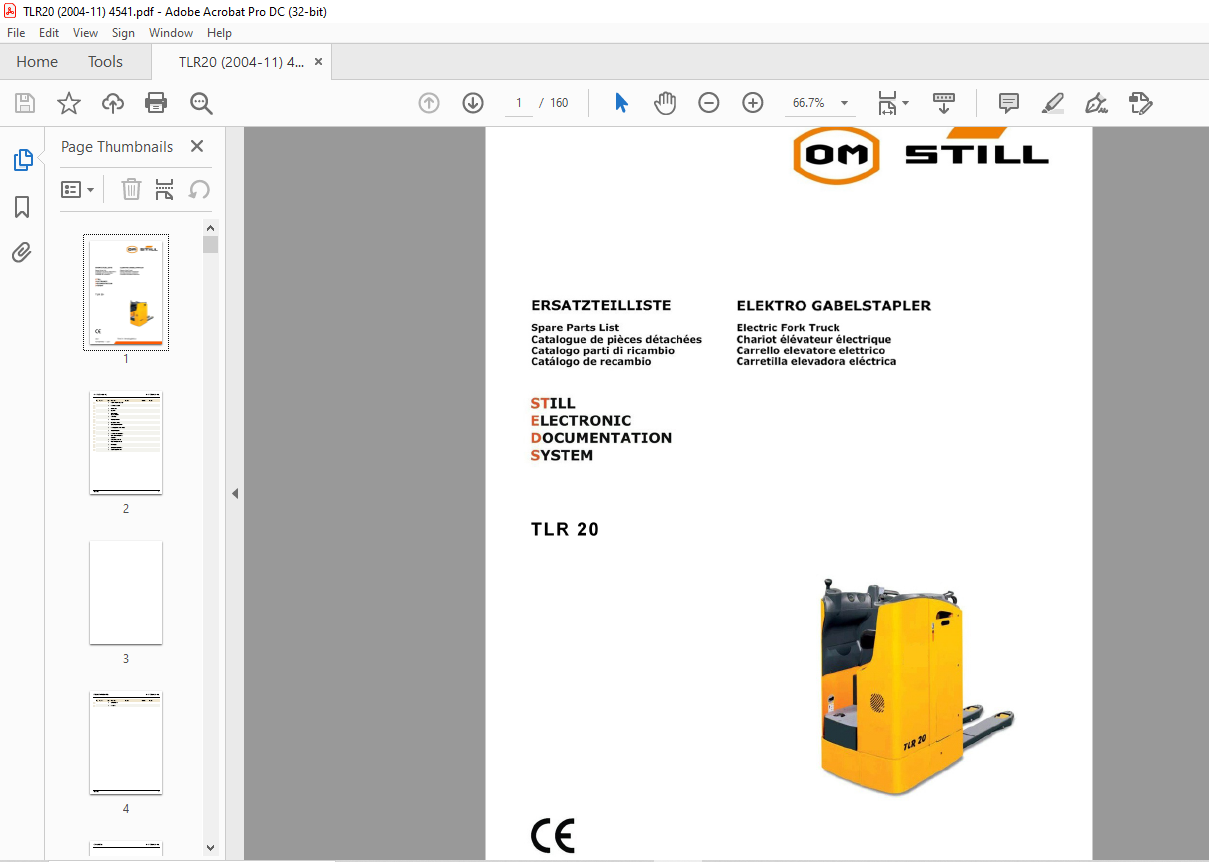

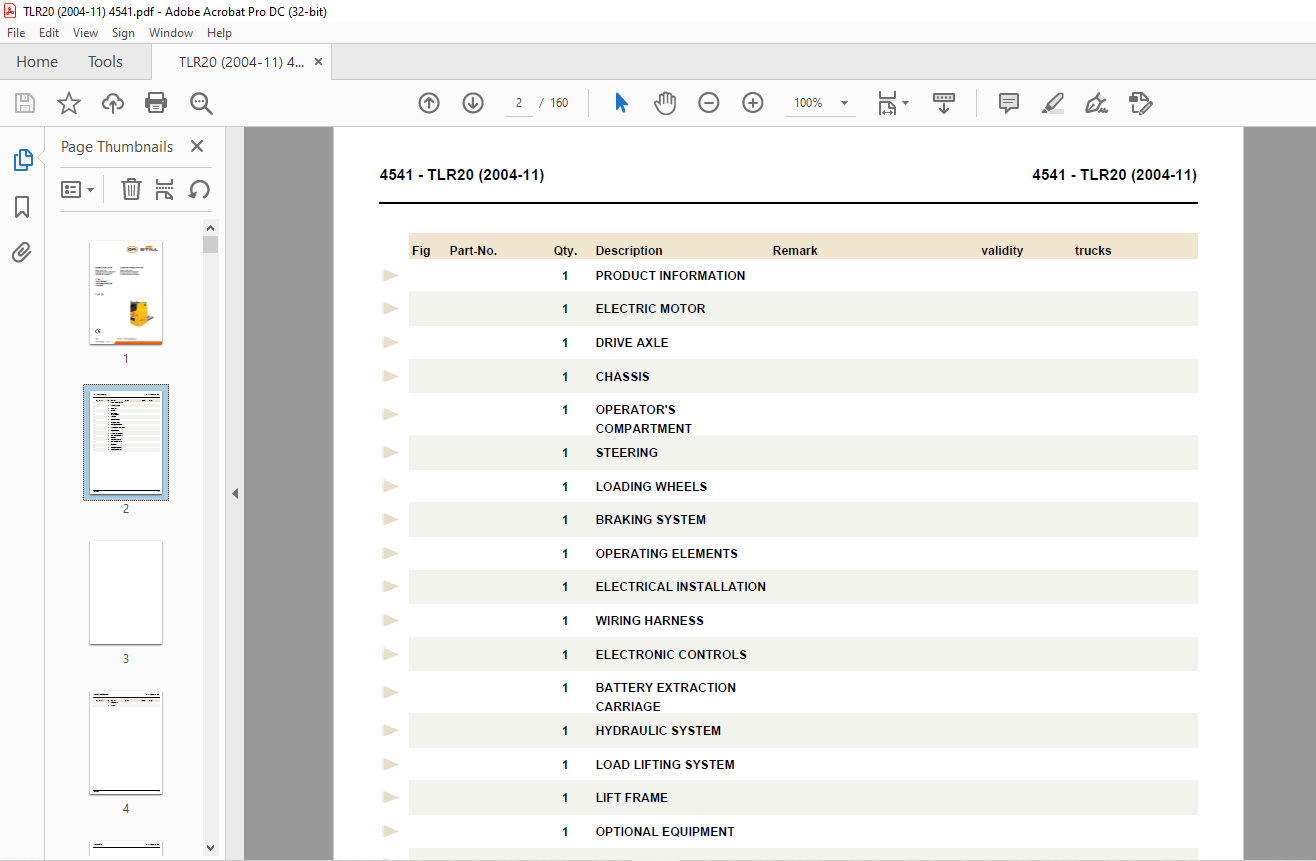

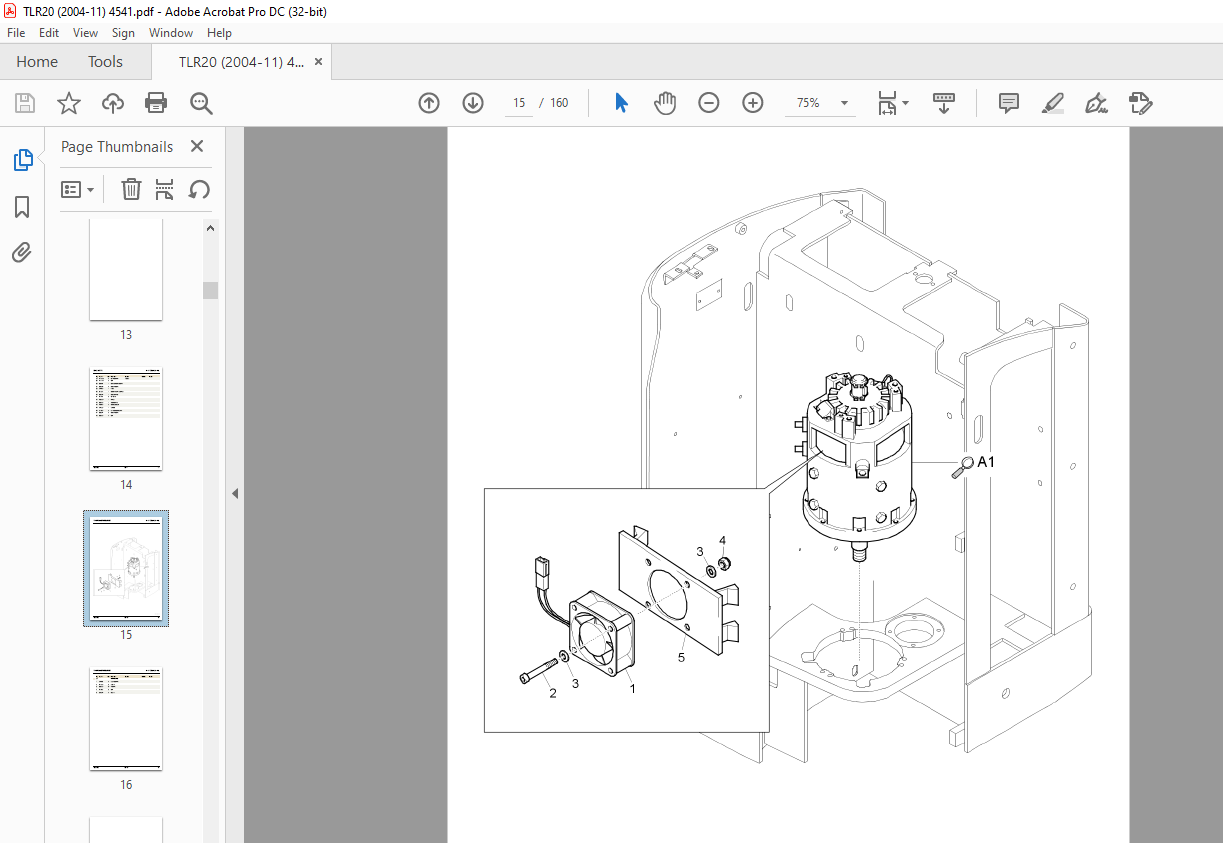

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Still STED Forklift TLR 20 Electric Fork Truck Spare Parts Manual – PDF DOWNLOAD

4541 - TLR20 (2004-11) ..................................  2
	PRODUCT INFORMATION .................................  4
		CATALOGUES ......................................  6
		STICKER .........................................  8
	ELECTRIC MOTOR ...................................... 10
		DRIVE MOTOR ..................................... 12
		TRACTION MOTOR BLOWER ........................... 16
			DRIVE MOTOR ................................. 12
	Drive axle .......................................... 18
		DRIVE UNIT ...................................... 20
			ELECTROMAGNETIC BRAKE ....................... 22
			DRIVE MOTOR ................................. 12
			REDUCTION ................................... 24
		REDUCTION ....................................... 24
	CHASSIS ............................................. 28
		FRAME ........................................... 30
	OPERATOR'S COMPARTMENT .............................. 34
		LINING .......................................... 36
		BONNETS ......................................... 38
			STEERING TRANSMISSION ....................... 40
		DRIVER .......................................... 42
		DRIVER .......................................... 44
		DRIVER (OPTIONAL) (-30°C)........................ 46
		INSTRUMENT BOARD ................................ 50
		FLOOR PLATE ..................................... 52
		ADJUSTABLE PLATFORMA ............................ 54
		ADJUSTABLE PLATFORMA (Std.)...................... 56
		ADJUSTABLE PLATFORMA  (OPTIONAL) (-30°C)......... 58
		HEATING (OPTIONAL) (-30°C)....................... 60
			WIRING HEATING (OPTIONAL) (-30°C)............ 62
		WIRING HEATING (OPTIONAL) (-30°C)................ 62
	STEERING ............................................ 64
		ELECTRIC DRIVE .................................. 66
		GEARING STEERING ................................ 68
			ELECTRIC DRIVE .............................. 66
		STEERING CONTROL ................................ 70
			STEERING TRANSMISSION ....................... 40
		STEERING TRANSMISSION ........................... 40
	LOADING WHEELS ...................................... 72
		CASTOR WHEEL .................................... 74
			CASTOR WHEEL (-> 2008)....................... 76
			CASTOR WHEEL ................................ 78
		CASTOR WHEEL (-> 2008)........................... 76
		CASTOR WHEEL .................................... 78
	BRAKING SYSTEM ...................................... 80
		ELECTROMAGNETIC BRAKE ........................... 22
	OPERATING ELEMENTS .................................. 82
		OUTER MAST LIMIT SWITCH ......................... 84
	ELECTRICAL INSTALLATION ............................. 86
		HORN ............................................ 88
		WIRING (panel)................................... 90
		WIRING (ENGINE COMPARTMENT - PANEL).............. 92
		BATTERY CABLES .................................. 94
	WIRING HARNESS ...................................... 96
		COOLING FAN ..................................... 98
	ELECTRONIC CONTROLS .................................100
		ELECTRONIC PANEL ................................102
			WIRING (panel)............................... 90
		DATATERMINAL (OPTIONAL) (LC FILTER)..............106
		DATATERMINAL (OPTIONAL) (LC FILTER - 30°C).......108
		DATATERMINAL (OPTIONAL) (VOLTAGE TRANSFORMER)....110
	BATTERY EXTRACTION CARRIAGE .........................112
		BATTERY EXTRACTION CARRIAGE (OPTIONAL) ..........114
	HYDRAULIC SYSTEM ....................................116
		LIFTING SYSTEM ..................................118
			HYDRAULIC UNIT ..............................120
			LIFT CYLINDER ...............................122
		HYDRAULIC UNIT ..................................124
	LOAD LIFTING SYSTEM .................................126
		TIE RODS - SINGLE ROLLER ........................128
		TIE RODS - DOUBLE ROLLER ........................130
		LEVERS (STANDARD)................................132
			TIE RODS - SINGLE ROLLER ....................128
			TIE RODS - DOUBLE ROLLER ....................130
		LEVERS (OPTIONAL) (-30°C)........................134
			TIE RODS - SINGLE ROLLER ....................128
			TIE RODS - DOUBLE ROLLER ....................130
	LIFT FRAME ..........................................136
		FORKS FIXING ....................................138
		LIFT CYLINDER ...................................122
	OPTIONAL EQUIPMENT ..................................140
		LECTERN (OPTIONAL) ..............................142
	OTHER ACCESSORIES ...................................144
		STICKER .........................................  8
index parts..............................................145
