FILE DETAILS:

Terex Crane Quadstar 1075 EN13000 Lifting Capacity Chart Manual – PDF DOWNLOAD

Language : English_Italian_German_French_Spanish
Pages : 42
Downloadable : Yes
File Type : PDF

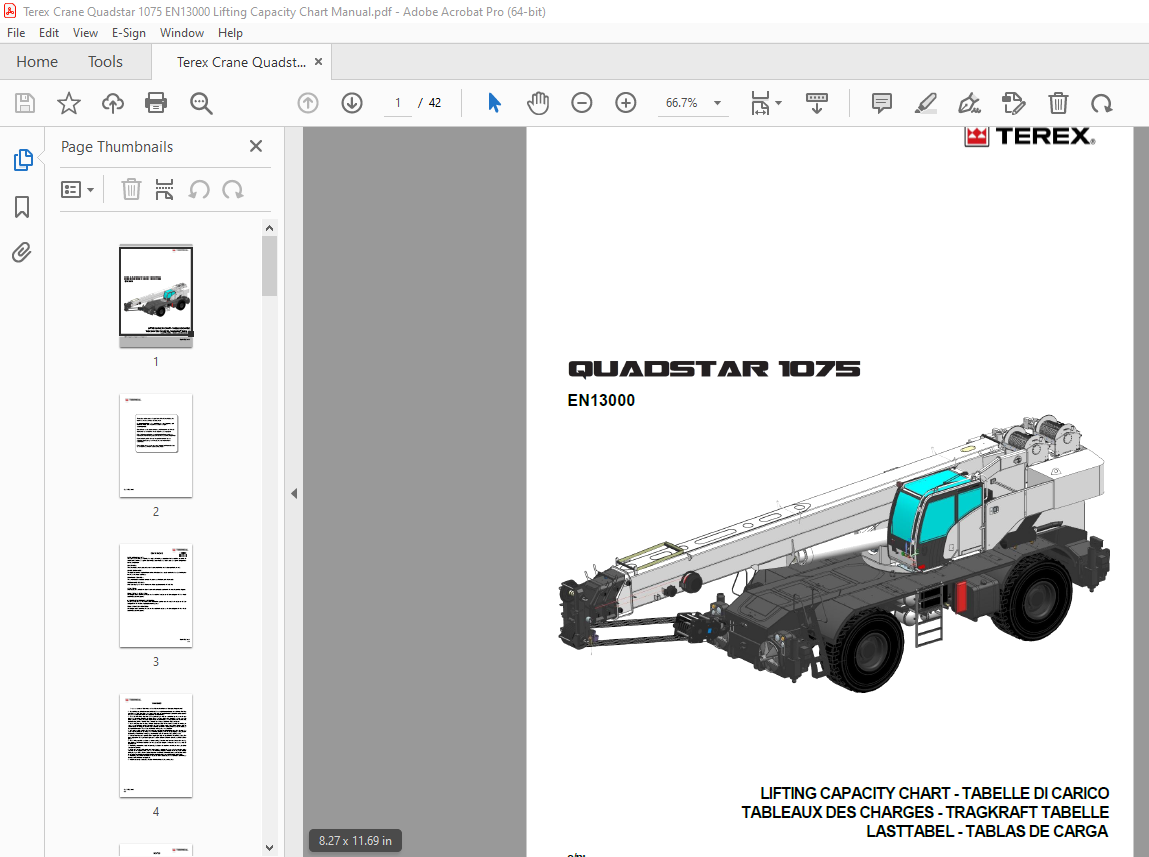

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Terex Crane Quadstar 1075 EN13000 Lifting Capacity Chart Manual – PDF DOWNLOAD

RATED LIFTING CAPACITY :
The total suspended load, including the weight of handling accessories, that the machine can safely lift under ideal conditions at a given boom length, boom radius and boom angle for a given outrigger and slewing configuration.
LOAD RADIUS :
The horizontal distance measured between the center of rotation and the boom point sheave axis.
LOADED BOOM ANGLE :
The angle between the longitudinal centre line of the boom base section and the horizontal after lifting the rated load at the rated load radius.
BOOM POINT ELEVATION :
The vertical distance measured between the ground and the boom point sheave axis.
FREELY SUSPENDED LOAD :
Lifted load hanging free with no direct external force applied except by the hoist line.
WORK AREAS :
Area measured in a circular arc about the centre line of rotation as shown in the area of operation diagram.
FULLY EXTENDED OUTRIGGERS :
All outrigger beams are fully extended and the machine is raised on all four outriggers with the wheels completely clear of the ground.
INTERMEDIATELY EXTENDED OUTRIGGERS :
All outrigger beams are extended to the intermediate position and the machine is raised on all four outriggers with the wheels completely clear of the ground.
FULLY RETRACTED OUTRIGGERS :
All outrigger beams are fully retracted and the machine is raised on all four outriggers with the wheels completely clear of the ground.
