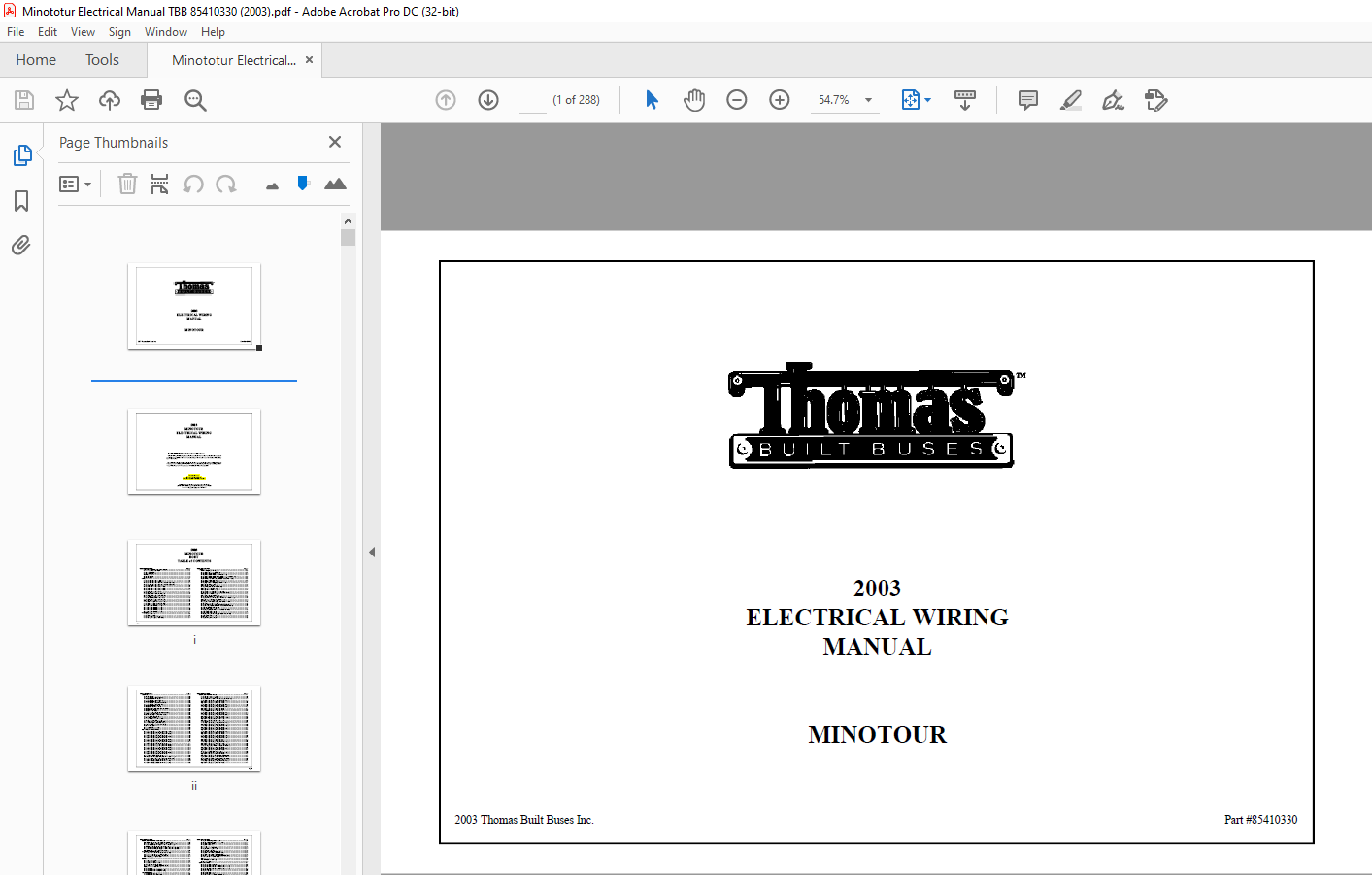

Thomas Built Buses MINOTOUR 2003 ELECTRICAL WIRING MANUAL  – PDF DOWNLOAD

Thomas Built Buses MINOTOUR 2003 ELECTRICAL WIRING MANUAL  – PDF DOWNLOAD

FILE DETAILS:

Thomas Built Buses MINOTOUR 2003 ELECTRICAL WIRING MANUAL  – PDF DOWNLOAD

Language : English
Pages :288
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Thomas Built Buses MINOTOUR 2003 ELECTRICAL WIRING MANUAL  – PDF DOWNLOAD

MINOTOUR
BODY

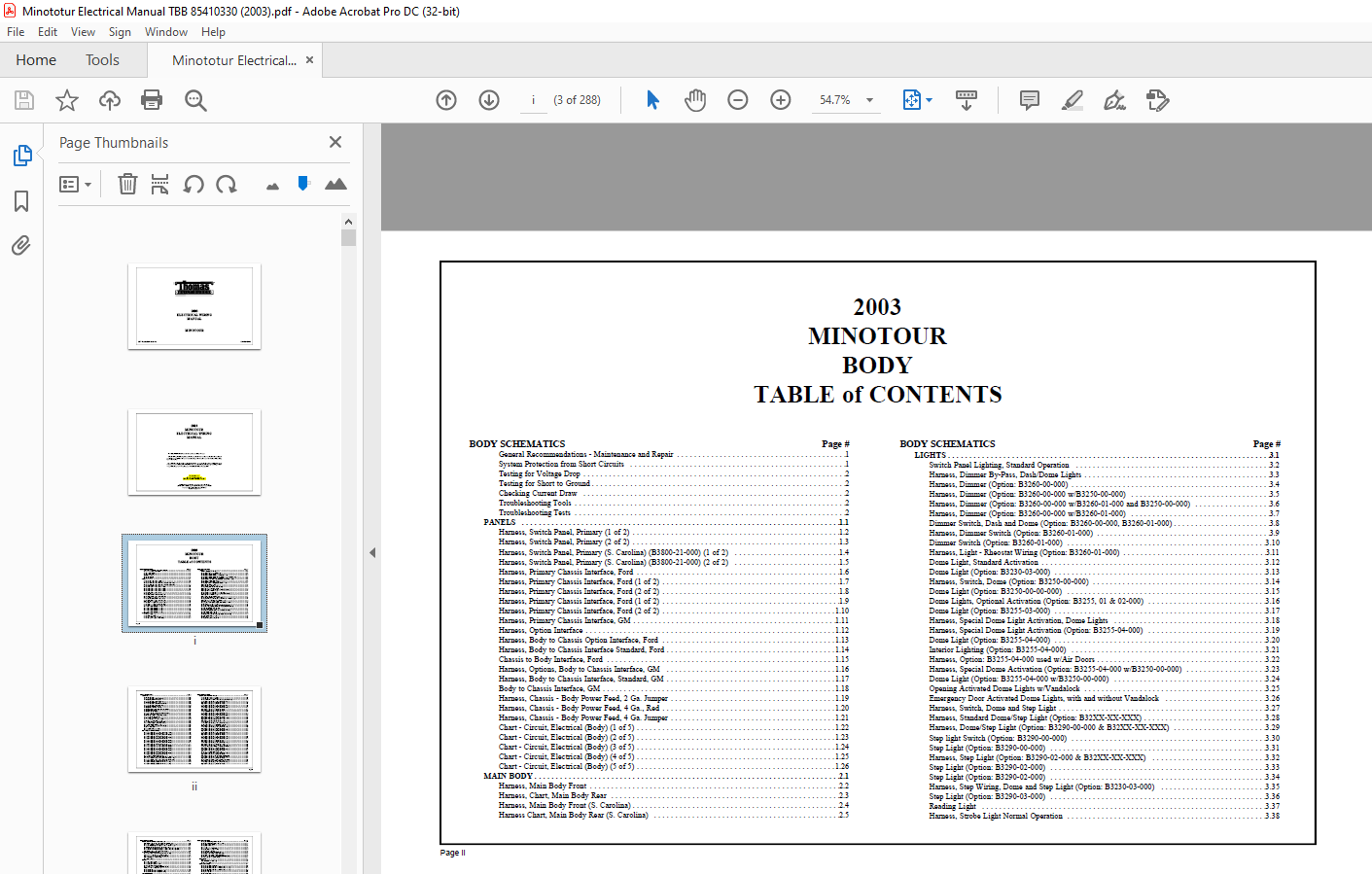

TABLE of CONTENTS
BODY SCHEMATICS Page #
General Recommendations – Maintenance and Repair 1
System Protection from Short Circuits 1
Testing for Voltage Drop 2
Testing for Short to Ground 2
Checking Current Draw 2
Troubleshooting Tools 2
Troubleshooting Tests 2
PANELS 11
Harness, Switch Panel, Primary (1 of 2) 12
Harness, Switch Panel, Primary (2 of 2) 13
Harness, Switch Panel, Primary (S Carolina) (B3800-21-000) (1 of 2) 14
Harness, Switch Panel, Primary (S Carolina) (B3800-21-000) (2 of 2) 15
Harness, Primary Chassis Interface, Ford 16
Harness, Primary Chassis Interface, Ford (1 of 2) 17
Harness, Primary Chassis Interface, Ford (2 of 2) 18
Harness, Primary Chassis Interface, Ford (1 of 2) 19
Harness, Primary Chassis Interface, Ford (2 of 2) 110
Harness, Primary Chassis Interface, GM 111
Harness, Option Interface 112
Harness, Body to Chassis Option Interface, Ford 113
Harness, Body to Chassis Interface Standard, Ford 114
Chassis to Body Interface, Ford 115
Harness, Options, Body to Chassis Interface, GM 116
Harness, Body to Chassis Interface, Standard, GM 117
Body to Chassis Interface, GM 118
Harness, Chassis – Body Power Feed, 2 Ga Jumper 119
Harness, Chassis – Body Power Feed, 4 Ga, Red 120
Harness, Chassis – Body Power Feed, 4 Ga Jumper 121
Chart – Circuit, Electrical (Body) (1 of 5) 122
Chart – Circuit, Electrical (Body) (2 of 5) 123
Chart – Circuit, Electrical (Body) (3 of 5) 124
Chart – Circuit, Electrical (Body) (4 of 5) 125
Chart – Circuit, Electrical (Body) (5 of 5) 126
MAIN BODY 21
Harness, Main Body Front 22
Harness, Chart, Main Body Rear 23
Harness, Main Body Front (S Carolina) 24
Harness Chart, Main Body Rear (S Carolina) 25
BODY SCHEMATICS Page #
LIGHTS 31
Switch Panel Lighting, Standard Operation 32
Harness, Dimmer By-Pass, Dash/Dome Lights 33
Harness, Dimmer (Option: B3260-00-000) 34
Harness, Dimmer (Option: B3260-00-000 w/B3250-00-000) 35
Harness, Dimmer (Option: B3260-00-000 w/B3260-01-000 and B3250-00-000) 36
Harness, Dimmer (Option: B3260-00-000 w/B3260-01-000) 37
Dimmer Switch, Dash and Dome (Option: B3260-00-000, B3260-01-000) 38
Harness, Dimmer Switch (Option: B3260-01-000) 39
Dimmer Switch (Option: B3260-01-000) 310
Harness, Light – Rheostat Wiring (Option: B3260-01-000) 311
Dome Light, Standard Activation 312
Dome Light (Option: B3230-03-000) 313
Harness, Switch, Dome (Option: B3250-00-000) 314
Dome Light (Option: B3250-00-00-000) 315
Dome Lights, Optional Activation (Option: B3255, 01 & 02-000) 316
Dome Light (Option: B3255-03-000) 317
Harness, Special Dome Light Activation, Dome Lights 318
Harness, Special Dome Light Activation (Option: B3255-04-000) 319
Dome Light (Option: B3255-04-000) 320
Interior Lighting (Option: B3255-04-000) 321
Harness, Option: B3255-04-000 used w/Air Doors 322
Harness, Special Dome Activation (Option: B3255-04-000 w/B3250-00-000) 323
Dome Light (Option: B3255-04-000 w/B3250-00-000) 324
Opening Activated Dome Lights w/Vandalock 325
Emergency Door Activated Dome Lights, with and without Vandalock 326
Harness, Switch, Dome and Step Light 327
Harness, Standard Dome/Step Light (Option: B32XX-XX-XXX) 328
Harness, Dome/Step Light (Option: B3290-00-000 & B32XX-XX-XXX) 329
Step light Switch (Option: B3290-00-000) 330
Step Light (Option: B3290-00-000) 331
Harness, Step Light (Option: B3290-02-000 & B32XX-XX-XXX) 332
Step Light (Option: B3290-02-000) 333
Step Light (Option: B3290-02-000) 334
Harness, Step Wiring, Dome and Step Light (Option: B3230-03-000) 335
Step Light (Option: B3290-03-000) 336
Reading Light 337
Harness, Strobe Light Normal Operation 338
BODY SCHEMATICS Page #
LIGHTS (Continued)
Standard Strobe Light 339
Harness, Strobe Light (Option: B3576-00-000) 340
Strobe Light (Option: B3576-00-000) 341
Harness, Strobe Light (Option: B3576-01-000) 342
Strobe Light (Option: B3576-01-000) 343
Harness, Strobe Light (Option: B37XX-XX-XXX) 344
Harness, Strobe Light (Option: B3701-04-000) 345
Strobe Light (Option: B3701-04-000) 346
Strobe Light Operation w/Door Switch 347
Strobe Light, Roof Mounted, Specialty Model #205-202 348
Strobe Light Model #515-410 349
Strobe Light (South Carolina) 349
Harness, Warning Pilot Lights (Option: B3XX-XX-XXX) 350
Fog Light: (Option: B3680-04-000) 351
Double Faced Turn Signal (Option: B3420-08-000) 352
Harness, Standard Marker Light Operation 353
Marker and Clearance Light 354
Harness, Marker/Clearance Activation (B3670-01-000) 355
Marker/Clearance Lights (B3670-01-000) 356
Separate Switch for Marker Lights (Option: B3670-01-000) 357
Harness, Reverse Light: (Option: B3281-00-000) 358
Reverse Light: (Option: B3281-00-000) 359
Back-Up Lamps w/Emergency Door (New Jersey) 360
Optional Warning Lights 361
Harness, Engine Compartment Light 362
Engine Compartment Light 363
FOUR LIGHT WARNING SYSTEM 41
Harness, Four Light Warning System (Option: B3540-01-000) 42
Four Light Warning System (Option: B3540-01-000) 43
Harness, Four Light Warning System (Option: B3540-02-000) 44
Four Light Warning System (Option: B3540-02-000) 45
Harness, Four Light Warning System (Option: B3540-05-000) 46
Four Light Warning System (Option: B3540-05-000) 47
Harness, Four Light Warning System (Option: B3540-06-000) 48
Four Light Warning System (Option: B3540-06-000) 49
Harness, Four Light Warning System (Option: B3540-09-000) 410
Four Light Warning System (Option: B3540-09-000) 411
Harness, Four Light Warning System (Option: B3540-10-000) 412
Harness, Four Light Warning System (Option: B3540-10-000) 413
Harness, Four Light Warning System (Option: B3540-10-000) 414
Four Light Warning System (Option: B3540-10-000) 415
Harness, Four Light Warning System (Option: B3540-12-000) 416
Four Light Warning System (Option: B3540-12-000) 417
Harness, Four Light Warning System (Option: B3540-13-000) 418
Four Light Warning System (Option: B3540-13-000) 419
Harness, ELS B-4 Flasher (Option: B3540-13-000) 420
Electrical Warning Lights w/Electric Stop Sign (Option: B3540-15-000) 421
Harness, Four Light Warning System (Option: B3541-16-000) (1 of 2) 422
Harness, Four Light Warning System (Option: B3541-16-000) (2 of 2) 423
Four Light Warning System (Option: B3541-16-000) 424
Four Light Warning System (Option: B3541-16-000) (1 of 2) 425
Four Light Warning System (Option: B3541-16-000) (2 of 2) 426
BODY SCHEMATICS Page #
EIGHT LIGHT WARNING SYSTEM 51
Harness, Flasher w/Connector (1 of 2) 52
Harness, Flasher w/Connector (2 of 2) 53
Harness, Weldon Flasher (Option: B3580-03, 04, 05, 06, 07 & 08-000) 54
Harness, Eight Light Warning System (Option: B3580-03-000) 55
Eight Light Warning System (Option: B3580-03-000) 56
Eight Light Warning System (Option: B3580-03-000) 57
Harness; Eight Light Warning System (Option: B3580-04-000) 58
Eight Light Warning System (Option: B3580-04-000) 59
Harness, Eight Light Warning System (Option: B3580-06-000) 510
Eight Light Warning System (Option: B3580-06-000) 511
Eight Light Warning System (Option: B3580-06-000) 512
Harness, Weldon Flasher (Option: B3580-07-000) 513
Harness, Eight Light Warning System (Option: B3580-07-000) 514
Eight Light Warning System (Option: B3580-07-000) 515
Harness, Eight Light Warning System (Option: B3580-08-000) 516
Eight Light Warning System (Option: B3580-08-000) 517
Harness, Eight Light Warning System (Option: B3580-11-000) 518
Eight Light Warning System (Option: B3580-11-000) 519
Eight Light Warning System (Option: B3580-11-000) 520
Harness for 358-13 521
Harness, Eight Light Warning System (Option: B3580-13-000) 522
Warning Lights w/Emergency Override (Option: B3580-13-000) 523
Eight Light Warning System (Option: B3580-13-000) 524
Harness, Eight Light Warning System (Option: B3580-15-000) 525
Eight Light Warning System (Option: B3580-15-000) 526
Harness, Eight Light Warning System (Option: B3580-16-000) 527
Eight Light Warning System (Option: B3580-16-000) 528
Harness, Eight Light Warning System (Option: B3580-17-000) 529
Eight Light Warning System (Option: B3580-17-000) 530
Eight Light Warning System (Option: B3580-17-000) 531
Harness, Eight Light Warning System (Option: B3580-20-000) 532
Eight Light Warning System (Option: B3580-20-000) 533
Harness, Eight Light Warning System (Option: B3580-20-001) 534
Eight Light Warning System (Option: B3580-20-001) 535
Eight Light Warning System (Option: B3580-20-001) 536
Harness, Eight Light Warning System (Option: B3580-21-000) 537
Eight Light Warning System (Option: B3580-21-000) 538
Eight Light Warning System (Maryland) (Option: B3580-21-000) 539
Harness, Warning Lights, Switch Harness (Option: B3580-22-000) 540
Eight Light Warning System (Option: B3580-22-000) 541
Harness, Eight Light Warning System (Option: B3580-23-000) 542
Eight Light Warning System (Option: B3580-23-000) 543
Harness, Warning Lights (Option: B3580-24-000) 544
Harness, Eight Light Warning System (Option: B3580-24-000) 545
Eight Light Warning System (Option: B3580-24-000) 546
Eight Light Warning System (Virginia) (Option: B3580-24-000) 547
Harness, Eight Light Warning System (Option: B3580-26-000) 548
Eight Light Warning System (Option: B3580-26-000) 549
Harness, Wiring, Warning Eight Light, In Switch Cabinet (Florida) 550
Eight Light Warning System (Florida) (Option: B3580-26-000) 551
Harness, Eight Light Warning System (Option: B3580-27-000) 552
Eight Light Warning System (Option: B3580-27-000) 553
BODY SCHEMATICS Page #
EIGHT LIGHT WARNING SYSTEM (Continued)
Eight Light Warning System (California) (Option: B3580-27-000) 554
Harness, Control Whelen Strobe Warning System (Option: B3580-31-000) 555
Harness, Strobe Eight Light Warning System (Option: B3580-31-000) 556
Strobe Eight Light Warning System (Option: B3580-31-000) 557
Harness, PC Board to Switch, Warning System (Option: B3580-33-000) (1 of 2) 558
Harness, PC Board to Switch, Warning System (Option: B3580-33-000) (2 of 2) 559
Eight Light Warning System (Option: B3580-34-000) 560
STOP SIGNS & CROSSING GATES 61
Harness, Crossing Arm Deactivation (Option: B3831-00-000) 62
Crossing Arm Deactivation (Option: B3831-00-000) 63
Crossing Arm Deactivating Switch Transpec, Specialty 64
Electric Stop Sign, Specialty 5000 Series 65
Stop and Crossing Arm 66
HEATER 71
Harness, Heater Switch, Front 72
Harness, Heater Switch, Rear 73
Harness, Heater Switch, Front and Rear 74
Heater Motor (Option: B4120-XX-XXX) 75
Harness, Defroster Fan Switch (Option: B2160-08-000) 76
Defroster Fan (Option: B2160-08-000) 77
Harness, Step Tread 78
Harness, Step Tread PC Board Compatible (1 of 2) 79
Harness, Step Tread PC Board Compatible (2 of 2) 710
AIR CONDITIONING 81
Air Conditioning AC 332, 334 82
Air Conditioning AC 332, 334, GM Tie In 83
Air Conditioning AC-442, 444 84
Air Conditioning AC-442, 443 Tie In 85
Air Conditioning AC-552, 553 86
Air Conditioning AC-552, 553 Tie In 87
EMI Evaporator, CM2 & CM3 Condenser Air Conditioning w/Chassis A/C 88
EMI Evaporator, and, CM-2, 3 Condenser Air Conditioning without Chassis A/C 89
Harness, Rear A/C Power 810
LIFTS 91
Lift Schematic (Ricon Lift) 92
Lift Schematic (Braun Lift) 92
Harness, Lift Switch 93
Harness, Chart, Lift Power 94
Harness, Lift Option Interface, Ford 95
Harness, Lift Option Interface, Ford 96
Harness, Lift Option Interface, Ford 97
Harness, Lift Option Interface, GM 98
Harness, Lift Option Interface, GM 99
Harness, Lift Option Interface, GM 910
DOORS 101
Lift Door 102
Lift Door w/Throttle Interlock and Hydraulic Brakes 103
Lift Door, Ford Chassis 104
Lift Door, Ford Chassis 105
Lift Door, Ford Chassis 106
Lift Door, GM Chassis 107
Lift Door, GM Chassis 108
BODY SCHEMATICS Page #
Harness, Static Grounding, Lift Door Harness 109
Harness, Static Grounding, Lift Door Harness, w/Clamp 1010
Harness, Electric Doors Switch 1011
Harness, Electric Doors Motor 1012
Electric Door 1013
Electric Doors Motor w/Door Lights 1014
Harness, Option Interface, Electric Door 1015
Harness, Sedan Door Interlock 1016
Harness, Step/Door Combination (B3290-03-000) 1017
Harness, Electric Entrance Door, Body Side (1 of 2) 1018
Harness, Electric Entrance Door, Body Side (2 of 2) 1019
Harness, Electric Entrance Door, w/Vandalock (B5036-XX-XXX) 1020
Rear Door and Vandalock (B5185-02-000) 1021
VANDALOCK 111
Vandalock 112
Vandalock (Option: B5185-03-000) 113
Harness, Jumper, Vandalock 114
RADIO & SPEAKERS 121
Harness, Custom Radio to Ford Chassis 122
Harness, Custom Radio to GM Chassis without Breakouts (1 of 3) 123
Harness, Custom Radio to GM Chassis without Breakouts (2 of 3) 124
Harness, Custom Radio to GM Chassis without Breakouts (3 of 3) 125
Harness, Two Speakers 126
Harness, Four Speakers 127
Harness, Speaker Interface, Ford 128
Harness, Speaker Interface, GM 129
Harness, Outside Speaker Switch (Option: B2580-0X-000) 1210
Harness, Speakers 1211
Harness, Static Grounding, Radio Antenna 1212
MISCELLANEOUS 131
Escape Hatch Fan 132
Roof Escape Hatch w/Power Vent (Transpec, Model 1600) 133
Harness, Escape Hatch Fan, ID Sign, Engine Compartment Light, Switch 134
Harness, Heated Mirrors 135
Heated Mirror w/Light (Mirror Lite #10-139) 136
Remote Mirrors 137
Heated Mirror, Crossing/Stop Arm 138
Harness, Static Grounding Mirror Connector 139
Harness, Video Camera Switch (Option: B2115-01-000) 1310
Video Camera Switch (Option: B2115-01-000) 1311
Harness, Video Camera Power Supply (Option: B2593-00-000) 1312
Video Camera (Option: B2593-00-000) 1313
ID Sign 1314
Lighted Identification Sign 1315
Touch Tape Chime System, for ADA Stop Request 1316
Passenger Advisory System (Maryland) (Option: B2001-00-000) 1317
Harness, Noise Reduction Switch 1318
Harness, Flasher and Child Safety Alarm 1319
Child Reminder System 1320
Child Safety Alarm 1321

IMAGES PREVIEW OF THE MANUAL:
