DESCRIPTION:

Volvo Penta TAD734GE Group 00-08, 20-26, 32-37 Workshop Manual_353523948 – PDF DOWNLOAD

Introduction:

The working methods described in this manual are based on a workshop scenario where the product is mounted in a holding fixture. Maintenance work is often carried out in situ, in which case – if nothing else is indicated – using the same working methods as the workshop.

About repair instructions :Introduction;

The working methods described in this manual are based on a workshop scenario where the product is mounted in a holding fixture. Maintenance work is often carried out in situ, in which case – if nothing else is indicated – using the same working methods as the workshop. Warning symbols that occur in the service manual. For significance, refer to Safety Information .

• We call attention to risks that may occur due to incorrect handling during work in a well-equipped workshop using working methods and tools tried and tested by us. The service manual describes work operations carried out with the aid of Volvo Penta Special Tools, where such have been developed.
• Volvo Penta Special Tools are designed to ensure the safest and most rational working methods possible. It is therefore the responsibility of anyone using tools or working methods other than those we recommend to ensure that no risk of personal injury or mechanical damage is present, or that malfunction can result.
• In some cases, special safety regulations and user instructions may be in force for the tools and chemicals mentioned in the Service Manual. These regulations must always be followed, and no special instructions regarding this are to be found in the Service Manual. By taking these basic precautions and using common sense it will be possible to guard against most elements of risk.
• A clean workplace and a clean product will eliminate many risks of personal injury and malfunction. Above all, when working on fuel systems, hydraulic systems, lubrication systems, turbochargers, inlet systems, bearings and seals, it is of the utmost importance that dirt and foreign objects are kept away, as malfunctions or shortened service intervals may otherwise result.

About repair instructions:Our mutual responsibility :

Each product comprises a large number of interacting systems and components. A deviation from the technical specification may dramatically increase the environmental impact of an otherwise reliable system. It is therefore critical that the stated wear tolerances be adhered to, that systems which can be adjusted be correctly set up and that only Volvo Penta Original Parts are used.

• The intervals in the care and maintenance schedule must be followed. Some systems, e.g. fuel systems, often require special expertise and test equipment. A number of components are factory-sealed, for among other things environmental reasons. Warranty-sealed components may not be worked on without authorization to perform such work.
• Remember that most chemical products, incorrectly used, are harmful to the environment. Volvo Penta recommends the use of biodegradable degreasers whenever components are cleaned, unless otherwise specified in the Service Manual. When working outdoors, take especial care to ensure that oils and wash residues etc. are correctly properly for destruction.

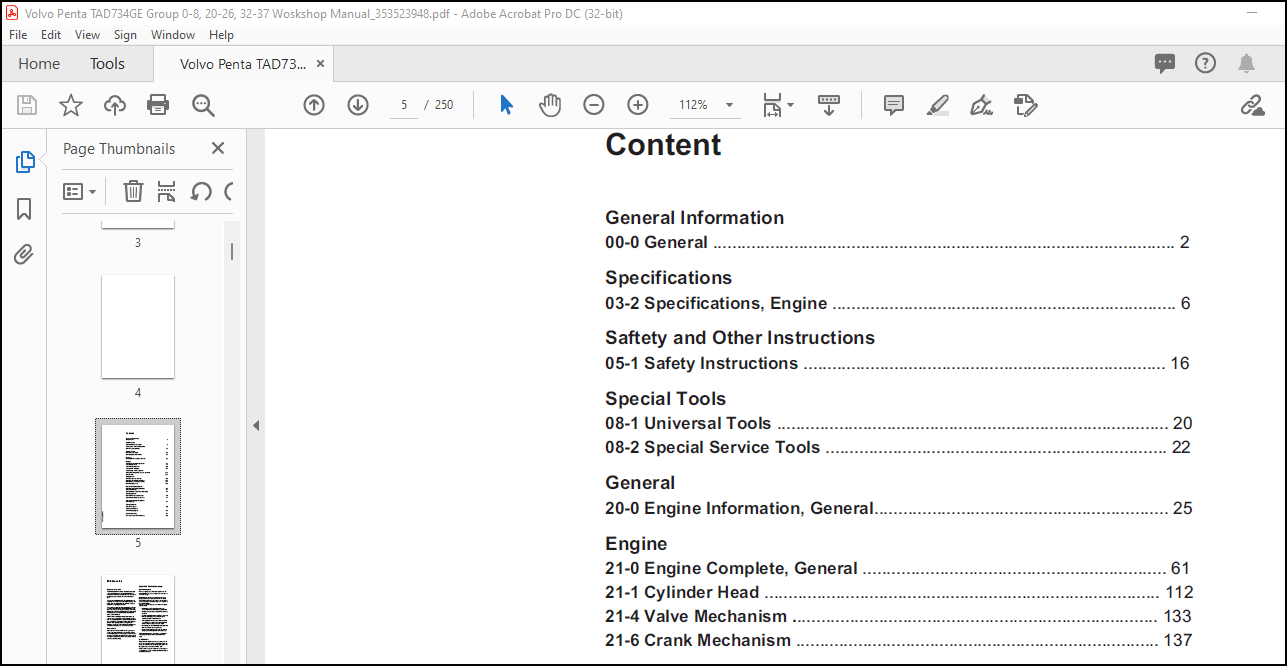

TABLE OF CONTENTS:

Volvo Penta TAD734GE Group 00-08, 20-26, 32-37 Workshop Manual_353523948 – PDF DOWNLOAD

General Information
00-0 General ……………………………………………………………………………………. 2
Specifications
03-2 Specifications, Engine ……………………………………………………………… 6
Saftety and Other Instructions
05-1 Safety Instructions …………………………………………………………………. 16
Special Tools
08-1 Universal Tools ………………………………………………………………………. 20
08-2 Special Service Tools …………………………………………………………….. 22
General
20-0 Engine Information, General……………………………………………………. 25
Engine
21-0 Engine Complete, General ……………………………………………………… 61
21-1 Cylinder Head ……………………………………………………………………….. 112
21-4 Valve Mechanism …………………………………………………………………. 133
21-6 Crank Mechanism …………………………………………………………………. 137
Lubricating and Oil System
22-0 Lubricating and Oil System, General ………………………………………155
22-2 Oil Filter ………………………………………………………………………………..156
Fuel System
23-0 Fuel System, General ……………………………………………………………. 168
23-3 Fuel Feed Pump and Filter ……………………………………………………. 170
23-7 Injectors and Delivery Pipes …………………………………………………. 181
23-8 Control System … ………………………………………………………………… 193
Inlet and Exhaust System
25-1 Inlet and Exhaust Manifolds …………………………………………………. 195
25-5 Turbocharger ……………………………………………………………………….. 201
25-6 Air Cleaner and Throttle Housing ………………………………………….. 206
Cooling System
26-1 Radiator, Heat Exchanger ……………………………………………………… 213
26-2 Coolant Pump, Thermostat ……………………………………………………. 221
Alternator, Charge Regulator
32-1 Alternator ……………………………………………………………………………… 234
Starting System
33-1 Starter Motor ………………………………………………………………………… 238
Cables and Fuses
37-0 Wiring Diagram …………………………………………………………………….. 240
Alphabetical Index ……………………………………………………………………….. 241
References to Service Bulletins ……………………………………………………. 243
