Wacker Neuson Group TH 522 Technischer Servicetrainer Manual - PDF DOWNLOAD

Wacker Neuson Group TH 522 Technischer Servicetrainer Manual

FILE DETAILS:

Wacker Neuson Group TH 522 Technischer Servicetrainer Manual

Language : English
Pages : 315
Downloadable : YES
Format : PDF
Size : 46.8 MB

DESCRIPTION:

Wacker Neuson Group TH 522 Technischer Servicetrainer Manual

SAMPLE PAGES FROM THE MANUAL:

1. Horizontal adjustment: Pull up the locking lever to change the horizontal adjustment of the operator seat. Once the adjustment is made the locking lever must engage in the required position. Once it is locked in place the Operator seat must no longer move. 2. Weight adjustment: Turn the twist knob to adjust the operator seat to the operator’s weight. Turning it anticlockwise (toward “+”j provides a fimter seat suspension: turning it clockwise {toward “-“Ic provides a softer seat suspension. It is not necessary to take the load off the operator seat in order to adjust it. however it is easier to set a firmer suspension if the operator is not sitting on the operator seat. When the operator is sitting on the operator seat. the needle in the indicator must be in the green range. 3. Backrest adjustment: Adjust the backrest by pushing down the locking lever. Backrest inclina- tion is adjusted by leaning forward or backward. The locking lever must engage in the required position. Once it is locked in place the backrest must no longer move.

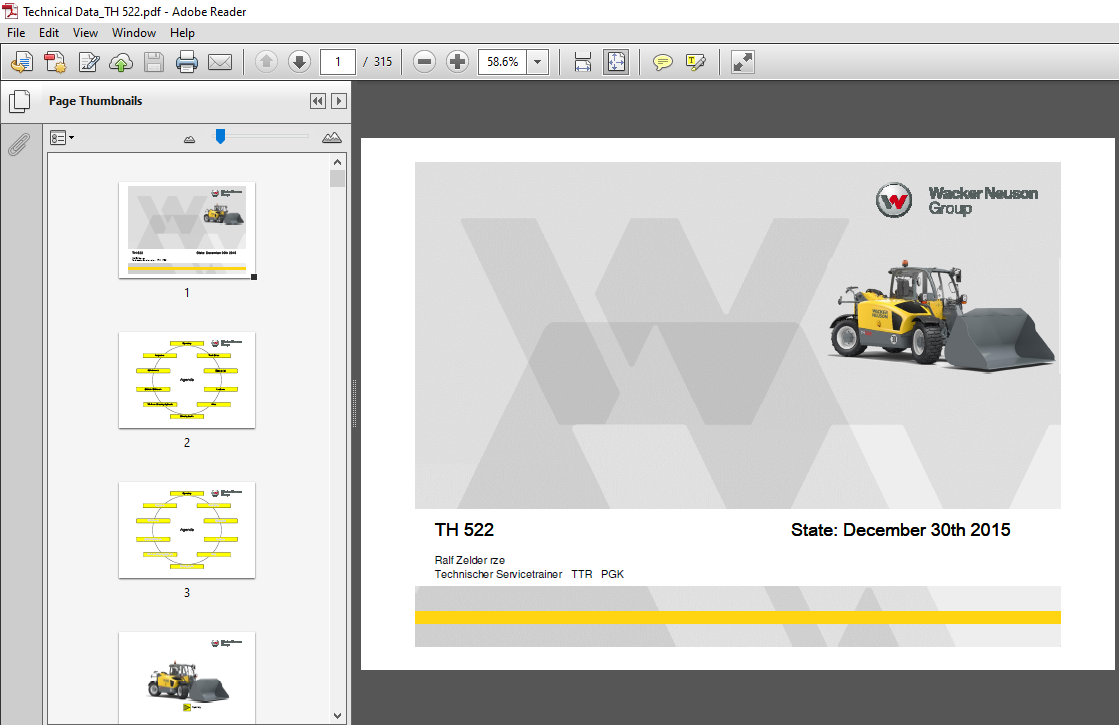

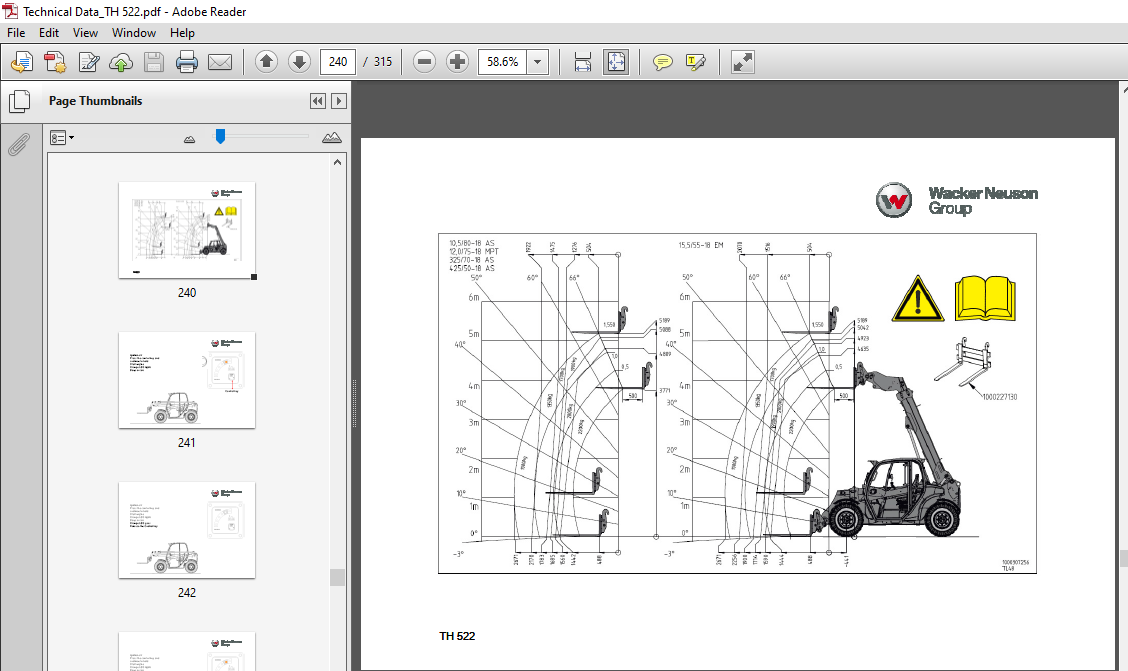

IMAGES PREVIEW OF THE MANUAL:
