Xtreme Telehandler XR2045 Forklift Parts Manual PDF

Xtreme Telehandler XR2045 Forward Reach Forklift Parts Breakdown Manual – PDF DOWNLOAD

The Xtreme Telehandler XR2045 Parts Breakdown Manual in PDF format is essential for maintenance. Download for detailed insights into genuine replacement parts, ensuring effective repairs, and optimal forklift performance. Vital for comprehensive guidance in servicing your equipment.

FILE DETAILS:

Xtreme Telehandler XR2045 Forward Reach Forklift Parts Breakdown Manual – PDF DOWNLOAD

Language : English
Pages :338
Downloadable : Yes
File Type : PDF

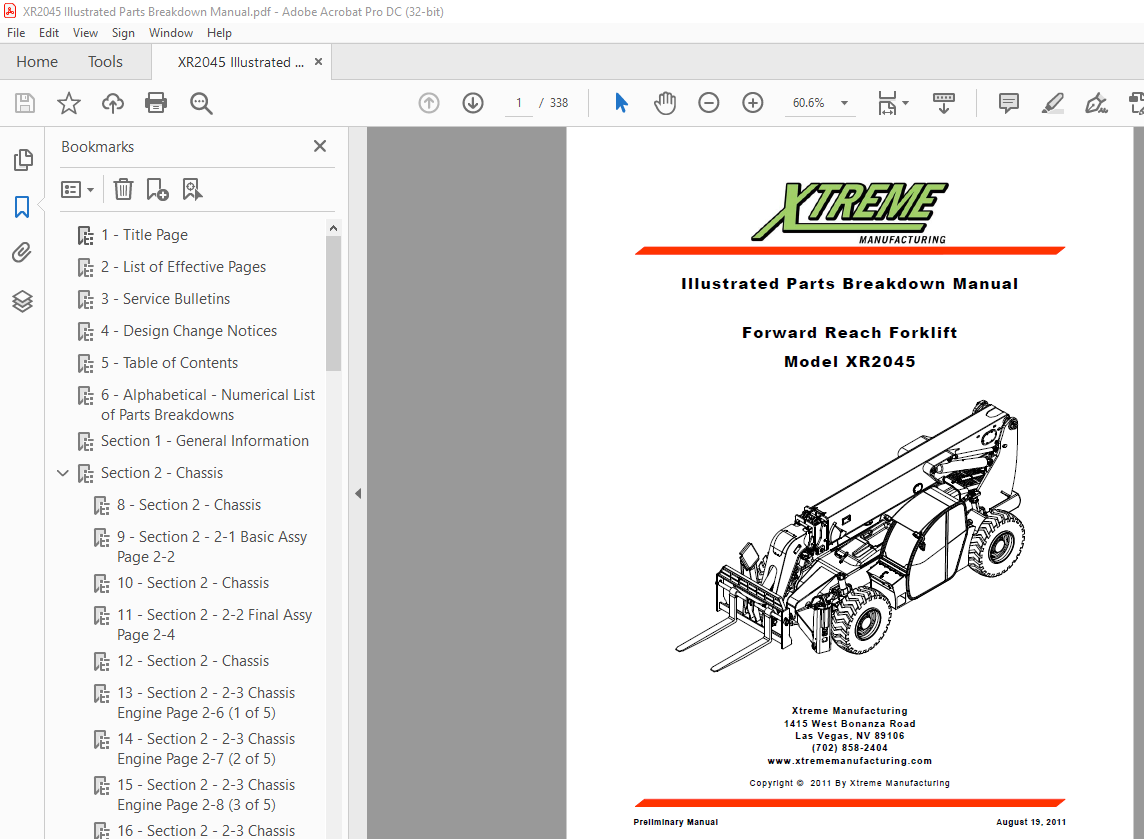

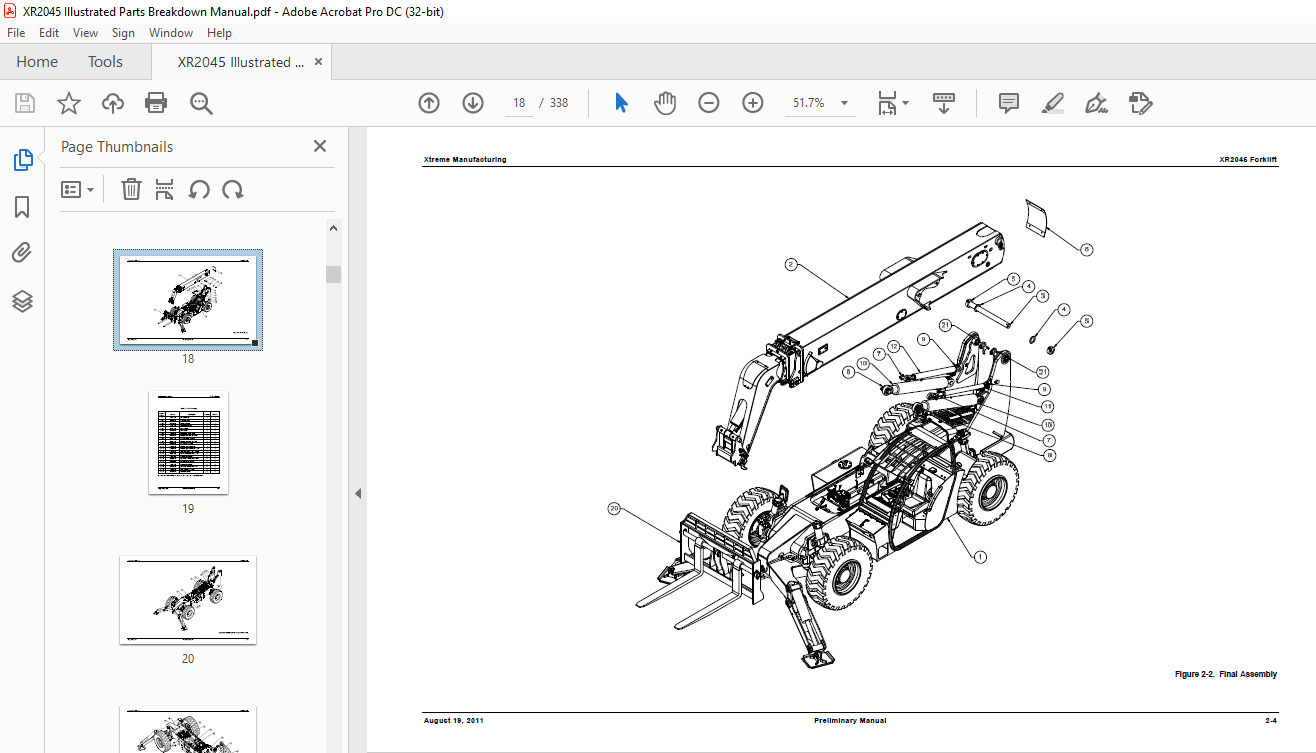

IMAGES PREVIEW OF THE MANUAL:

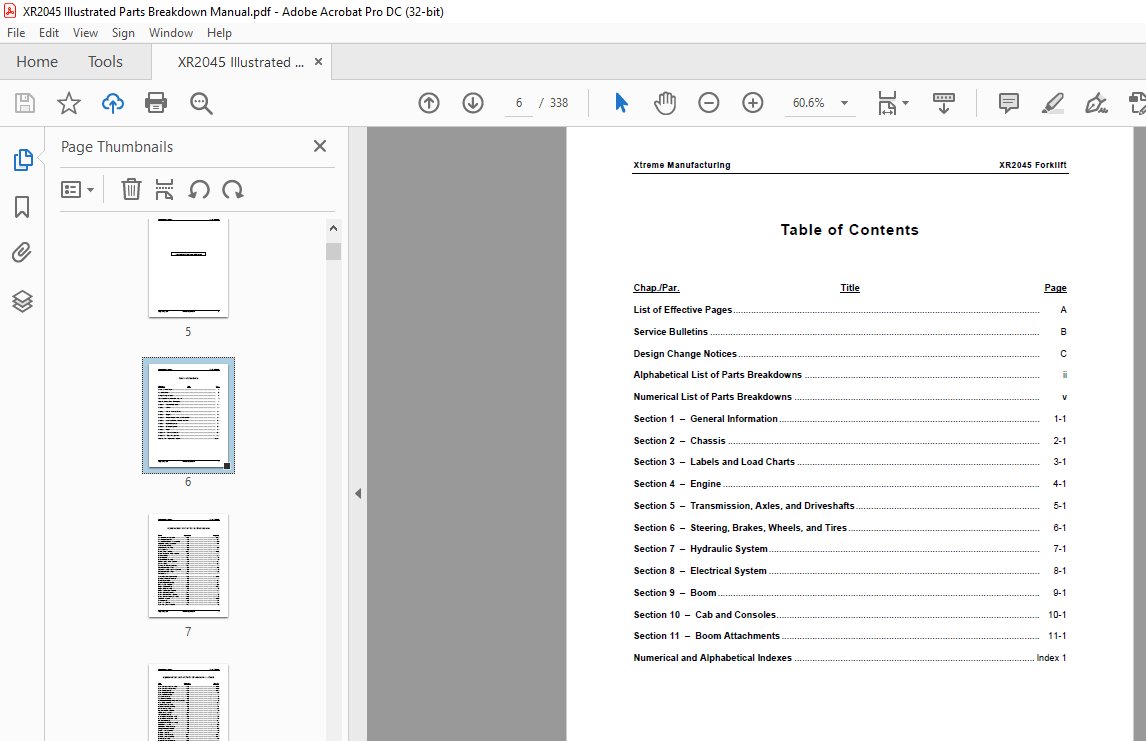

TABLE OF CONTENTS:

Xtreme Telehandler XR2045 Forward Reach Forklift Parts Breakdown Manual – PDF DOWNLOAD

List of Effective Pages A
Service Bulletins B
Design Change Notices C
Alphabetical List of Parts Breakdowns ii
Numerical List of Parts Breakdowns v
Section 1 – General Information 1-1
Section 2 – Chassis 2-1
Section 3 – Labels and Load Charts 3-1
Section 4 – Engine 4-1
Section 5 – Transmission, Axles, and Driveshafts 5-1
Section 6 – Steering, Brakes, Wheels, and Tires 6-1
Section 7 – Hydraulic System 7-1
Section 8 – Electrical System 8-1
Section 9 – Boom 9-1
Section 10 – Cab and Consoles 10-1
Section 11 – Boom Attachments 11-1
Numerical and Alphabetical Indexes Index 1
August 19, 2011 Preliminary Manual i
Xtreme Manufacturing XR2045 Forklift
Alphabetical List of Parts Breakdowns
Title Figure No Page No
Accelerator Pedal Assembly 10-8 10-23
Accumulator Assembly 6-3 6-7
Accumulator Charge Valve Assembly 6-4 6-9
Adjustable Carriage Assembly 11-2 11-4
Air Cleaner Assembly 4-4 4-11
Angle Indicator Assembly 9-5 9-19
Basic Assembly 2-1 2-2
Battery Cover Assembly 10-12 10-33
Battery Disconnect Switch Assembly 8-7 8-17
Boom Assembly 9-1 9-2
Boom Hose Kit 7-21 7-45
Boom Manifold Assembly 7-8 7-19
Brake Pressure Switch Assembly 6-5 6-11
Cab Assembly 10-1 10-2
Carriage Tilt Cylinder Assembly 7-17 7-37
Chassis Assembly – Axles 2-4 2-13
Chassis Assembly – Covers & Console 2-5 2-19
Chassis Assembly – Engine 2-3 2-6
Chassis Hose Kit 7-22 7-47
Control Enclosure Subassembly 10-5 10-15
Distribution Manifold Assembly 7-6 7-12
Electrical Assembly 8-1 8-2
Electrical Center Assembly 8-2 8-7
Enclosed Cab Assembly 10-2 10-8
Engine Cover Assembly 10-10 10-28
Engine Relay Assembly 8-6 8-15
Engine Transmission Assembly 4-1 4-2
Extend Cylinder Assembly 7-14 7-31
Extend Cylinder Collar Assembly 7-16 7-35
Extend Cylinder Housing Assembly 7-15 7-33
Filler Plate Assembly 10-15 10-39
Final Assembly 2-2 2-4
Front Axle Assembly 5-2 5-4
Front Axle Cylinder Assembly 7-18 7-39
August 19, 2011 Preliminary Manual ii
Xtreme Manufacturing XR2045 Forklift
Alphabetical List of Parts Breakdowns – Cont
Title Figure No Page No
Front Control Console Assembly 10-3 10-10
Front Control Panel Assembly 10-4 10-13
Front Cover Assembly 10-9 10-25
Front Driveshaft Assembly 5-4 5-8
Front Handle Assembly 7-10 7-23
Fuel Tank Assembly 4-5 4-13
Fuse Block Assembly 8-8 8-19
High-Pressure Filter/Steering Valve Assembly 7-5 7-10
Hose Clamp Assembly 9-10 9-29
Hydraulic Tank Assembly 7-1 7-2
Hydraulic Tank Lid Assembly 7-2 7-4
Inner Boom Assembly 9-2 9-4
Isolation Manifold Assembly 7-7 7-16
Labels and Load Charts 3-1 3-2
Lift Cylinder Assembly 7-13 7-29
Master Cylinder Assembly 2 75B 7-3 7-6
Master Cylinder Assembly 3 50B 7-4 7-8
Mid Boom Assembly 9-3 9-11
Operator Control Valve Assembly 7-9 7-21
Outer Boom Assembly 9-4 9-15
Outer Boom Roller Assembly 9-7 9-23
Outrigger Mount Assembly 2-6 2-22
Overflow Tank Assembly 4-3 4-9
Radiator Assembly 4-2 4-6
Radiator Cover Assembly 10-11 10-31
Radiator Shroud Assembly 10-14 10-37
Rear Axle Assembly 5-3 5-6
Rear Axle Cylinder Assembly 7-19 7-41
Rear Axle Lock Manifold Assembly 7-20 7-43
Rear Driveshaft Assembly 5-5 5-10
Rear Handle Assembly 7-12 7-27
Rear Light Assembly 10-13 10-35
Roller Assembly 9-8 9-25
Side Console Cover Assembly 10-7 10-21
Side Control Console Assembly 10-6 10-18
Slide Block Assembly 9-6 9-21
Solenoid Assembly 8-9 8-21
Standard Carriage Assembly 11-1 11-2
Steering Column Assembly 6-1 6-2
Sway Handle Assembly 7-11 7-25
Terminal Strip Assembly 8-3 8-9
Terminal Strip Assembly 8-4 8-11
Terminal Strip Assembly 8-5 8-13
Transmission and Pump Assembly 5-1 5-2
Tube Clamp Assembly No 2 9-9 9-27
Wheel Tire Assembly 6-6 6-13
