Xtreme XR1054-S T3 Forward Reach Forklift Parts Manual – PDF DOWNLOAD

Xtreme XR1054-S T3 Forward Reach Forklift Parts Manual – PDF DOWNLOAD

The Xtreme XR1054-S T3 Parts Manual is a PDF guide for the forward reach forklift model. It features detailed diagrams, part numbers, and instructions for easy access to crucial information, aiding in efficient maintenance and repairs. Downloadable for convenience.

FILE DETAILS:

Xtreme XR1054-S T3 Forward Reach Forklift Parts Manual – PDF DOWNLOAD

Language : English
Pages : 352
Downloadable : Yes
File Type : PDF

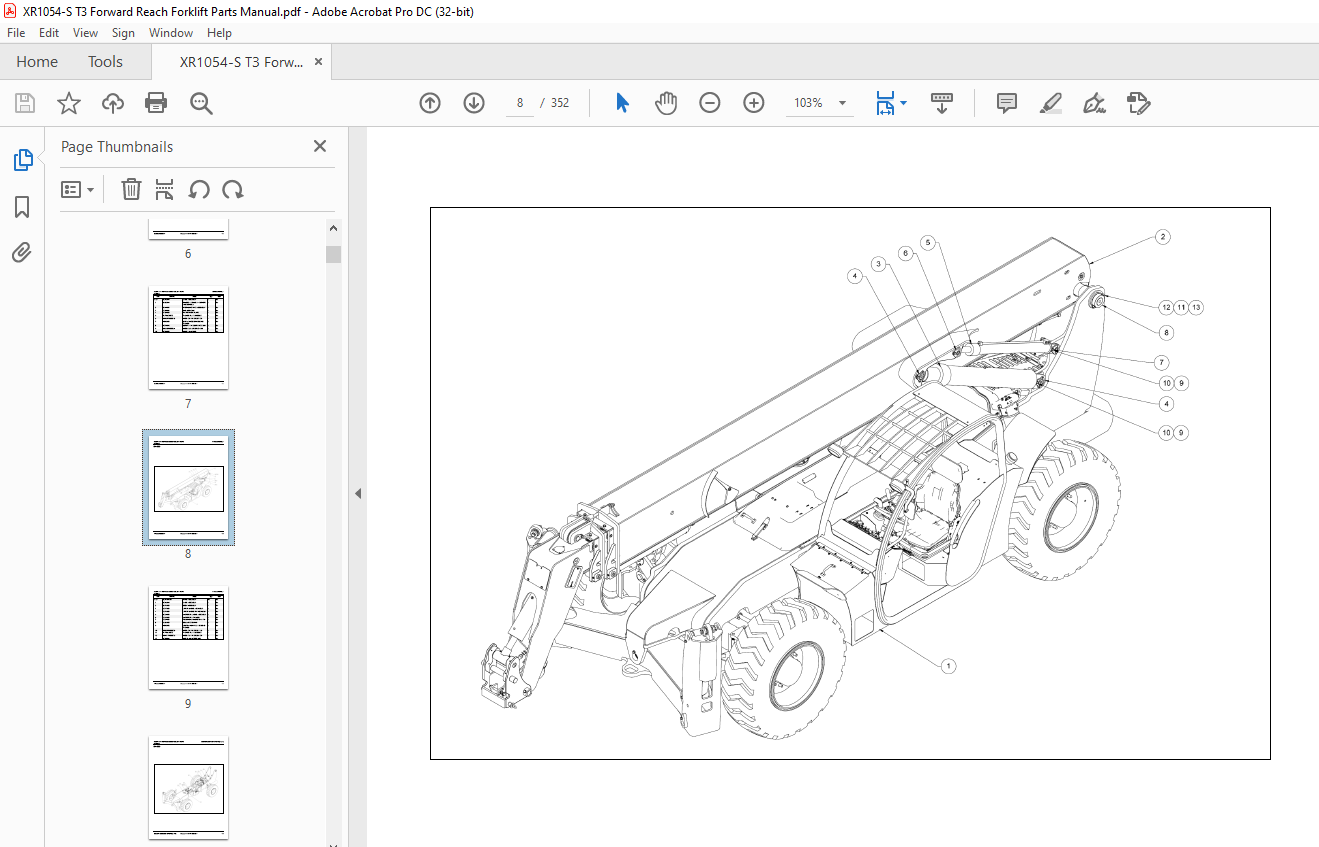

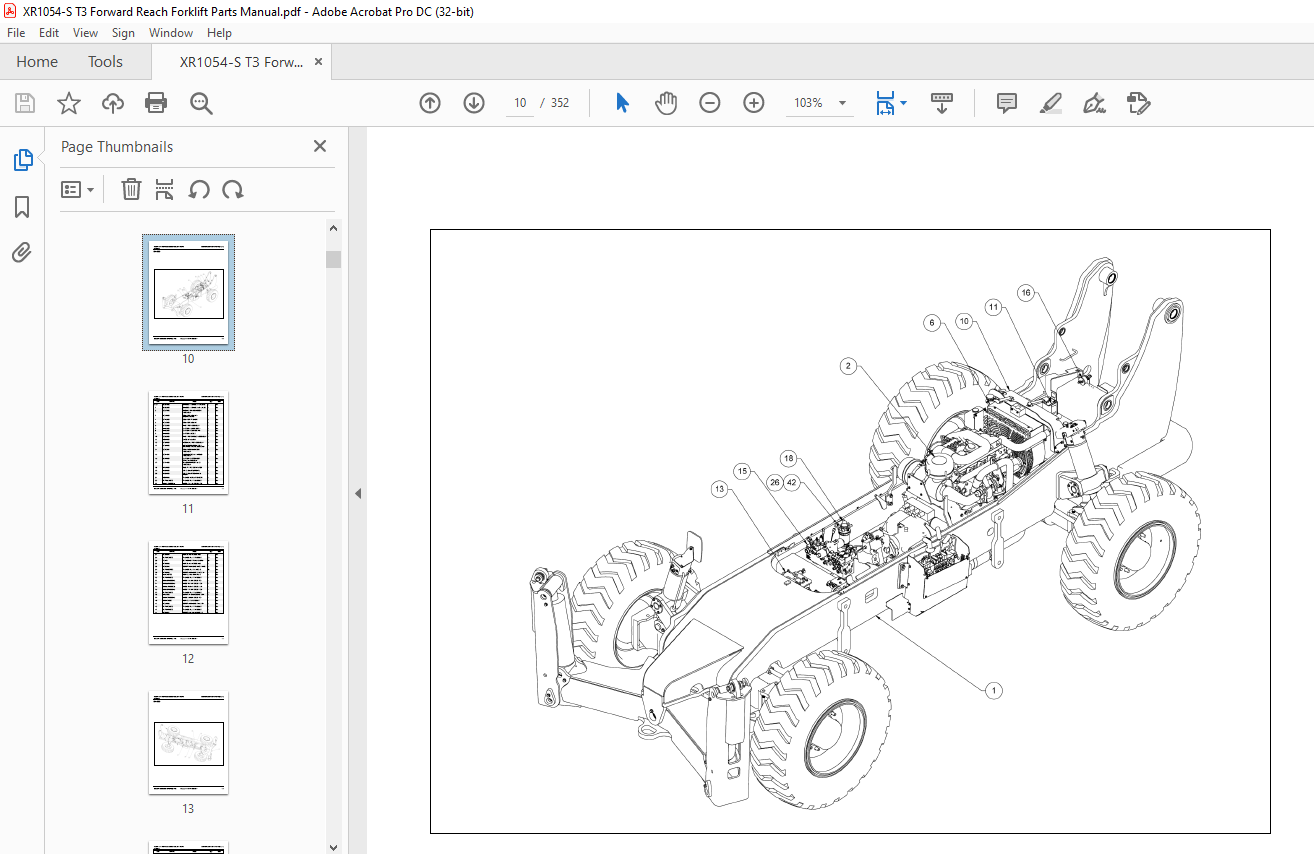

IMAGES PREVIEW OF THE MANUAL:

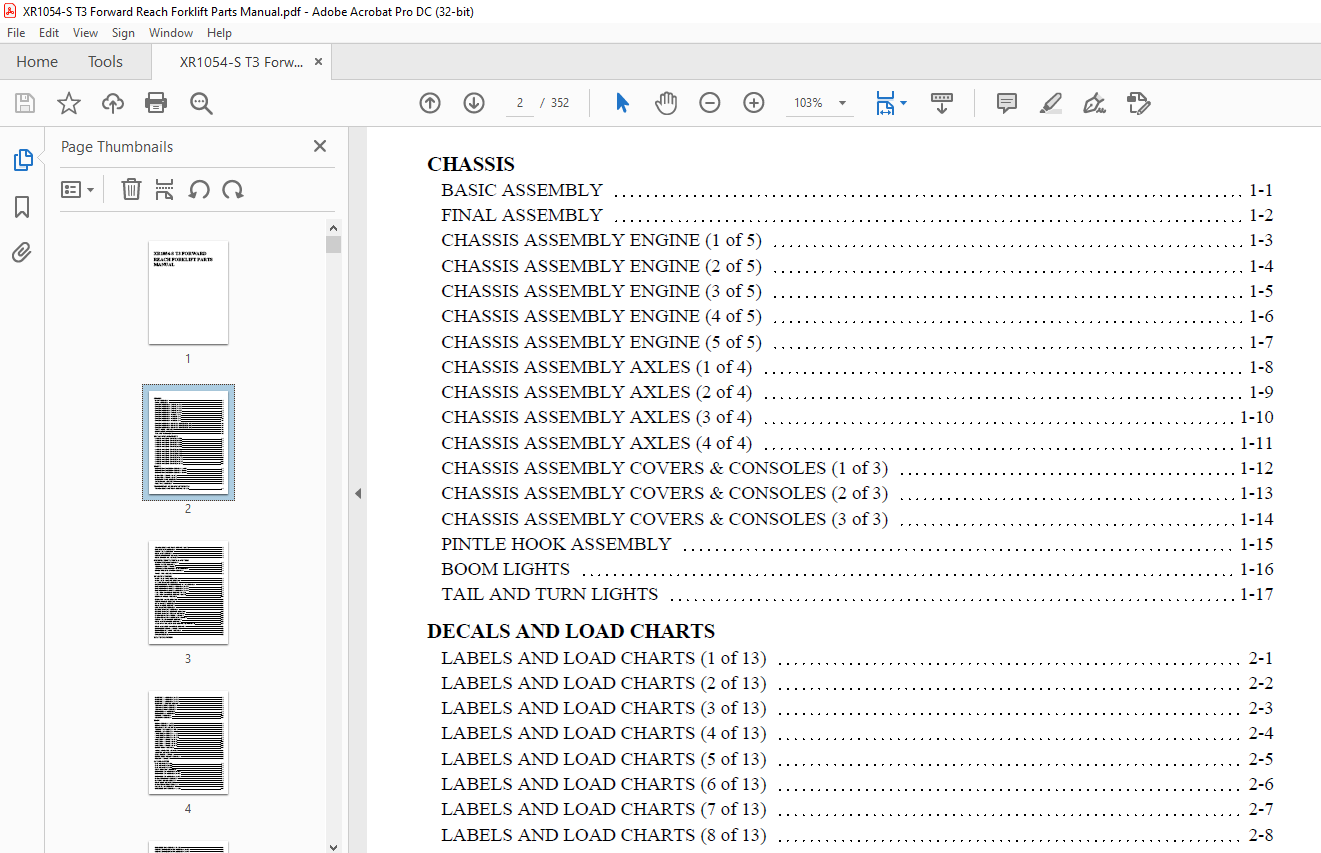

TABLE OF CONTENTS:

Xtreme XR1054-S T3 Forward Reach Forklift Parts Manual – PDF DOWNLOAD

CHASSIS
BASIC ASSEMBLY 1-1
FINAL ASSEMBLY 1-2
CHASSIS ASSEMBLY ENGINE (1 of 5) 1-3
CHASSIS ASSEMBLY ENGINE (2 of 5) 1-4
CHASSIS ASSEMBLY ENGINE (3 of 5) 1-5
CHASSIS ASSEMBLY ENGINE (4 of 5) 1-6
CHASSIS ASSEMBLY ENGINE (5 of 5) 1-7
CHASSIS ASSEMBLY AXLES (1 of 4) 1-8
CHASSIS ASSEMBLY AXLES (2 of 4) 1-9
CHASSIS ASSEMBLY AXLES (3 of 4) 1-10
CHASSIS ASSEMBLY AXLES (4 of 4) 1-11
CHASSIS ASSEMBLY COVERS & CONSOLES (1 of 3) 1-12
CHASSIS ASSEMBLY COVERS & CONSOLES (2 of 3) 1-13
CHASSIS ASSEMBLY COVERS & CONSOLES (3 of 3) 1-14
PINTLE HOOK ASSEMBLY 1-15
BOOM LIGHTS 1-16
TAIL AND TURN LIGHTS 1-17
DECALS AND LOAD CHARTS
LABELS AND LOAD CHARTS (1 of 13) 2-1
LABELS AND LOAD CHARTS (2 of 13) 2-2
LABELS AND LOAD CHARTS (3 of 13) 2-3
LABELS AND LOAD CHARTS (4 of 13) 2-4
LABELS AND LOAD CHARTS (5 of 13) 2-5
LABELS AND LOAD CHARTS (6 of 13) 2-6
LABELS AND LOAD CHARTS (7 of 13) 2-7
LABELS AND LOAD CHARTS (8 of 13) 2-8
LABELS AND LOAD CHARTS (9 of 13) 2-9
LABELS AND LOAD CHARTS (10 of 13) 2-10
LABELS AND LOAD CHARTS (11 of 13) 2-11
LABELS AND LOAD CHARTS (12 of 13) 2-12
LABELS AND LOAD CHARTS (13 of 13) 2-13
ENGINE
ENGINE TRANSMISSION ASSEMBLY (1 of 3) 3-1
ENGINE TRANSMISSION ASSEMBLY (2 of 3) 3-2
ENGINE TRANSMISSION ASSEMBLY (3 of 3) 3-3
RADIATOR ASSEMBLY (1 of 2) 3-4
RADIATOR ASSEMBLY (2 of 2) 3-5
OVERFLOW TANK ASSEMBLY 3-6
AIR CLEANER ASSEMBLY 3-7
FUEL TANK ASSEMBLY 3-8
TRANSMISSION, AX;ES AND DRIVESHAFTS
TRANSMISSION AND PUMP ASSEMBLY (1 of 2) 4-1
TRANSMISSION AND PUMP ASSEMBLY (2 of 2) 4-2
DIPSTICK TUBE ASSEMBLY 4-3
FRONT AXLE ASSEMBLY 4-4
REAR AXLE ASSEMBLY 4-5
FRONT DRIVESHAFT ASSEMBLY 4-6
REAR DRIVESHAFT ASSEMBLY 4-7
STEERING, BRAKES, WHEELS, AND TIRES
STEERING COLUMN ASSEMBLY 5-1
BRAKE VALVE ASSEMBLY 5-2
ACCUMULATOR ASSEMBLY 5-3
ACCUMULATOR CHARGE VALVE ASSEMBLY 5-4
BRAKE PRESSURE SWITCH ASSEMBLY 5-5
WHEEL TIRE ASSEMBLY 5-6
HYDRAULIC SYSTEM
HYDRAULIC TANK ASSEMBLY 6-1
HYDRAULIC TANK LID ASSEMBLY 6-2
MASTER CYLINDER ASSEMBLY 6-3
HIGH-PRESSURE-FILTER/STEERING VALVE ASSEMBLY 6-4
DISTRIBUTION MANIFOLD ASSEMBLY (1 of 3) 6-5
DISTRIBUTION MANIFOLD ASSEMBLY (2 of 3) 6-6
DISTRIBUTION MANIFOLD ASSEMBLY (3 of 3) 6-7
ISOLATION MANIFOLD ASSEMBLY (1 of 2) 6-8
ISOLATION MANIFOLD ASSEMBLY (2 of 2) 6-9
BOOM MANIFOLD ASSEMBLY 6-10
OPERATOR VALVE ASSEMBLY 6-11
FRONT HANDLE ASSEMBLY 6-12
SWAY HANDLE ASSEMBLY 6-13
REAR HANDLE ASSEMBLY 6-14
LIFT CYLINDER ASSEMBLY 6-15
EXTEND CYLINDER ASSEMBLY 6-16
EXTEND CYLINDER HOUSING ASSEMBLY 6-17
EXTEND CYLINDER COLLAR ASSEMBLY 6-18
CARRIAGE TILT CYLINDER ASSEMBLY 6-19
CARRIAGE TILT CYLINDER SUBASSEMBLY 6-20
FRONT AXLE CYLINDER ASSEMBLY 6-21
REAR AXLE CYLINDER ASSEMBLY 6-22
AXLE SWAY CYLINDER SUB-ASSEMBLY (29362-000R1) 6-23
REAR AXLE LOCK MANIFOLD ASSEMBLY 6-24
OUTRIGGER MOUNT ASSEMBLY 6-25
OUTRIGGER CYLINDER ASSEMBLY 6-26
BOOM HOSE KIT 6-27
CHASSIS HOSE KIT 6-28
ELECTRICAL SYSTEM
ELECTRICAL ASSEMBLY (1 of 3) 7-1
ELECTRICAL ASSEMBLY (2 of 3) 7-2
ELECTRICAL ASSEMBLY (3 of 3) 7-3
ELECTRICAL CENTER ASSEMBLY 7-4
TERMINAL STRIP ASSEMBLY 7-5
TERMINAL STRIP ASSEMBLY 7-6
TERMINAL STRIP ASSEMBLY 7-7
ENGINE RELAY ASSEMBLY 7-8
ENGINE RELAY ASSEMBLY 7-9
FUSE BOX ASSEMBLY 7-10
SOLENOID ASSEMBLY 7-11
BOOM
BOOM ASSEMBLY (1 of 2) 8-1
BOOM ASSEMBLY (2 of 2) 8-2
BELLEVILLE SPRING STACK 8-3
TUBE CLAMP ASSEMBLY NO. 2 8-4
HOSE CLAMP ASSEMBLY 8-5
INNER BOOM ASSEMBLY (1 of 3) 8-6
INNER BOOM ASSEMBLY (2 of 3) 8-7
INNER BOOM ASSEMBLY (3 of 3) 8-8
MID BOOM ASSEMBLY (1 of 4) 8-9
MID BOOM ASSEMBLY (2 of 4) 8-10
MID BOOM ASSEMBLY (3 of 4) 8-11
MID BOOM ASSEMBLY (4 of 4) 8-12
OUTER BOOM ASSEMBLY 8-13
ANGLE INDICATOR ASSEMBLY 8-14
ADAPTER ASSEMBLY 8-15
SLIDE BLOCK ASSEMBLY 8-16
OUTER BOOM ROLLER ASSEMBLY 8-17
ROLLER ASSEMBLY 8-18
CAB AND COVERS
CAB ASSEMBLY (1 of 3) 9-1
CAB ASSEMBLY (2 of 3) 9-2
CAB ASSEMBLY (3 of 3) 9-3
SEAT ASSEMBLY (14666-000) 9-4
ENGINE COVER ASSEMBLY (1 of 2) 9-5
ENGINE COVER ASSEMBLY (1 of 2) 9-6
ENGINE COVER ASSEMBLY (2 of 2) 9-7
RADIATOR COVER ASSEMBLY 9-8
BATTERY COVER ASSEMBLY 9-9
REAR LIGHT ASSEMBLY 9-10
RADIATOR SHROUD ASSEMBLY 9-11
FILLER PLATE ASSEMBLY 9-12
ENCLOSED CAB ASSEMBLY (1 of 2) 9-13
ENCLOSED CAB ASSEMBLY (2 of 2) 9-14
FRONT CONTROL CONSOLE ASSEMBLY (1 of 2) 9-15
FRONT CONTROL CONSOLE ASSEMBLY (2 of 2) 9-16
FRONT CONTROL PANEL ASSEMBLY 9-17
CONTROL ENCLOSURE SUB-ASSEMBLY 9-18
CONTROL CONSOLE ASSEMBLY (1 of 2) 9-19
CONTROL CONSOLE ASSEMBLY (2 of 2) 9-20
CONTROL CONSOLE COVER ASSEMBLY 9-21
ACCELERATOR PEDAL ASSEMBLY 9-22
FRONT COVER ASSEMBLY (1 of 2) 9-23
FRONT COVER ASSEMBLY (2 of 2) 9-24
ATTACHMENTS
STANDARD CARRIAGE ASSEMBLY 10-1
CARRIAGE PIN ASSEMBLY 10-2
FORK POSITIONING CARRIAGE ASSEMBLY 10-3
FORK ADJUSTING MANIFOLD ASSEMBLY 10-4
Appendix A:Pages Index A
Appendix B:Parts Index B
