Xtreme XR1247-B Telehandler Parts Manual 2490167-000 – PDF DOWNLOAD

Xtreme XR1247-B Telehandler Parts Manual 2490167-000 – PDF DOWNLOAD

Xtreme XR1247-B Telehandler Parts Manual (2490167-000) is a comprehensive PDF guide with detailed diagrams, part numbers, and instructions. Downloadable for easy access, aiding in efficient maintenance and repairs of the XR1247-B model.

FILE DETAILS:

Xtreme XR1247-B Telehandler Parts Manual 2490167-000 – PDF DOWNLOAD

Language : English
Pages : 302
Downloadable : Yes
File Type : PDF

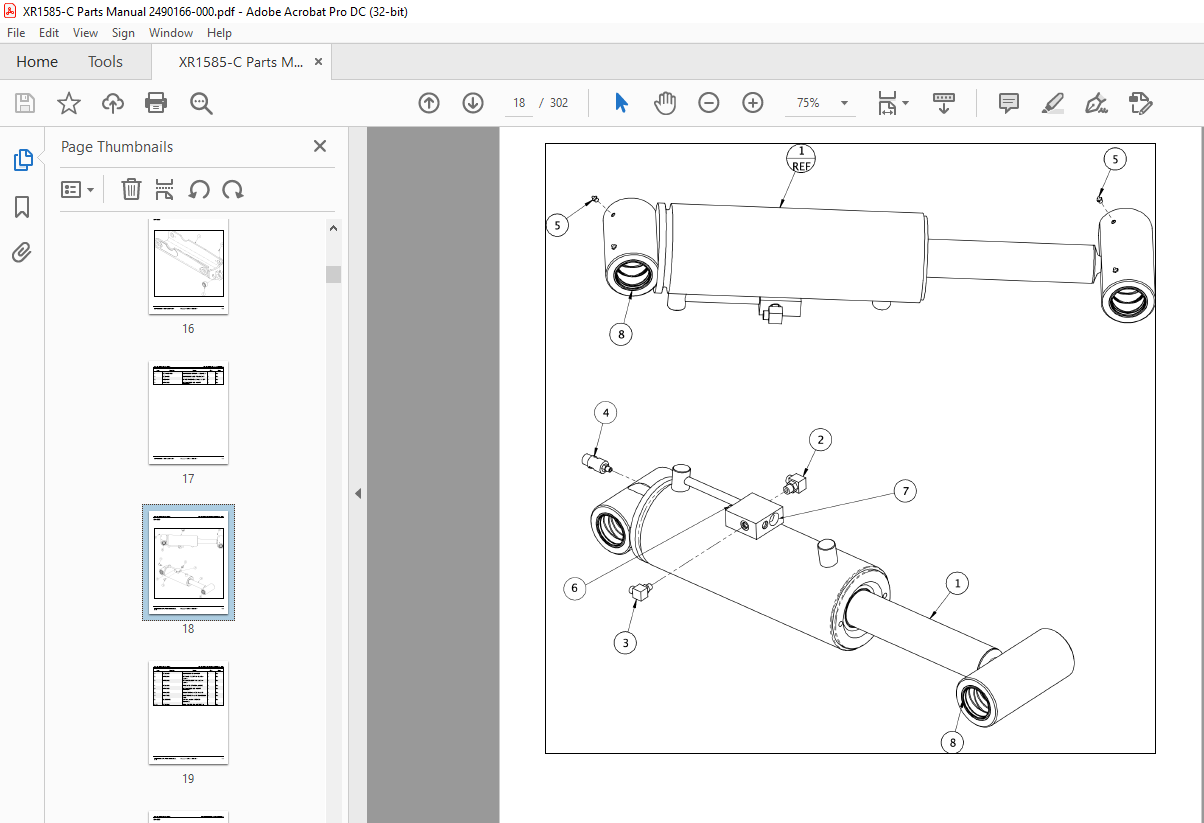

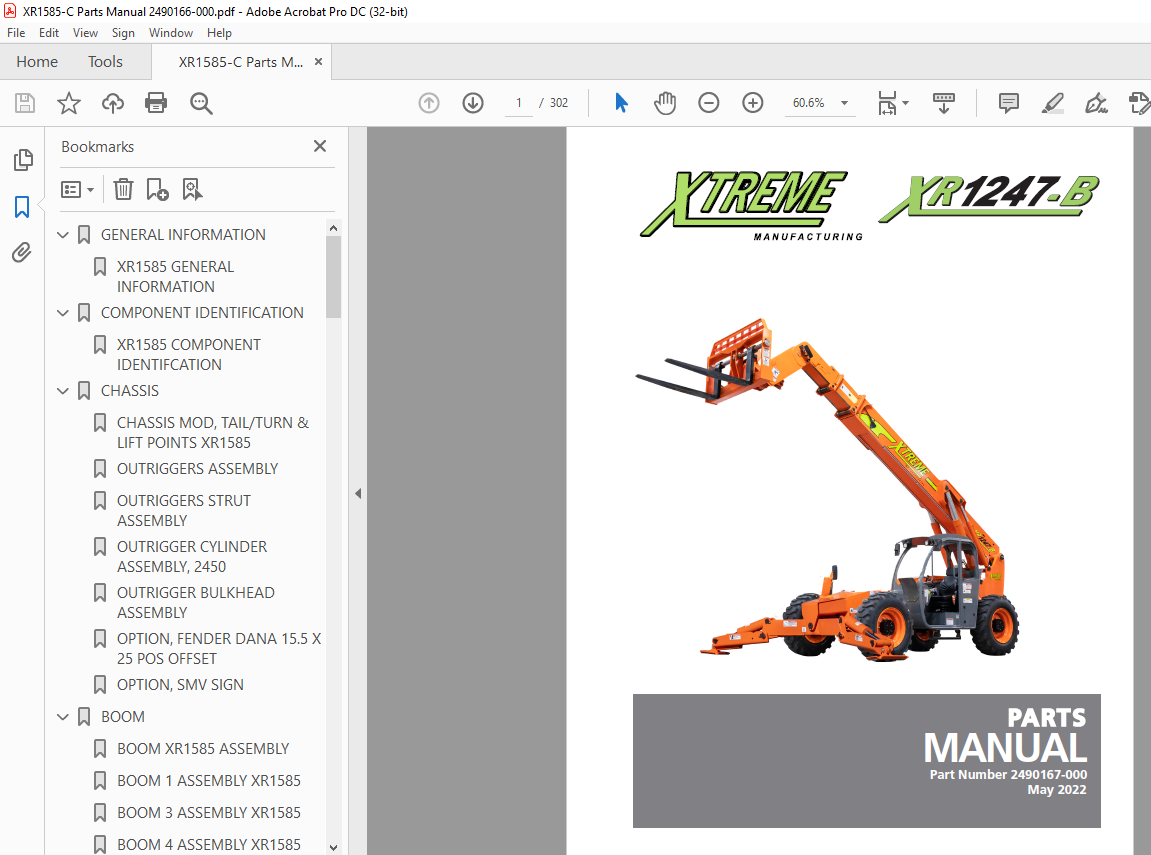

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Xtreme XR1247-B Telehandler Parts Manual 2490167-000 – PDF DOWNLOAD

GENERAL INFORMATION
XR1585 GENERAL INFORMATION 1-1
COMPONENT IDENTIFICATION
XR1585 COMPONENT IDENTIFCATION 2-1
CHASSIS
CHASSIS MOD, TAIL/TURN & LIFT POINTS XR1585 3-1
OUTRIGGERS ASSEMBLY 3-2
OUTRIGGERS STRUT ASSEMBLY 3-3
OUTRIGGER CYLINDER ASSEMBLY, 2450 3-4
OUTRIGGER BULKHEAD ASSEMBLY 3-5
OPTION, FENDER DANA 15.5 X 25 POS OFFSET 3-6
OPTION, SMV SIGN 3-7
BOOM
BOOM XR1585 ASSEMBLY 4-1
BOOM 1 ASSEMBLY XR1585 4-2
BOOM 3 ASSEMBLY XR1585 4-3
BOOM 4 ASSEMBLY XR1585 4-4
BOOM 5 ASSEMBLY XR1585 4-5
OPTION – SOLARGIZER 12V ALDEN 4-6
SECOND MID BOOM ASSEMBLY 4-7
ROLLER ASSEMBLY 4-8
ROLLER ASSEMBLY 4.50 OD x 3.00 ID 4-9
OUTER BOOM ROLLER ASSEMBLY 4-10
OUTER BOOM ROLLER ASSEMBLY 4-11
7″ OUTER BOOM ROLLER ASSEMBLY 4-12
ADAPTER ASSEMBLY XR1347 4-13
SLIDE BLOCK ASSEMBLY 4-14
SLIDE BLOCK ASSEMBLY 4-15
CHAIN SHEAVE ASSEMBLY 4-16
CHAIN SHEAVE ASSEMBLY 4-17
TUBE CLAMP ASSEMBLY #2 4-18
HOSE CLAMP ASSEMBLY 4-19
OPTION, 5 STAGE CORD REEL INSTALLATION 4-20
ENGINE
CHASSIS ENGINE ASSEMBLY XR1585 5-1
ENGINE / TRANSMISSION ASSEMBLY XR1585 T4F W/T14 5-2
HYDRAULIC / FUEL TANK ASSEMBLY XR1585 5-3
HYDRAULIC / FUEL TANK PURCHASED ASSEMBLY XR1585 5-4
COOLER ASSEMBLY 5-5
OPTION, BREATHER HEATER / HI IDLE, 4.5 CUMMINS INSTALLATION 5-6
OPTION, CUMMINS 4.5L TELEMATICS 5-7
CABIN AND COVERS
CAB MOUNTING – XR1585 OPEN CAB 6-1
CAB MOUNTING – XR1585 ENCLOSED CAB 6-2
CAB MOUNTING – XR1585 ENCLOSED CAB WITH AC 6-3
CAB, OPEN ASSEMBLY 6-4
CAB, ENCLOSED ASSEMBLY 6-5
CAB ENCLOSED W/AC ASSEMBLY 6-6
ACCELERATOR PEDAL ASSEMBLY 6-7
SEAT ASSEMBLY 6-8
OPTION, SECONDARY SEATBELT SWITCH BEACON 6-9
UNIVERSAL BATTERY COVER ASSEMBLY TIER 4 6-10
CHASSIS COVERS ASSEMBLY 6-11
RADIATOR COVER ASSEMBLY, TIER 4 6-12
ENGINE COVER ASSEMBLY WITH HOOD ROLLERS 6-13
FRONT COVER ASSEMBLY, STEEL, LONG 6-14
COOLER COVER ASSEMBLY XR4030 TIER 4 FINAL 6-15
COVER ASSEMBLY, DEF, 120 HP CUMMINS 6-16
OPTION, REAR CAMERA INSTALLATION 4.5L CUMMINS 6-17
OPTION, FIRE EXTINGUISHER INSTALLATION 6-18
HYDRAULIC SYSTEM
CHASSIS HOSE KIT XR1585 7-1
BOOM HOSE KIT 7-2
EXTEND CYLINDER HOUSING ASSEMBLY 7-3
EXTEND CYLINDER ASSEMBLY 7-4
EXTEND CYLINDER ASSEMBLY 7-5
MASTER CYLINDER PIN ASSEMBLY 7-6
LIFT CYLINDER PIN ASSEMBLY 7-7
BOOM MANIFOLD ASSEMBLY 7-8
BOOM 4 MANIFOLD LH ASSEMBLY XR1585 7-9
BOOM 4 MANIFOLD RH ASSEMBLY XR1585 7-10
FRONT SWAY CYLINDER ASSEMBLY 7-11
REAR SWAY CYLINDER ASSEMBLY 7-12
BOOM PIVOT PIN ASSEMBLY XR1585 7-13
ELECTRICAL SYSTEM
HARNESS, DANA T14 TRAN/PG 8-1
BACK UP LIGHT HARNESS 8-2
HARNESS, WINDSHIELD WIPER 8-3
BATTERY HOLDER ASSEMBLY 8-4
SWITCH PANEL ASSEMBLY XR1585 8-5
JOYSTICK ASSEMBLY, DUAL AXIS 8-6
ASSY, GT JOYSTICK SWAY 8-7
HARNESS, XR1585 JOYSTICK/PG CAN I/O 8-8
BATTERY DISCONNECT SWITCH ASSEMBLY 8-9
ENGINE HARNESS CUMMINS 4.5 8-10
HARNESS, ENGINE / AFTERTREAT 8-11
ELECTRICAL ACCESS PANEL ASSEMBLY 8-12
OPTION, CAB WORKLIGHT – OPEN CAB 8-13
OPTION, BOOM LIGHTS 8-14
OPTION, WHITE NOISE ALARM XR1055 8-15
LIGHT-RED LED ASSEMBLY 8-16
TRANSMISSIONS, AXLES, & DRIVESHAFTS
CHASSIS ASSEMBLY – AXLES XR1585 9-1
TRANSMISSION / PUMP T14 ASSEMBLY 9-2
FRONT AXLE ASSEMBLY XR2450 XR3034 9-3
REAR AXLE ASSEMBLY XR3034 TIER 4 FINAL 9-4
STEERING, BRAKES, WHEELS, & TIRES
STEERING COLUMN ASSEMBLY 20/30K 10-1
STEERING COLUMN ASSEMBLY 10-2
BRAKE VALVE ASSEMBLY, MICO 10-3
BRAKE RETURN MANIFOLD ASSEMBLY 10-4
BRAKE CHARGE VALVE ASSEMBLY 10-5
BRAKE RETURN FILTER ASSEMBLY 10-6
ACCUMULATOR ASSEMBLY 10-7
WHEEL AND TIRE ASSEMBLY 10-8
WHEEL AND TIRE ASSEMBLY T4F 10-9
LABELS
DECALS XR1585 INSTALLATION 11-1
ATTACHMENTS
HITCH PIN ASSEMBLY 12-1
SIDE SHIFT CARRIAGE GROUP C ASSEMBLY 12-2
72″ ADJ CARRIAGE GRP C TALL 12-3
Appendix A:Pages Index A
Appendix B:Parts Index B
