Yamaha XT660X 2004 (1D21) EUROPE XT660X 2004(1D23) England Parts Manual - PDF DOWNLOAD

Yamaha XT660X 2004 (1D21) EUROPE XT660X 2004(1D23) England Parts Manual - PDF DOWNLOAD

FILE DETAILS:

Yamaha XT660X 2004 (1D21) EUROPE XT660X 2004(1D23) England Parts Manual - PDF DOWNLOAD

Language : English
Pages : 83
Downloadable : Yes
File Type : PDF

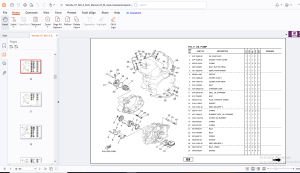

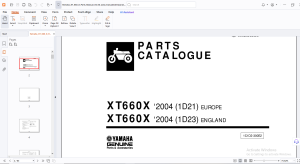

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Yamaha XT660X 2004 (1D21) EUROPE XT660X 2004(1D23) England Parts Manual - PDF DOWNLOAD

Engine Components:
Cylinder Head - B2
Cylinder - B3
Crankshaft & Piston - B4
Valve - B5
Camshaft & Chain - B6
Water Pump - B7
Oil Pump - B9
Intake - B11
Intake 2 - B13
Exhaust - B14
Crankcase - C2
Crankcase Cover 1 - C3
Starter Clutch - C5
Clutch - C6
Transmission - C8
Shift Cam & Fork - C10
Shift Shaft - C11
Electrical Components:
Generator - E11
Flasher Light - E12
Meter - E13
Headlight - E14
Taillight - E15
Electrical 1 - F2
Electrical 2 - F3
Front Master Cylinder - E6
Rear Master Cylinder - E9
Handle Switch & Lever - F4
Frame & Chassis:
Frame - C12
Fender - C14
Side Cover - D2
Rear Arm - D3
Rear Suspension - D5
Steering - D6
Front Fork - D8
Fuel Tank - D10
Seat - D12
Front Wheel - D14
Rear Wheel - E2
Rear Brake Caliper - E4
Front Brake Caliper - D15
Steering Handle & Cable - E5
Stand & Footrest - E7
Miscellaneous:
Numerical Index - M1

DESCRIPTION:

Yamaha XT660X 2004 (1D21) EUROPE XT660X 2004(1D23) England Parts Manual - PDF DOWNLOAD

FOREWORD:

• This Parts Catalogue is related to the parts for the model(s) in the below frame.
• When you are ordering replacement parts, please refer to this Parts Catalogue and quote both part numbers and parts names correctly.

G.B 14/03/25
